Vulcan CHEF-102E Chef'sCombi Full Size Combi Oven - Boiler Based, 208v/3ph
Retail Price: $54,487.00
$22,430.00 /Each
Selected Voltage: 208V, 3 Phase
| 208V, 3 Phase |
| 240V, 3 Phase |
| 480V, 3 Phase |

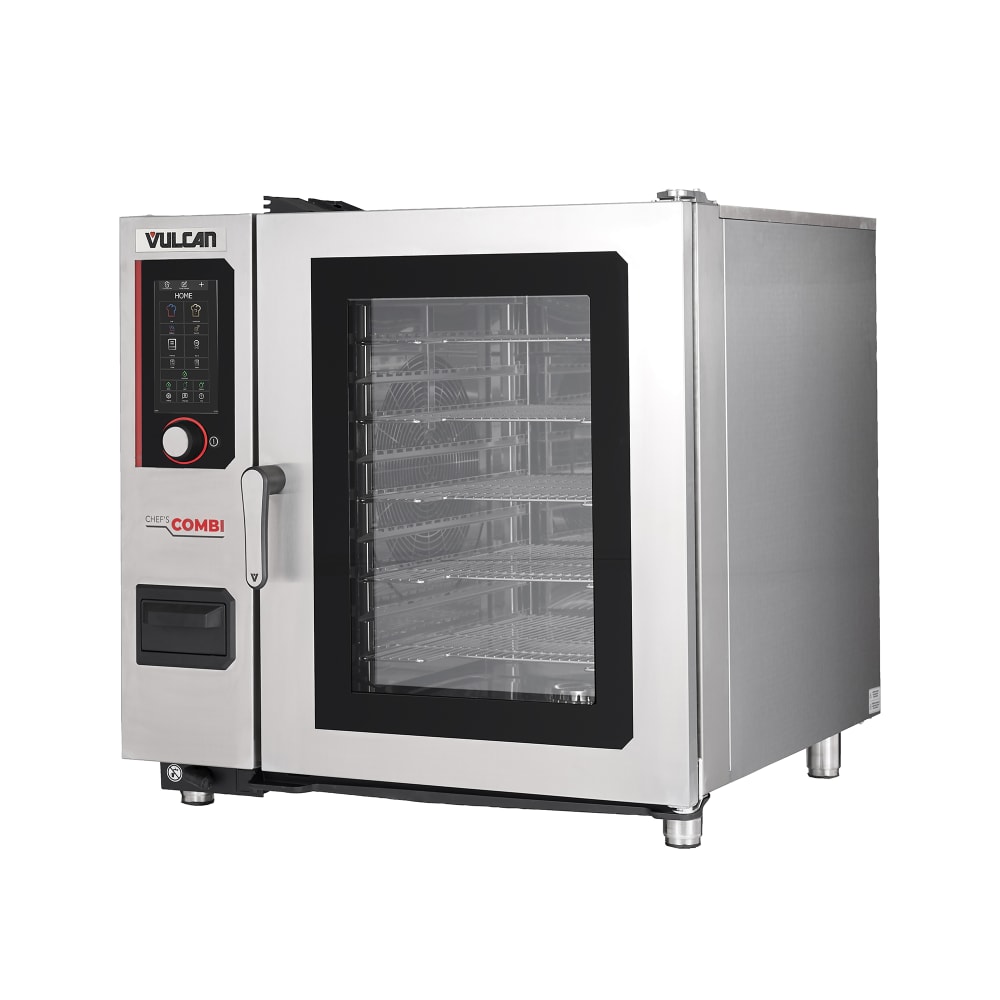

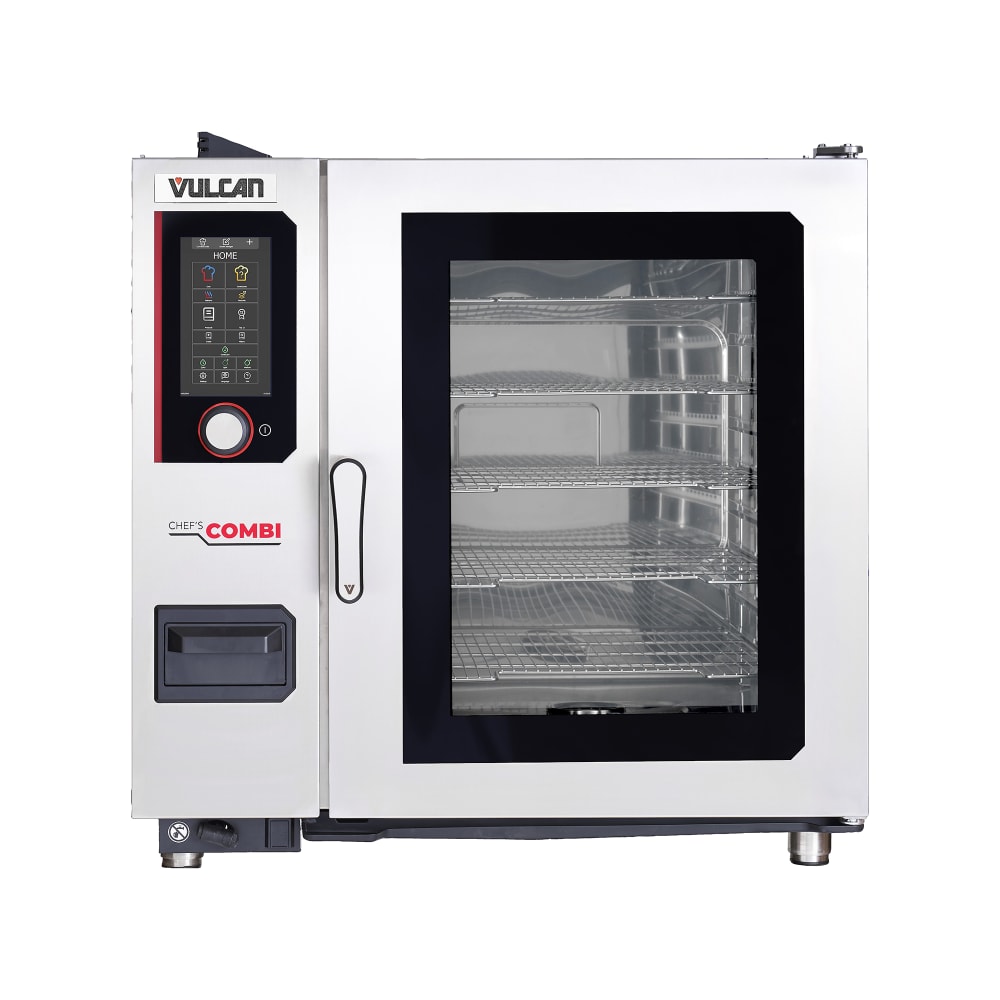

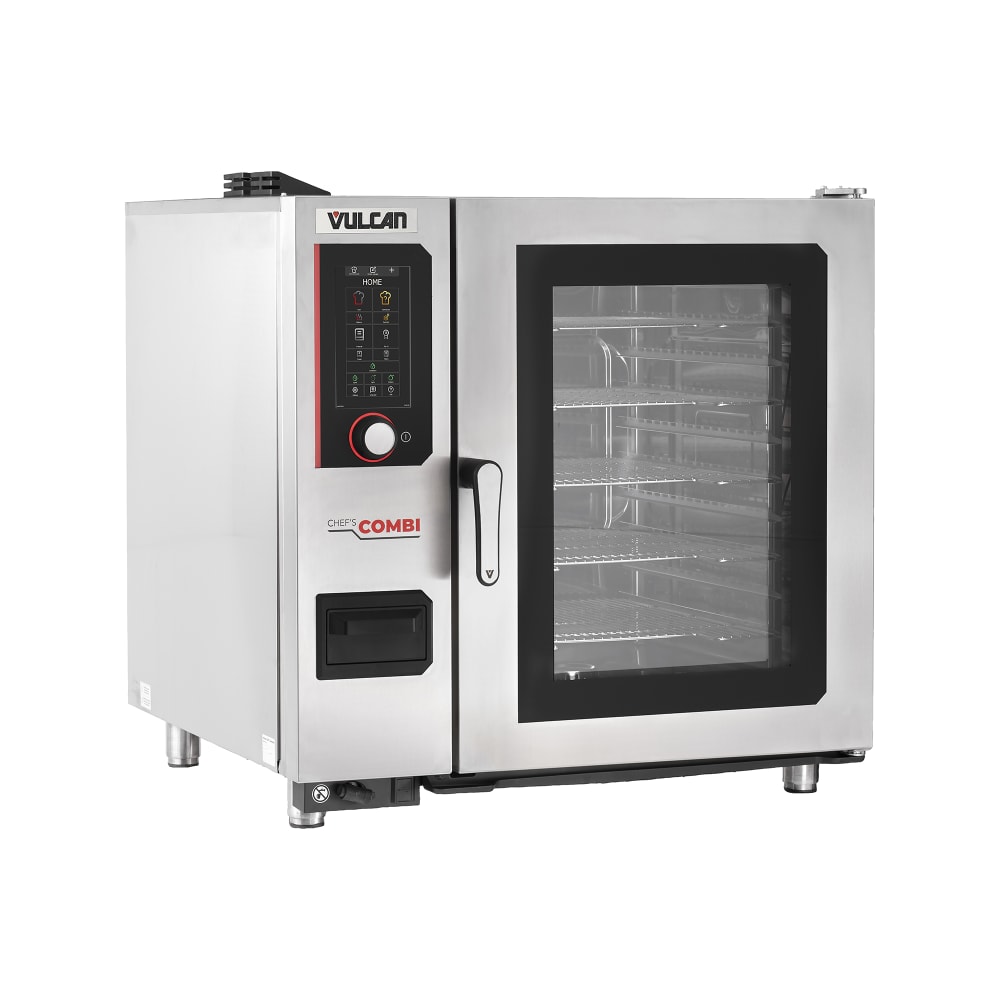

Vulcan CHEF-102E Description
The Vulcan CHEF-102E Chef’sCombi full-size combi oven is a boiler-based electric model equipped with 10 levels that hold up to 10 full-size sheet pans or 20 full-size steam pans. Its high-performance steam generator works in tandem with precision heating elements and a reversing fan wheel to ensure even heat circulation across all levels. With five adjustable fan speeds and programmable Delta-T cooking, it supports a wide variety of high-capacity cooking modes. The seamless cooking chamber is constructed of ASTM 304 stainless steel and is illuminated by long-life LEDs behind a double-glazed door with heat-reflective coating and rear ventilation.
The Vulcan CHEF-102E combi oven's operating system includes CombiGuide, MenuMix, AutoClimate, and CombiClimateControl, which facilitate custom control over cooking paths, timing, cabinet climate, and recipe loads. Maintenance is simplified by the CombiCare cleaning system, which includes four preset cycles and an ultrafast rinse. Solid cleaning tablets and descaling sticks automate the wash process across the chamber and steam generator. For data export and HACCP compliance, the system features USB, Ethernet, and optional WiFi/Bluetooth connectivity.
- Chef’sCombi series
- Full-size capacity
- Holds (10) 18-in. x 26-in. sheet pans
- Holds (20) 12-in. x 20-in. steam pans
- 10 pan levels
- ASTM 304 stainless steel interior
- 2 16⁄25-in. spacing between rack levels
- 1 right-hinged, double-glazed door with heat-reflective glass door coating
- Integrated retractable sprayer
- 5 wire racks included
- IPX5-rated housing
- Boiler-based steam generation system
- Convection cooking: 80–575 degrees F
- Steam cooking: 90–270 degrees F
- Combination cooking: 80–575 degrees F
- Multi-point core temperature probe
- Delta-T cooking mode
- 5 fan speeds
- Air and water cabinet cooling
- CombiClimateControl automation
- AutoClimate adjustment
- Automatic proofing function
- Cook and hold feature
- 10-in. capacitive HD touchscreen
- CombiOS operating system
- CombiGuide cooking assistant
- MenuMix recipe planner
- Unlimited recipe storage
- 12-slot favorites menu
- Quick temperature and time menus
- Real-time humidity and temperature display
- Status LEDs and control illumination
- USB and Ethernet port
- WiFi/Bluetooth via USB dongle
- 41 in. W x 41 1⁄16 in. D x 42 9⁄25 in. H
- 35.9 kW, 101.8 A
- 208 V/60 Hz/3 ph
- 1 1⁄2-in. drain connection
*Image may not depict product color, inclusions or accessories.
*Free shipping on Vulcan CHEF-102E within the 48 contiguous states.
From The Manufacturer
CHEF'SCOMBI 102E, Electric 10-level (208v) full-size(GN 2/1) capacity, (10) 18" x 26" full-size sheet pan or (20) 12" x 20" steam pan, All-in-one multifunctional cooking equipment with customizable CombiOS interface, CombiClimateControl, AutoClimate, CombiGuide, MenuMix, & CombiCare, humidity sensor-controlled climate regulation, high-performance dehumidification, controlled even heat distribution & humidifying function, Multi-point food probe, (5) wire racks, retractable sprayer, Ethernet & WiFi enabled, steam generator combi oven, IPX5, cULus, NSF
Watch a video about this product
Vulcan CHEF-102E Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Controls | Touch Screen |
| Depth (in) | 41.06 |
| Heat | Electric |
| Height (in) | 42.36 |
| Hertz | 60 |
| Hinge Configuration | Right |
| Installation Type | Floor Model |
| kW | 35.9 |
| No. of Compartments | Single |
| Pan Type | Full Size Sheet Pans |
| Pan Type | Full Size Steam Pans |
| Phase | 3 |
| Product | Combi Ovens |
| Product Type | Cooking Equipment |
| Rating | Better |
| Series | Chef'sCombi |
| Sheet Pan Capacity | 10 Full |
| Size | Full Size |
| Special Features | Cook & Hold |
| Special Features | HACCP Record Keeping |
| Special Features | USB Compatible |
| Steam Generator | Boiler-Based |
| Steam Pan Capacity | 20 Full |
| Steam Source | Water Reservoir |
| Voltage | 208 |
| Warranty | 2-year Limited Parts & Labor; 5-year Steam Generator |
| Width (in) | 41.02 |
| Weight | 474.00 |
