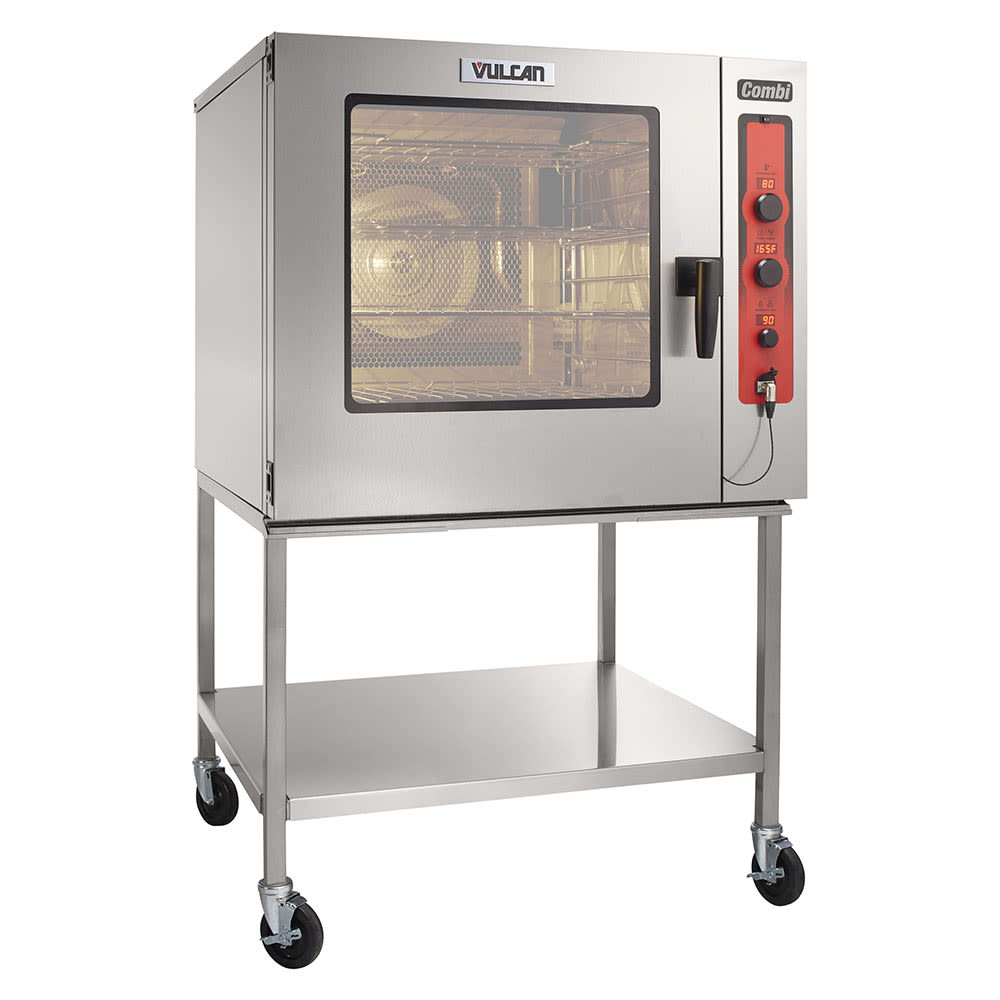

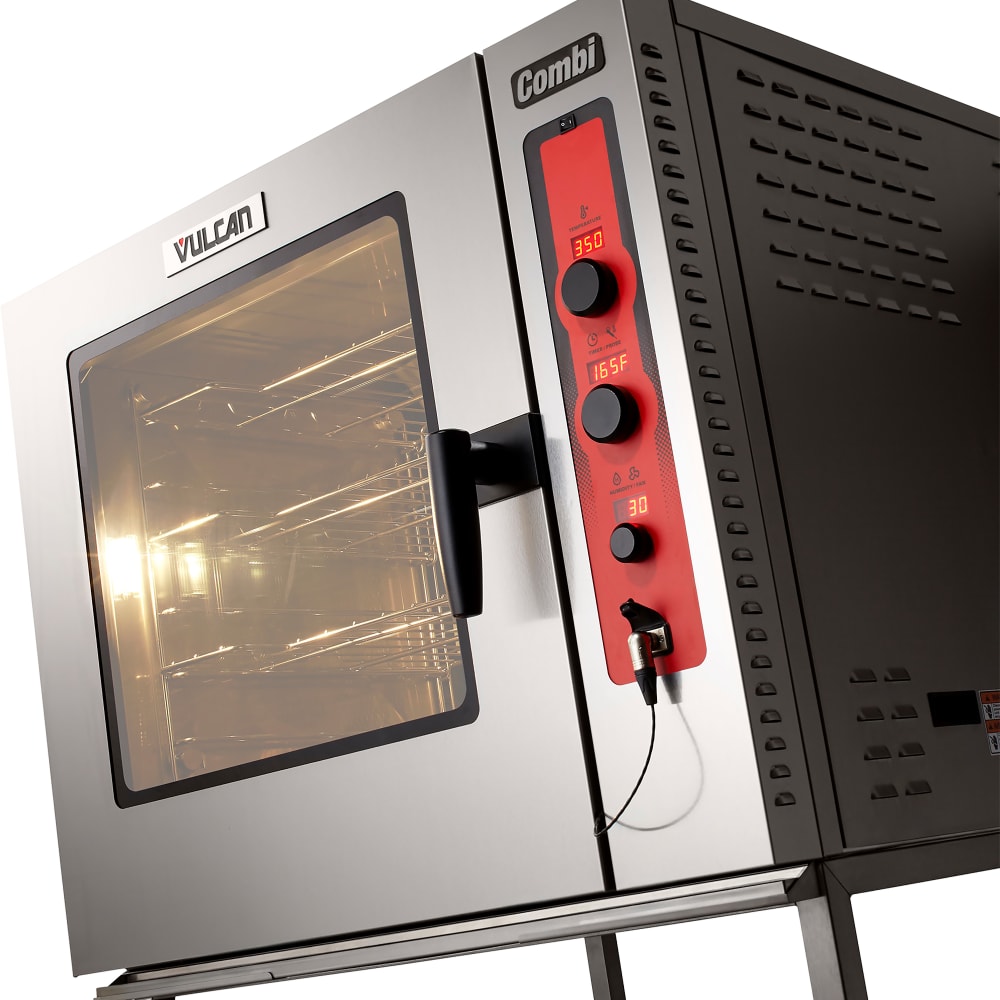

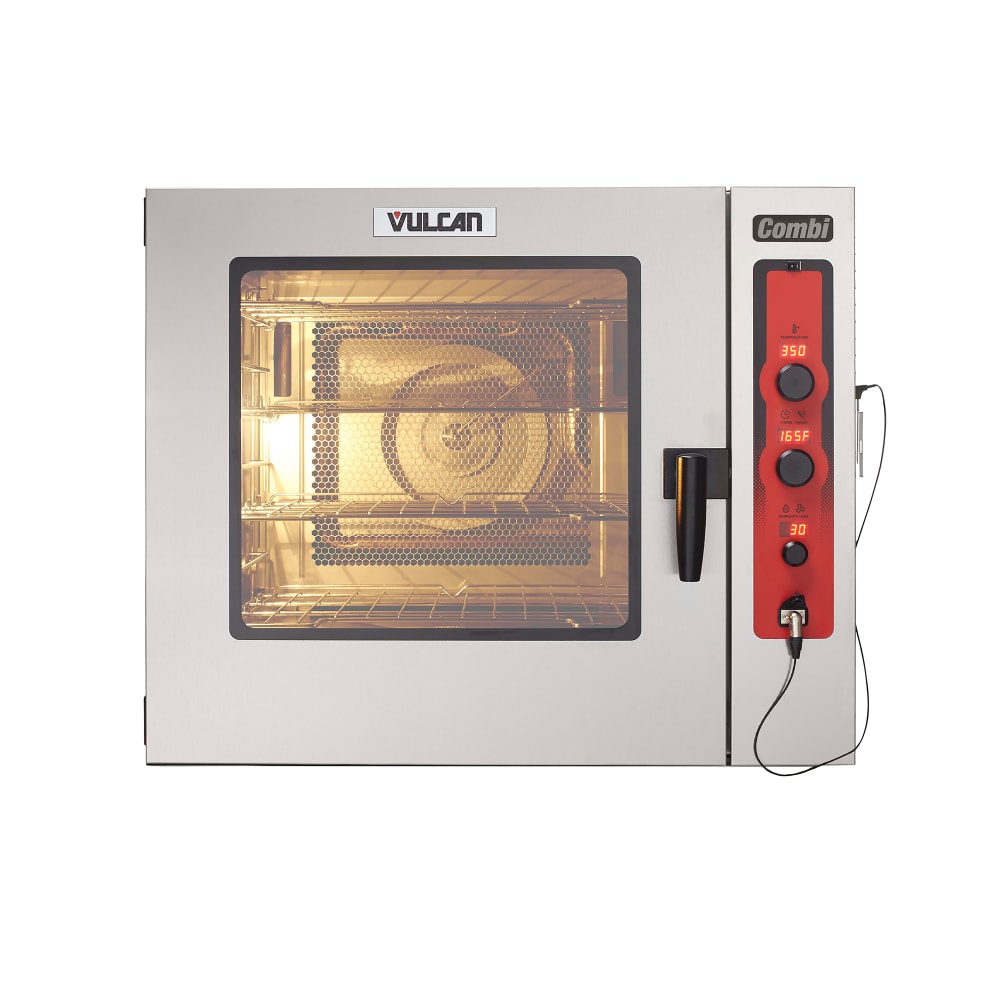

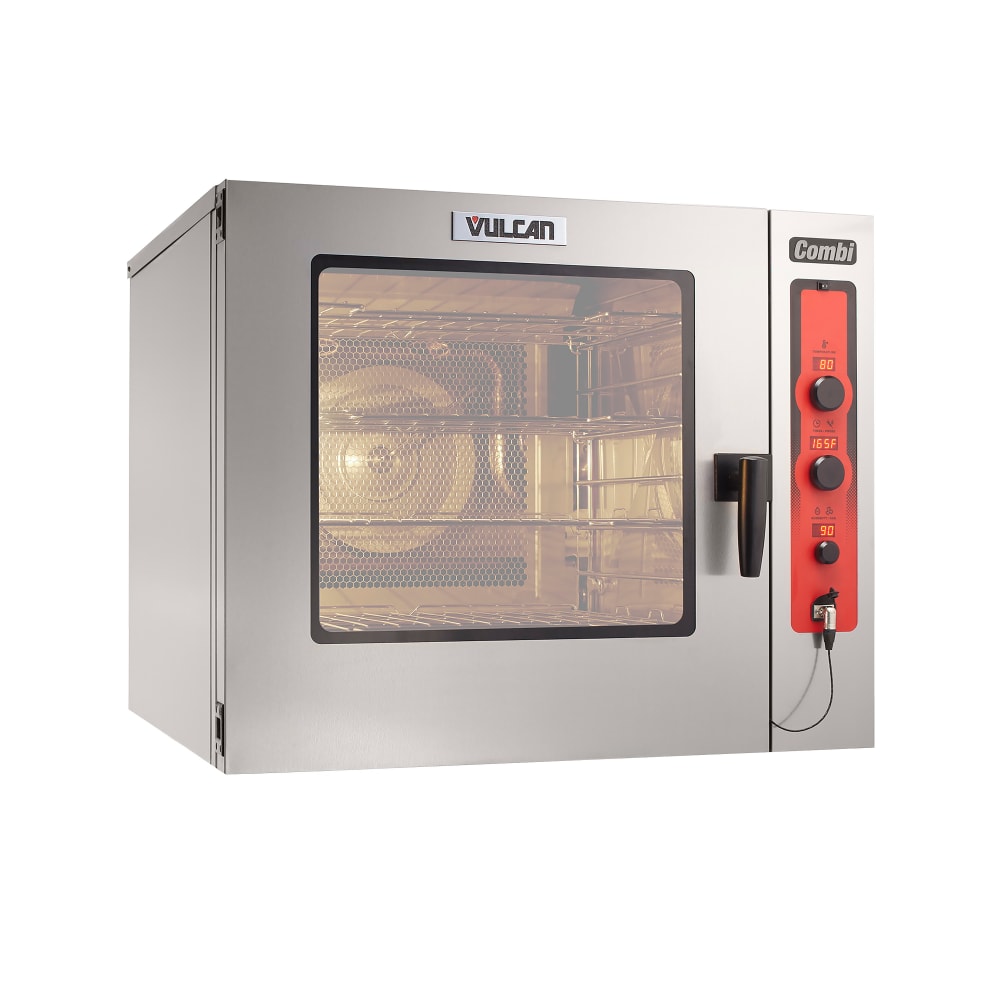

Vulcan ABC7E-480P Full Size Combi Oven - Boilerless, 480v/3ph

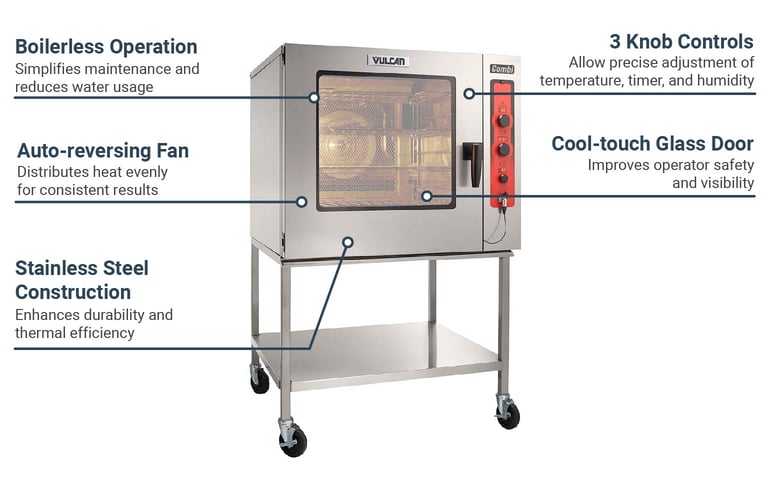

The Vulcan ABC7E-480 full-size combi oven provides exceptional versatility, accommodating seven 18-inch by 26-inch full-size sheet pans or (14) 12-inch by 20-inch hotel pans. Designed for various cooking methods, it supports applications like air-frying, steaming, roasting, and proofing. A boilerless operation with automatic humidity adjustment ensures consistent results, while an auto-reversing fan and fan speed control optimize heat circulation. The intuitive three-knob controls and LED temperature displays make operating the unit straightforward and efficient.

Built for durability and operator safety, the Vulcan ABC7E-480 features a fully insulated stainless steel construction and a cool-touch, heat-reflective tempered glass door. The unit includes a food probe for precise cooking, along with halogen lighting to illuminate the cooking chamber. Four stainless steel grab-n-go racks maximize holding capacity, and diagnostics can be accessed through the control panel or USB port for streamlined maintenance. This unit requires hardwired installation and doesn't include a stand.

Product Details

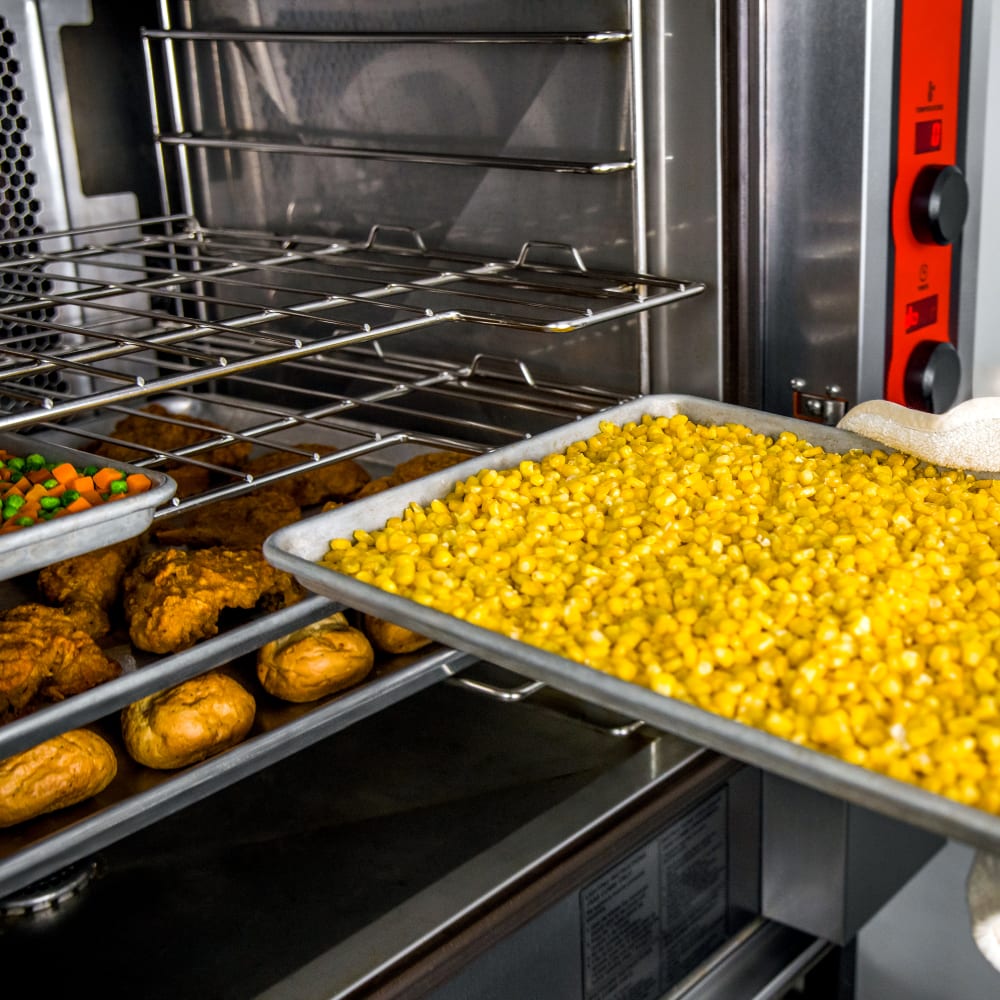

• Accommodates (7) 18-in. x 26-in. sheet pans or (14) 12-in. x 20-in. hotel pans
• Fully insulated stainless steel construction
• Cool-touch, heat-reflective tempered glass door
• Halogen door light behind heat-reflective inner glass
• Flashing door light and audible alarm system
• Includes 4 grab-n-go racks
• 1-in. drain connection tube
• Stand sold separately

Heating & Operating System

• Cooking applications: baking, steaming, roasting, air-frying, rethermalization, proofing, finishing, poaching, stewing, low temp, and defrosting
• Boilerless operation with automatic humidity adjustment
• Auto-reversing fan
• Fan speed control
• Integrated percision probe

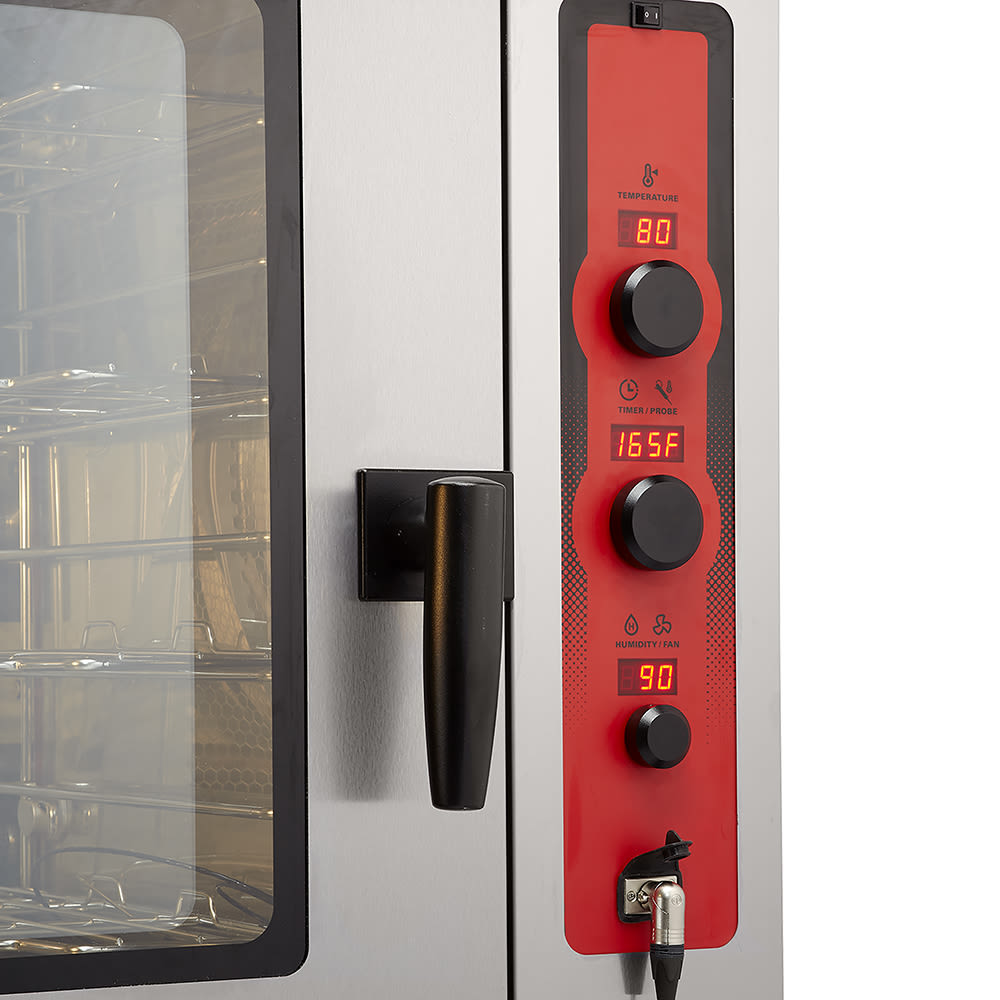

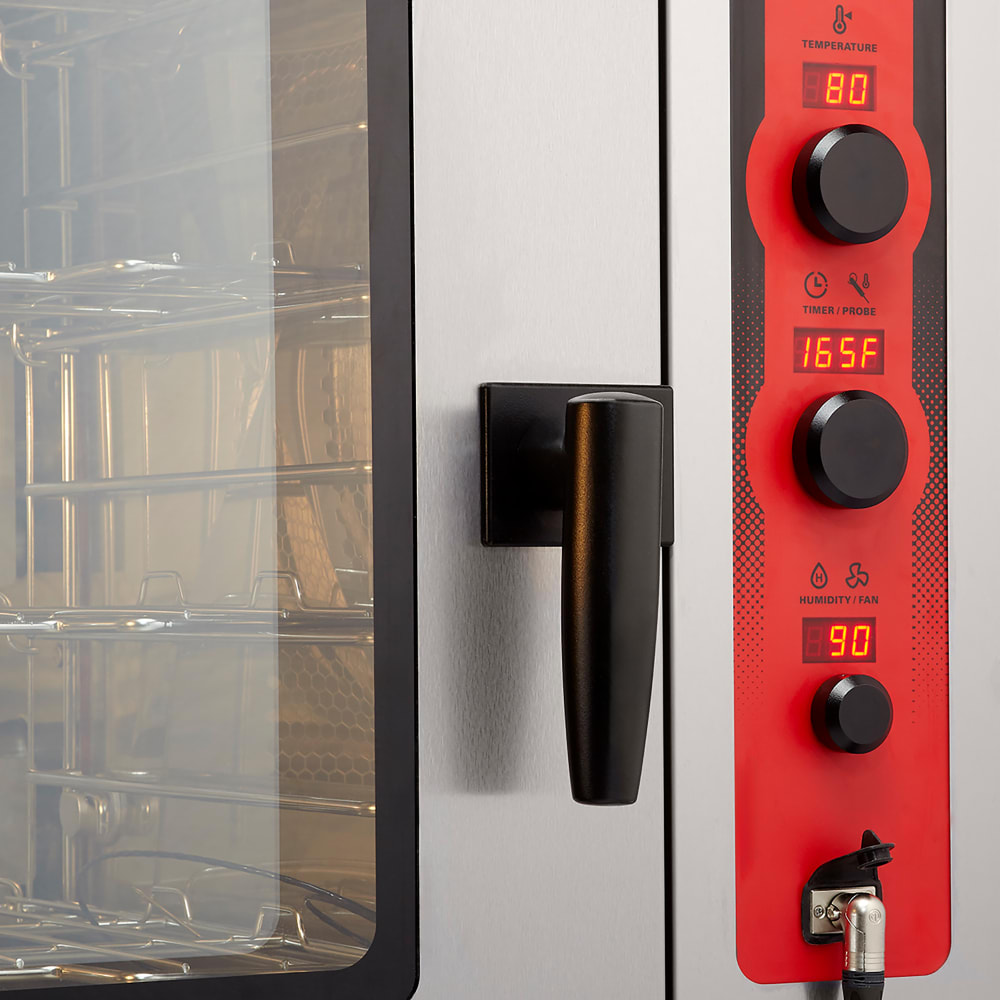

• 3 knob controls: temperature, timer, and humidity
• LED temperature displays
• Machine diagnostics accessible through controls or USB port
• Timer continuous up to 23 hours and 59 minutes
• Temperature cooking range: 80-450 degrees F

Dimensions & Utilities

• 42¹⁄₅ in. W x 43¹⁄₂ in. D x 35 in. H
• 28.9 A, 24 kW
• 480 V/60 Hz/3 ph (hardwire installation required)

Product Features

*Free shipping on Vulcan ABC7E-480P within the 48 contiguous states.

From The Manufacturer

Combi Oven/Steamer, electric, boilerless, (7) 18" x 26" full size sheet or (14) 12" x 20" full size hotel pan capacity, (3) knobs with LED displays for temperature, timer & humidity, auto-adjustment of humidity with temperature selection, food probe, auto-reversing fan with speed control & electronic braking system, cool to touch glass door, flashing door light & audible alert, (4) Grab n Go wire racks, stainless steel interior & exterior, engineered & assembled in USA,, 480v/60/3ph, UL EPH Classified, cULus

*Image may not depict product color, inclusions or accessories.

1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts

Vulcan ABC7E-480P Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.

Documents

Spec Sheet

Warranty

Service Manual

Parts Breakdown

Installation Guide

Product Info

Brochure

Cleaning Guide

Catalog
