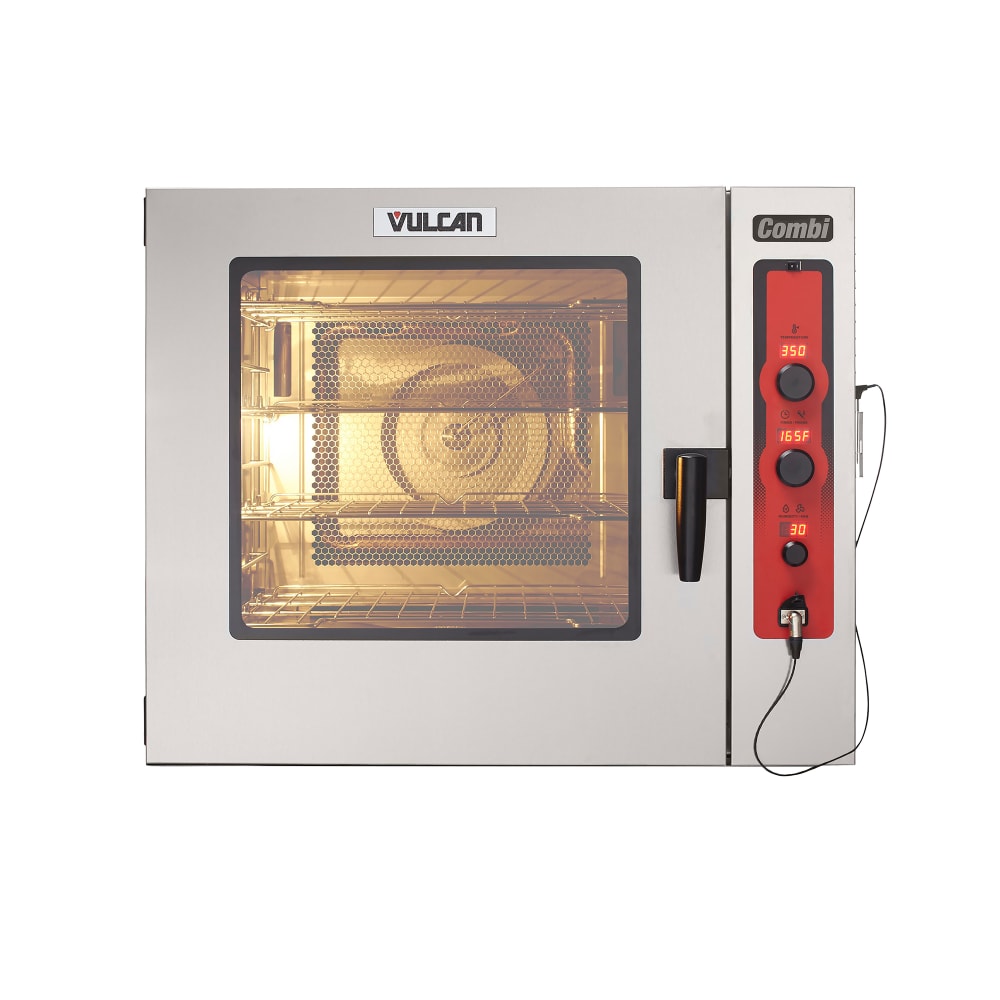

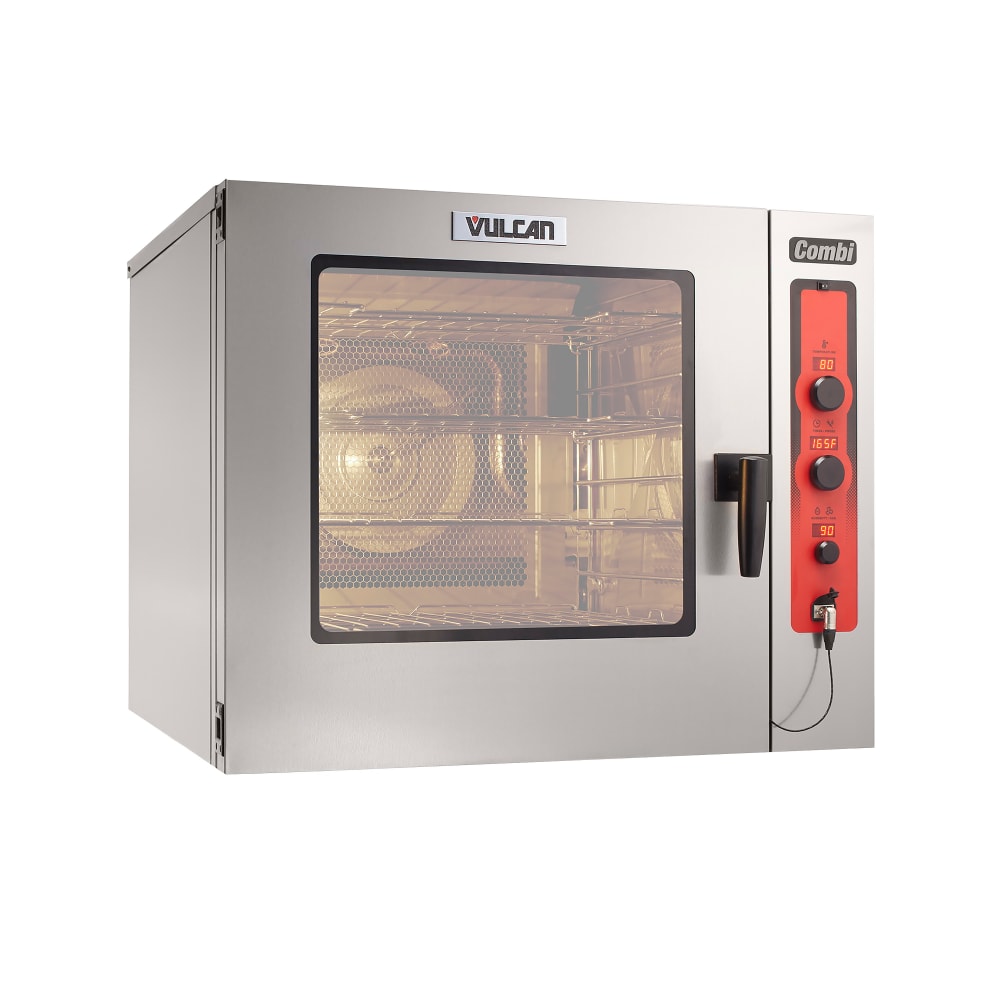

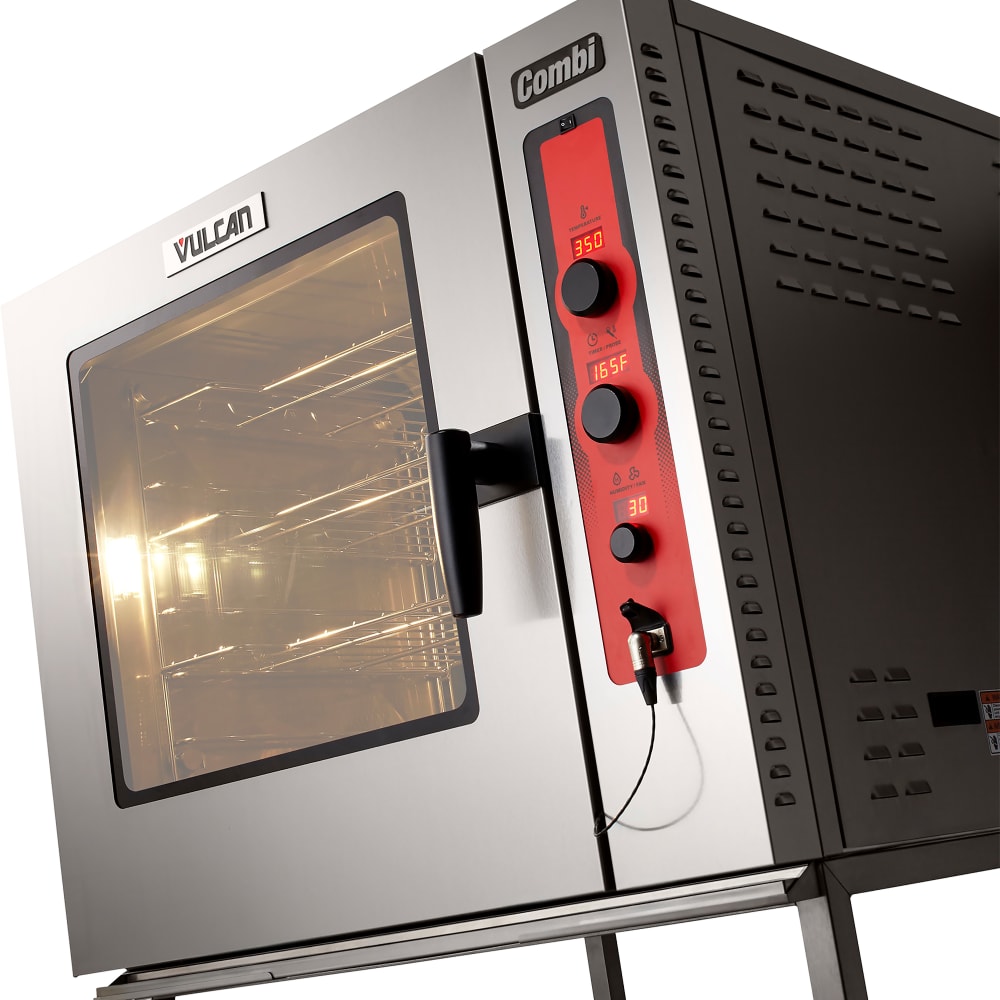

Vulcan ABC7E-240P Full-Size Combi Oven, Boilerless, 240v/3ph
Retail Price: $67,405.00
$27,747.00 /Each
Selected Voltage: 240V, 3 Phase
| 240V, 3 Phase |
| 208V, 3 Phase |
| 480V, 3 Phase |
Vulcan ABC7E-240P Description
Designed to handle high-capacity cooking, the Vulcan ABC7E-240P full-size combi oven can hold seven 18-inch by 26-inch full-size sheet pans or (14) 12-inch by 20-inch hotel pans. This versatile unit supports various cooking applications, including baking, steaming, roasting, air-frying, and proofing. Its boilerless design with automatic humidity adjustment ensures consistent results, while an auto-reversing fan promotes even heat distribution. Operators can use the intuitive three-knob control system to manage temperature, timer, and humidity with ease.
Built for durability, the Vulcan ABC7E-240P combi oven is constructed of fully insulated stainless steel for enhanced heat retention. Safety features include a cool-touch, heat-reflective tempered glass door, a flashing door light, and an audible alarm system. Four stainless steel racks are included, while halogen lighting illuminates the cooking chamber. Machine diagnostics can be accessed via the control panel or USB port, ensuring smooth operation. This unit does not include a stand and requires hardwired installation.

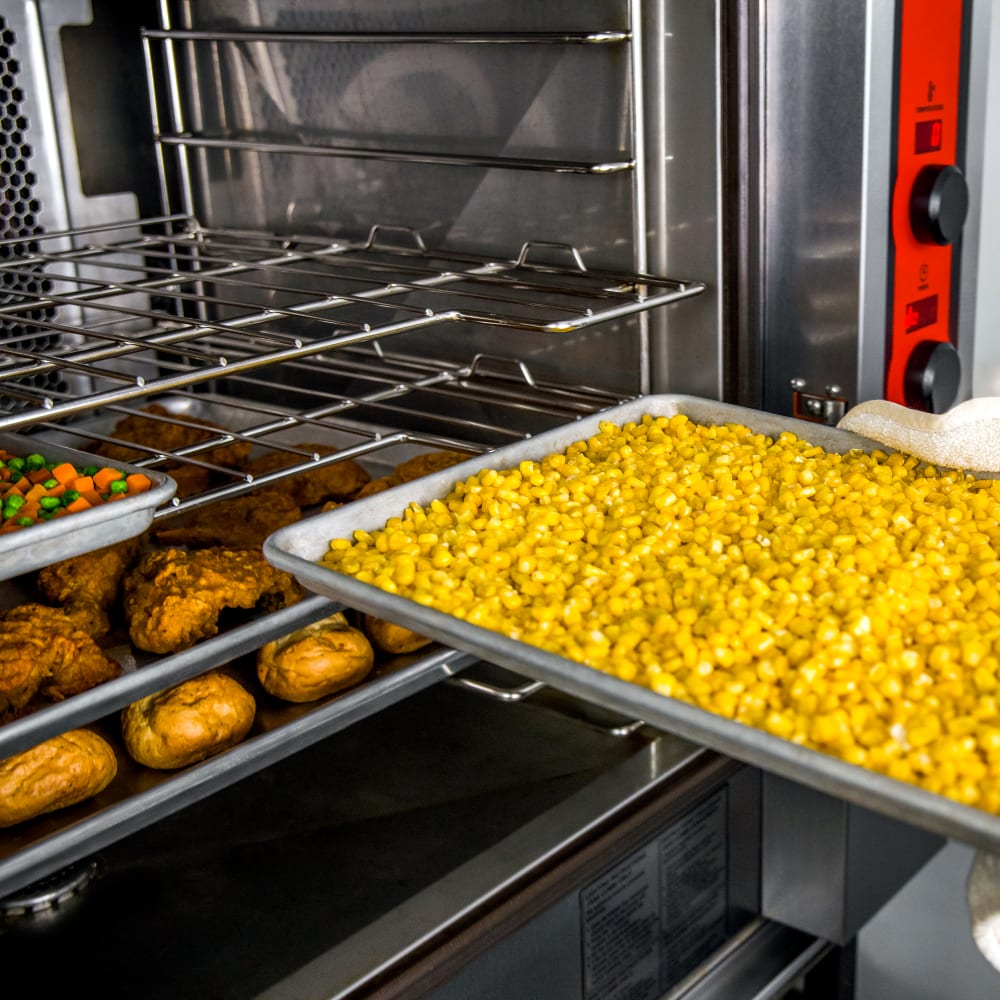

- Accommodates (7) 18-in. x 26-in. sheet pans or (14) 12-in. x 20-in. hotel pans
- Fully insulated stainless steel construction
- Cool-touch, heat-reflective tempered glass door
- Halogen door light behind heat-reflective inner glass
- Flashing door light and audible alarm system
- Includes 4 stainless steel racks
- 1-in. round drain connection tube
- Doesn't include a stand
- Cooking applications: baking, steaming, roasting, air-frying, rethermalization, proofing, finishing, poaching, stewing, low temp, and defrosting
- Auto-reversing fan
- Automatic humidity adjustment
- Boilerless operation

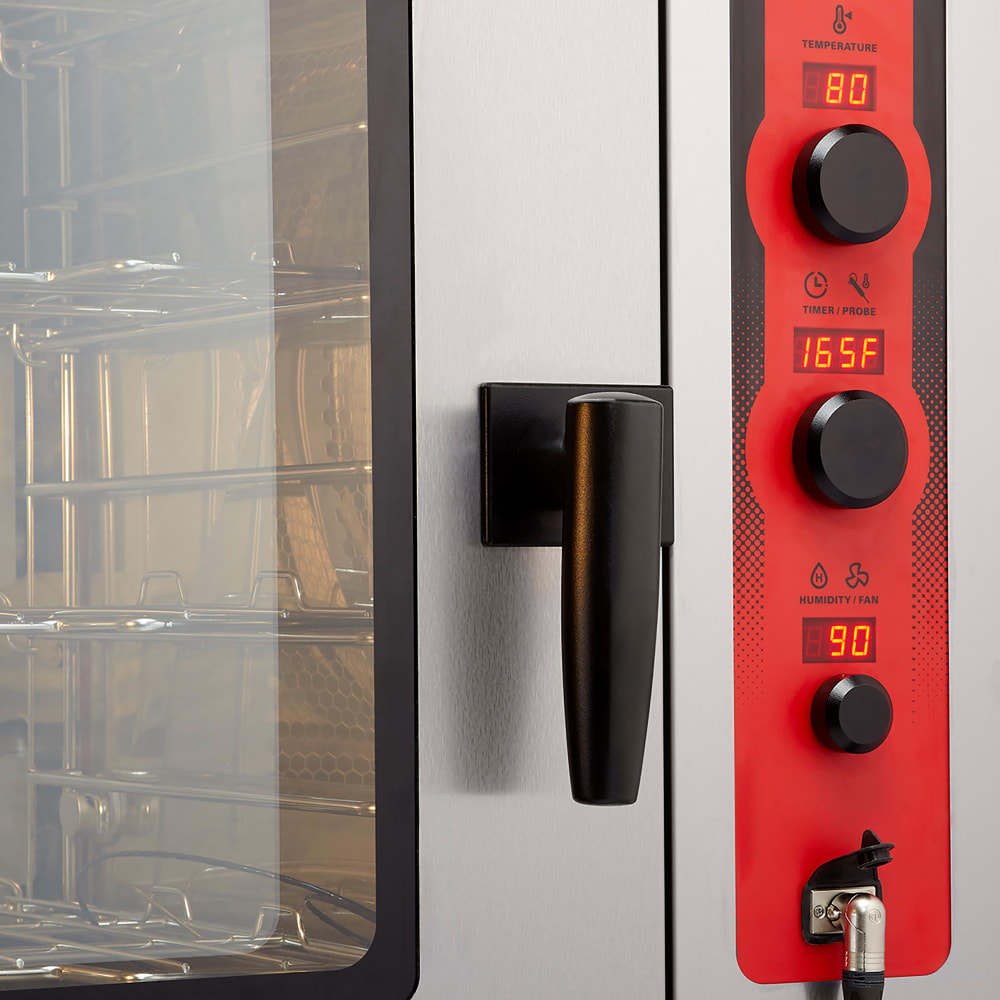

- 3 knob controls: temperature, timer, and humidity
- LED temperature displays
- Timer continuous up to 23 hours and 59 minutes
- Machine diagnostics accessible through controls or USB port
- Temperature cooking range: 80-450 degrees F
- 42 1⁄2 in. W x 43 1⁄2 in. D x 35 in. H
- 57.8 A, 24 kW
- 240 V/60 Hz/3 ph (hardwire installation)
*Image may not depict product color, inclusions or accessories.
*Free shipping on Vulcan ABC7E-240P within the 48 contiguous states.
From The Manufacturer
Combi Oven/Steamer, electric, boilerless, (7) 18" x 26" full size sheet or (14) 12" x 20" full size hotel pan capacity, (3) knobs with LED displays for temperature, timer & humidity, auto-adjustment of humidity with temperature selection, food probe, auto-reversing fan with speed control & electronic braking system, cool to touch glass door, flashing door light & audible alert, (4) Grab n Go wire racks, stainless steel interior & exterior, engineered & assembled in USA,240v/60/3ph, UL EPH Classified, cULus
Watch a video about this product
Vulcan ABC7E-240P Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Controls | Manual |
| Depth (in) | 43.5 |
| Heat | Electric |
| Height (in) | 35 |
| Hertz | 60 |
| Installation Type | Countertop |
| Kitchen Innovations Awards | 2016 |
| kW | 24 |
| No. of Compartments | Single |
| Pan Type | Full Size Sheet Pans |
| Pan Type | Full Size Steam Pans |
| Pan Type | Half Size Sheet Pans |
| Pan Type | Half Size Steam Pans |
| Phase | 3 |
| Product | Combi Ovens |
| Product Type | Cooking Equipment |
| Rating | Better |
| Series | ABC Series |
| Sheet Pan Capacity | 7 Full |
| Size | Full Size |
| Steam Generator | Boilerless |
| Steam Pan Capacity | 14 Full |
| Steam Source | Water Reservoir |
| Voltage | 240 |
| Warranty | 1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts |
| Width (in) | 42.2 |
| Weight | 580.00 |
