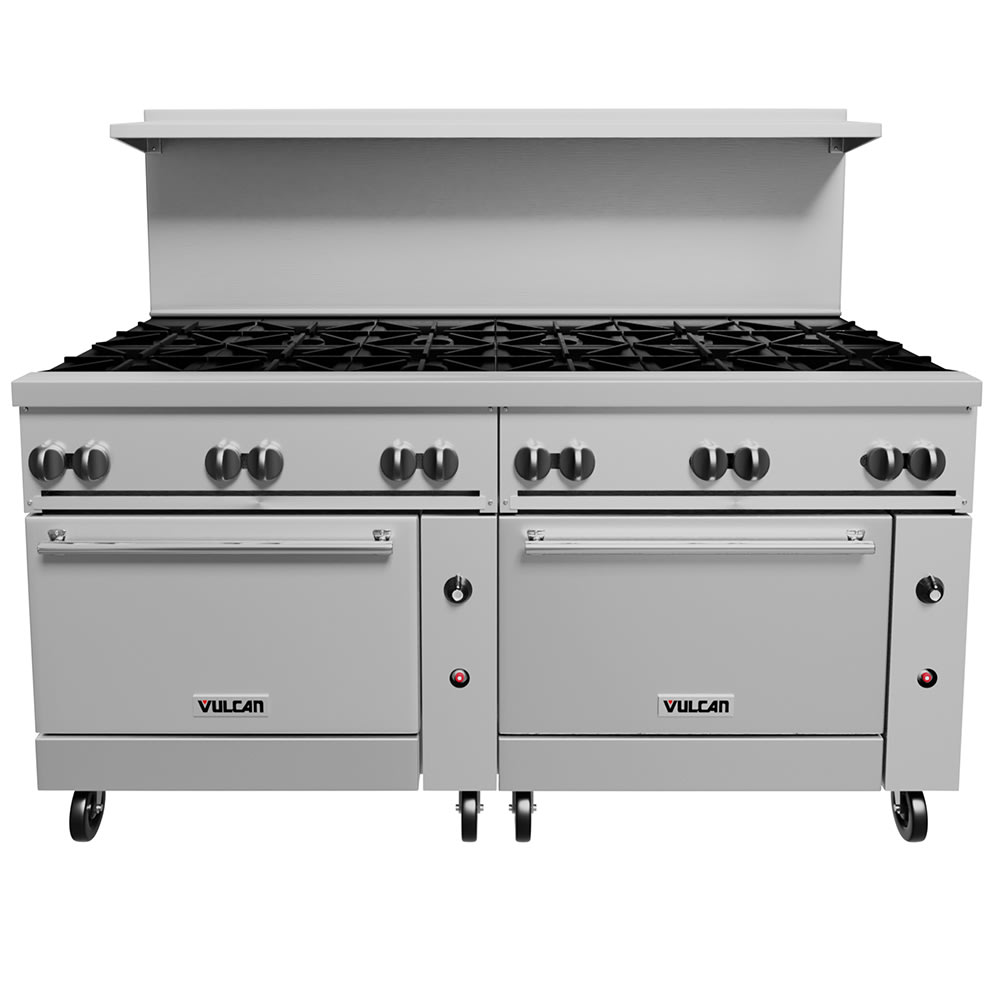

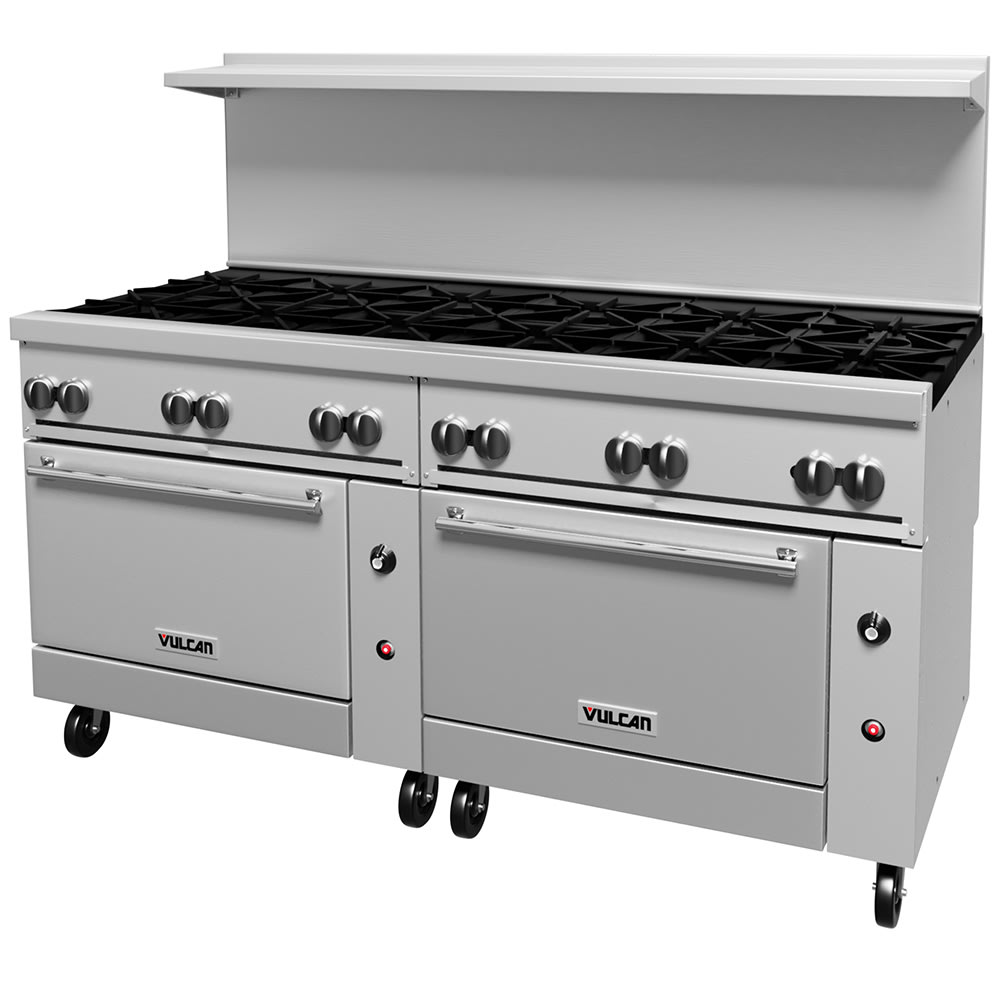

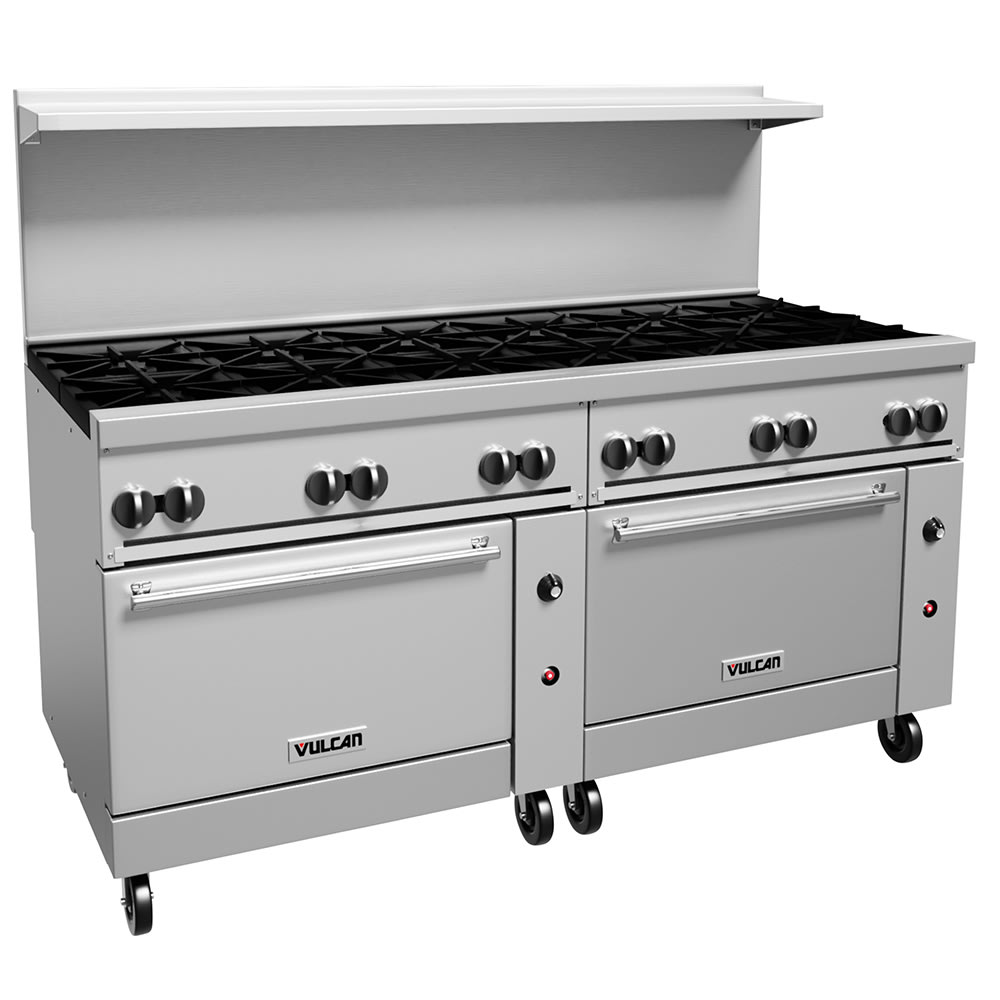

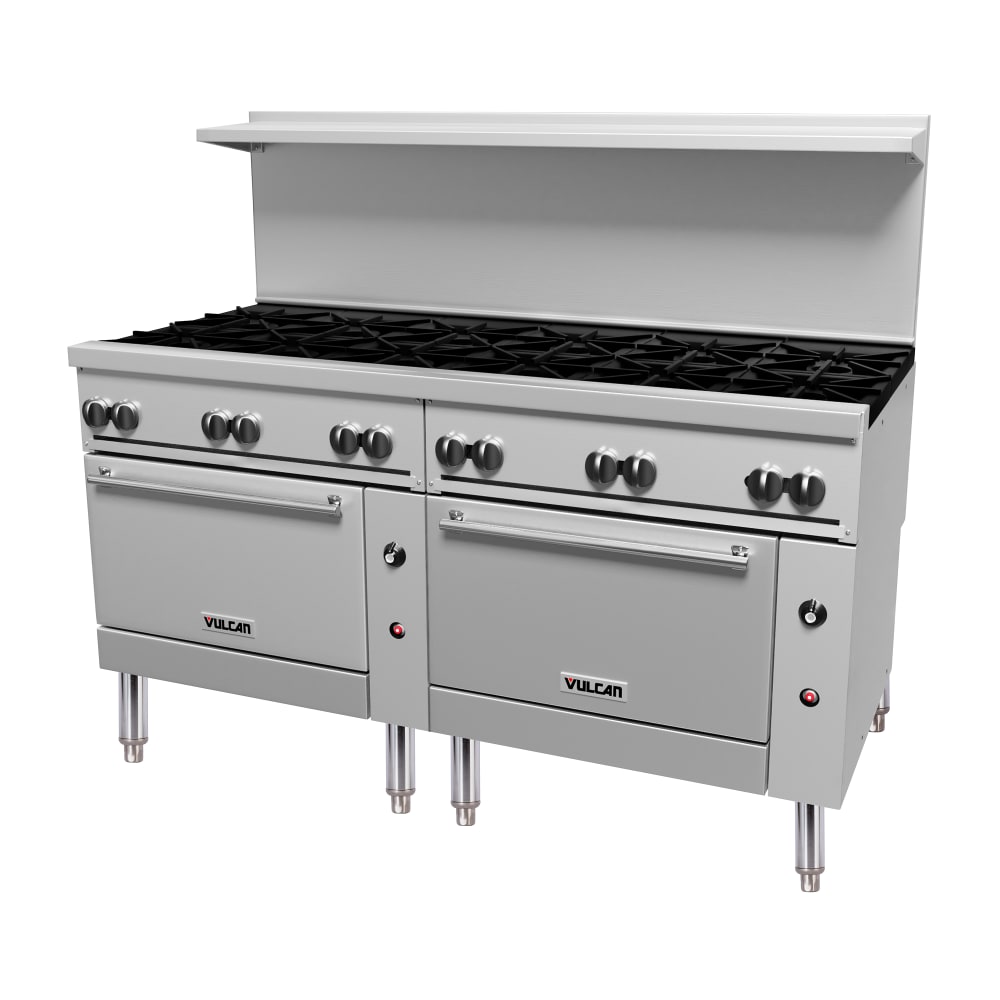

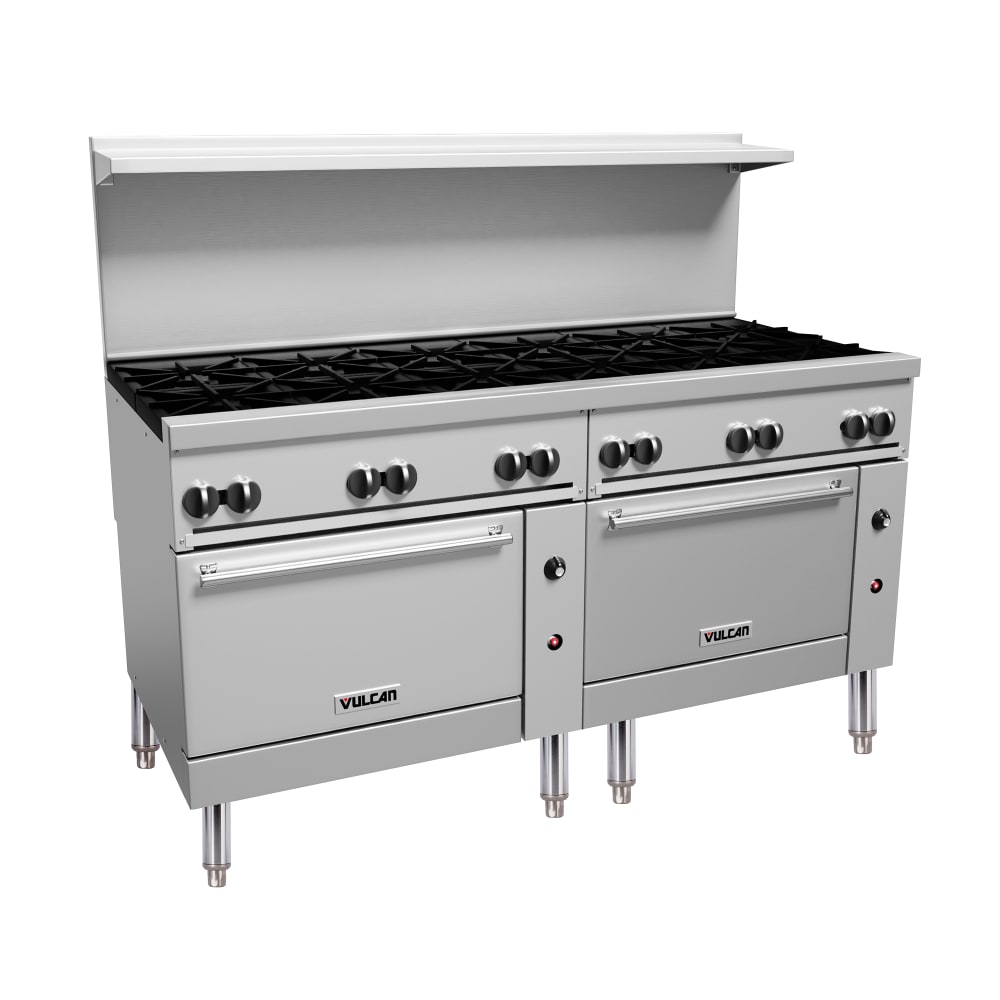

Vulcan 72SC-12B 72" 12 Burner Gas Range w/ (1) Standard Oven & (1) Convection Oven, Natural Gas

Users can simmer, saute, fry, or boil ingredients on the Vulcan 72SC-12B Endurance™ gas restaurant range's 12 open-top burners. Each burner outputs 30,000 BTUs, and to conserve gas, one shrouded flashtube pilot system powers two burners. Operators can increase or decrease heat with the corresponding cool-to-the-touch burner knobs. Great for small- or medium-sized cookware, the six front grates measure 12 inches by 12¹⁄₂ inches each, while the six rear grates are 12 inches by 14¹⁄₂ inches to accommodate large stock pots or sauce pans. Users can thoroughly clean the range by lifting off these heavy-duty grates and pulling out the extra-deep crumb tray.

This range's base is comprised of a standard oven on the left and convection oven on the right. While the standard oven uses radiant heat to bake, broil, or roast dishes, the convection oven uses a fan to circulate heat for quick, even baking. The ovens' heat can be set to low or be set between 250 and 500 degrees Fahrenheit as cooking requirements change. The standard oven comes with two oven racks that can be raised or lowered in four positions and hold 18-inch by 26-inch pans can side to side or front to back. However, the convection oven's three racks accommodate full-size pans inserted side to side only. So users can easily insert and retrieve pans, the hinged doors feature a spring mechanism, and during bake cycles, the handles remain cool to the touch. To ease cleaning, the ovens' bottoms and door panels are porcelain.

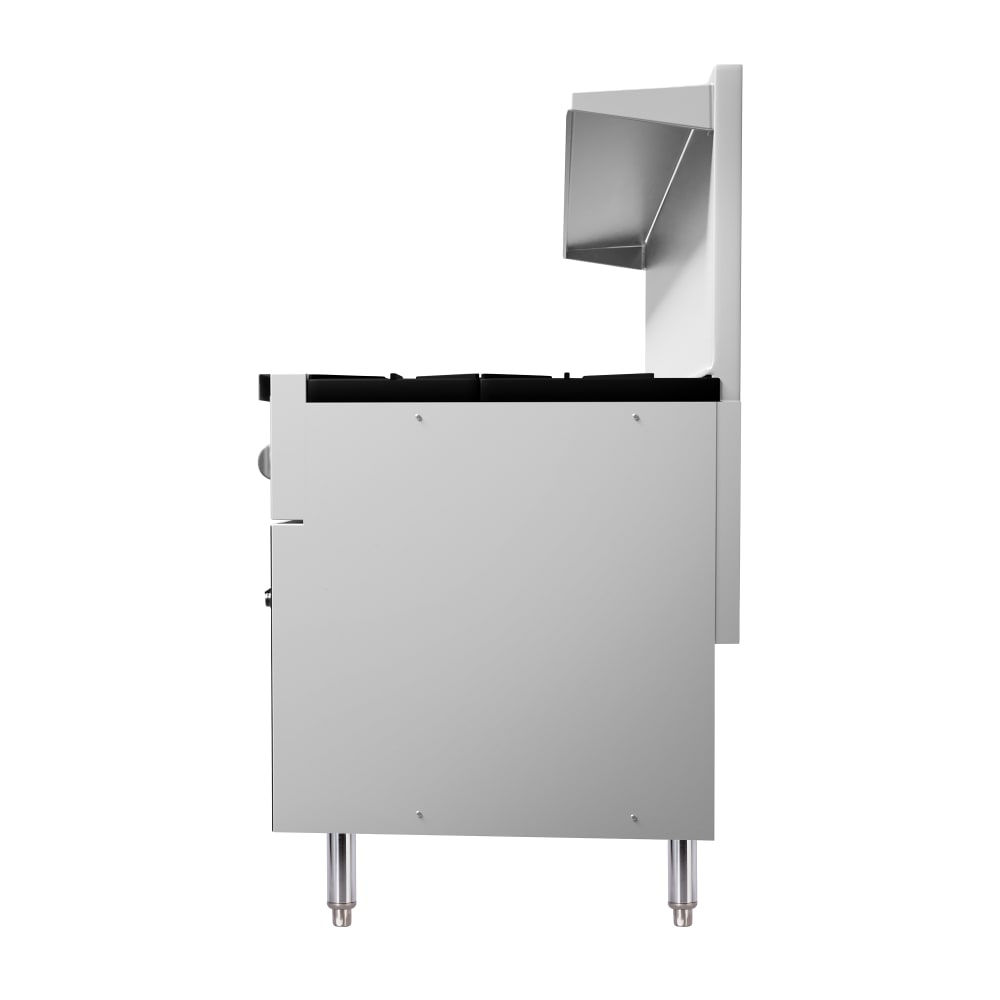

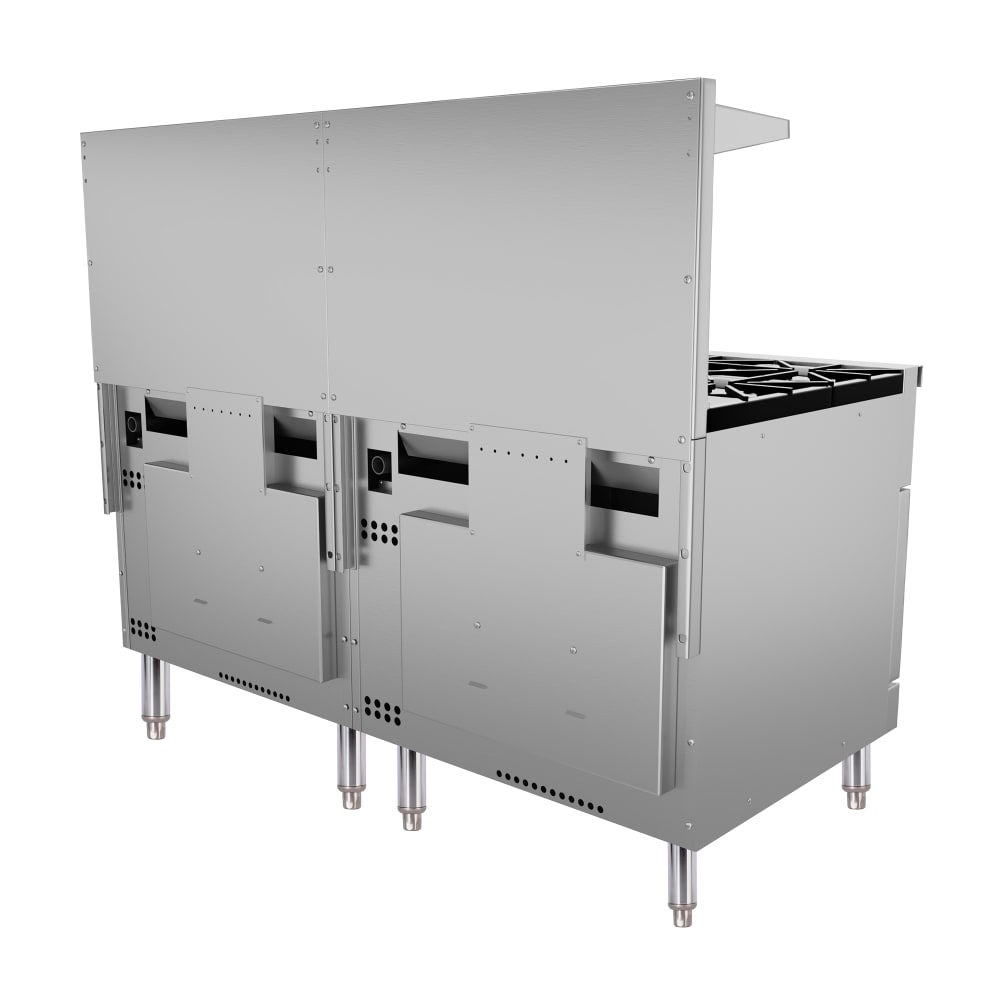

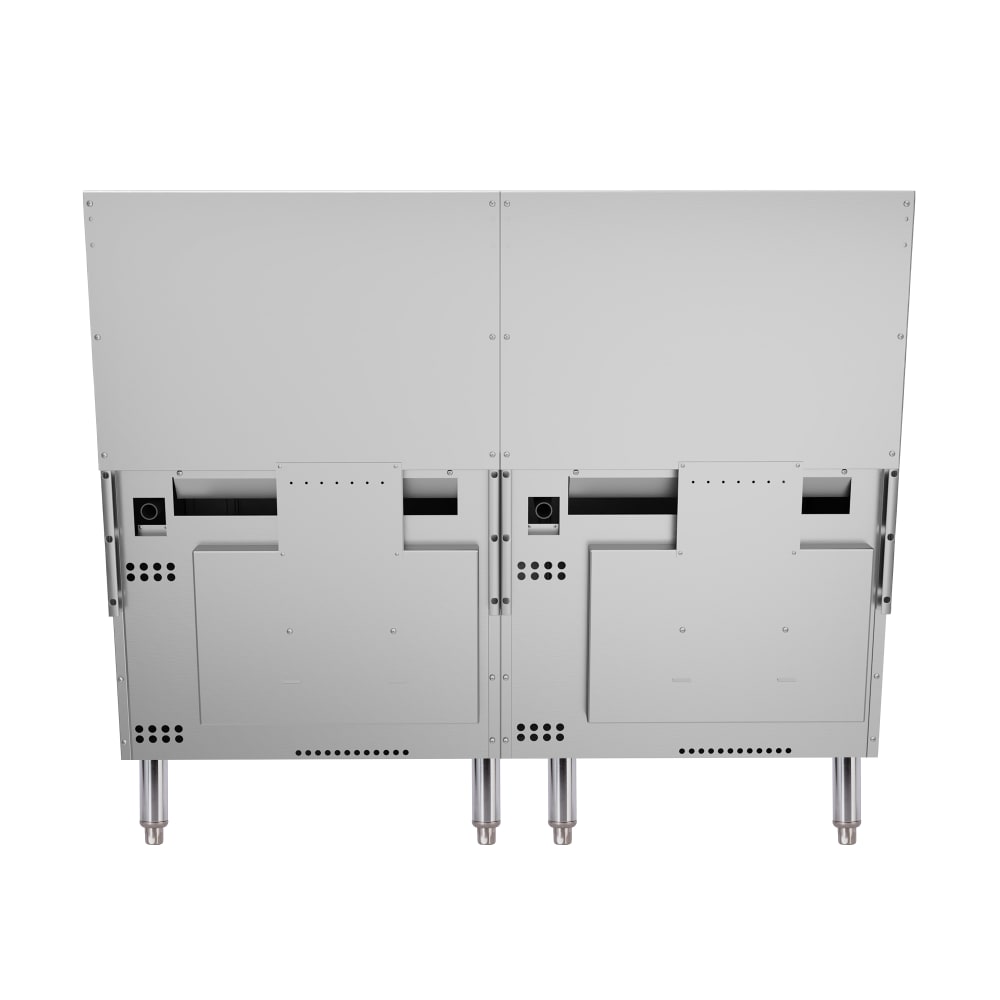

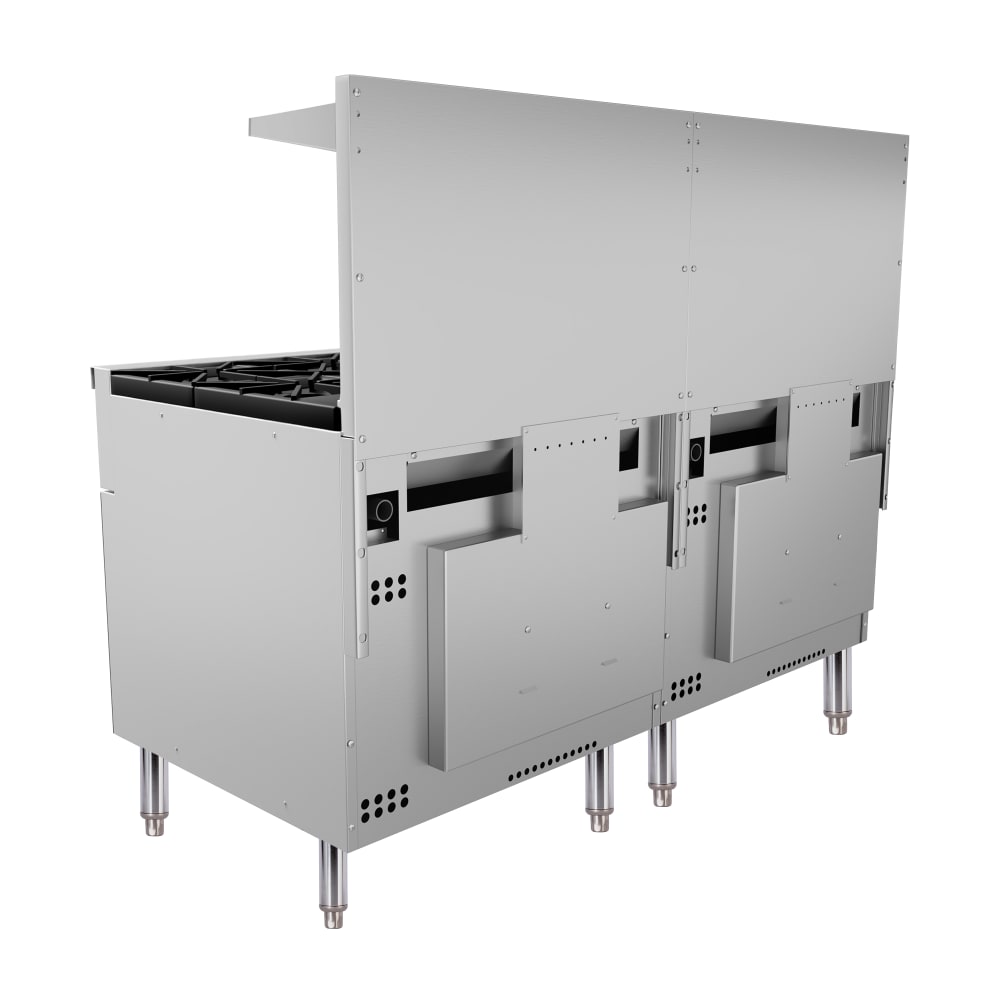

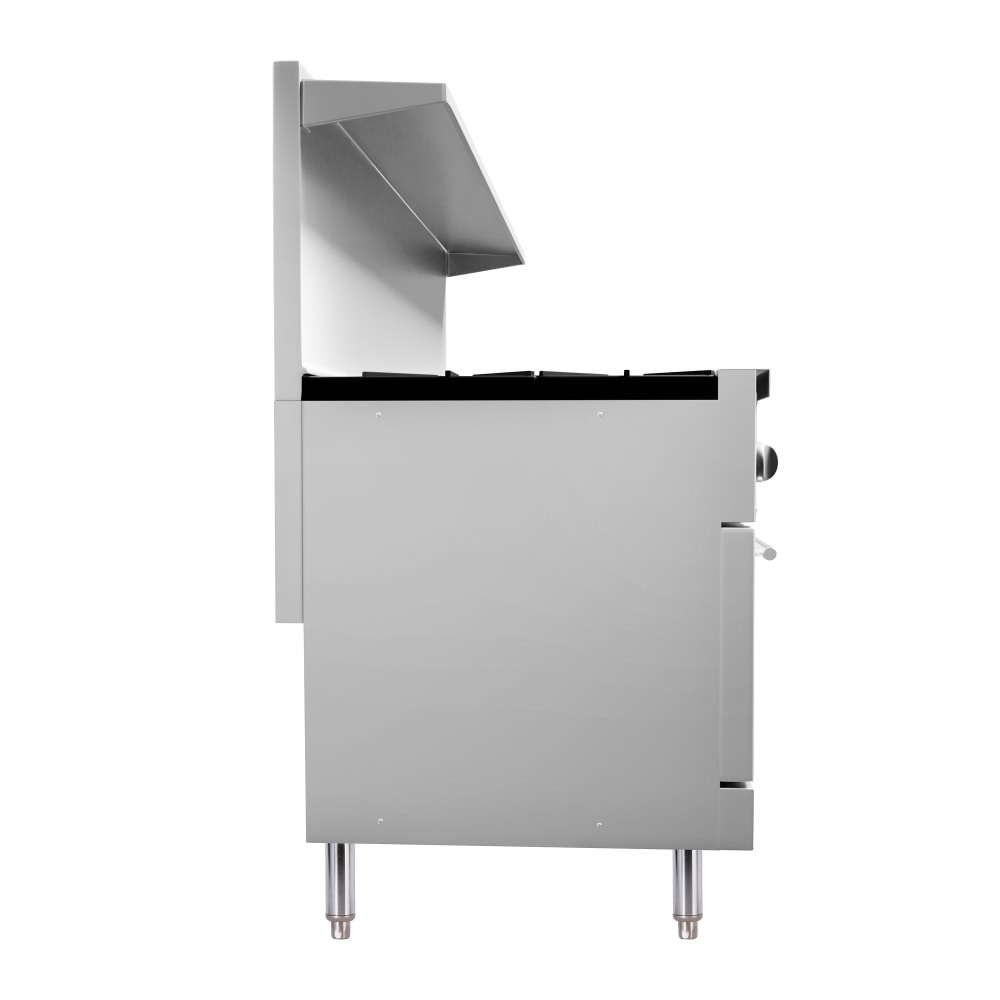

To save space in commercial kitchens, the Vulcan 72SC-12B natural-gas-powered range measures 72 inches wide by 41 inches deep by 58 inches high overall. Additional ingredients and supplies can be stored on the unit's top shelf to further conserve space, and because its 6-inch legs are adjustable, they can be raised or lowered to stabilize the unit on irregular flooring. Capable of surviving demanding back-of-house applications, its front, sides, backriser, and lift-off high shelf are made of rugged corrosion- and rust-resistant stainless steel. For additional strength, its frame is fully MIG welded.

Range Details

• Part of the Endurance line
• Stainless steel front, sides, backriser, and high shelf resist rust and corrosion
• Fully MIG-welded frame adds strength
• 6 shrouded flashtube pilot ignition systems
• 12 open-top burners
• Lift-off burner heads
• 12 heavy-duty lift-off cast grates
• (6) 12-in. x 12¹⁄₂-in. cast front grates
• (6) 12-in. x 14¹⁄₂-in. cast rear grates
• Efficient, built-in aeration bowls
• Cool-to-the-touch burner knobs
• Extra-deep pull-out crumb tray with welded corners

Oven Details

• Standard oven on left and convection oven on right
• Both ovens accept 18-in. x 26-in. pans
• Standard baker's-depth oven with 2 racks, 2 rack guide sets, and 4 oven rack positions
• Convection oven includes 3 racks
• Operating temperature: 250-500 degrees F
• Low-heat setting
• Porcelain door panels and oven bases
• 2 hinged oven doors with spring mechanisms
• Cool-to-the-touch door handles
• 6-in. adjustable stainless steel legs
• Convection oven motor requires field attachment
• 35,000-BTU standard oven
• 35,000-BTU convection oven

Dimensions & Utilities

• Standard oven interior: 26³⁄₈ in. W x 27 in. D x 14 in. H
• Convection oven interior: 26³⁄₈ in. W x 24 in. D x 13⁷⁄₈ in. H
• Overall: 72 in. W x 41 in. D x 58 in. H
• 4 A
• 115 V/60 Hz/1 ph, 6-ft. cord with plug
• Powered by LP gas
• 1-in. rear gas connection
• 430,000 BTU

Product Features

*Free shipping on Vulcan 72SC-12B within the 48 contiguous states.

From The Manufacturer

Endurance™ Restaurant Range, natural gas, 72", (12) 30,000 BTU burners with lift-off burner heads, (1) standard oven (left), (1) convection oven (right), stainless steel front, sides, backriser & high shelf, fully MIG welded frame, 6" adjustable legs, 430,000 BTU, CSA Flame, CSA Star, NSF

*Image may not depict product color, inclusions or accessories.

1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts

Vulcan 72SC-12B Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
