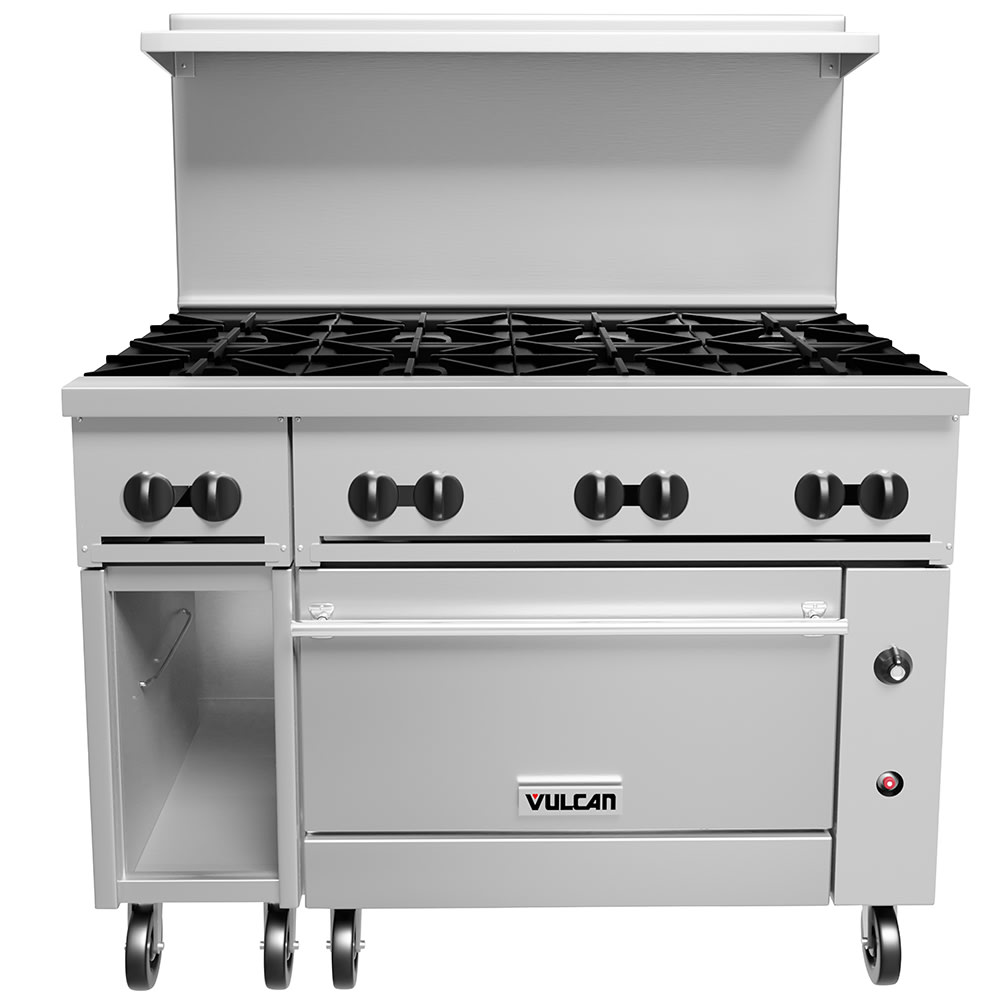

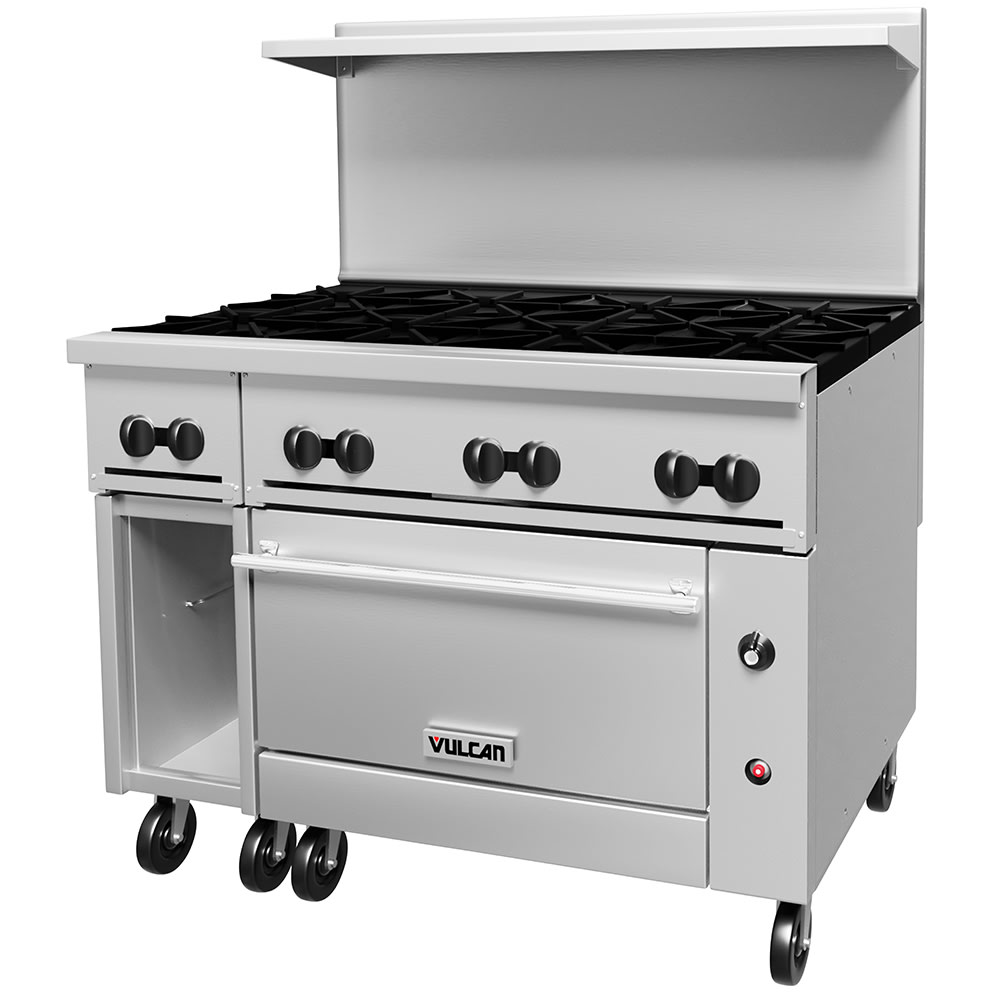

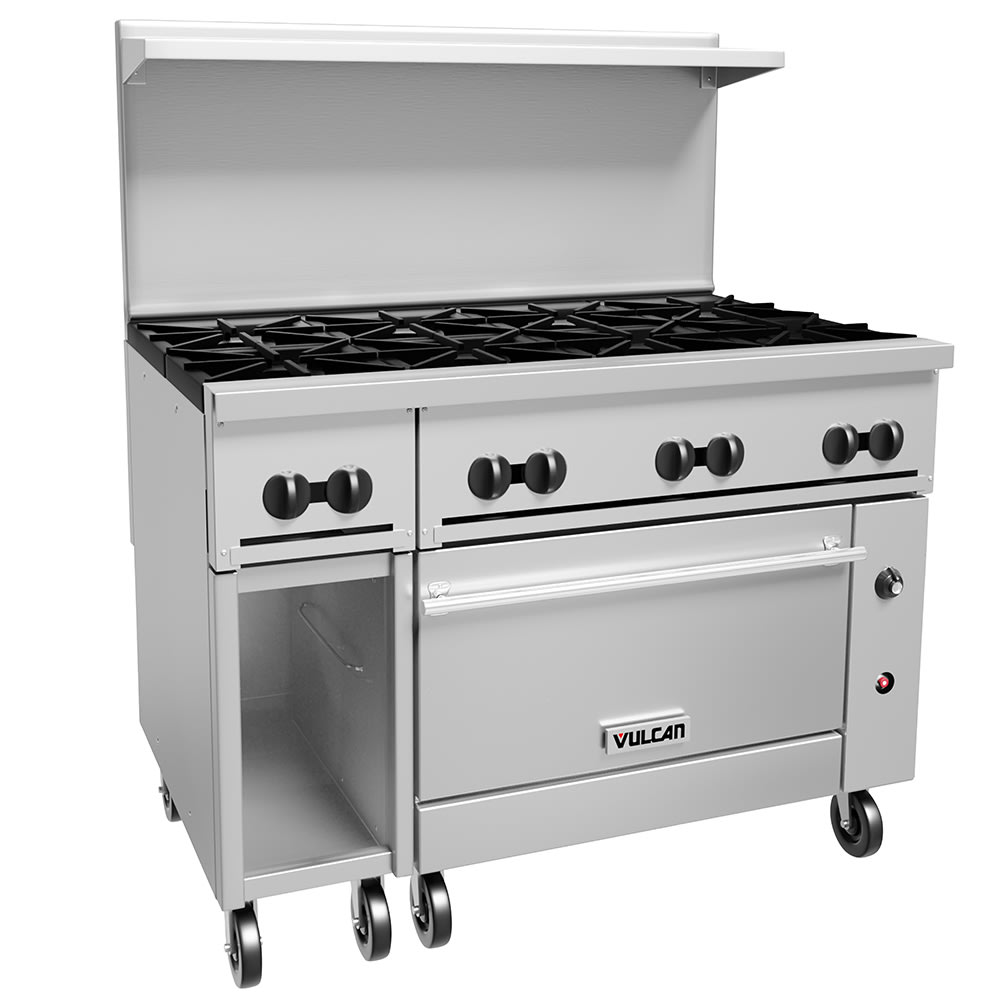

Vulcan 48C-8B 48" 8 Burner Gas Range w/ Convection Oven, Natural Gas

To saute vegetables, simmer sauce, boil water, and roast proteins and potatoes in a single unit, the Vulcan 48C-8B Endurance™ restaurant range is equipped with eight burners and a convection oven. Its two-in-one configuration measures 48 inches wide by 34 inches deep by 58 inches high to fit into compact kitchens. To conserve space further, it features a high lift-off shelf that accommodates supplies and ingredients. Made of fully MIG-welded, rust- and corrosion-resistant stainless steel, this unit can withstand daily use in high-volume kitchens. So it remains stable on uneven flooring, its legs can be raised or lowered as needed. Per hour, this natural-gas-powered unit outputs 275,000 BTUs.

To minimize gas use, one shrouded flashtube pilot system corresponds with two burners, meaning this unit uses four pilot systems. Each of the eight burners outputs 30,000 BTUs per hour and features lift-off heads and grates to ease cleaning. While the front grates measure 12 inches by 12¹⁄₂ inches to support small or medium cookware, the rear grates are 12 inches by 14¹⁄₂ inches to accommodate saucepans or stockpots. To elevate heating efficiency, the grates are built with aeration bowls. Operators can modify each burner's heat with the front-mounted, cool-to-the-touch burner knobs. The extra-deep, pull-out crumb tray collects crumbs and other food debris to ease cleaning between uses.

The Vulcan 48C-8B commercial range's convection oven can be set at a low heat or from 250 to 500 degrees Fahrenheit to achieve a range of results. Full-size pans can be inserted side to side on the 26³⁄₈-inch-wide by 24-inch-deep by 13⁷⁄₈-inch-tall interior's two oven racks. So the racks can be raised or lowered in four positions, they come with two rack guide sets. The cool-to-the touch oven door features a hinged, spring-assisted mechanisms so users can load and remove pans with ease. Because the oven's base and door panel are made of porcelain, it provides lasting durability and simplifies cleaning.

Range Details

• Part of the Endurance series
• Stainless steel front, sides, backriser, and high lift-off shelf
• Fully MIG-welded frame
• (8) 30,000-BTU open-top burners
• 1 shrouded flashtube pilot ignition system per 2 burners to reduce gas use
• Lift-off burner heads
• 8 heavy-duty cast grates with integrated aeration bowls
• (4) 12-in. x 12¹⁄₂-in. cast front grates
• (4) 12-in. x 14¹⁄₂-in. cast rear grates
• High-temperature resistant burner knobs
• Extra-deep, pull-out stainless steel crumb tray with welded corners

Oven Details

• Uses convection heat to cook foods evenly and quickly
• Comes with 2 oven racks with 2 rack guide sets
• Accommodates full-size sheet pans positioned side to side on 4 oven rack positions
• Operating temperature: 250-500 degrees F
• Low-heat option
• Hinged, cool-to-the-touch oven door
• Layered porcelain oven base and door panel
• Blower motor requires field attachment
• 6-in. adjustable stainless steel legs
• 35,000 BTU

Dimensions & Utilities

• Oven interior: 26³⁄₈ in. W x 24 in. D x 13⁷⁄₈ in. H
• Overall: 48 in. W x 34 in. D (53¹⁄₂ in. D when oven door is open) x 58 in. H
• 4 A
• 115 V/60 Hz/1 ph, 6-ft. cord with plug
• Powered by natural gas
• 275,000 BTU
• ³⁄₄-in. rear gas connection

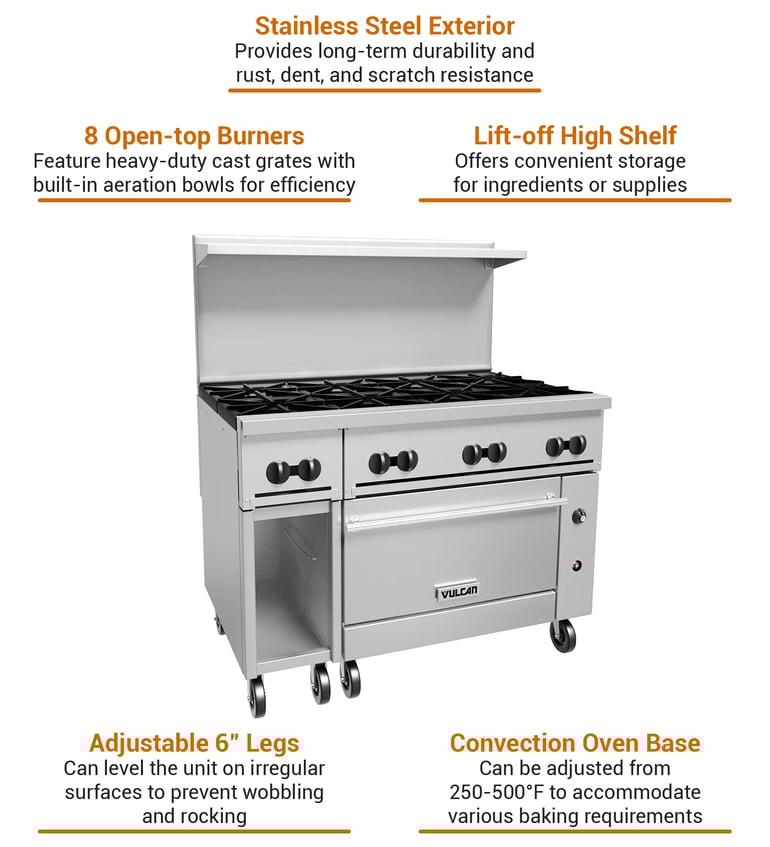

Product Features

*Free shipping on Vulcan 48C-8B within the 48 contiguous states.

From The Manufacturer

Endurance™ Restaurant Range, natural gas, 48", (8) 30,000 BTU burners with lift-off burner heads, convection oven, stainless steel front, sides, backriser & high shelf, fully MIG welded frame, 6" adjustable legs, 275,000 BTU, CSA Flame, CSA Star, NSF

*Image may not depict product color, inclusions or accessories.

1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts

Vulcan 48C-8B Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
