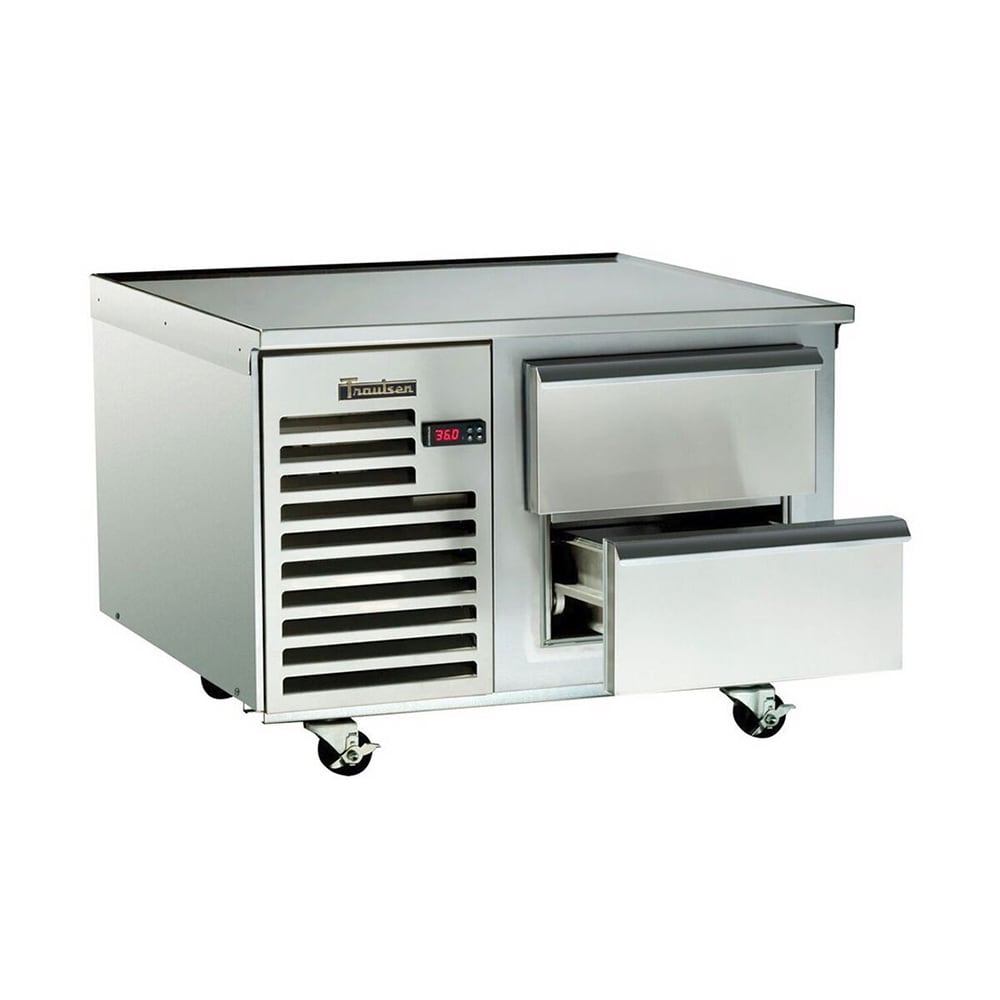

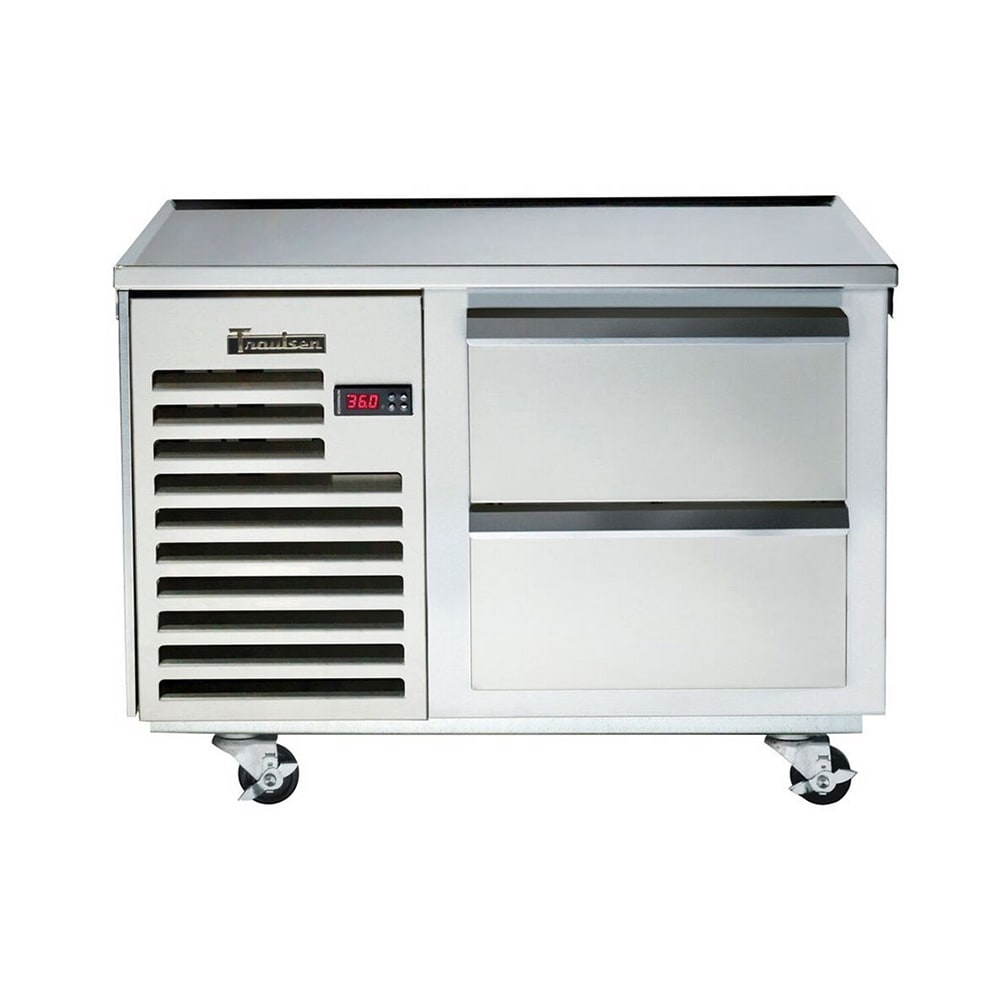

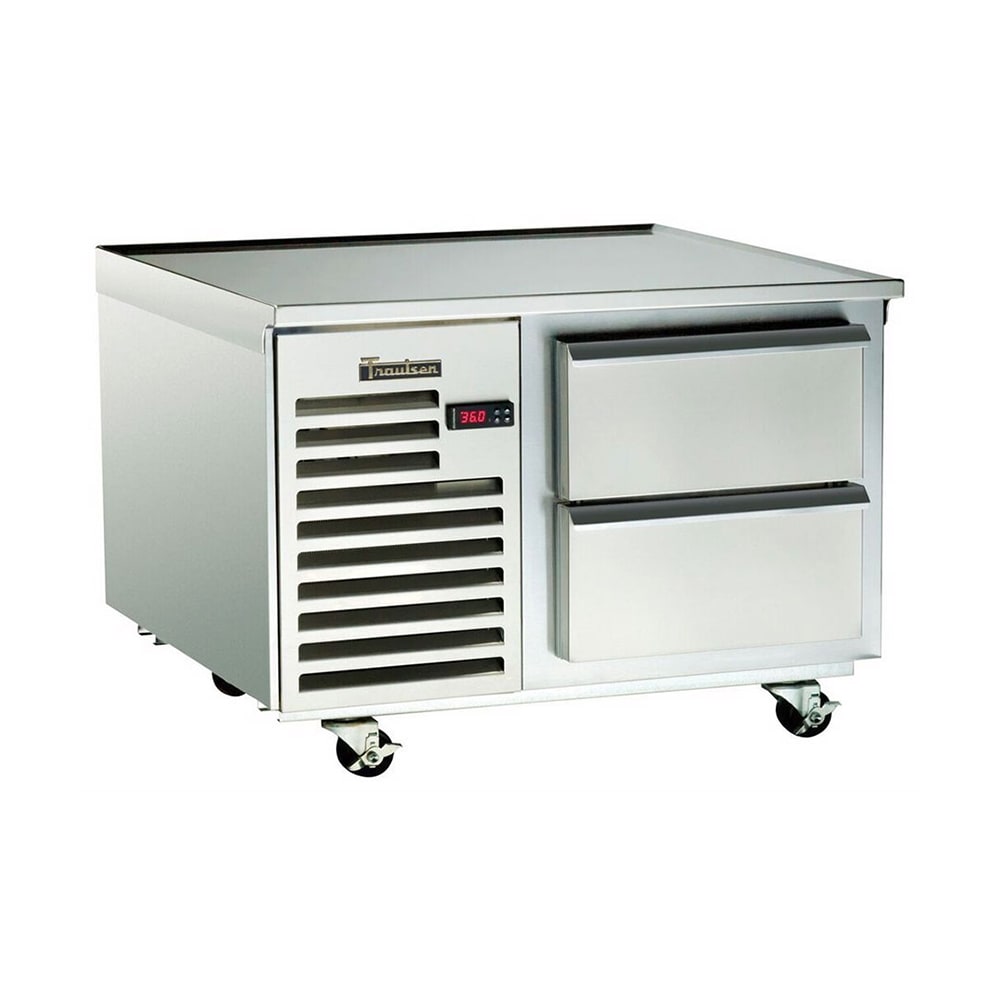

Traulsen TE036HT 36" Spec-Line Chef Base w/ 2 Drawers - 115v

KaTom #: 206-TE036HT115 • MPN: TE036HT
  • 206-TE036HT115 Primary Thumbnail Image
  • 206-TE036HT115 Multiple Thumbnail Image #1
  • 206-TE036HT115 Multiple Thumbnail Image #2
Free Shipping Item

$10,177.20 /Each

Brent McMahan User Image
Ask a Foodservice Equipment Specialist

Traulsen TE036HT Description

The Traulsen TE036HT Spec-Line refrigerated equipment stand is a one-section chef base designed for refrigerated ingredient storage beneath countertop cooking equipment in commercial kitchen applications. Its stainless steel marine top incorporates a drip guard edge to support countertop equipment placement, while two heavy-duty drawers accommodate 12-inch by 20-inch by 6-inch-deep pans for refrigerated ingredient storage. Self-closing drawers with stay-open functionality streamline product loading and retrieval, and removable drawer assemblies provide access for cleaning procedures. A water-resistant microprocessor control with LED temperature display supports monitoring and adjustment during operation, while rear-mounted evaporator airflow distributes cold air evenly across drawer sections.

Constructed of stainless steel inside and out, the Traulsen TE036HT equipment stand incorporates a left-mounted, self-contained refrigeration system using low-GWP R290 hydrocarbon refrigerant. The front-breathing refrigeration configuration supports zero-clearance installation, while off-cycle defrost and a non-electric condensate evaporator support refrigeration performance during operation. Magnetic snap-in drawer gaskets, gasket guards, and anti-condensate perimeter heaters support temperature retention throughout repeated drawer openings. The cabinet is mounted on four 4-inch casters with an adjustable caster system for mobility in commercial prep environments.

  • 1-section refrigerated chef base configuration
  • 2 drawers
  • Drawers accommodate 12-in. x 20-in. x 6-in.-deep pans
  • Stainless steel marine top with drip guard edge
  • Water-resistant microprocessor controls
  • LED temperature display
  • Self-closing drawers with stay-open feature
  • Removable drawer assemblies
  • Full-length drawer handles with gasket guards
  • Magnetic snap-in drawer gaskets
  • Heavy-gauge stainless steel drawer slides
  • Stainless steel interior and exterior
  • 4-in. casters installed

  • R290 hydrocarbon refrigerant
  • Left-mounted compressor
  • Front-breathing refrigeration design
  • Rear-mounted evaporator airflow system
  • Off-cycle defrost configuration
  • Non-electric condensate evaporator
  • Removable condenser filter

  • 36 in. W x 34 13⁄100 in. D x 26 in. H
  • 4.5 A, 1⁄4 HP
  • 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

*Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.

*Image may not depict product color, inclusions or accessories.

*Free shipping on Traulsen TE036HT within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

Spec-Line Refrigerated Equipment Stand, 36'W, (2) 12' x 20' x 6' deep pan capacity, (2) drawers, self-contained refrigeration, stainless steel marine top, stainless steel interior & exterior, 4' casters, microprocessor controls, low GWP R-290 refrigerant, 1/4 hp, cETLus, ETL-Sanitation

Warranty Icon
6-year Parts & Labor; 7-year Compressor

Traulsen TE036HT Specifications

Residential Users: The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.
