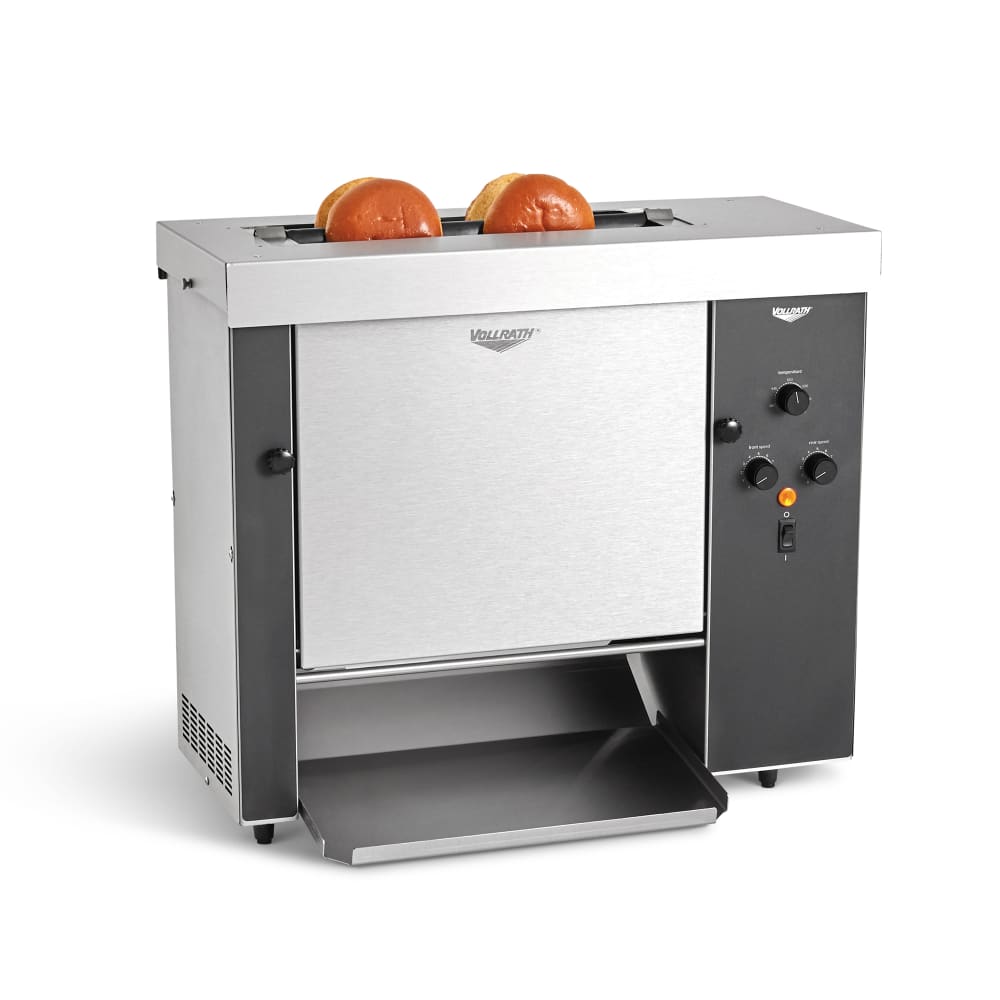

Vollrath VCT4-208 Vertical Toaster w/ 1400 Buns/hr Capacity, Stainless, 208v/1ph

Ideal for burger joints, the Vollrath VCT4-208 vertical contact bun toaster cooks as many as 1,400 hamburger bun halves per hour, warming the buns’ tops and sides for juicy burgers. The space-saving vertical design works well on countertops, and there are two openings for maximum loading capacity. The openings are ¹⁄₂ inch to 1 inch for best contact and heat preservation. Buns fit snugly inside an aluminum platen when toasted, and axillary heater elements warm the buns’ top surface for even toasting. So users can determine the best temperatures for different types of buns, the metal-sheathed heating elements are thermostatically controlled.

The Vollrath VCT4-208 vertical contact bun toaster is equipped with accessories and internal mechanisms for proper operation. Two easy-clean and quick-install nonstick release sheets come with the toaster; one is installed into the toaster upon shipping, and an extra sheet is stored in the box. Defending against dents and scratches in high-volume environments, the toaster is made of stainless steel and aluminized steel. Its silver surface can disguise scratches and scuffs to maintain a presentable look over time. Inside the toaster, a heavy-duty drive chain pulls the conveyor, while high-temperature bearings keep operation smooth. Thermoplastic terminal blocks use stainless steel clamps for solid electrical connections, while insulated wires fight off dry rotting to remain useable over time.

Product Details

• Toasts 1,400 bun halves per hour
• Vertical design
• 2 openings with ¹⁄₂ in.-1 in. adjustments
• Aluminum platen with auxiliary heater elements
• Thermostatically controlled, metal-sheathed heating elements
• Stainless steel and aluminized steel construction
• 4 adjustable legs
• Uses heavy-duty drive chain for conveyor
• Smooth-operating bearings
• Thermoplastic terminal blocks with clamps
• Insulated, dry rot-resistant wires
• 2 nonstick release sheets (1 installed, 1 extra)
• Fan control switch prevents overheating

Product Features

Dimensions & Utilities

• 23³⁄₈ in. W x 13³⁄₁₆ in. D x 20³⁄₄ in. H
• 15.4 A, 3,200 W
• 208 V/60 Hz/1 ph, 4¹⁄₂-ft. cord with a NEMA 6-20P plug

From The Manufacturer

Vertical Contact Bun Toaster, (1400) bun halves per hour, (2) 1/2" - 1" adjustable product openings, independent variable speed controls, thermostatically controlled metal-sheathed heating elements, axillary heater elements, insulated wires, maintenance-free drive system, temperature sensing fan control switch, includes (2) non-stick release sheets, stainless steel & aluminized construction, adjustable legs, 208v/60/1-ph, 3.2 kW, 15.4 amps, cord with NEMA 6-20P, NSF, cULus, Made in USA (model CTB15)

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor

Vollrath VCT4-208 Specifications

Documents

Spec Sheet

Parts Breakdown

Manual
