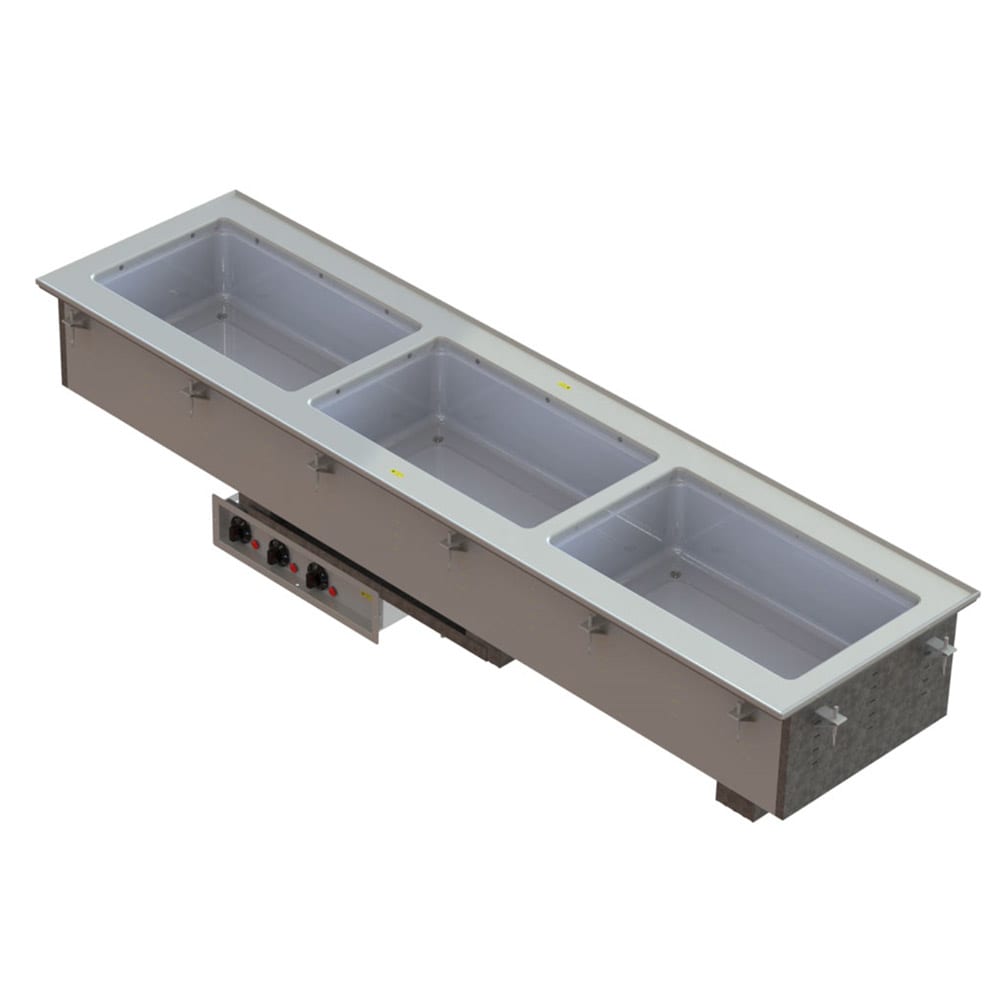

Vollrath 3664230 Drop-In Hot Food Well w/ (3) Full Size Pan Capacity, 120v
$4,342.77 /Each
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Non Returnable Item
Attention: Order by 07-01-2026 to save before the price increases!
Vollrath 3664230 Description
The Vollrath 3664230 drop-in hot food well is a top-mount unit designed with a short-side configuration that positions full-size pans sideways to create a narrow serving layout and improve operator access. It accommodates three full-size pans within stainless steel wells, while thermostatic controls provide consistent heat regulation during wet operation. An autofill system helps maintain proper water levels, while a stainless steel top with a full-perimeter drip edge contains spills, and a 1-inch manifold drain with shutoff supports controlled water removal.
- 3 full-size pan capacity
- Stainless steel hot food wells
- Wet operation required for even heating
- Thermostatic controls
- Autofill system maintains proper water levels
- Stainless steel top and interior liner
- Polyurethane foam insulation
- Full-perimeter drip edge
- 1-in. manifold drain with shutoff
- Top-mount drop-in installation
- Accommodates full-size pans in sideways orientation
- 15.6 A, 1,875 W
- 120 V/60 Hz/1 ph, cord with a NEMA 5-20P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Vollrath 3664230 within the 48 contiguous states.
From The Manufacturer
Short Sided Hot Well, Drop-In, (3) pan, thermostatic controls, autofill & manifold drain, 1875 watts, 120v/60/1-ph, 15.6 amps, NEMA 5-20P, turns full size pans sideways for more narrow presentation & easy reach, 18/8 stainless steel, thick polyurethane foam insulation, full perimeter drip edge, drain plug included, overall dimensions 66-7/8" x 18", cutout dimensions 66-1/16" x 17-1/4", 7/8" corner radius, well size 20" x 12" with 8" deep well, UL, CUL, NSF, Made in USA
Vollrath 3664230 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vollrath |
| Accommodates | Full Size Pans |
| Controls | Thermostatic |
| Hertz | 60 |
| NEMA | 5-20P |
| Operation | Wet |
| Phase | 1 |
| Product | Hot Food Wells |
| Product Type | Food Bars & Buffets |
| Special Features | With Drain |
| Type | Hot |
| Voltage | 120 |
| Warranty | 1-year Parts & Labor |
| Weight | 164.00 |
