Groen TDB-40C 10 gal. Steam Kettle - Manual Tilt, 2/3 Jacket, 240v/3ph
$10,609.50 /Each
Call us for pricing
Selected Voltage: 240V, 3 Phase
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.

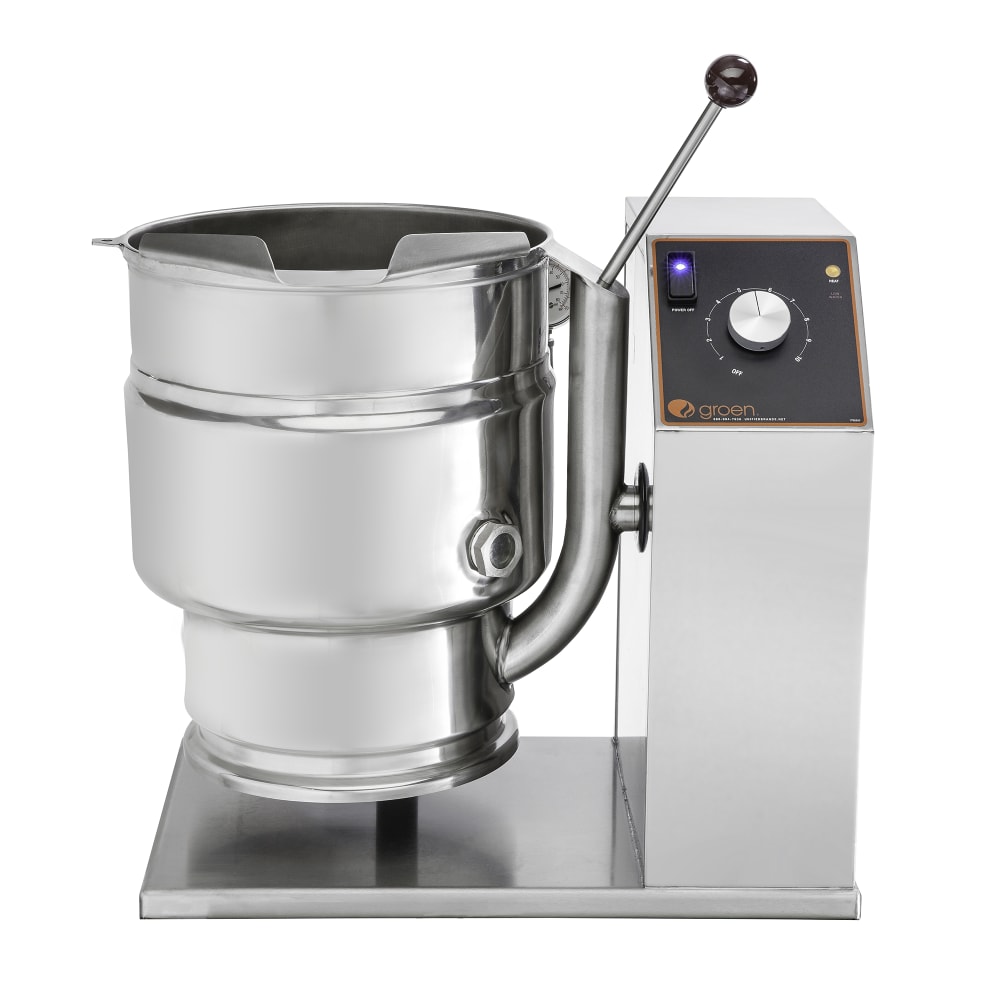

Groen TDB-40C Description
Perfect for cooking large batches of soup, stew, sauces, and rice, the Groen TDB-40C tilting kettle has a 40-quart (10-gallon) capacity. A hollow area in the kettle body between the interior and exterior called the jacket is filled with water that forms steam when heated. This cooking method is more efficient than a stock pot on a range while providing a more even heat pattern. Using a self-contained steam source, the unit does not require a generator or boiler to operate. Its temperature is adjustable—with a range between 150 and 295 degrees Fahrenheit—and a control knob enables the operator to set this level at an ideal setting from 1 through 10.
Cooks can empty the contents by tilting the kettle's body in a smooth motion, and the kettle stays in position when the operator stops turning the hand crank. Its rim is reinforced, preventing dents that could change the steam pressure. To help product flow cleanly into another container, a pouring lip is welded into the rim. This Groen TDB-40C steam kettle is a countertop model that does not take up floor space. A faucet mounting bracket is included with the unit, so the operator can connect a constant supply of water for recipes and cleaning.
Product Details
- 40-qt. (10-gal.) capacity
- Self-contained steam does not require a boiler or generator
- Kettle body is two-third steam jacketed
- Approximate temperature range: 150-295 degrees F
- Thermostatically controlled to turn off when the desired temperature is met and resume operation when it drops
- Manual hand crank controls the worm-and-gear mechanism that smoothly tilts the body and holds it in place
- Reinforced, dent-resistant kettle rim has a welded, butterfly-shaped pour lip that directs product into the pan
- Welded, 1-piece body is made of 304 stainless steel and resists corrosion while increasing strength
- Heat safety shut-off feature is automatic if the body is tilted 12 degrees
- Pressure-relief valve
- High-limit pressure switch
- Low-water cut-off features shuts off heat when jacket's water depletes
- Countertop unit
- Comes with a faucet bracket
Control System
- Mounted on the right in an enclosure that protects it from water
- Temperature control knob has 10 levels
- Power on/off switch
- Power indicator light
- Heating indicator light
- Low-water indicator light
Dimensions & Utilities
- 28 in. W x 22.4 in. D x 31.1 in. H
- 35 A, 14.4 kW
- 240 V/60 Hz/3 ph
From The Manufacturer
Kettle, electric, table top, 40 quart capacity, 2/3 jacket, IPX6 water rated electronic Classic controls, 304 stainless steel liner, hand tilt, support console on right, stainless steel construction, cULus, NSF, Made in USA
*Image may not depict product color, inclusions or accessories.
Groen TDB-40C Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Groen |
| Base | Console |
| Capacity (gallons) | 10 |
| Design | 2/3 Jacket |
| Heat | Electric |
| Hertz | 60 |
| Type | Countertop |
| Voltage | 240 |
| Warranty | Limited 1-year Parts & Labor/2000 Operating Hours; 10-year Hemisphere; 2-year Parts & Labor/4000 Operating Hours for K-12 School |
| Phase | 3 |
| No. of Kettles | 1 |
| Tilt Mechanism | Lever |
| Weight | 190.00 |
Important Prop 65 information for California residents.
