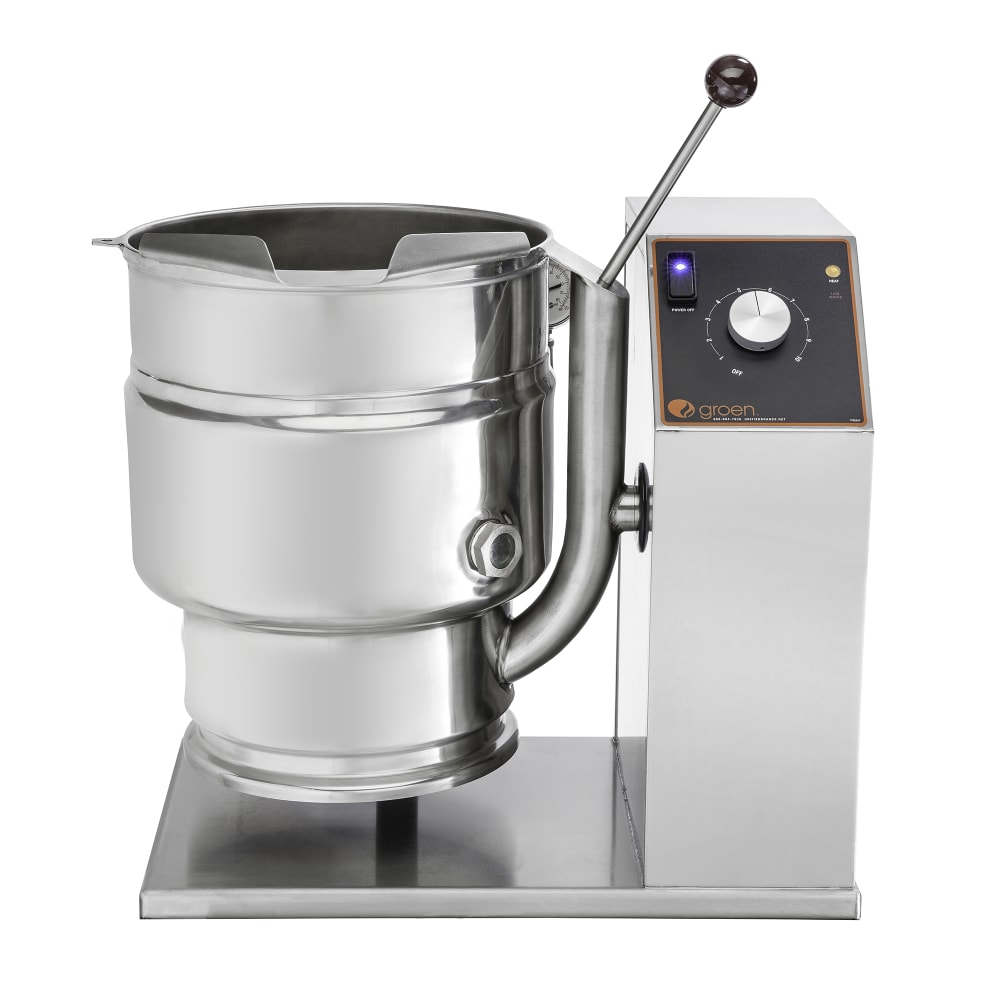

Groen TDB-40C 10 gal. Steam Kettle - Manual Tilt, 2/3 Jacket, 240v/1ph

The Groen TDB-40C steam-jacketed kettle has a self-contained steam source, so it does not need to be hooked up to a boiler or generator. It comes filled with water in the jacket, which heats up to turn the water into steam. Surrounding the lower two thirds of the kettle body, this jacket provides a more even heat than cooking on a range. The kettle operates at temperatures between 150 and 295 degrees Fahrenheit, a level that can be controlled through a knob on the control panel.

Operators can quickly remove cooked food from this Groen TDB-40C countertop kettle by tilting the body. It tilts smoothly when the hand crank is turned and locks into whatever position the user chooses. Because the rim can get damaged during the tilting process, it is reinforced to prevent denting, which could alter steam pressure. A welded-in pouring lip directs product out of the kettle and into a separate container when it is tilted. If the unit is tilted to or past 12 degrees, the heat shuts off to protect operators from burns. A faucet can be added to this kettle using the included bracket, providing a constant supply of water. Single-pantry faucets can offer hot or cold water, and double-pantry faucets provide both.

Product Details

• 40-qt. (10-gal.) capacity
• Source of steam is self-contained to eliminate the need for hookup to a boiler or generator
• Two-third steam-jacketed kettle body
• Approximate temperature range: 150-295 degrees F
• Operates thermostatically by turning off when the set temperature is reached and back on if the temperature drops
• Body smoothly tilts with manual hand crank
• Reinforced kettle rim is resistant to denting, which can alter steam pressure
• Rim has a butterfly-shaped pour lip that precisely directs product into a container
• Welded, 1-piece 304 stainless steel construction resists corrosion and provides strength
• Automatic heat shut-off feature when the unit is tilted 12 degrees
• Pressure-relief valve
• High-limit pressure switch
• Low-water cut-off function shuts off heat if water gets low
• Countertop unit
• Comes with a faucet mounting bracket

Control System

• Mounted in a water-resistant housing to the right of the kettle body
• Power on/off switch
• Temperature control knob with 10 heat levels
• Power indicator light
• Heating indicator light
• Low-water indicator light

Dimensions & Utilities

• 28 in. W x 22²/₅ in. D x 31¹/₁₀ in. H
• 60 A, 14.4 kW
• 240 V/60 Hz/1 ph

*Free shipping on Groen TDB-40C within the 48 contiguous states.

From The Manufacturer

Kettle, electric, table top, 40 quart capacity, 2/3 jacket, IPX6 water rated electronic Classic controls, 304 stainless steel liner, hand tilt, support console on right, stainless steel construction, cULus, NSF, Made in USA

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor/2000 Operating Hours; 10-year Hemisphere; 2-year Parts & Labor/4000 Operating Hours for K-12 School
