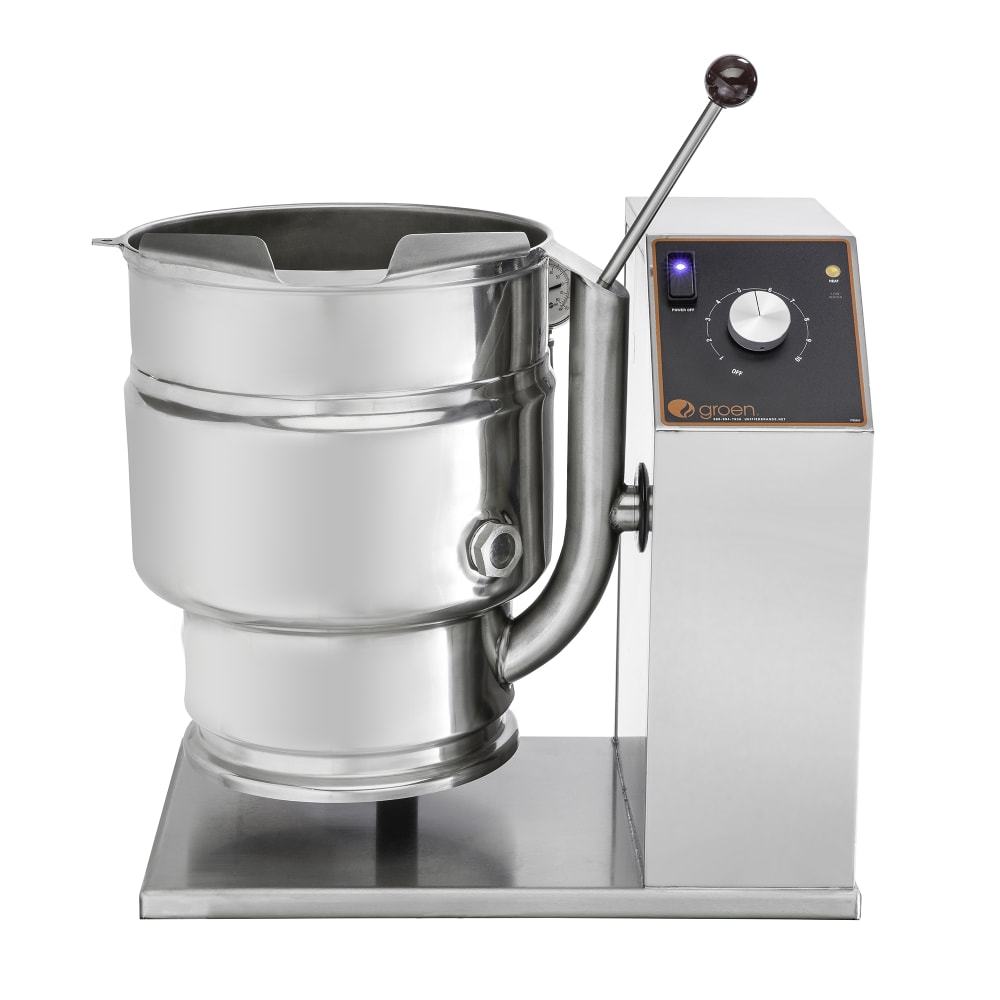

Groen TDB-40C 10 gal. Steam Kettle - Manual Tilt, 2/3 Jacket, 208v/1ph

The Groen TDB-40C tabletop tilting kettle has a 40-quart (10-gallon) capacity that works well with large batch cooking and heats up through steam, which is a much more forgiving and even heating method than range top cooking. Between the interior and exterior, a hollow jacket holds water that, when heated, turns into steam. This steam source is self-contained in the unit and does not require hookup to a boiler or generator.

Because this Groen TDB-40C steam kettle tilts, operators can conveniently empty cooked product into pans and containers. As the user turns the manual hand crank, a worm-and-gear mechanism smoothly tilts the body, holding it in the desired position. The kettle rim has a reinforced construction that resists denting, so steam pressure stays the same. To ensure minimal dripping and spilling, a pouring lip is welded into the rim and directs product into a separate container. A faucet bracket comes with the unit, so operators can mount a single- or double-pantry faucet on the rear for a constant flow of water.

Product Details

• 40-qt. (10-gal.) capacity
• Self-contained steam source does not require hookup to external generator or boiler
• Two-third steam jacket heats up the water inside and turns it to steam
• Approximate temperature range: 150-295 degrees F
• Thermostatic operation senses the heat level and turns on or off accordingly
• Kettle can be tilted manually to empty the contents
• Hand-tilt mechanism can be right or left mounted
• Kettle rim is reinforced to prevent denting that would affect steam pressure
• Welded-in, butterfly-shaped pouring lip directs food into the appropriate container
• 1-piece, welded 304 stainless steel construction is heavy duty and quick cleaning
• Heat cuts off when kettle is tilted past 12 degrees
• Pressure relief valve
• High-limit pressure switch
• Low-water cut-off feature stops heating if the jacket water level is too low
• Tabletop model
• Includes faucet bracket

Control System

• Power on/off switch
• Temperature control knob with 10 levels
• Power indicator light
• Heat indicator light
• Low-water indicator light
• Located on the right side in an enclosure that protects against splashes

Dimensions & Utilities

• 28 in. W x 22²/₅ in. D x 31¹/₁₀ in. H
• 52 A, 10.8 kW
• 208 V/60 Hz/1 ph

*Free shipping on Groen TDB-40C within the 48 contiguous states.

From The Manufacturer

Kettle, electric, table top, 40 quart capacity, 2/3 jacket, IPX6 water rated electronic Classic controls, 304 stainless steel liner, hand tilt, support console on right, stainless steel construction, cULus, NSF, Made in USA

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor/2000 Operating Hours; 10-year Hemisphere; 2-year Parts & Labor/4000 Operating Hours for K-12 School
