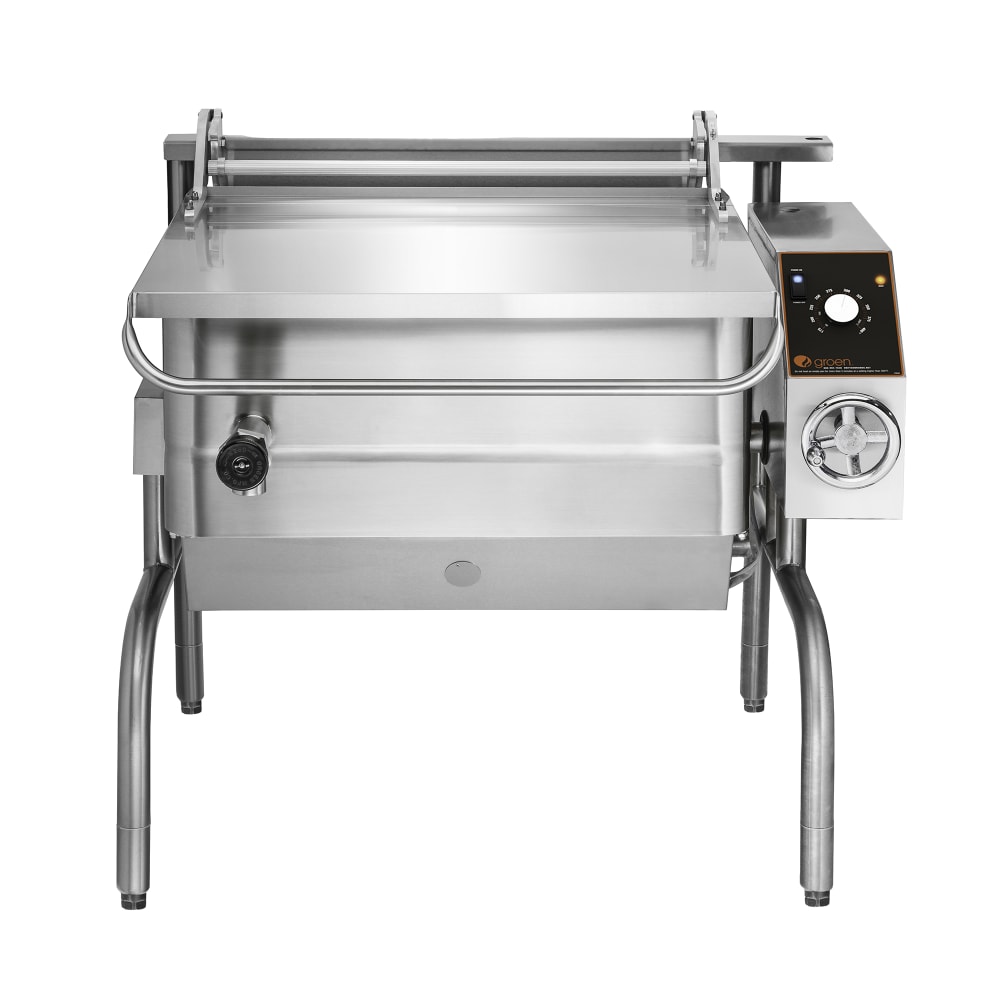

Groen BPM-40EC 40 gal. Tilt Skillet - Open Leg Base, Polished Pan, Measurement Marks, 208v/3ph

The Groen BPM-40EC tilting braising pan is made of durable stainless steel and can hold 40 gallons of meat and vegetables. Its pan is 10 inches deep and has a ⁵⁄₈-inch-thick stainless steel-clad plate for the cooking surface. For efficient heat across the surface, flat bar heating elements are clamped onto it, and the heaviness of the plate protects against warping and distortion. Graduated etch marks on the body enable users to effectively measure contents in gallons or liters.

The Groen BPM-40EC braising pan uses a crank and a worm-gear-tilt mechanism to tilt the pan and pour out contents. It takes 24 tilts for the pan to be fully vertical, and it can be tilted past vertical to simplify cleaning. Faucet installation on the left, right, or rear is enabled by the faucet mounting bracket, and this unit is thermostatically controlled to prevent temperatures from getting higher or lower than the set level.

Product Details

• 40-gal. capacity
• 10-in. pan depth and 38-in. pan height
• Durable stainless steel construction eases cleaning
• Standard etch marks in gallons and liters for measuring
• ⁵⁄₈-in.-thick stainless steel plate for the cooking surface
• Flat bar heating elements spread heat across the cooking surface
• Faucet mounting bracket for rear, left-side, or right-side installment
• Controls are located in front-mounted, water-resistant enclosure
• High-limit thermostat for safety
• Temperature range: 175-400 degrees F
• Thermostatically controlled to prevent temperatures from getting too high or too low

Manual Tilt

• Manual crank and worm-gear-tilt mechanism tilts body
• 24 turns to tilt vertically
• Tilts past vertical to simplify cleaning
• 7-degree tilt for griddling food

Dimensions & Utilities

• 54⁴/₅ in. W x 39³/₄ in. D x 43³/₁₀ in. H
• 43 A
• 208 V/60 Hz/3 ph

*Free shipping on Groen BPM-40EC within the 48 contiguous states.

From The Manufacturer

Braising Pan, electric, 40-gallon capacity, 10" deep pan, 38" pan height, IPX6 water rated electronic Classic controls, manual tilt, standard etch marks, faucet bracket, round tubular open leg base, stainless steel construction, bullet feet, 15.0 kW, cUL, UL, NSF, Made in USA, 208v/60/3ph

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor/2000 Operating Hours; 10-year Pan; 2-year Parts & Labor/4000 Operating Hours for K-12 School

Groen BPM-40EC Specifications

Documents

Spec Sheet

Warranty

Manual
