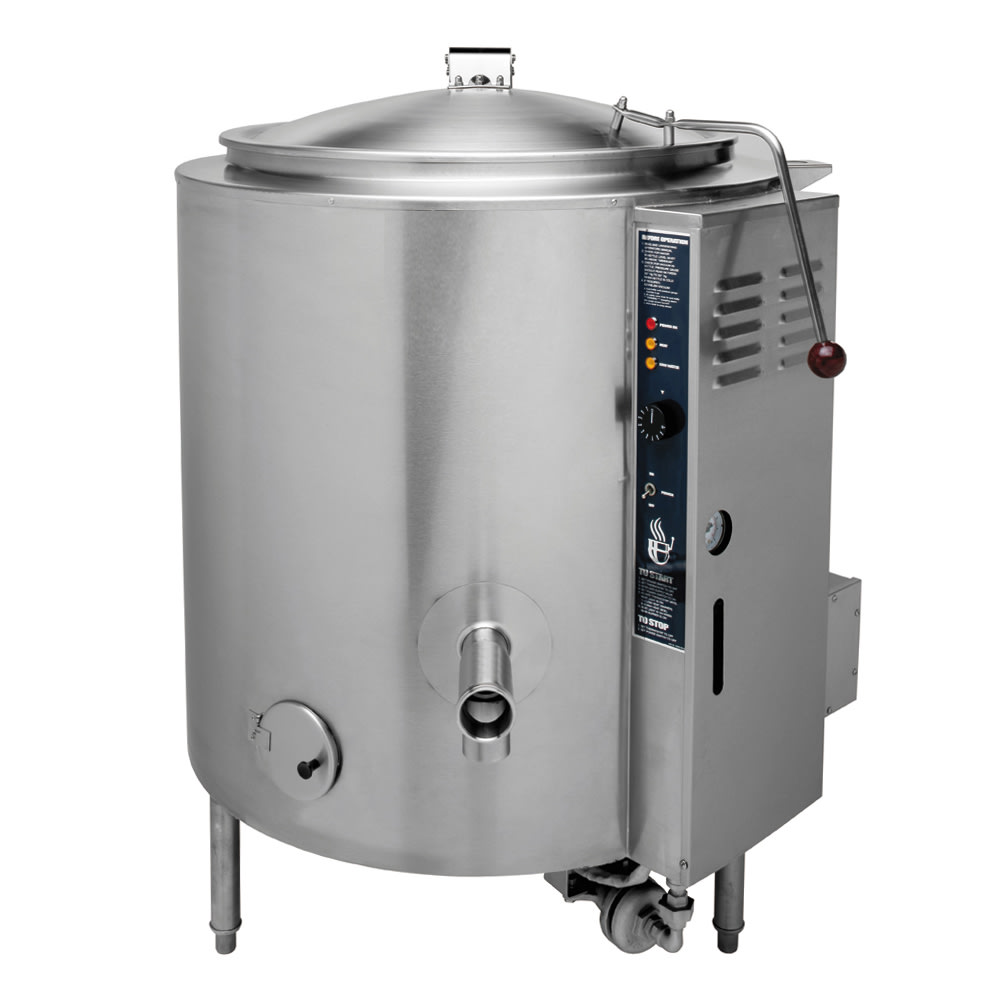

Groen AH/1E-60 60 gal. Steam Kettle - Stationary, 2/3 Jacket, Liquid Propane

The Groen AH/1E-60 steam kettle has a 60-gallon capacity, ideal for cooking large batches of soups, stews, gravies, rice, and other popular dishes, while taking less effort to provide a more even heat pattern than cooking on a range. The jacket—a hollow space between the interior and exterior—fills with water and covers the lower two-thirds of the kettle body, while steam in the kettle is self-contained. With this design, it does not heat as evenly as a fully jacketed unit, but it saves more water and power.

The interior liner in the kettle is made of 316 stainless steel, which provides superior corrosion resistance and supports cooking with tomato-based and other acidic products. The insulated body, sheathed in stainless steel, keeps heat inside and prevents the outer shell from getting hot to the touch. Operators can drain off broths and stock through the 2-inch tangent draw-off valve, which integrates a strainer that prevents solid food clogging the component and streamlines interior cleaning. A faucet bracket is included, so users can add a single-pantry or double-pantry faucet to the unit, enabling access to a constant supply of hot or cold water or both hot and cold water.

The controls on this Groen AH/1E-60 stationary steam-jacketed kettle are front mounted in a water-resistant enclosure. This set of switches and indicator lights includes a regulating thermostat that enables the user to set the temperature between 150 and 270 degrees Fahrenheit. Safety features in the kettle turn off the unit if the water level in the jacket is too low or if the jacket pressure is too high.

Product Details

• 60-gal. capacity
• Self-contained steam source with water in a hollow jacket between the interior and exterior of the kettle
• Two-third jacket surrounds the kettle bottom to provide even heat
• 1-piece, 316 stainless steel interior liner is more resistant to corrosion than other materials
• Insulated body is sheathed in stainless steel for heat retention and keeps the exterior cool to the touch
• Counterbalanced cover retains heat and locks into open or closed positions
• 3 adjustable legs keep the body level on uneven surfaces
• Faucet bracket included
• 30 PSI maximum working pressure
• 145,000 BTU

Control System

• Regulating thermostat
• Temperature range: 150-270 degrees F
• Power-on button with an indicator light
• Heating indicator light
• Low-water indicator light
• Low-water cut-off function shuts off the burner when water falls below a safe level
• Water level sight gauge shows the amount of water in the jacket
• Pressure gauge displays the steam pressure and if there is excessive air in the jacket
• Pressure limit control regulates pressure, shutting off the burner if the jacket pressure reaches 27 PSI and lighting it if the pressure drops to 22 PSI
• Pressure safety valve expels steam from the jacket if pressure exceeds 30 PSI
• Controls are front mounted in a water-resistant enclosure

Tangent Draw-off Valve

• Standard 2-in. diameter
• Drains off liquid
• ¹/₄-in. stainless steel, perforated strainer prevents clogging
• Rubber compression disk seals to prevent food leaks
• Heavy-duty, insulated handle
• Does not require tools to disassemble

Dimensions & Utilities

• 46¹/₄ in. W x 52¹/₄ in. D x 48⁷/₈ in. H (H measured to the rim; 76⁵/₈-in. H with the cover raised)
• Uses LP gas

*Free shipping on Groen AH/1E-60 within the 48 contiguous states.

From The Manufacturer

Kettle, gas, 60-gallon capacity, 2/3 jacket, 316 stainless steel liner, stainless steel insulated body, 2" TDO, 1/4" perforated strainer, power aid cover, faucet bracket, bullet feet, 30 PSI, 145,000 BTU, CSA Star, CSA Flame, NSF, Made in USA

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor/2000 Operating Hours; 10-year Hemisphere; 2-year Parts & Labor/4000 Operating Hours for K-12 School

Groen AH/1E-60 Specifications

Documents

Spec Sheet

Warranty

Manual
