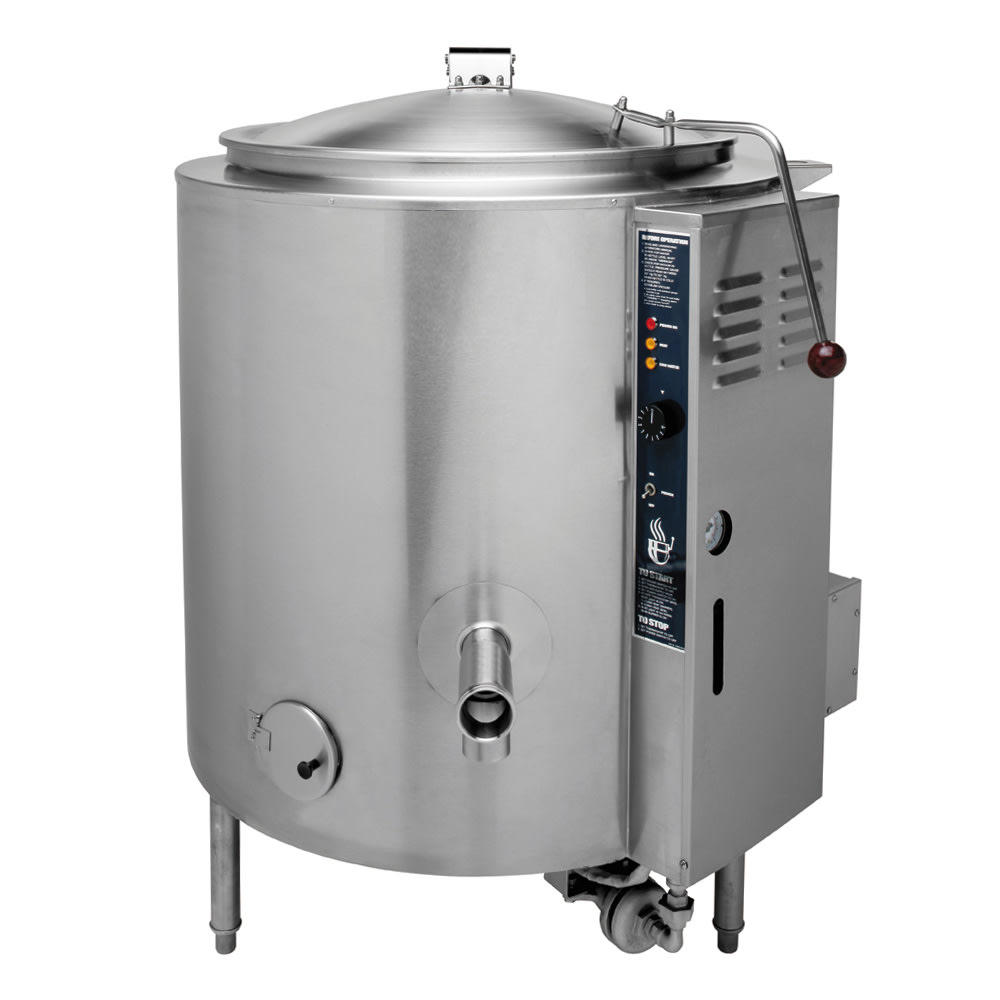

Groen AH/1E-60 60 gal Steam Kettle - Stationary, 2/3 Jacket, Natural Gas

Designed for high-volume operations, the Groen AH/1E-60 kettle has a 60-gallon capacity. It generates steam when water in the jacket surrounding the interior heats up, and because the water is factory charged, the unit is self-contained and does not require a water supply. The steam jacket extends up two-thirds of the kettle, which means that it heats less evenly than full-jacketed units but is a more economical choice. Made of 316 stainless steel, the interior liner is highly resistant to corrosion, so it is ideal for marinara sauce, barbeque sauce, and other acidic products. A faucet bracket that can accept a pantry faucet is included—a single unit for hot or cold water or a double unit for both hot and cold water.

This Groen AH/1E-60 steam kettle has a front-mounted control system enclosed in a stainless steel housing to prevent damage from splashing and dripping. Lights on the control system notify the operator if the power is on, the unit is heating, or water is too low for operation. The regulating thermostat has a temperature range of 150 to 270 degrees Fahrenheit, and when the temperature reaches the set level, the unit shuts off until the temperature drops. This kettle has a gas pressure regulator, which protects the unit in case pressure in the gas supply line gets too high. If the pressure is above 27 PSI, a limit switch turns off the jacket, and above 30 PSI, a safety valve releases the jacket's steam.

Product Details

• 60-gal. capacity
• Steam jacket covers the lower two-thirds of the kettle
• Self-contained steam source comes with distilled water already in the jacket
• 1-piece 316 stainless steel liner is highly resistant to corrosion, perfect for acidic products
• Insulated stainless steel body provides durability and facilitates cleaning
• Counterbalanced cover stays in an open or closed position
• Faucet bracket is included in case an operator wants to add a pantry faucet for refilling
• 3 adjustable legs maintain stability on uneven surfaces
• 30 PSI
• 145,000 BTU
• Requires 6-in. sides and rear clearances

Control System

• Power-on switch
• Power-on indicator light illuminates when the unit is switched on
• Heat indicator light illuminates when the unit is being heated
• Low-water indicator light illuminates to notify the operator if more water is needed
• Low-water cut-off feature turns off the burner if the jacket's water level is too low
• Water sight gauge indicates if there is enough water in the steam jacket
• Regulating thermostat
• Temperature range: 150-270 degrees F
• Thermostatically controlled to shut off when the set temperature is reached and back on when it drops below set level
• Gas pressure regulator protects the unit if pressure is high in the supply line
• Pressure limit switch turns off the jacket if steam pressure is over 27 PSI
• Pressure safety valve releases jacket steam if the pressure is over 30 PSI
• Pressure gauge shows the steam pressure and if too much air is in the jacket
• Front mounted and enclosed to prevent damage from splashing

Tangent Draw-off Valve

• Enables users to efficiently remove liquids
• Corrosion-resistant 316 stainless steel construction
• Durable insulated handle
• Rubber compression sealing disk
• Removable stainless steel, ¹⁄₄-in. perforated strainer prevents product from clogging the valve
• Can be disassembled without tools

Dimensions & Utilities

• 46¹⁄₄ in. W x 52¹⁄₄ in. D x 48⁷⁄₈ in. H (H measured to the rim)
• Heated by gas

*Free shipping on Groen AH/1E-60 within the 48 contiguous states.

From The Manufacturer

Kettle, gas, 60-gallon capacity, 2/3 jacket, 316 stainless steel liner, stainless steel insulated body, 2" TDO, 1/4" perforated strainer, power aid cover, faucet bracket, bullet feet, 30 PSI, 145,000 BTU, CSA Star, CSA Flame, NSF, Made in USA

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor/2000 Operating Hours; 10-year Hemisphere; 2-year Parts & Labor/4000 Operating Hours for K-12 School
