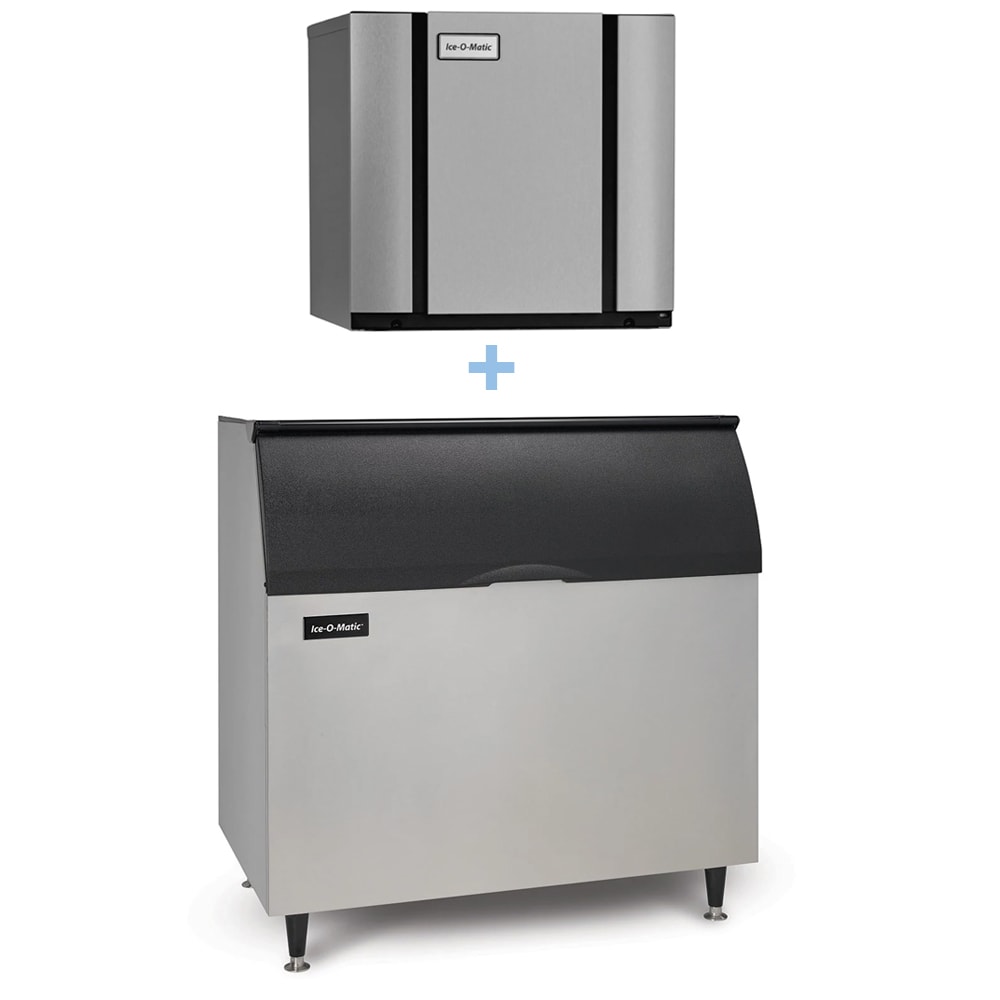

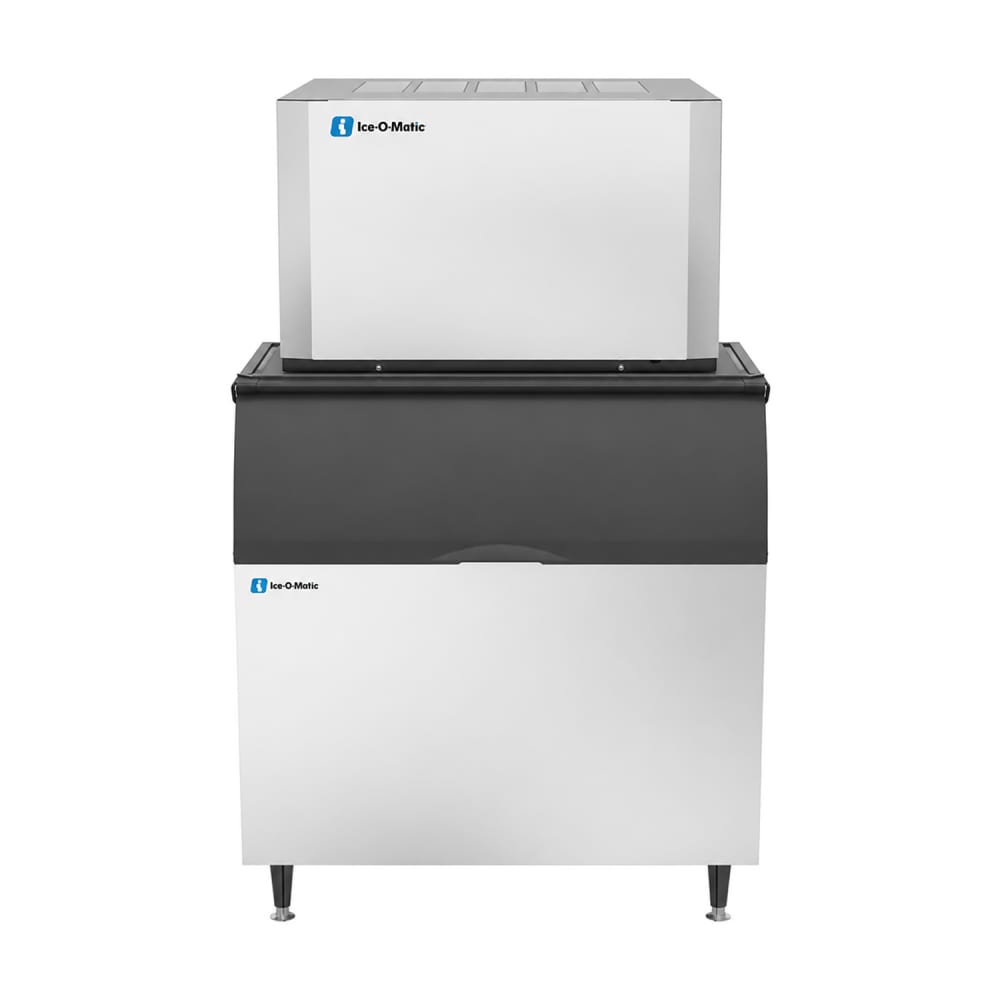

Ice-O-Matic CIM1136HA90/B110/BPF-1 1000 lb Elevation Series™ Half Cube Ice Machine w/ Bin - 854 lb Storage, Air Cooled, 208-230v
QUICK SHIP: Typically ships in 1 - 3 Business Days
$9,143.00 /Each
Selected Ice Type: Half Cube
Ice-O-Matic CIM1136HA90/B110/BPF-1 Description
Designed with a durable, stay-open door, the Ice-O-Matic CIM1136HA90/B110/BPF-1 ice maker's bin enables one-handed use for quick access during peak periods. For enhanced strength and resistance to damage from scuffs, scratches, and dents, the bin's exterior is constructed of stainless steel; inside, it has a poly liner to resist corrosion and contain ice. The ice shield controls the flow of ice, reducing the risk of spills and subsequent slipping hazards .
The Ice-O-Matic CIM1136HA90/B110/BPF-1 modular cube ice maker with bin is constructed with a dual-exhaust system that disperses heat from the top and side of the unit, providing various installation opportunities with a low risk of overheating. To facilitate cleanup, the internal food zone components can be removed and washed in a dishmachine. Some components are also recyclable.
- Part of the Elevation Series™
- 1,000-lb. maximum daily ice production
- Full-size ice cubes
- Cube dimensions: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Air cooled
- R290 refrigerant
- Self-contained condenser doesn't require external modifications
- Heat dispersed through dual exhaust
- Recyclable components reduce environmental impact
- Plastic food zone is smooth to resist harboring bacteria
- Protected by PURE ICE® antimicrobial
- Smart LED light alerts operators when cleaning is required
- 1-touch activation for descaling and sanitizing
- Removable parts are BPA-free and warewasher safe
- Dual-exhaust system
- Universal Smart Harness™ streamlines setup and configuration
- LED display optimizes visibility
- Ideal ambient temperature: 50-70 degrees F
- Ideal water pressure: 20-80 PSIG
- 18,200-BTU heat transfer capacity
- 854-lb. storage capacity
- Poly bin liner is foam insulated for ice preservation
- Sturdy, 6-in. legs can be adjusted
- Strong aluminum finish
- Sloped front
- Ice maker: 30 1⁄4 in. W x 24 1⁄4 in. D x 26 9⁄10 in. H
- Ice bin: 48 in. W x 31 in. D x 50 in. H
- 12.2 A, 5.1 kW
- 208-230 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM1136HA90/B110/BPF-1 within the 48 contiguous states.
From The Manufacturer

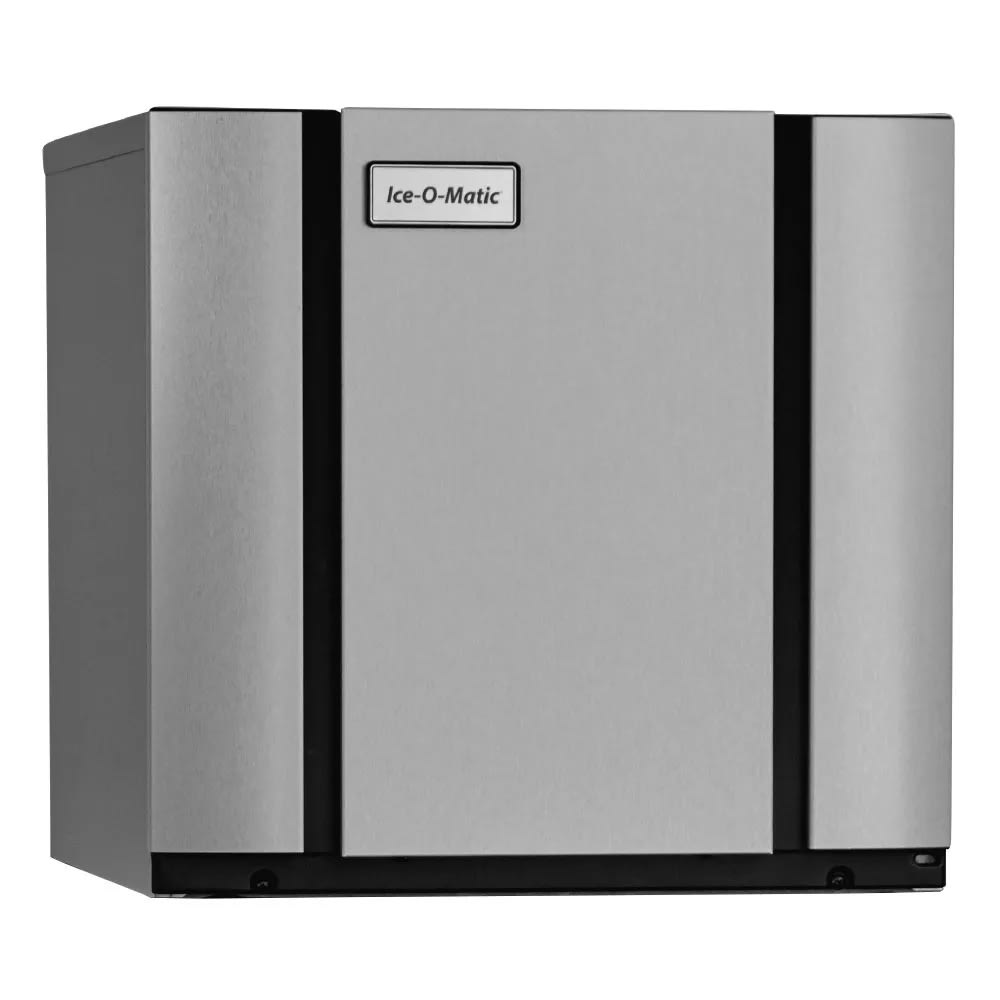

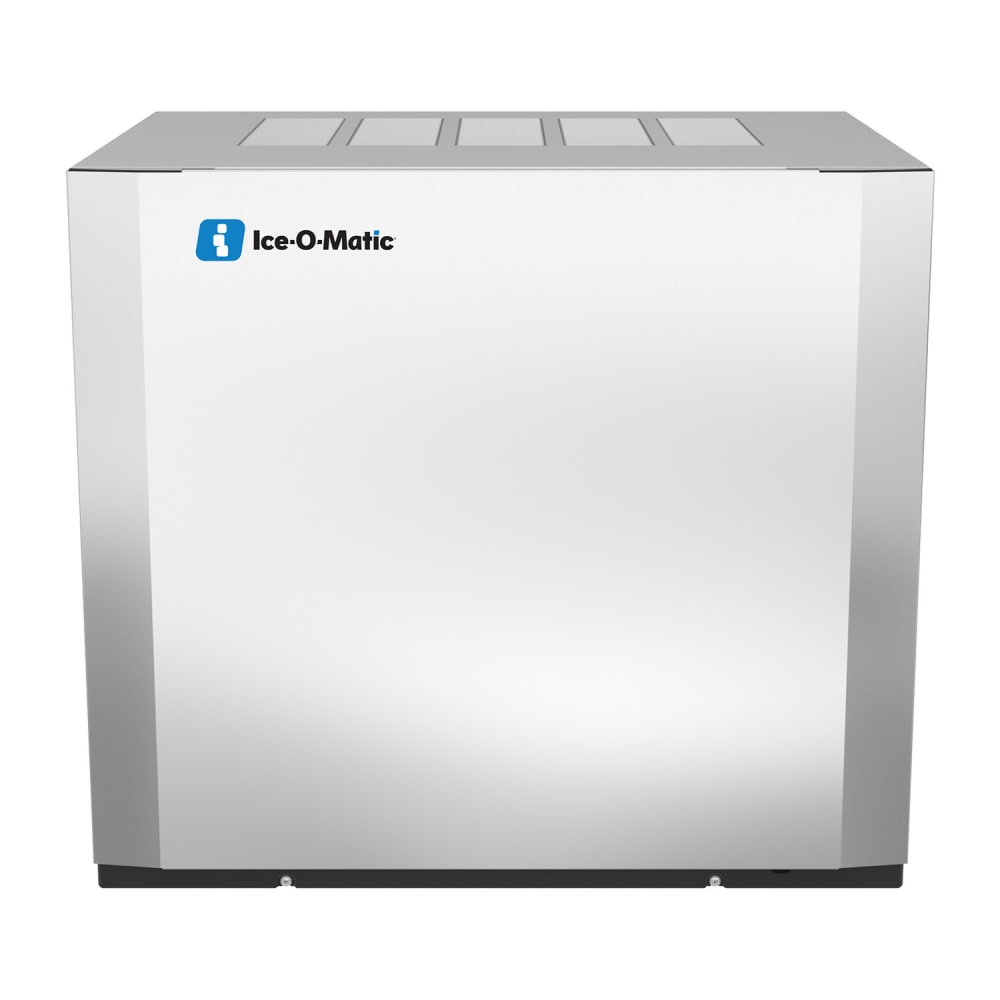

Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30" W, approximately 1000 lb production/24 hours at 70°/50° (812 lb at 90°/70°), half-size cubes, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, R290 refrigerant, cULus, cUL Energy Verified

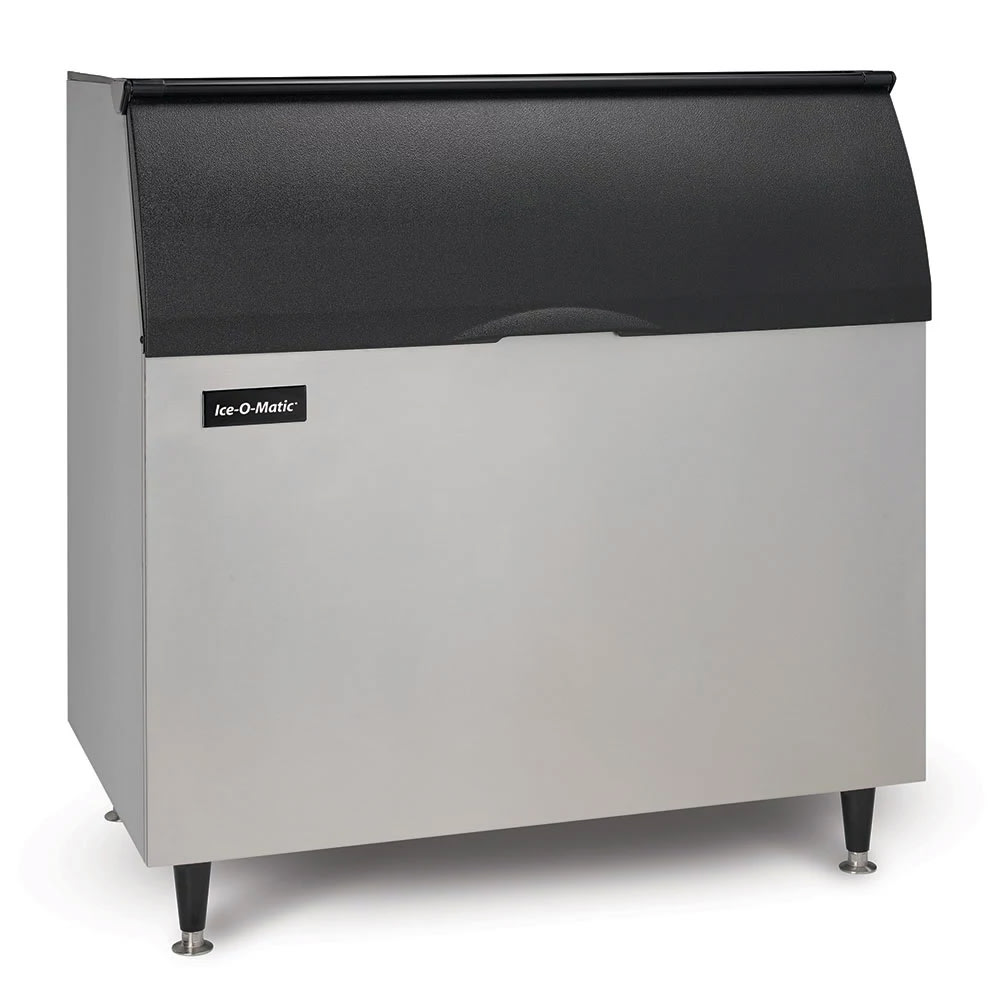

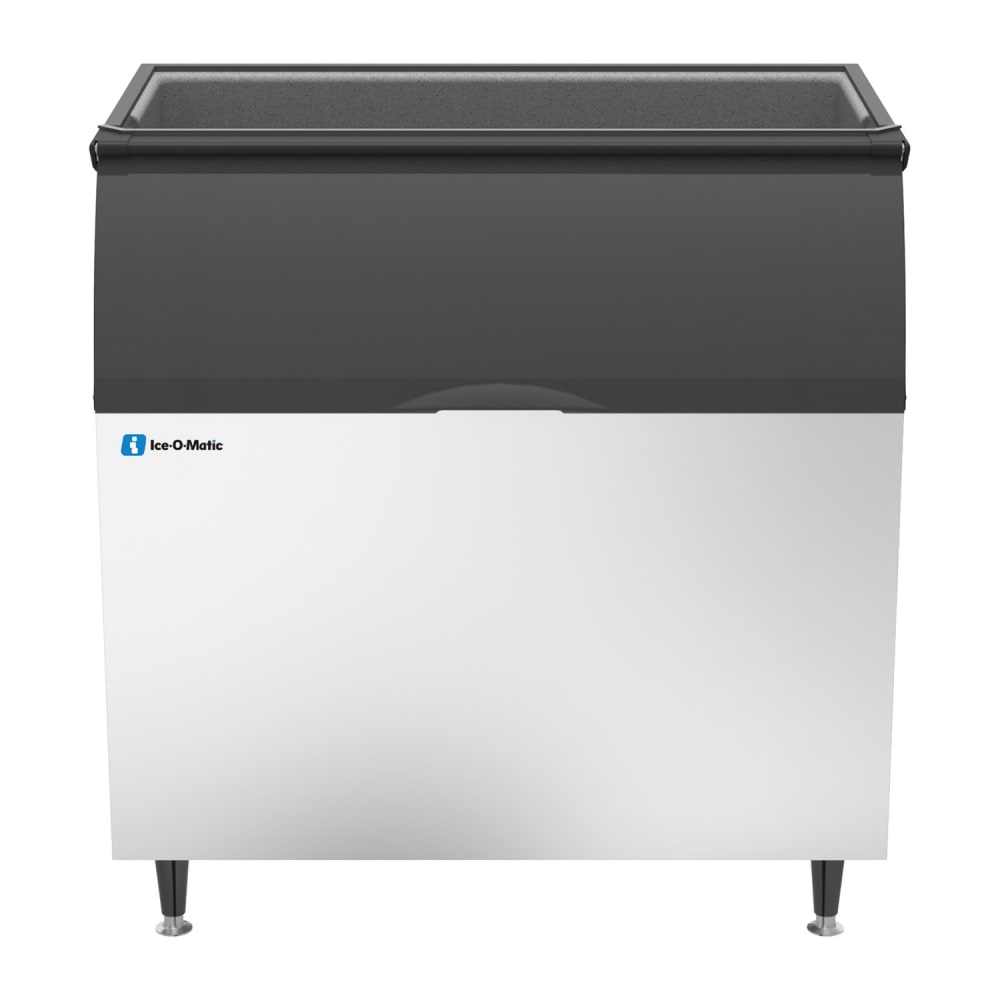

Ice Bin, 854 lb storage capacity, 48"W x 31"D x 50"H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable stainless finish exterior, 6" legs, NSF; (BPF-1) Filler Panel Kit with 30” CIM, GEM, MFI & ICE Series™ Cube Ice Makers for B110 bins only
Ice-O-Matic CIM1136HA90/B110/BPF-1 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 1000 |
| Access | Lift Up Door |
| Also Known As | CIM1136HA49/B110PS/BPF-1 |
| Bin Capacity (lb) | 854 |
| Compressor Type | Air Cooled |
| Depth (in) | 31 |
| Height (in) | 76.9 |
| Hertz | 60 |
| Ice Type | Half Cube |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 2-year Parts & Labor Storage Bin; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 48 |
| Weight | 429.00 |
Important Prop 65 information for California residents.
- 5
- 4
- 3
- 2
- 1
Review this product!
I would buy this product again
These products are being used in a public school.
It produces up to 1000 lbs. of ice per 24 hours.
The bin holds up to 854 lbs. of ice.
It makes half cube ice.
It measures 48 in. W x 31 in. D x 76 9/10 in. H.
It uses an air-cooled condensing system.
It requires 208/230 V/60 Hz/1 ph.
It requires a 3/8-in. water inlet connection.
It uses R290 refrigerant.
Ice is accessed through a front-opening, top-hinged door.
Yes, it includes both the ice machine head and storage bin.
Its listed certifications include C-UL US, CE and NSF.
Yes, it has antimicrobial protection to help inhibit microbial growth.
It requires incoming water pressure from 20 to 80 PSI.
