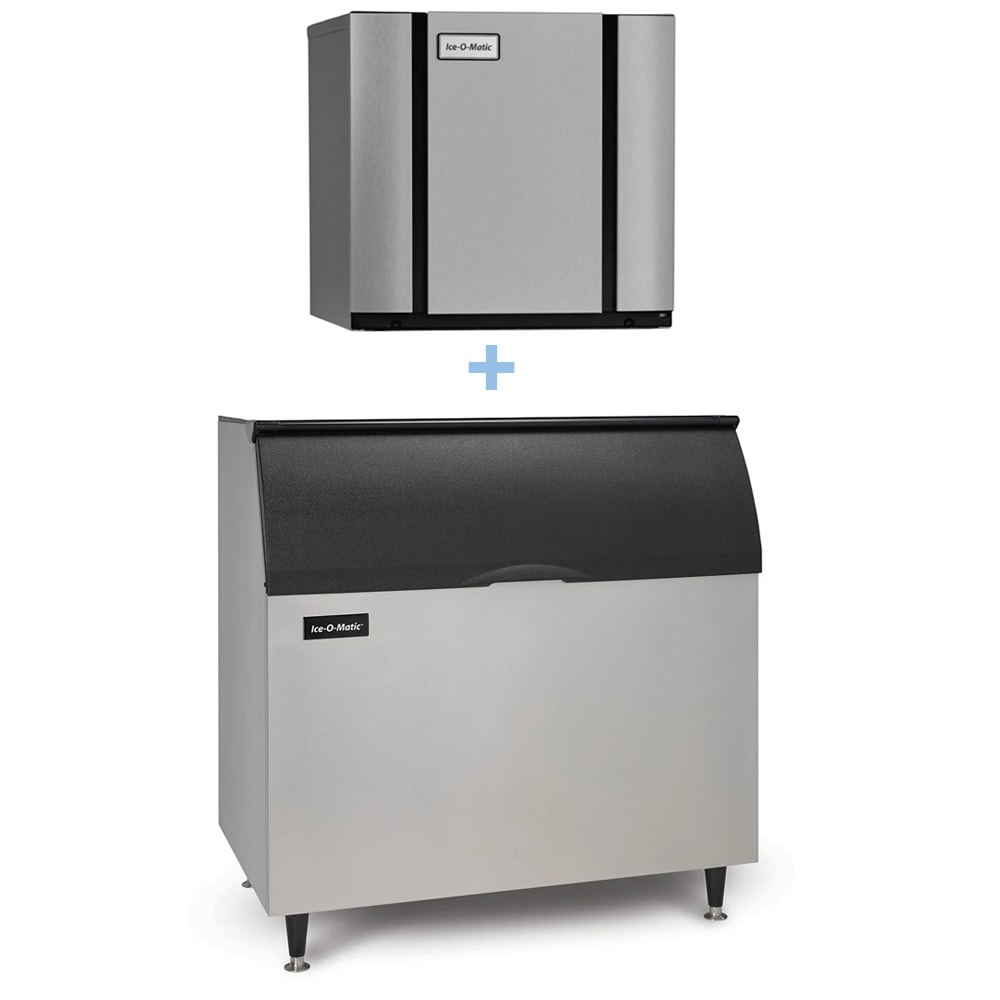

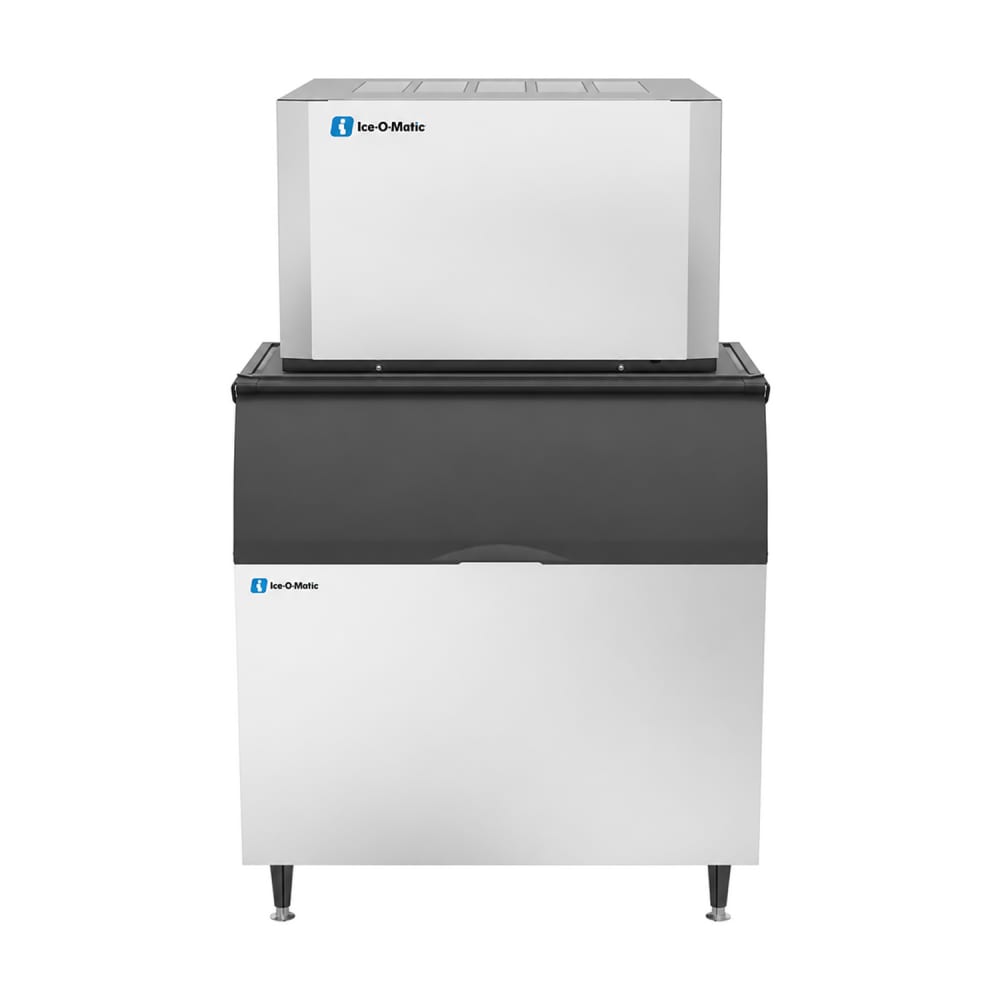

Ice-O-Matic CIM1136FA90/B110/BPF-1 1000 lb Elevation Series™ Full Cube Ice Machine w/ Bin - 854 lb Storage, Air Cooled, 208-230v
Typically ships in 6 - 8 weeks
$9,143.00 /Each
Selected Ice Type: Full Cube
Ice-O-Matic CIM1136FA90/B110/BPF-1 Description
Optimal for keeping a consistent supply of fresh, clean ice, the Ice-O-Matic CIM1136FA90/B110/BPF-1 ice maker with bin produces full cubes. This form of ice measures 7⁄8 inch by 7⁄8 inch by 7⁄8 inch and is rhomboidal in shape. Because of full-cube ice's large dimensions and slow melting process, it's great for preserving the full flavor of cocktails.
The Ice-O-Matic CIM1136FA90/B110/BPF-1 modular cube ice maker with bin is constructed to serve entire dining rooms, fill satellite bins, stock fresh-food displays, and more. This piece of equipment is air-cooled with a self-contained condenser¬, the economical alternative to remote or water-cooled units. To cool the machine, fans push fresh air across the condenser. The unit requires no additional wiring because the entire condenser is within the machine itself.
- Part of the Elevation Series™
- 1,000-lb. maximum daily ice production
- Makes full-cube ice
- Cube dimensions: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
- R290 refrigerant
- Environmentally friendly design incorporates recyclable parts and BPA-free plastic
- Plastic food zone eliminates nooks and crannies to facilitate cleaning
- PURE ICE® antimicrobial protection inhibits bacterial formation
- Smart LED light alerts operators when cleaning is required
- 1-touch controls streamline sanitization and descaling
- Snap-out components are safe for dishwasher use
- Dual-exhaust system discharges air from top and side
- Universal Smart Harness™ simplifies servicing and installation
- Digital diagnostics provide status of machine
- Self-contained condenser
- Air cooled
- Common configuration and universal components
- 18,200-BTU heat transfer capacity
- 854-lb. storage capacity
- Strong aluminum finish
- Foam-insulated polyethylene bin liner maximizes ice preservation
- Stay-open door optimizes ice access
- 6-in. durable legs can be adjusted
- Ice maker: 30 1⁄4 in. W x 24 1⁄4 in. D x 26 9⁄10 in. H
- Ice bin: 50 in. W x 31 in. D x 50 in. H
- 12.2 A, 5.1 kW
- 208-230 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM1136FA90/B110/BPF-1 within the 48 contiguous states.
From The Manufacturer

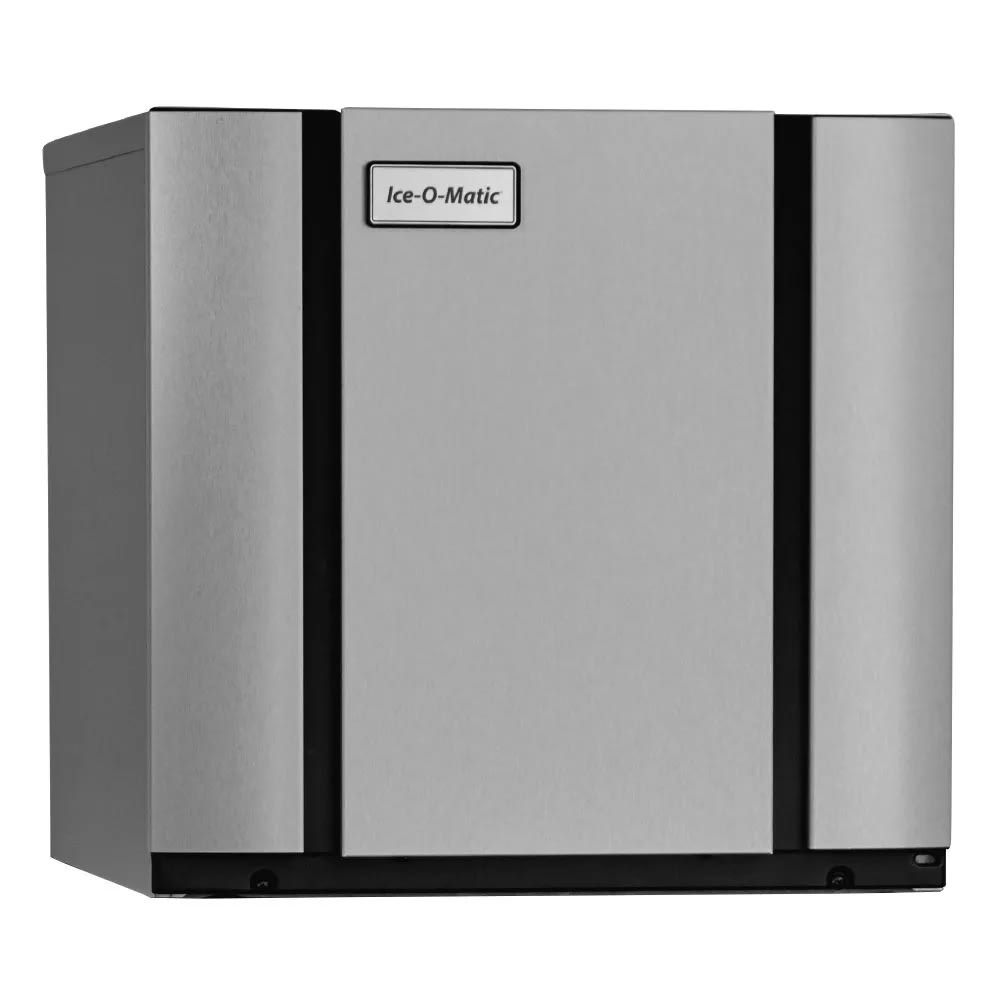

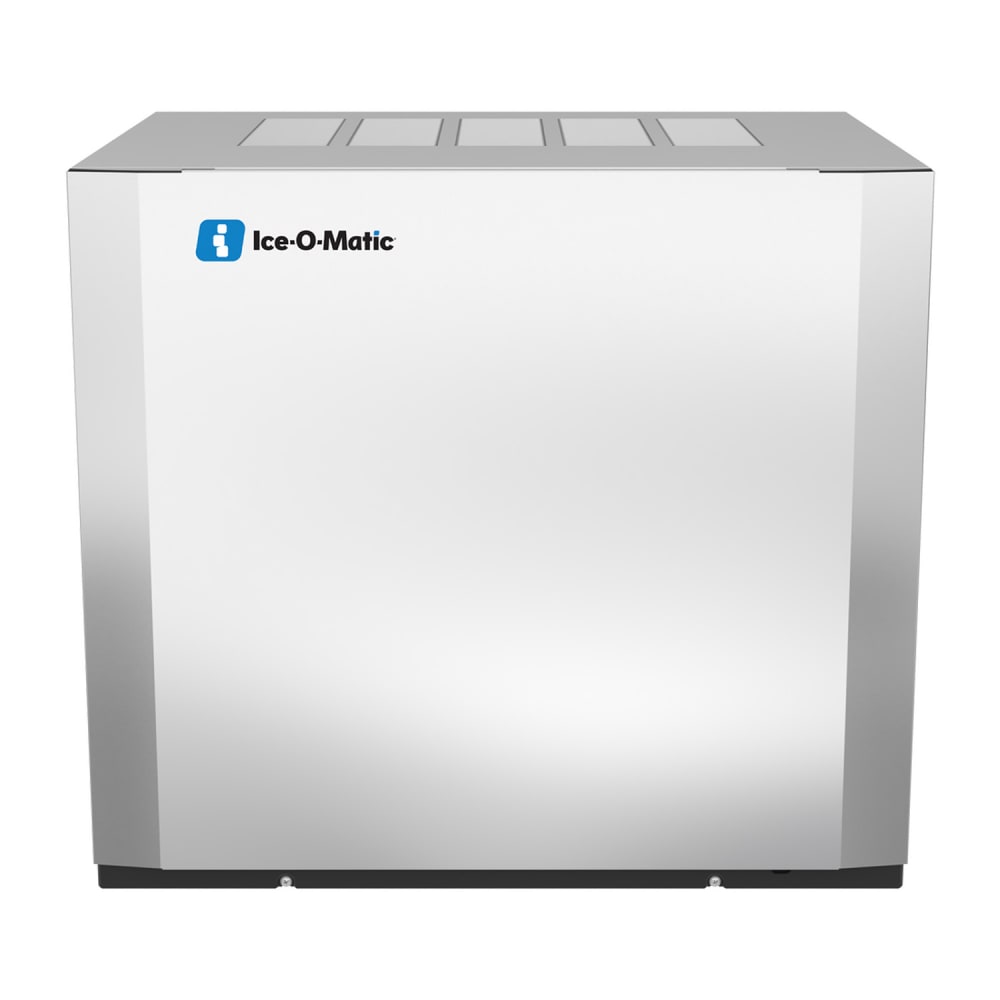

Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30" W, approximately 1000 lb production/24 hours at 70°/50° (812 lb at 90°/70°), full-size cubes, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, R290 refrigerant, cULus, cUL Energy Verified

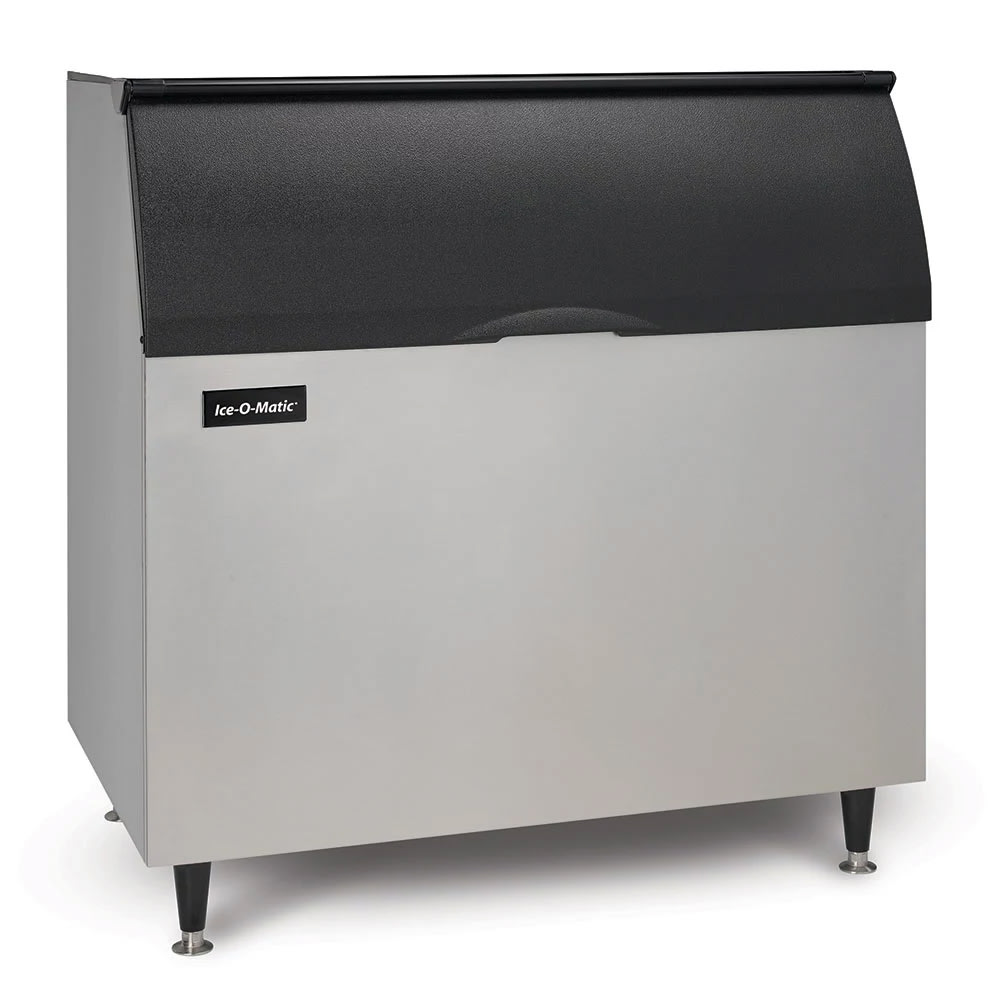

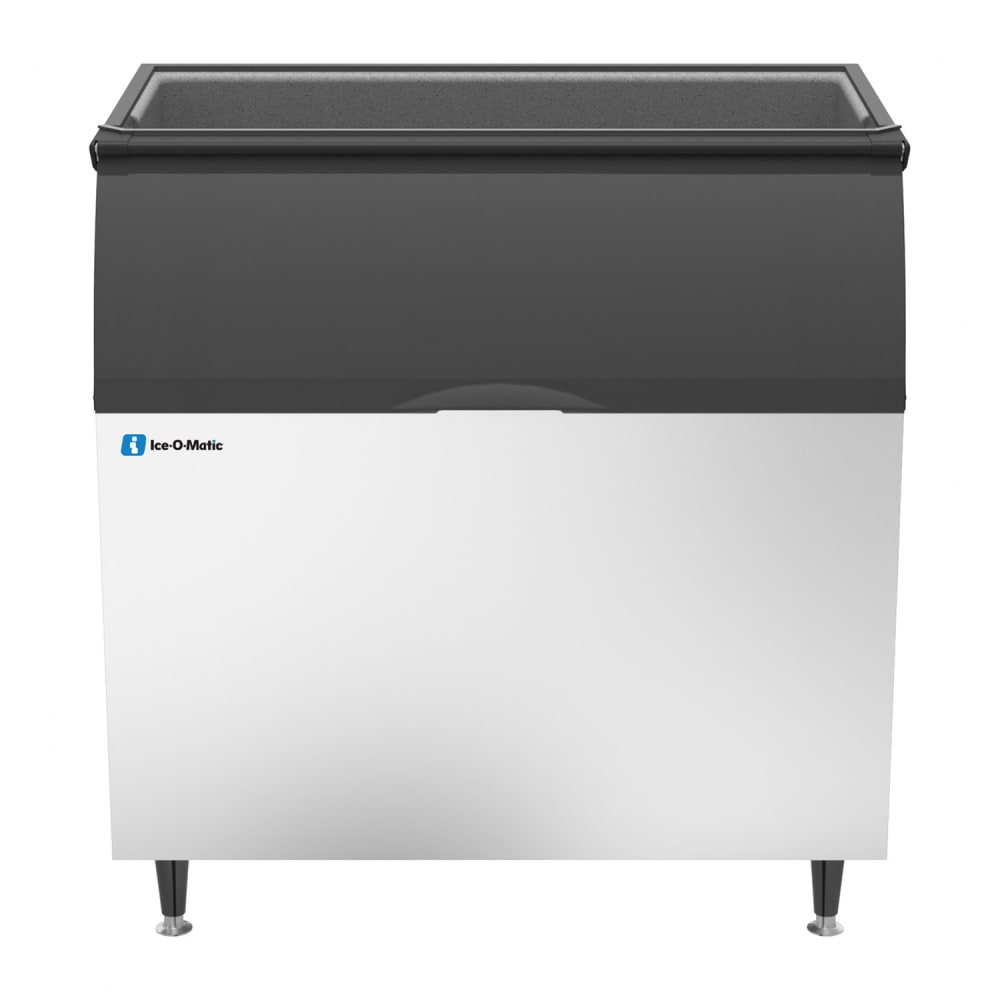

Ice Bin, 854 lb storage capacity, 48"W x 31"D x 50"H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable stainless finish exterior, 6" legs, NSF; (BPF-1) Filler Panel Kit with 30” CIM, GEM, MFI & ICE Series™ Cube Ice Makers for B110 bins only
Ice-O-Matic CIM1136FA90/B110/BPF-1 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 1000 |
| Access | Lift Up Door |
| Also Known As | CIM1136FA49/B110PS/BPF-1 |
| Bin Capacity (lb) | 854 |
| Compressor Type | Air Cooled |
| Depth (in) | 31 |
| Height (in) | 76.9 |
| Hertz | 60 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 2-year Parts & Labor Storage Bin; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 48 |
| Weight | 429.00 |
Important Prop 65 information for California residents.
- 5
- 4
- 3
- 2
- 1
Review this product!
It produces up to 1000 lbs. of ice per 24 hours.
The bin holds up to 854 lbs. of ice.
It makes full cube ice.
It measures 48 in. W x 31 in. D x 76 9/10 in. H.
It uses an air-cooled condensing system.
It requires 208/230 V/60 Hz/1 ph.
It requires a 3/8-in. water inlet connection.
It uses R290 refrigerant.
Ice is accessed through a front-opening, top-hinged door.
Yes, it includes both the ice machine head and storage bin.
Its listed certifications include C-UL US, CE and NSF.
Yes, it has antimicrobial protection to help inhibit microbial growth.
