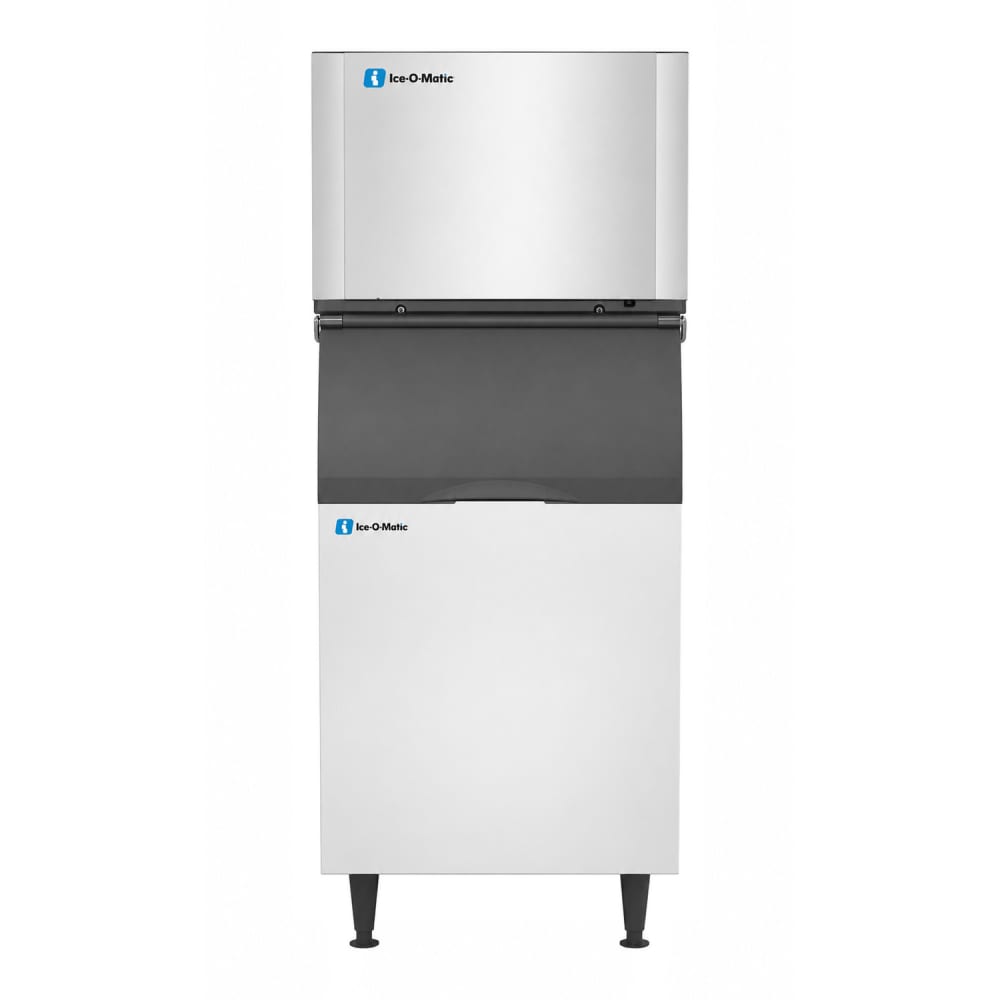

Ice-O-Matic CIM0836HA90/B55 900 lb Elevation Series™ Half Cube Ice Machine w/ Bin - 510 lb Storage, Air Cooled, 208-230v
QUICK SHIP: Typically ships in 1 - 3 Business Days
$7,549.00 /Each
Selected Ice Type: Half Cube
Ice-O-Matic CIM0836HA90/B55 Description
The Ice-O-Matic CIM0836HA90/B55 ice machine makes half-size cubes of ice, making it great for establishments that serve soft drinks, frozen alcoholic beverages, and smoothies. Microbe growth is inhibited with PURE ICE® antimicrobial, and the food zone is made of plastic that can be wiped clean. To clean the food zone's components, the pieces snap out and can be placed in the dishwasher. Users can start the descaling and sanitizing process with the single push of a button, and the system's status is provided on an LED display.
To resist corrosion caused by cleaning chemicals, the Ice-O-Matic CIM0836HA90/B55 half-cube ice maker has a polyethylene liner. It's made of durable aluminum, and it's mounted on strong 6-inch legs that can be adjusted to stabilize it on unsteady surfaces. Using a self-contained, air-cooled condenser, this unit creates 900 pounds of ice per day depending on environmental conditions, and the bin holds 510 pounds of ice for later use.
- Part of the Elevation Series™
- 900-lb. daily ice production
- Makes half-size cubes of ice
- Half-size cube dimensions: 3⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Microbe growth inhibited with PURE ICE antimicrobial
- LED status updates enable monitoring
- Air-cooled condenser is self-contained
- Exhausts from the top and side
- 1-touch sanitizing and descaling
- Uses R290 refrigerant
- Plastic food zone with dishwasher-safe components
- Ideal incoming water pressure: 20-80 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient air temperature: 50-100 degrees F
- 15,100-BTU heat transfer capacity
- 510-lb. application capacity
- Front door is top hinged and sloped
- Ice retained with foam insulation
- Polyethylene interior is corrosion resistant
- Strong aluminum exterior
- Positioned on 6-in. legs
- Ice maker: 30 1⁄4 in. W x 24 1⁄4 in. D x 26 9⁄10 in. H
- Ice bin: 30 in. W x 31 in. D x 50 in. H
- 11.8 A, 5 kW
- 208-230 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM0836HA90/B55 within the 48 contiguous states.
From The Manufacturer

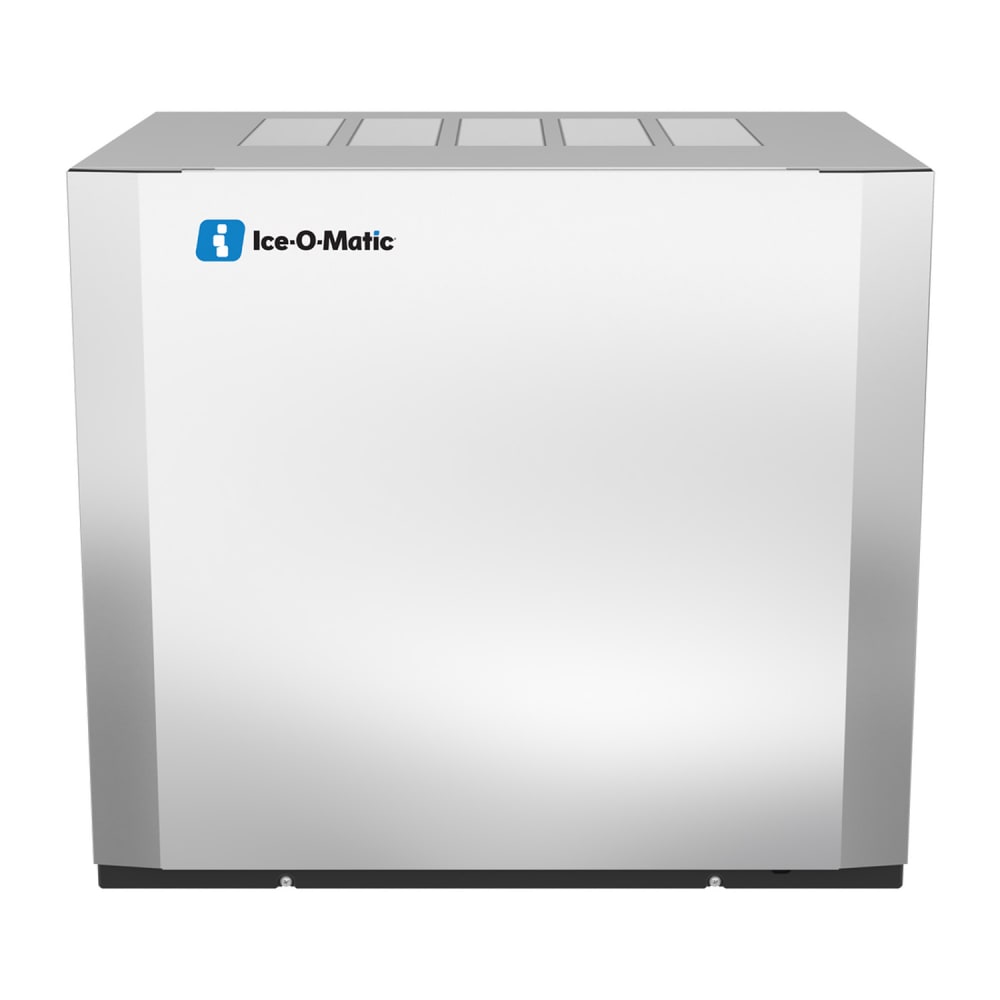

Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30" W, approximately 900 lb production/24 hours at 70°/50° (695 lb at 90°/70°), half-size cubes, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, R290 refrigerant, cULus, cUL Energy Verified

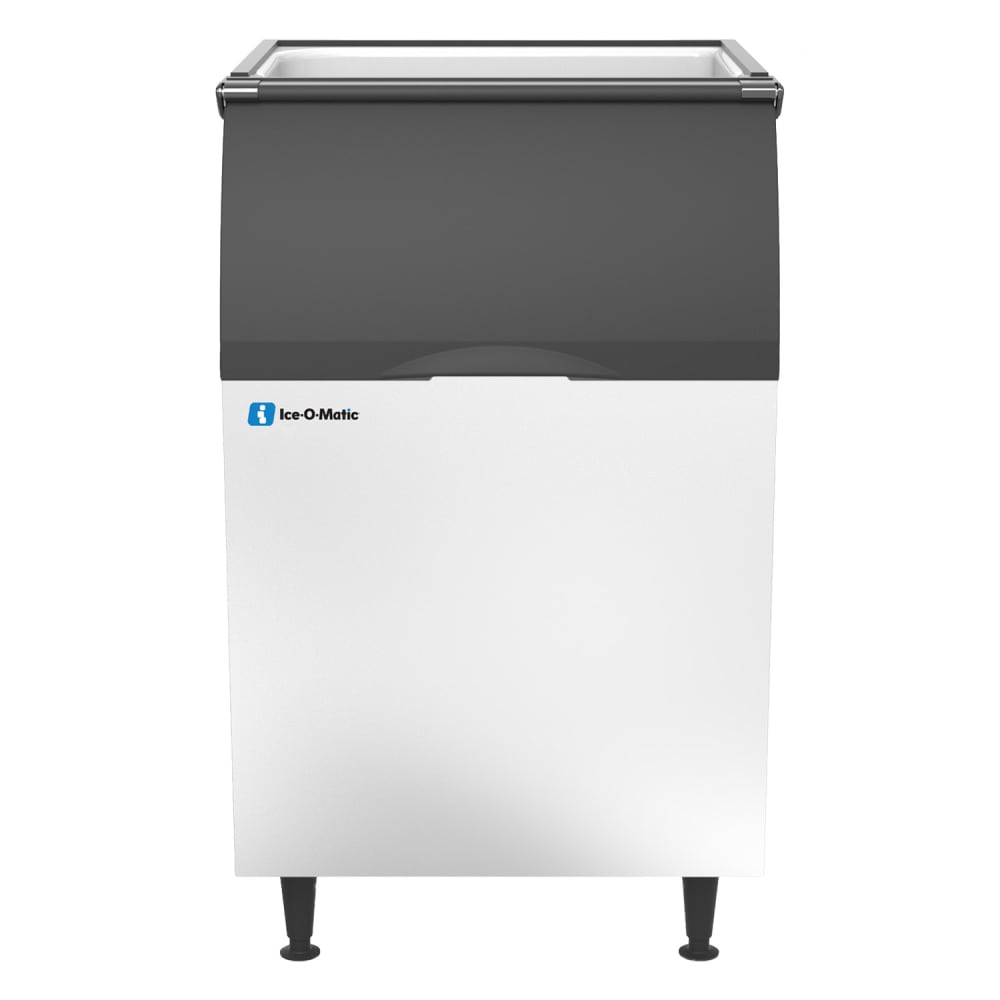

Ice Bin, 510 lb storage capacity, 30"W x 31"D x 50"H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable aluminum exterior, 6" legs, NSF
Ice-O-Matic CIM0836HA90/B55 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 900 |
| Access | Lift Up Door |
| Also Known As | CIM0836HA49/B55PS |
| Bin Capacity (lb) | 510 |
| Compressor Type | Air Cooled |
| Depth (in) | 31 |
| Height (in) | 76.9 |
| Hertz | 60 |
| Ice Type | Half Cube |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 2-year Parts & Labor Storage Bin; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 30.25 |
| Weight | 345.00 |
Important Prop 65 information for California residents.
