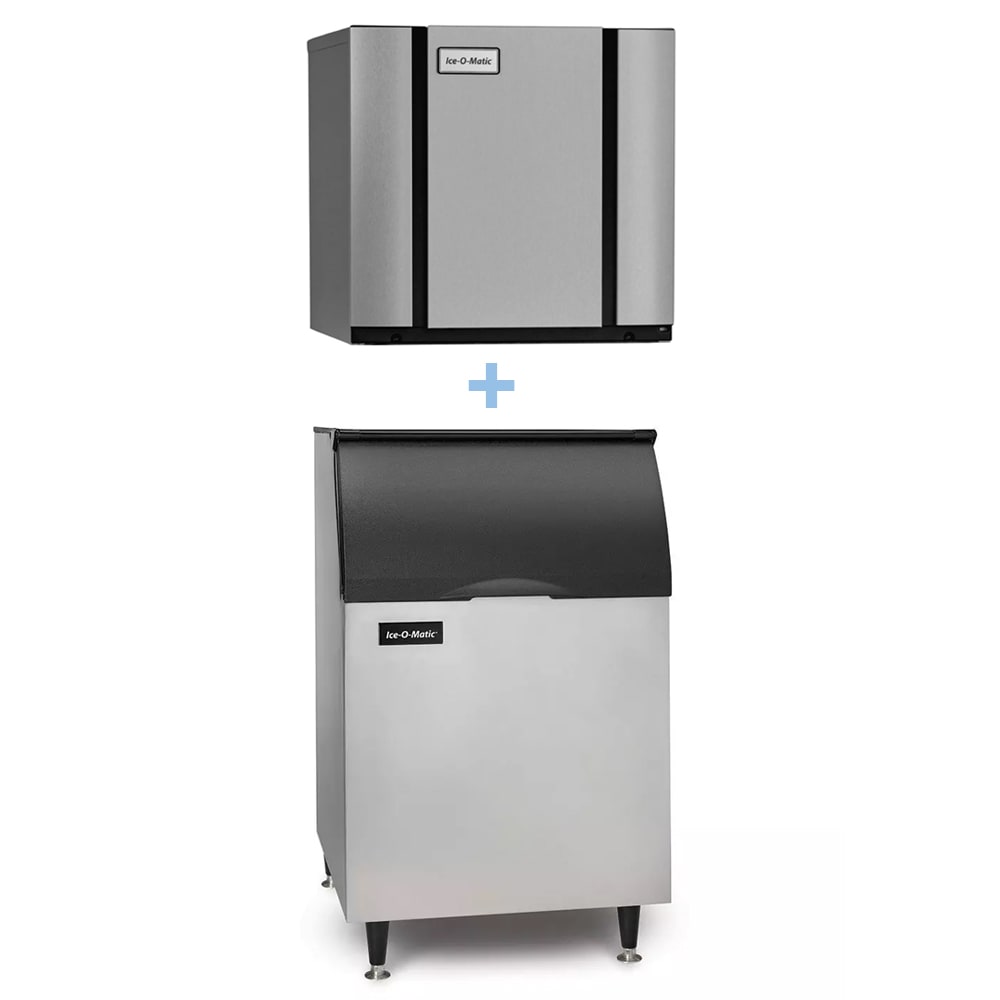

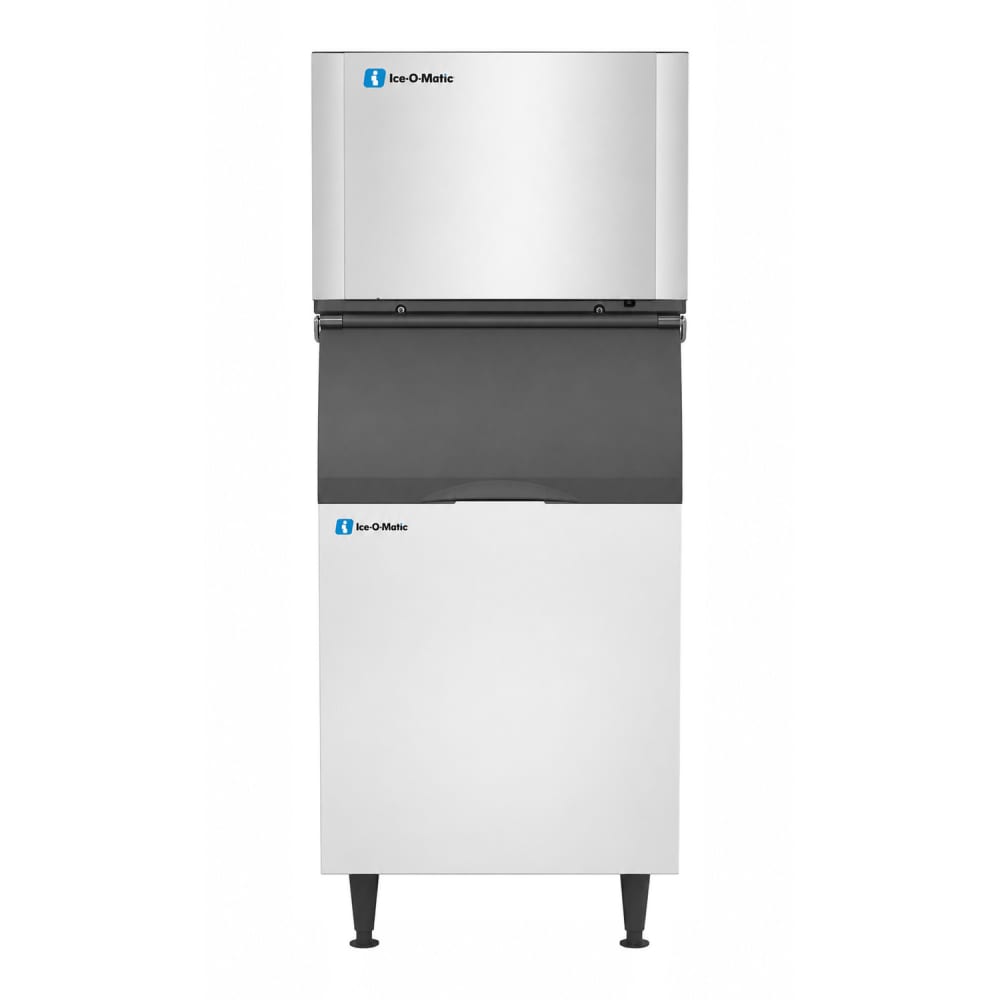

Ice-O-Matic CIM0836FA/B55PS 896 lb Elevation Series™ Full Cube Ice Machine w/ Bin - 510 lb Storage, Air Cooled, 208-230v

Because the air-cooled condenser in the Ice-O-Matic CIM0836FA/B55PS full-cube ice maker with bin is self-contained, it lowers the risk of cross contamination and streamlines installation for quick use. This unit has dual exhaust that releases air from the top and the side. The ice maker produces from 711 to 896 pounds of ice per day depending on environmental factors, while the bin holds as much as 510 pounds for later use. Ensuring ice doesn't melt quickly during storage, the bin is insulated with foam, and it's lined with polyethylene to resist corrosion.

This Ice-O-Matic CIM0836FA/B55PS ice maker with bin has a durable stainless exterior finish that withstands high-volume use. The head is protected with PURE ICE® antimicrobial to inhibit the growth of bacteria, and the food zone has removable components that can be cleaned in a dishmachine. To descale and sanitize the unit, employees just need to push a button, and to read status updates, it has an LED display that provides a readout.

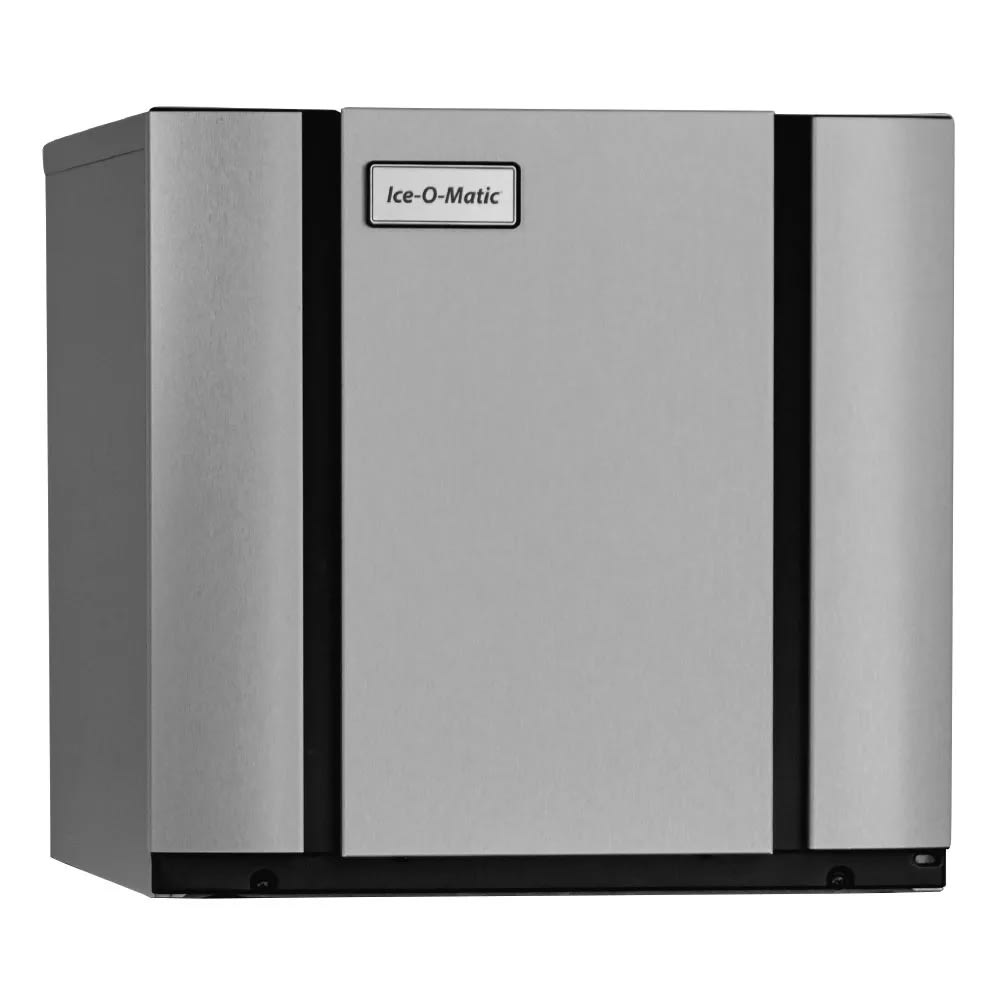

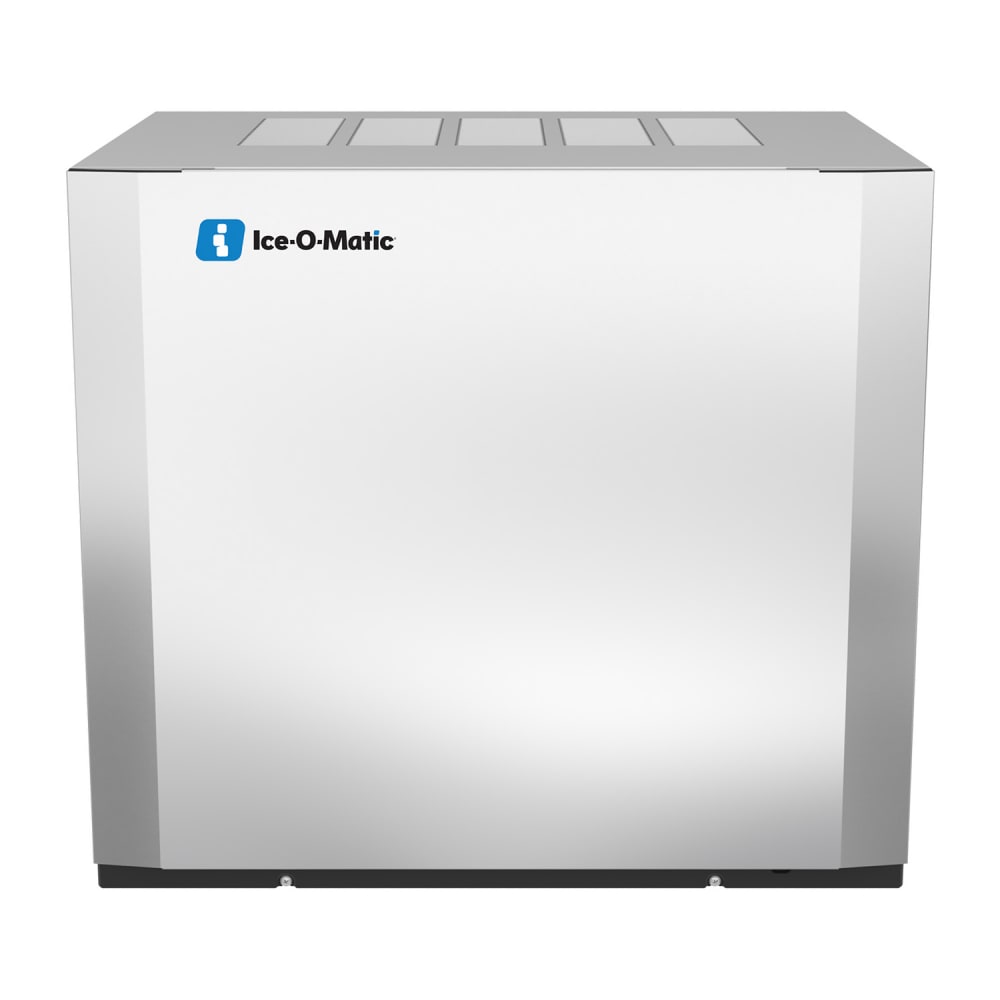

Ice Maker Details

• Part of the Elevation Series™
• 896-lb. daily ice production
• 711-lb. AHRI-certified daily ice production
• Makes full-size cubes of ice
• Full-size cube dimensions: ⁷⁄₈ in. x ⁷⁄₈ in. x ⁷⁄₈ in.
• Air-cooled, self-contained condenser
• Top and side dual exhaust
• PURE ICE antimicrobial inhibits bacterial growth
• LED display provides status updates
• Single-touch sanitize and descaling controls
• Removable, dishwasher-safe food zone components
• Ideal incoming water pressure: 20-80 PSIG
• Ideal incoming water temperature: 40-100 degrees F
• Ideal ambient air temperature: 50-100 degrees F
• 15,100-BTU heat transfer capacity

Product Features

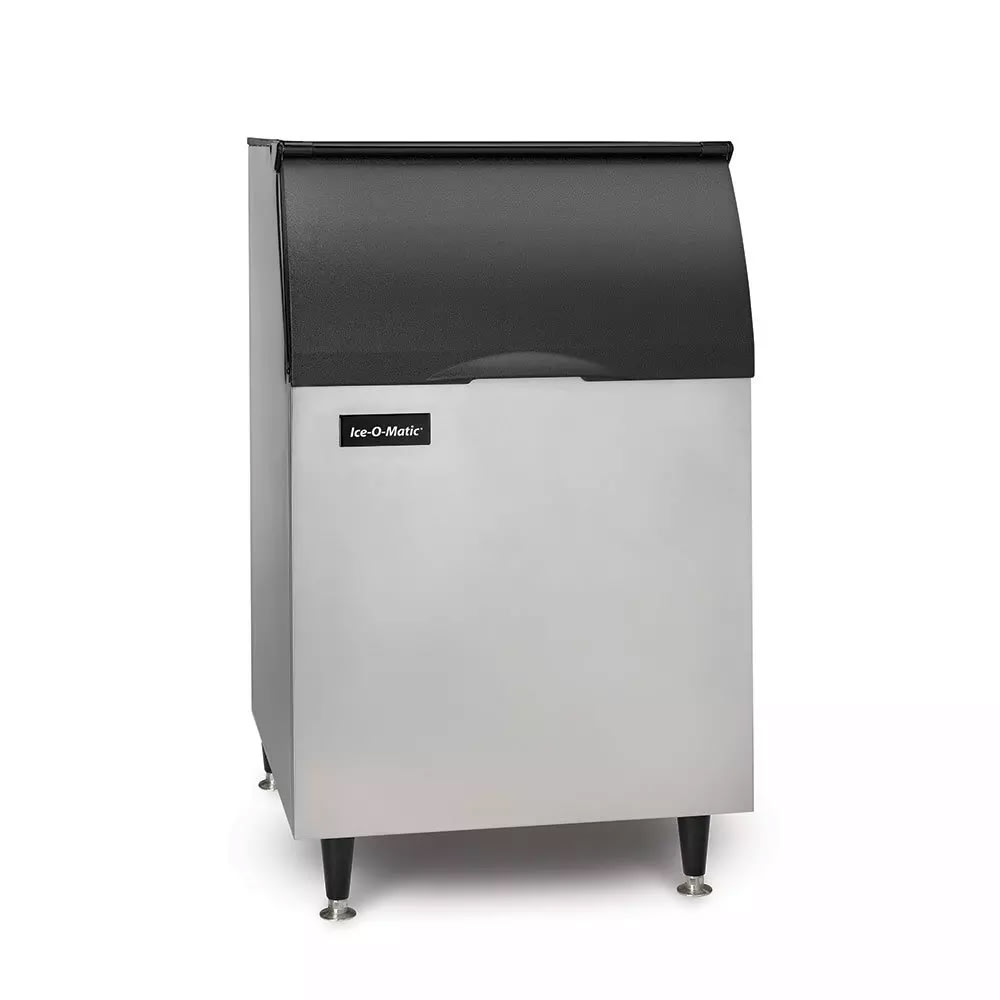

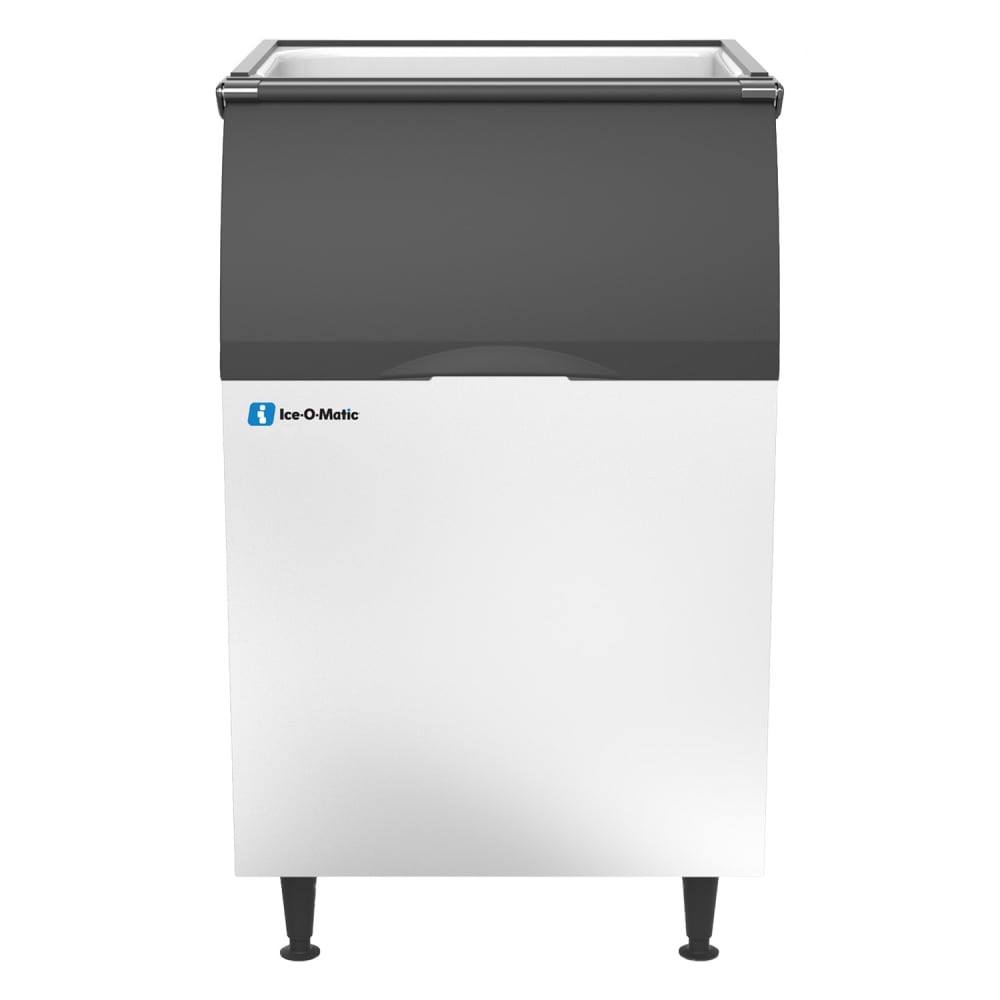

Ice Bin Details

• 510-lb. application capacity
• Top-hinged, sloped front door
• Polyethylene interior is corrosion resistant
• Foam insulation provides dependable ice storage
• Resilient stainless exterior finish
• Sits on adjustable 6-in. legs

Dimensions & Utilities

• Ice maker: 30¹/₄ in. W x 24¹/₄ in. D x 26⁹/₁₀ in. H
• Ice bin: 30 in. W x 31 in. D x 50 in. H
• 11.8 A, 5 kW
• 208-230 V/60 Hz/1 ph

*Free shipping on Ice-O-Matic CIM0836FA/B55PS within the 48 contiguous states.

From The Manufacturer

Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30-1/4" W, approximately 896 lb production/24 hours at 70°/50° (711 lb at 90°/70°), full-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free

Ice Bin, 510 lb storage capacity, 30"W x 31"D x 50"H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable aluminum exterior, 6" legs, NSF

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 2-year Parts & Labor Storage Bin; 5-year Evaporator & Compressor Parts

Ice-O-Matic CIM0836FA/B55PS Specifications

Documents

Spec Sheet

Warranty

Parts Breakdown

Manual

Brochure
