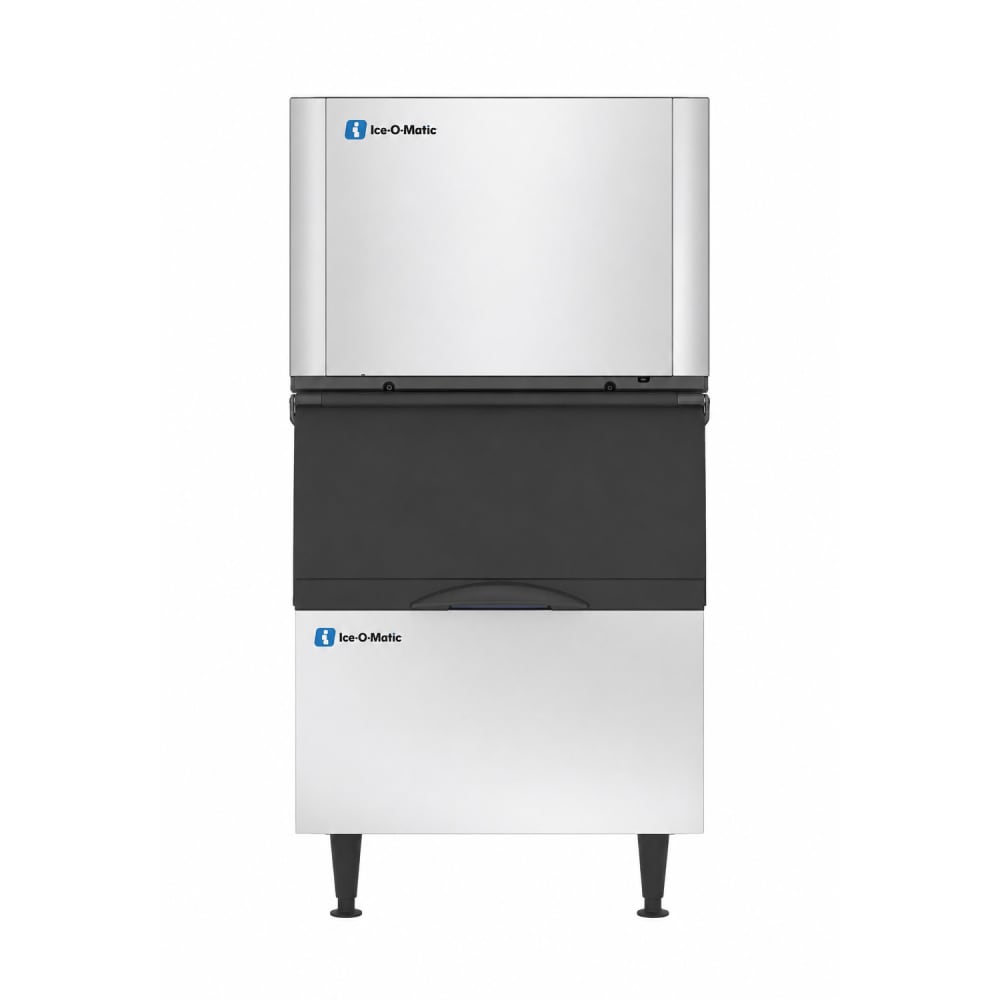

Ice-O-Matic CIM0836HA90/B40 900 lb Elevation Series™ Half Cube Ice Machine w/ Bin - 344 lb Storage, Air Cooled, 208-230v
QUICK SHIP: Typically ships in 1 - 3 Business Days
$7,348.00 /Each
Selected Ice Type: Half Cube
Ice-O-Matic CIM0836HA90/B40 Description
To ensure ice doesn't melt during storage, the Ice-O-Matic CIM0836HA90/B40 ice machine with bin is insulated with foam, and it has a polyethylene liner that provides resistance against corrosion. For durability, the bin is made of aluminum, and it's mounted on adjustable 6-inch legs that stabilize it on uneven surfaces. The bin holds 344 pounds of ice, and the head makes anywhere from 711 to 896 pounds of ice daily, depending on environmental conditions.
The Ice-O-Matic CIM0836HA90/B40 half-cube ice maker has a dual exhaust that discharges air from the top and side, and the condenser is air cooled and self-contained to streamline installation and reduce the risk of cross contamination. PURE ICE® antimicrobial is built into the unit to slow the growth of bacteria, and sanitizing and descaling is performed with the push of a button. To clean the food zone's components, they can be removed and placed in the dishwasher.
- Part of the Elevation Series™
- 900-lb. daily ice production
- Makes half-size cubes of ice
- Half-size cube dimensions: 3⁄8 in. x 7⁄8 in. x 7⁄8 in.
- PURE ICE antimicrobial slows microbe growth
- LED status updates
- R290 refrigerant
- Air-cooled, self-contained condenser
- Side and top dual exhaust
- Sanitizing and descaling controlled with a push button
- Food zone constructed of plastic
- Dishwasher-safe, removable food zone components
- Ideal incoming water pressure: 20-80 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient air temperature: 50-100 degrees F
- 15,100-BTU heat transfer capacity
- 344-lb. application capacity
- Top-hinged, sloped front door
- Dependable storage with foam insulation
- Polyethylene interior provides protection against corrosion
- Aluminum exterior is durable
- Positioned on strong 6-in. legs
- Ice maker: 30 1⁄4 in. W x 24 1⁄4 in. D x 26 9⁄10 in. H
- Ice bin: 30 in. W x 31 in. D x 37 1⁄2 in. H
- 11.8 A, 5 kW
- 208-230 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM0836HA90/B40 within the 48 contiguous states.
From The Manufacturer
Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30" W, approximately 900 lb production/24 hours at 70°/50° (695 lb at 90°/70°), half-size cubes, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, R290 refrigerant, cULus, cUL Energy Verified

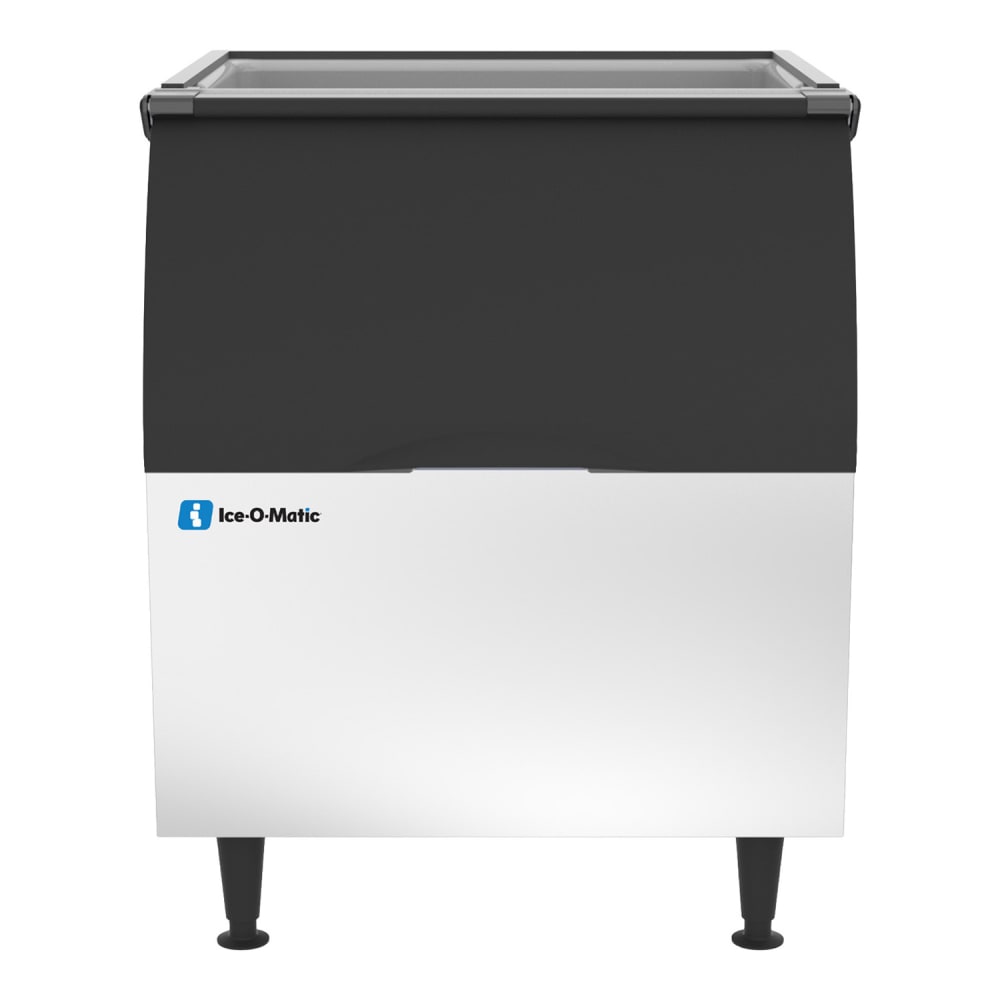

Ice Bin, 344 lb storage capacity, 30"W x 31"D x 37-1/2"H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable aluminum exterior, 6" legs, NSF
Ice-O-Matic CIM0836HA90/B40 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 900 |
| Access | Lift Up Door |
| Also Known As | CIM0836HA49/B40PS |
| Bin Capacity (lb) | 344 |
| Compressor Type | Air Cooled |
| Depth (in) | 31 |
| Height (in) | 64.4 |
| Hertz | 60 |
| Ice Type | Half Cube |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 2-year Parts & Labor Storage Bin; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 30.25 |
| Weight | 323.00 |
