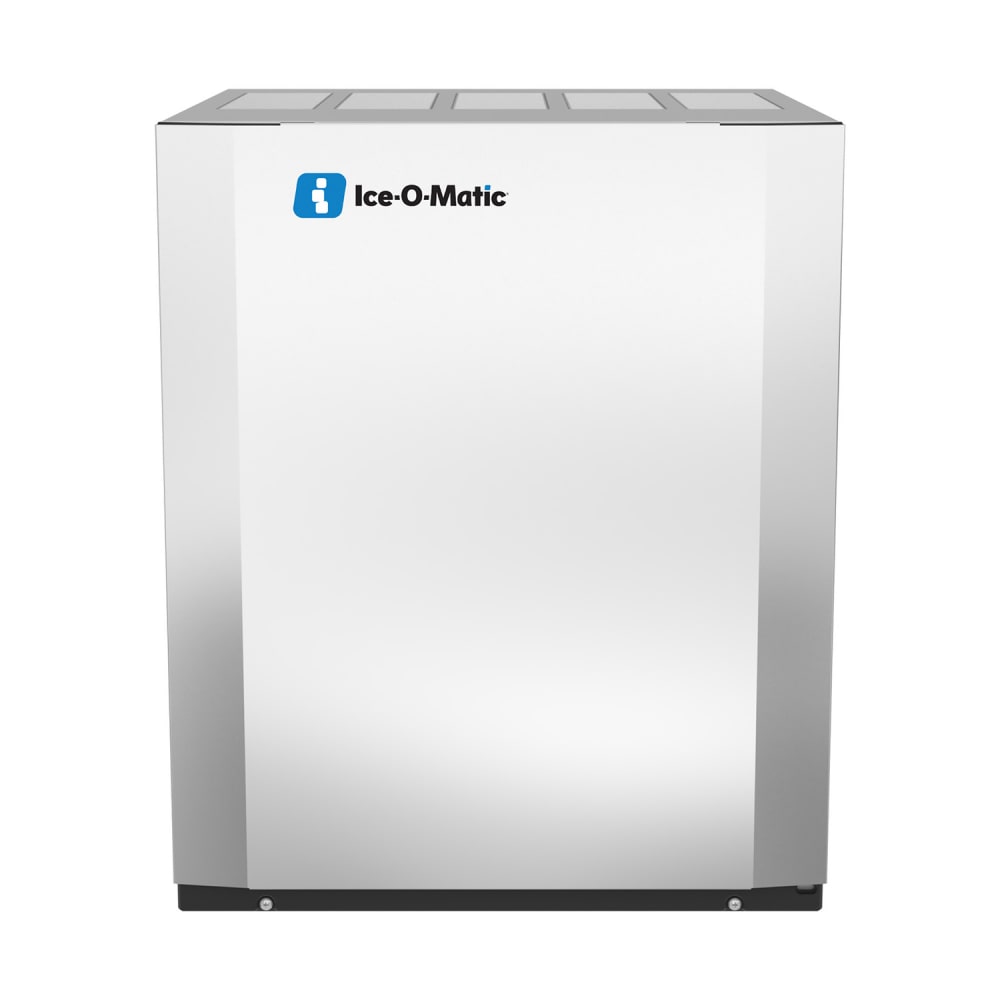

Ice-O-Matic CIM0826FA90 22 1/4" Elevation Series™ Full Cube Ice Machine Head - 900 lb/24 hr, Air Cooled, 208-230v/1ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
$4,930.00 /Each
Selected Compressor Type: Air Cooled
Selected Ice Type: Full Cube
Ice-O-Matic CIM0826FA90 Description
To prevent the growth of unsanitary bacteria, the Ice-O-Matic CIM0826FA90 ice machine head is protected with antimicrobial PURE ICE®. The components in the food zone can be removed and washed in a dishmachine to facilitate thorough cleaning. Because this unit discharges air from the top as well as the side, it can be installed in a variety of locations.
The Ice-O-Matic CIM0826FA90 full-cube ice maker is an air-cooled unit featuring a self-contained condenser that’s fast and simple to install. It produces full-size cubes at a maximum rate of 896 pounds per day in ideal conditions, and it uses an LED display to alert users of operational updates. To encourage routine, thorough cleaning, it features one-touch controls for descaling and sanitizing as well as dishwasher-safe food zone components.
- Part of the Elevation Series™
- 900-lb. maximum daily ice production
- Makes full-size cubes
- Cube size: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
- LED display provides status updates
- Air cooled
- Self-contained condenser
- Dual-exhaust discharge facilitates multiple installation configurations
- 1-touch descaling and sanitizing optimizes performance and cleanliness
- Components in food zone are dishwasher safe
- Plastic food zone resists harboring debris and bacteria
- PURE ICE agent inhibits microbial growth
- Uses R290 refrigerant
- Ideal incoming water pressure: 20-80 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature range: 50-100 degrees F
- 15,100-BTU heat transfer capacity
- 22 1⁄4 in. W x 24 1⁄4 in. D x 26 9⁄10 in. H
- 11.8 A, 5 kW
- 208-230 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM0826FA90 within the 48 contiguous states.
From The Manufacturer
Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 22" W, approximately 900 lb production/24 hours at 70°/50° (695 lb at 90°/70°), full-size cubes, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, R290 refrigerant, cULus, cUL Energy Verified
Ice-O-Matic CIM0826FA90 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 900 |
| Also Known As | CIM0826FA49 |
| Compressor Type | Air Cooled |
| Depth (in) | 24.25 |
| Height (in) | 26.9 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 22.25 |
| Weight | 220.00 |
