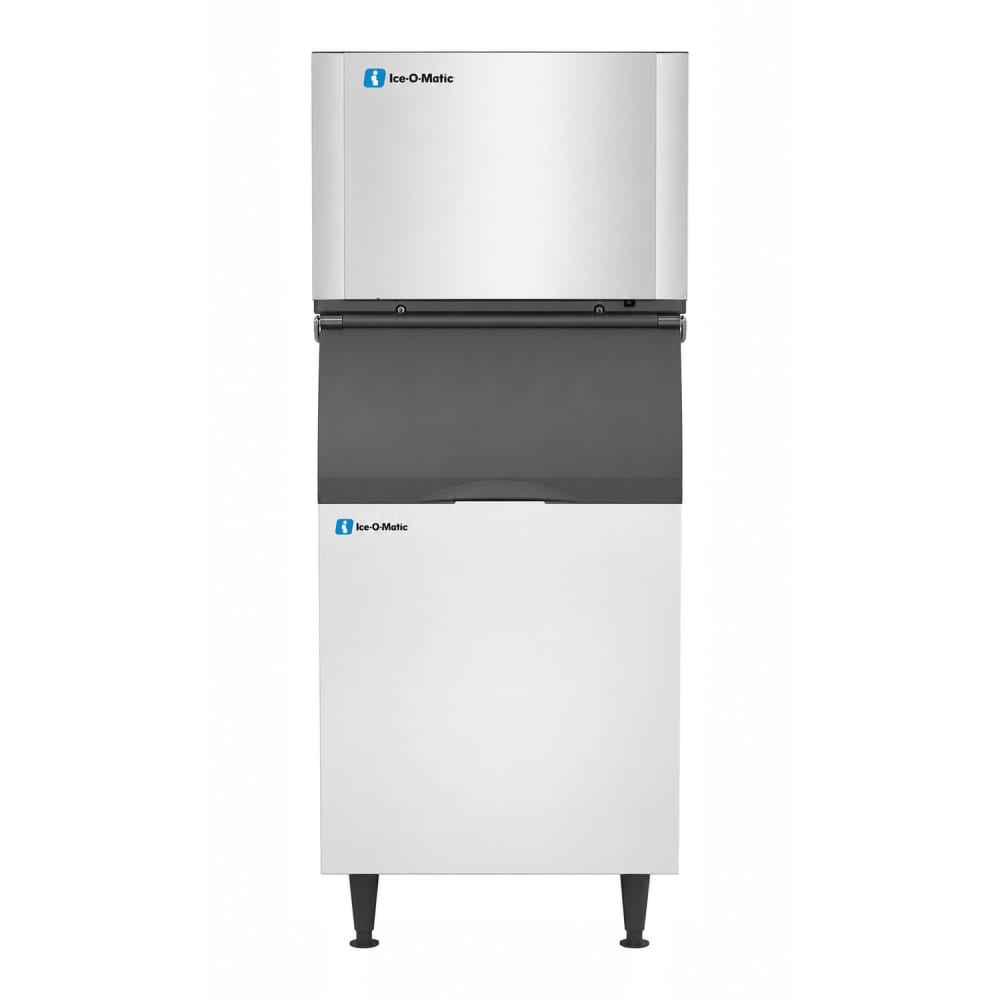

Ice-O-Matic CIM0636HA90/B55 600 lb Elevation Series™ Half Cube Ice Machine w/ Bin - 510 lb Storage, Air Cooled, 208-230v
QUICK SHIP: Typically ships in 1 - 3 Business Days
$6,232.00 /Each
Selected Ice Type: Half Cube
Ice-O-Matic CIM0636HA90/B55 Description
To enable installation flexibility, the Ice-O-Matic CIM0636HA90/B55 ice maker/bin combo features a dual-exhaust system that discharges air from the side and the top. Its LED display alerts users of operational updates, and its PURE ICE® antimicrobial protection slows the growth of bacteria, mildew, and other microbes. With a maximum rate of 600 pounds per day in optimal conditions, it produces half-size ice cubes; this type is ideal for chilling sodas, cocktails, and iced tea.
The Ice-O-Matic CIM0636HA90/B55 ice maker’s bin is elevated on 6-inch legs and features a corrosion-resistant aluminum exterior. Its interior is lined with polyethylene to optimize sanitation and resist harboring dust and debris. Operators can access the interior, which holds as much as 510 pounds of ice, through a top-hinged, sloped front door.
- Part of the Elevation Series™
- 600-lb. maximum daily ice production
- 455-lb. AHRI daily ice production
- Makes half-size cubes
- Cube size: 3⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Easy-to-clean plastic food zone equipped with dishwasher-safe components
- LED status display enables constant monitoring
- Descales and sanitizes with 1-touch controls
- Dual-exhaust system discharges air from side and top for installation flexibility
- Protect with PURE ICE antimicrobial agent
- Air cooled
- Self-contained condenser
- Cools with R290 refrigerant
- Ideal incoming water pressure: 20-80 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature range: 50-100 degrees F
- 8,600-BTU heat transfer capacity
- 510-lb. application capacity
- Sloped, top-hinged front door
- Durable, corrosion-resistant aluminum exterior
- Sanitary polyethylene interior liner
- Mounted on 6-in. legs
- Ice maker: 30 1⁄4 in. W x 24 1⁄4 in. D x 21 1⁄4 in. H
- Ice bin: 30 in. W x 31 in. D x 50 in. H
- 9.2 A, 5.63 kW
- 208-230 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM0636HA90/B55 within the 48 contiguous states.
From The Manufacturer

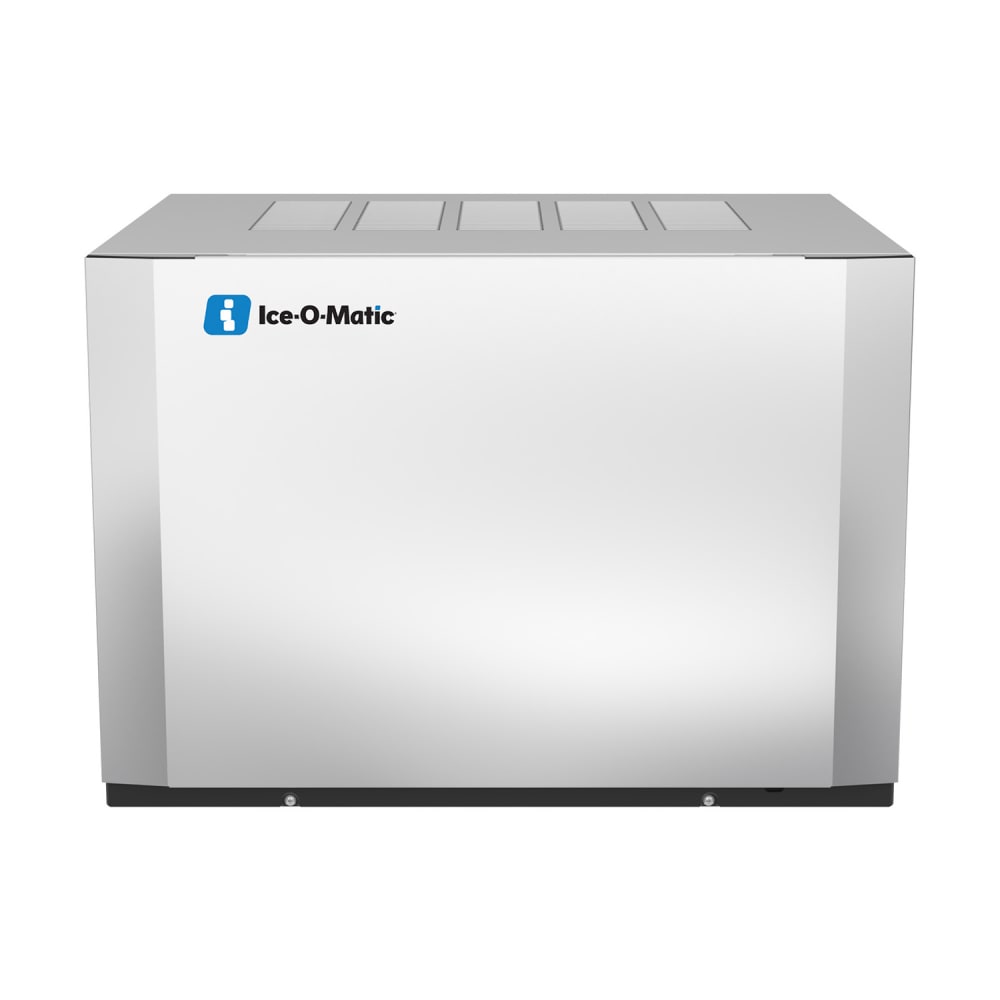

Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30" W, approximately 600 lb production/24 hours at 70°/50° (455 lb at 90°/70°), half-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, R290 refrigerant, cULus, NSF, CE, BPA Free, ENERGY STAR®

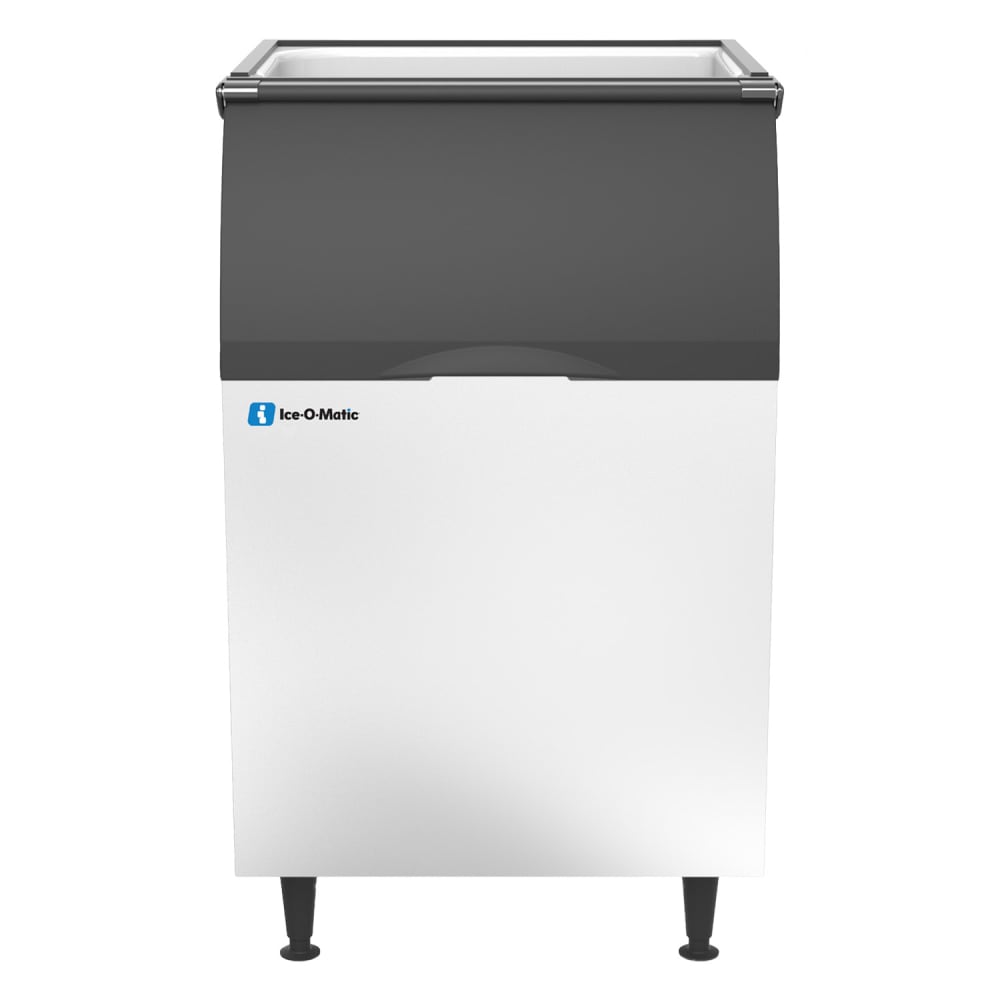

Ice Bin, 510 lb storage capacity, 30"W x 31"D x 50"H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable aluminum exterior, 6" legs, NSF
Ice-O-Matic CIM0636HA90/B55 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 600 |
| Access | Lift Up Door |
| Also Known As | CIM0636HA/B55PS |
| Bin Capacity (lb) | 510 |
| Compressor Type | Air Cooled |
| Depth (in) | 31 |
| Height (in) | 71.25 |
| Hertz | 60 |
| Ice Type | Half Cube |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 2-year Parts & Labor Storage Bin; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 30.25 |
| Weight | 285.00 |
