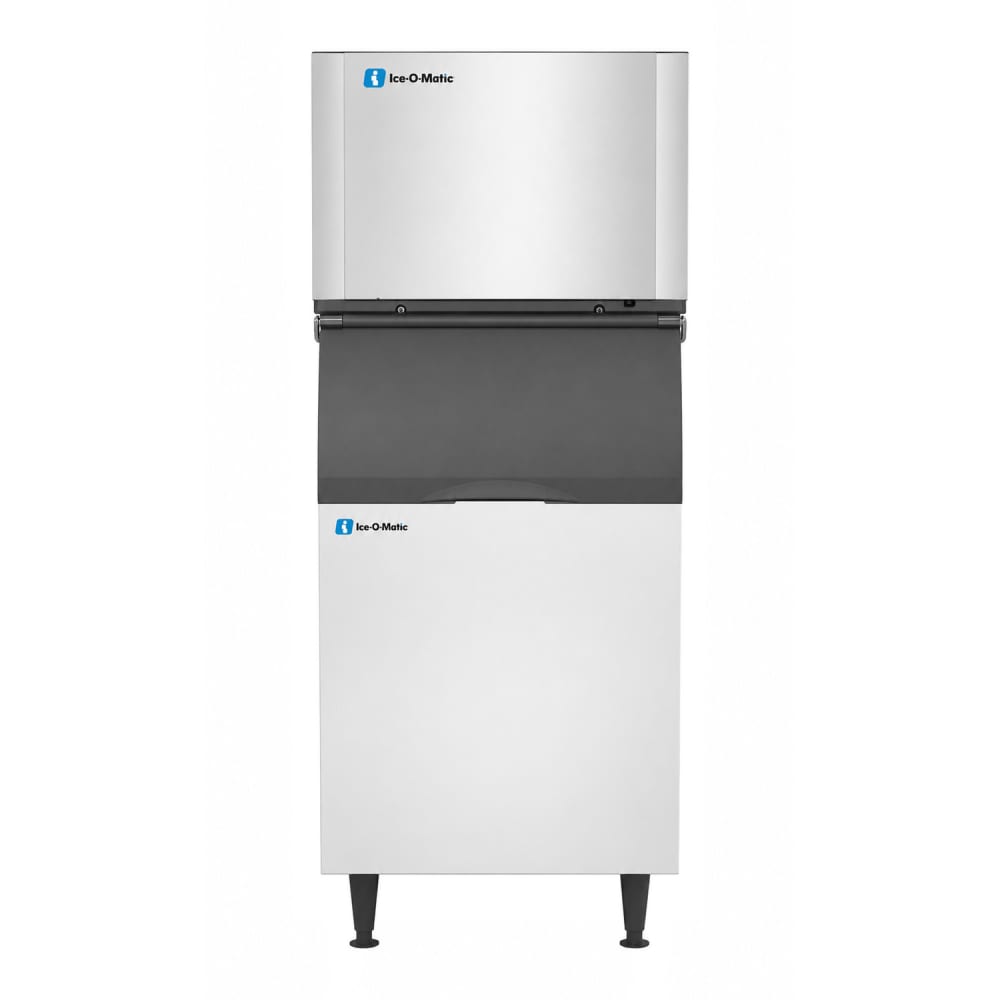

Ice-O-Matic CIM0636FA90/B55 600 lb Elevation Series™ Full Cube Ice Machine w/ Bin - 510 lb Storage, Air Cooled, 208-230v
Typically ships in 2 - 3 weeks
$6,232.00 /Each
Selected Ice Type: Full Cube
Ice-O-Matic CIM0636FA90/B55 Description
Designed to reduce the spread of harmful germs, the Ice-O-Matic CIM0636FA90/B55 ice machine head and bin has antimicrobial enhancement inside, as well as a smooth plastic foodzone that doesn't harbor contaminants. For streamlined cleaning, the unit features one-touch sanitizing and descaling procedures while select components can be removed and washed in the dishwasher. Simplifying maintenance, this unit can perform digital diagnostics and has a smart LED light that signals when cleaning should occur.

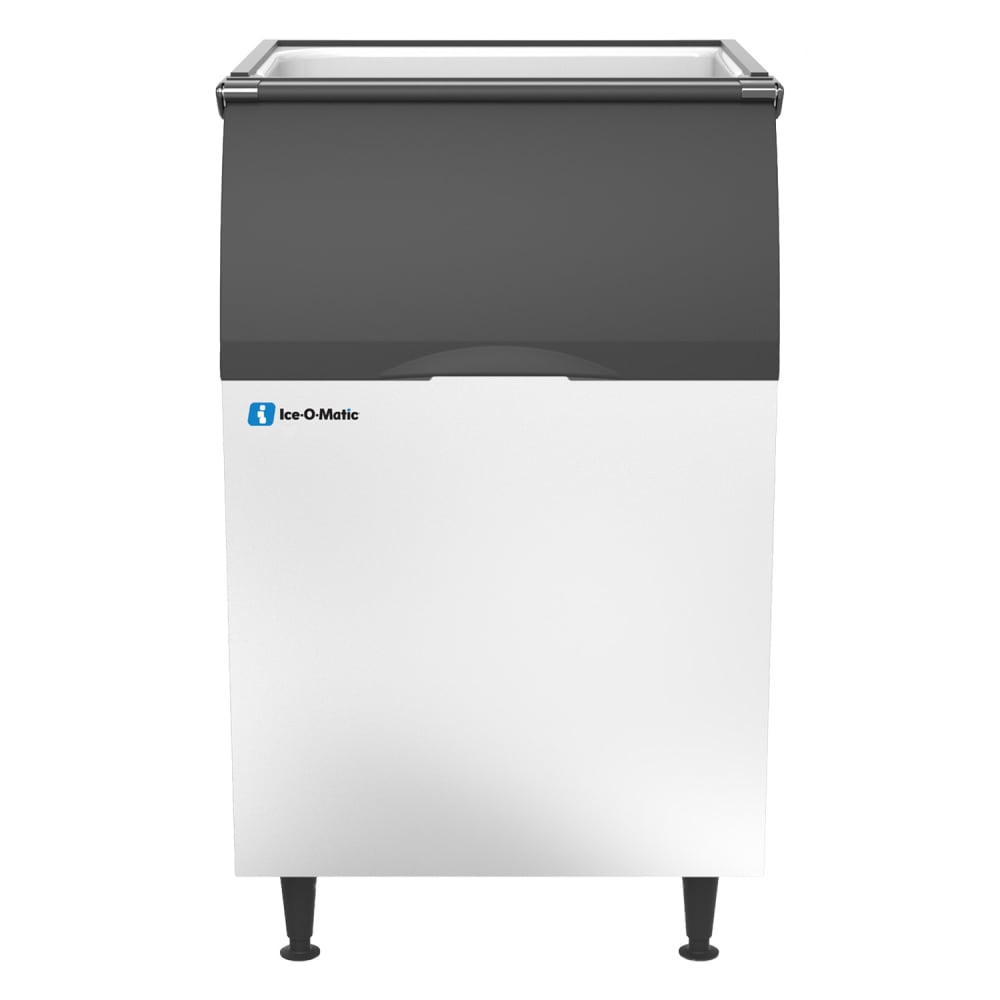

The Ice-O-Matic CIM0636FA90/B55 ice maker and bin can store 510 pounds of ice, and the bin is insulated with foamed polyethylene to ensure the ice doesn't melt during storage. Resting on 6-inch legs, the bin's height can be adjusted to accommodate uneven flooring and keep the unit level. To serve the prepared ice, the bin has a top-hinged, sloped door that users can open to access the contents. On the exterior, the bin is made of rotocast aluminum, a construction that resists corrosion.
- Part of the Elevation Series™
- 600-lb. maximum daily ice production
- 455-lb. AHRI-certified ice production
- Full-size ice cubes
- Cube dimensions: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Air cooled
- Built-in, self-contained condenser
- R290 refrigerant
- Dual exhaust system disperses heat effectively
- Plastic foodzone interior resists microbial growth
- BPA-free, warewasher-safe parts can be removed for quick cleaning
- Germ growth is restricted by PURE ICE® antimicrobial
- 1-touch controls activate descaling and sanitizing
- Smart LED light communicates routine maintenance needs
- LED display streamlines unit monitoring
- Calibration is simplified by Smart Harness™ control board
- Recyclable components for minimized environmental impact
- Ideal ambient temperature: 50-100 degrees F
- Ideal incoming water temperature: 40-100 degrees F
- Ideal water pressure: 20-80 PSIG
- 8,600-BTU heat transfer capacity
- 510-lb. capacity
- Rotocast aluminum exterior withstands high-volume use
- Foam-insulated polyethylene liner keeps ice cold
- Top-hinged, sloped front access door
- 6-in. legs adjust to ensure the unit remains level
- Multiple bin top sizes are available and are sold separately

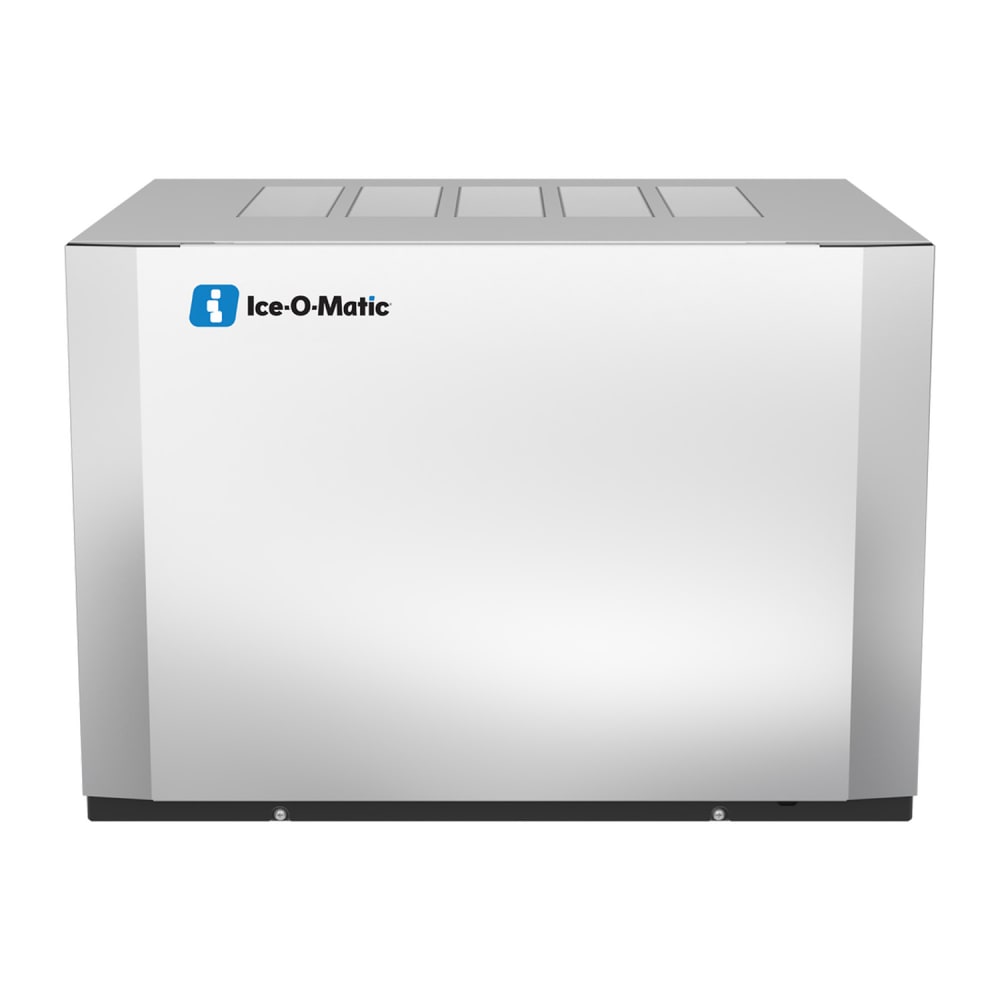

- Ice maker: 30 1⁄4 in. W x 24 1⁄4 in. D x 21 1⁄4 in. H
- Bin: 30 in. W x 31 in. D x 50 in. H
- 9.2 A, 5.63 kW
- 208-230 V/60 Hz/1 ph
- Ice maker potable water inlet: 3⁄8-in. FPT
- Ice maker water outlet: 3⁄4-in. FPT
- Electrical connection port: 7⁄8-in. dia.
- Electrical connection junction box: 7⁄8-in. dia.
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM0636FA90/B55 within the 48 contiguous states.
From The Manufacturer
Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30" W, approximately 600 lb production/24 hours at 70°/50° (455 lb at 90°/70°), full-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, R290 refrigerant, cULus, NSF, CE, BPA Free, ENERGY STAR®
Ice Bin, 510 lb storage capacity, 30"W x 31"D x 50"H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable aluminum exterior, 6" legs, NSF
Ice-O-Matic CIM0636FA90/B55 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 600 |
| Access | Lift Up Door |
| Also Known As | CIM0636FA/B55PS |
| Bin Capacity (lb) | 510 |
| Compressor Type | Air Cooled |
| Depth (in) | 31 |
| Height (in) | 71.25 |
| Hertz | 60 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 2-year Parts & Labor Storage Bin; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 30.25 |
| Weight | 285.00 |
