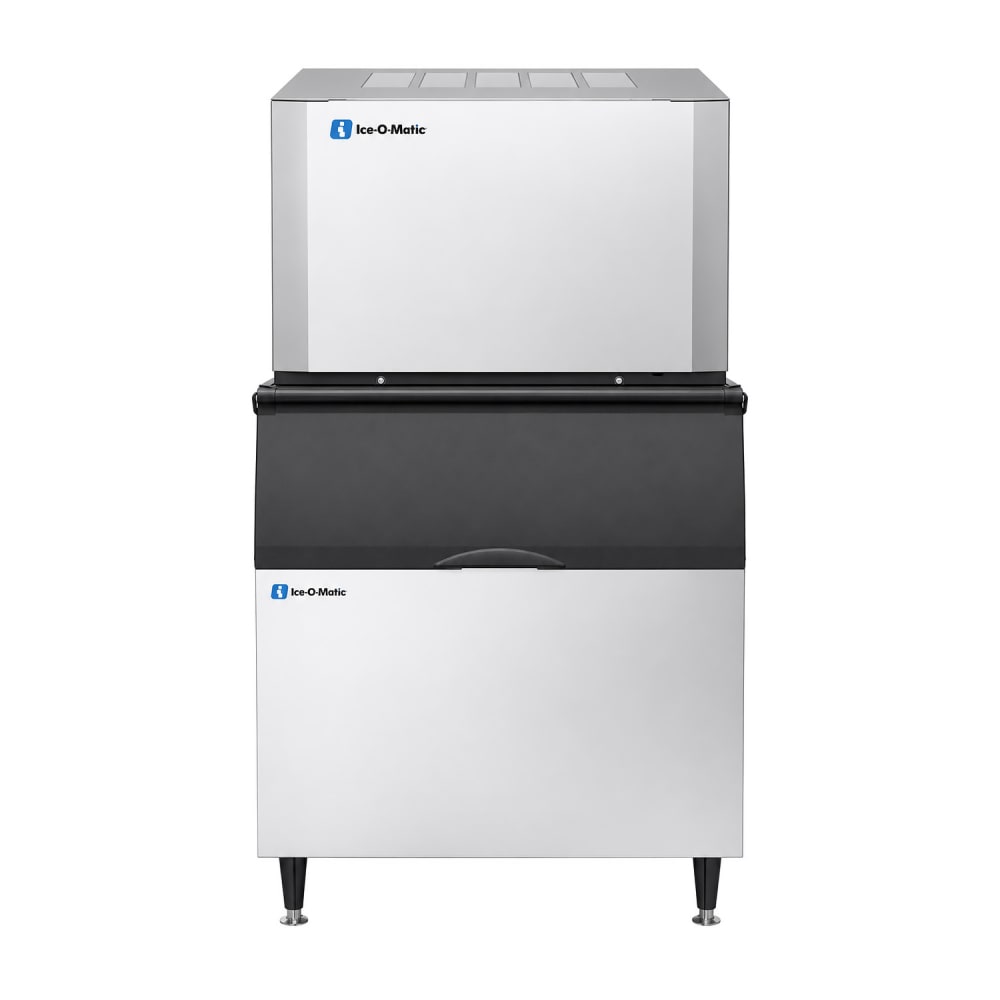

Ice-O-Matic CIM0530HA90/B40 525 lb Elevation Series™ Half Cube Ice Machine w/ Bin - 344 lb Storage, Air Cooled, 115v
QUICK SHIP: Typically ships in 1 - 3 Business Days
$5,351.00 /Each
Selected Ice Type: Half Cube
Ice-O-Matic CIM0530HA90/B40 Description
The Ice-O-Matic CIM0530HA90/B40 ice machine and bin features an interior foodzone made of smooth plastic that doesn't harbor bacterial residue. For streamlined cleaning, users can remove interior components and wash them in a dishmachine, and one-touch controls activate the unit's descaling and sanitizing procedures. Resisting the spread of germs, an antimicrobial treatment is applied to the ice machine, preventing the growth of mold and mildew.
The Ice-O-Matic CIM0530HA90/B40 ice maker and bin set can produce 525 pounds of half-cube ice in a 24-hour period if ideal conditions are met. Half-cube ice has many applications, including chilling drinks, such as soda or tea, or blending into smoothies. Able to store 344 pounds of prepared ice, the bin is lined with foam-insulated polyethylene to prevent ice from melting before it's served.
- Part of the Elevation Series™
- 525-lb. maximum daily ice production
- R290 refrigerant
- Half-size ice cubes
- Cube dimensions: 3⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Air cooled
- Condenser is self-contained for compact use
- Improved efficiency with dual exhaust system
- Plastic foodzone eliminates small spaces where bacteria can hide
- BPA-free components can be removed and washed in the dishmachine
- Treated with PURE ICE® antimicrobial enhancement to avoid cross contamination
- 1-touch sanitizing and descaling feature
- Users are alerted by smart LED light when cleaning is needed
- LED display
- Universal control board with Smart Harness™ simplifies configuration
- Some parts are recyclable
- Ideal ambient temperature: 50-100 degrees F
- Ideal incoming water temperature: 40-100 degrees F
- Ideal water pressure: 20-80 PSIG
- 6,252-BTU heat transfer capacity
- 344-lb. capacity
- Rotocast aluminum exterior for enhanced corrosion resistance
- Foam-insulated polyethylene interior liner keeps contents chilled
- Top-hinged, slope front access door
- Adjustable, 6-in. legs
- Multiple bin top sizes are available and sold separately
- Ice maker: 30 1⁄4 in. W x 24 1⁄4 in. D x 21 1⁄4 in. H
- Bin: 30 in. W x 31 in. D x 37 1⁄2 in. H
- 17.8 A, 5.87 kW
- 115 V/60 Hz/1 ph
- Ice maker potable water inlet: 3⁄8-in. FPT
- Ice maker water outlet: 3⁄4-in. FPT
- Electrical connection port: 7⁄8-in. dia.
- Electrical connection junction box: 7⁄8-in. dia.
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM0530HA90/B40 within the 48 contiguous states.
From The Manufacturer

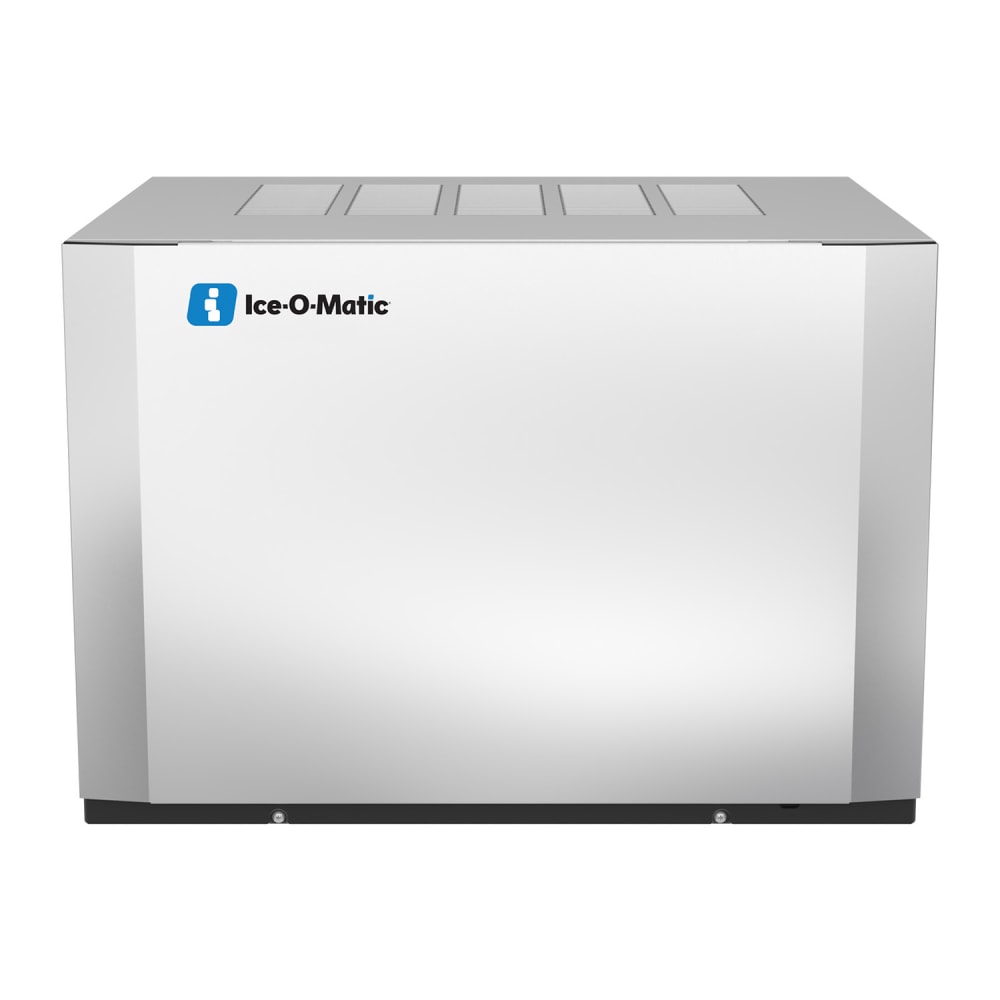

Elevation Series™ Modular Cube Ice Maker in R290, air-cooled, self-contained condenser, top air discharge, 30" W, approximately 525 lb production/24 hours at 70°/50° (400 lb at 90°/70°), half-size cubes, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, ENERGY STAR®

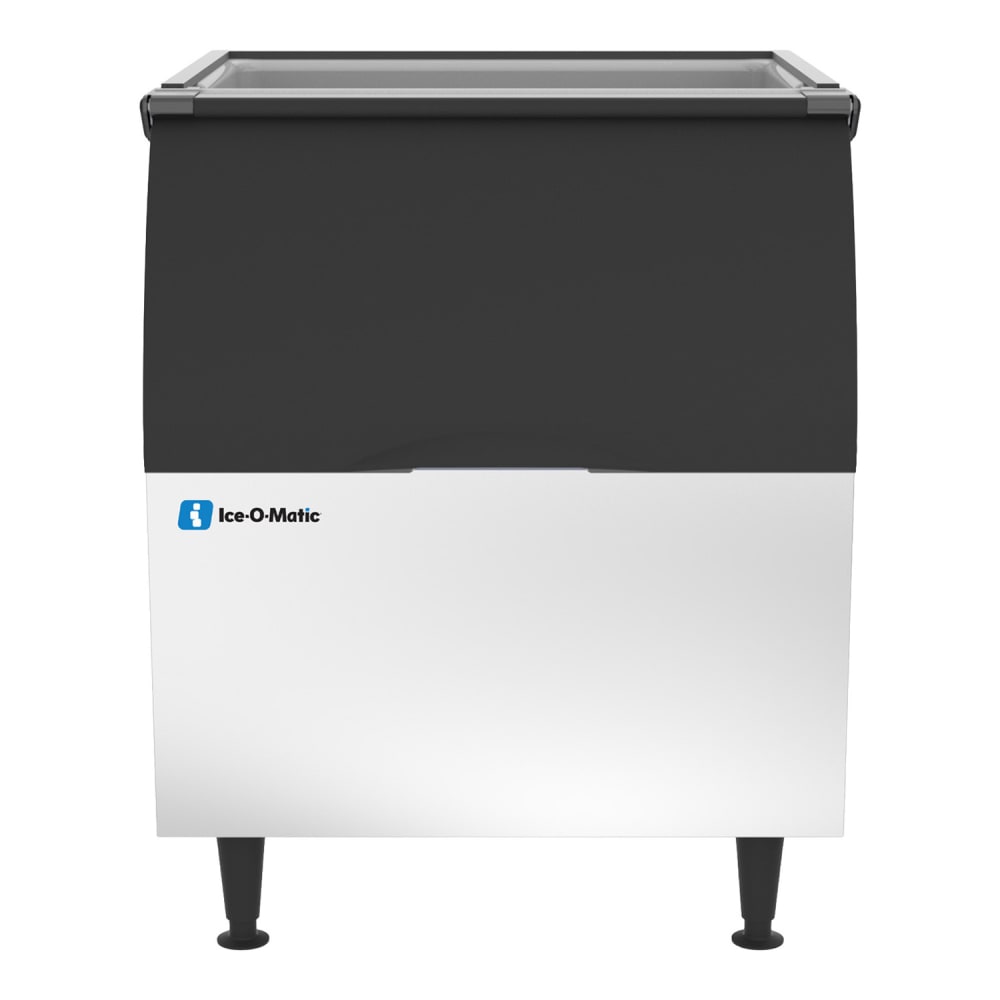

Ice Bin, 344 lb storage capacity, 30"W x 31"D x 37-1/2"H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable aluminum exterior, 6" legs, NSF
Ice-O-Matic CIM0530HA90/B40 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 525 |
| Access | Lift Up Door |
| Also Known As | CIM0530HA/B40PS |
| Bin Capacity (lb) | 344 |
| Compressor Type | Air Cooled |
| Depth (in) | 31 |
| Height (in) | 58.75 |
| Hertz | 60 |
| Ice Type | Half Cube |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 2-year Parts & Labor Storage Bin; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 30.25 |
| Weight | 258.00 |
