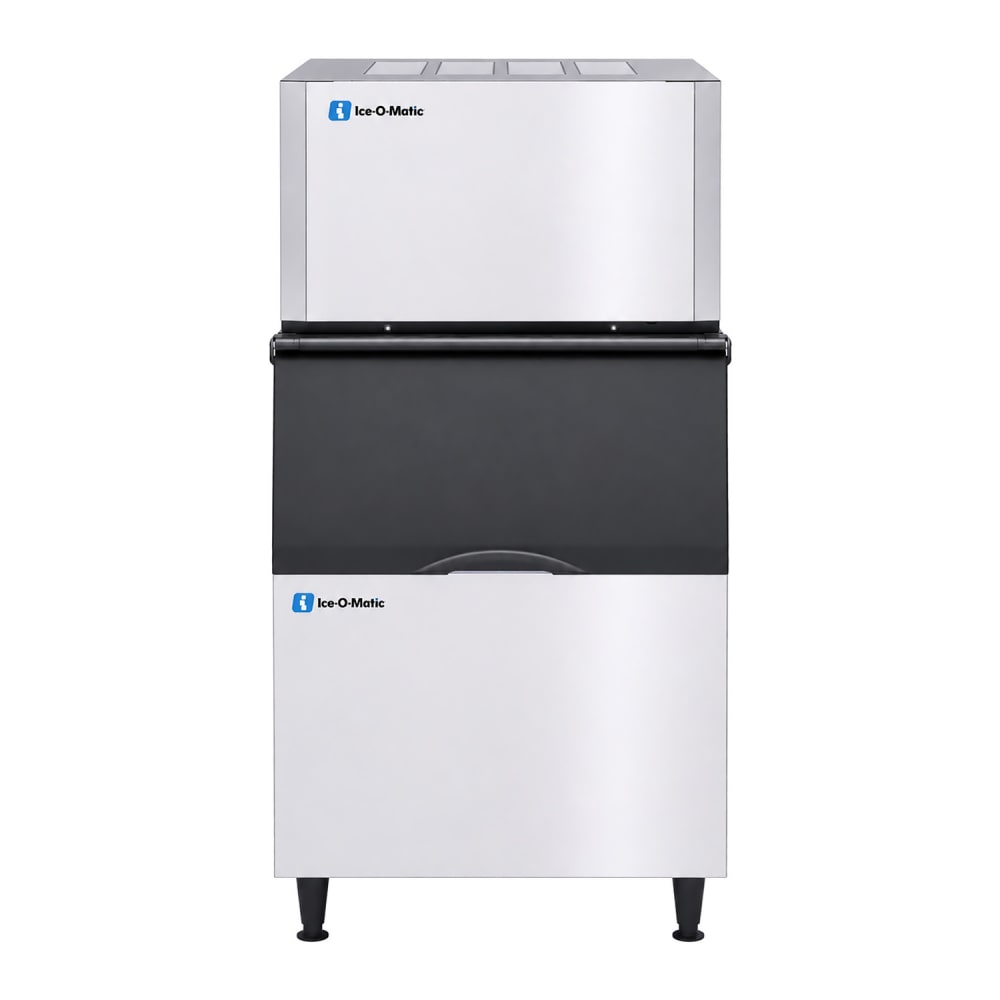

Ice-O-Matic CIM0530FA90/B40 561 lb Elevation Series™ Full Cube Ice Machine w/ Bin - 344 lb Storage, Air Cooled, 115v
QUICK SHIP: Typically ships in 1 - 3 Business Days
$5,351.00 /Each
Selected Ice Type: Full Cube
Ice-O-Matic CIM0530FA90/B40 Description
The Ice-O-Matic CIM0530FA90/B40 full-cube ice maker measures 30 1⁄4 inches wide by 24 1⁄4 inches deep by 21 1⁄4 inches high, and the B40PS bin is 30 inches wide, 31 inches deep, and 37 1⁄2 inches high. This air-cooled equipment is cooled by moving fresh air across its condenser. It's self-contained to simplify installation and maintenance.
Producing as much as 561 pounds of ice every 24 hours, the Ice-O-Matic CIM0530FA90/B40 is constructed of environmentally friendly components such as recyclable parts and BPA-free plastic. To simplify cleaning and lengthen sanitation, this piece of equipment is built with a plastic foodzone that eliminates nooks and crannies. Its PURE ICE® antimicrobial protection inhibits bacterial growth and a smart LED light alerts the operator when the machine needs cleaning.
- Part of the Elevation Series™
- Maximum production capacity: 561 lbs. of ice per 24 hours
- AHRI production capacity: 432 lbs. of ice per 24 hours
- Produces full-cube ice
- R290 refrigerant
- Environmentally friendly construction incorporates BPA-free plastic and recyclable parts
- Plastic foodzone streamlines cleaning by eliminating nooks and crannies
- PURE ICE antimicrobial protection prevents the spread of bacteria
- Smart LED light signals when cleaning is required
- 1-touch controls optimize sanitizing and descaling
- Snap-in-and-out components can be cleaned in a dishmachine
- Hot air discharges from side and top for quick installation
- Universal Smart Harness™ control board facilitates servicing and installation
- Digital diagnostics deliver status information
- Common configuration and universal components
- Heat displacement: 6,252 BTU
- 344-lb. storage capacity
- Durable aluminum exterior finish
- Poly bin liner is insulated to preserve cold temperatures
- Heavy-duty, slope front door with top hinge
- Supported by adjustable, 6-in. legs
- Ice machine head: 30 1⁄4 in. W x 24 1⁄4 in. D x 21 1⁄4 in. H
- Ice bin: 30 in. W x 31 in. D x 37 1⁄2 in. H
- 17.8 A, 5.87 kW
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM0530FA90/B40 within the 48 contiguous states.
From The Manufacturer

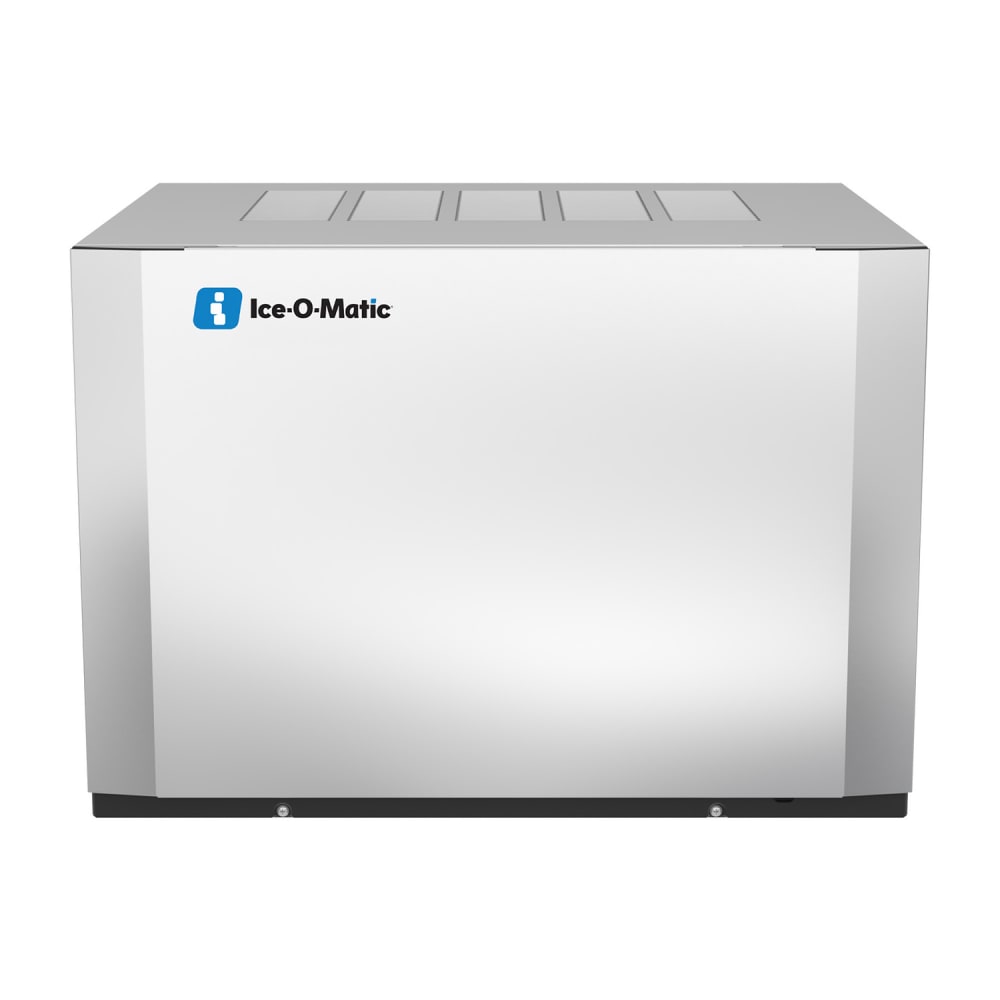

Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30" W, approximately 561 lb production/24 hours at 70°/50° (432 lb at 90°/70°), full-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, R290 refrigerant, cULus, NSF, CE, BPA Free, ENERGY STAR®

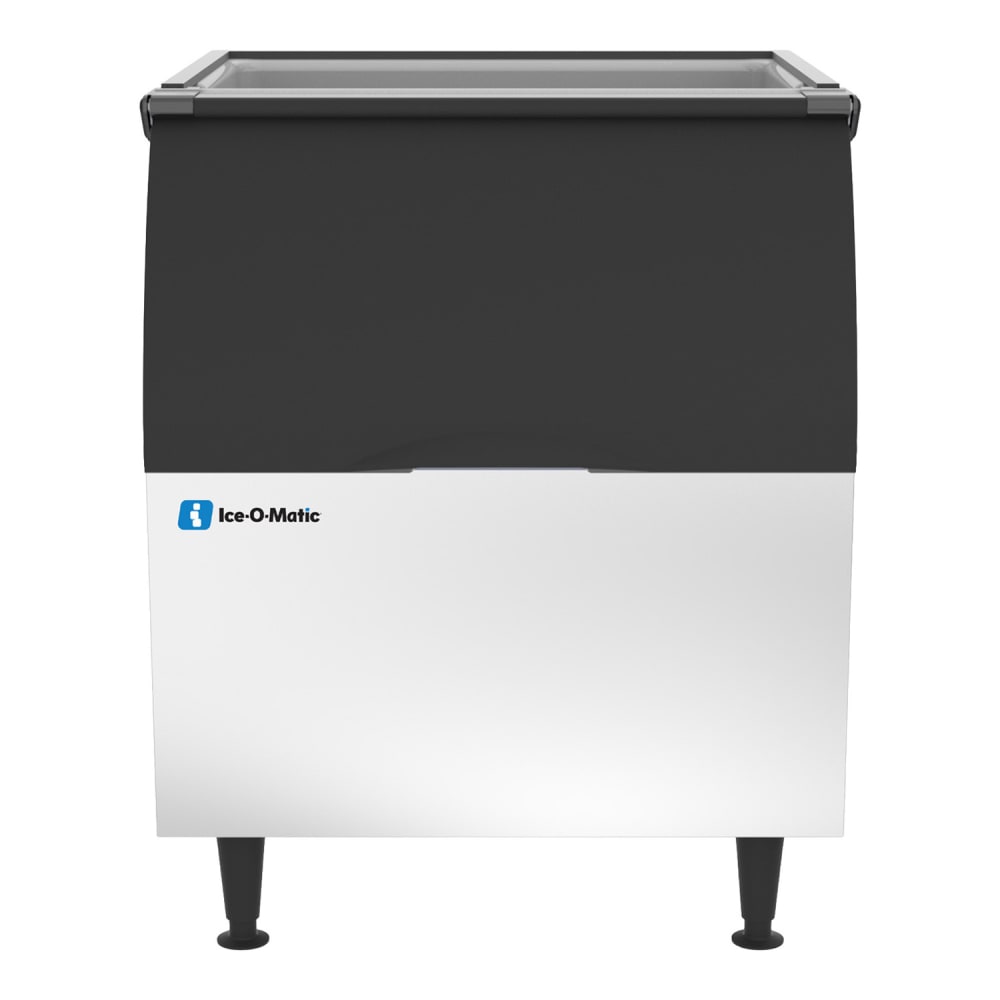

Ice Bin, 344 lb storage capacity, 30"W x 31"D x 37-1/2"H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable aluminum exterior, 6" legs, NSF
Ice-O-Matic CIM0530FA90/B40 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 561 |
| Access | Lift Up Door |
| Also Known As | CIM0530FA/B40PS |
| Bin Capacity (lb) | 344 |
| Compressor Type | Air Cooled |
| Depth (in) | 31 |
| Height (in) | 58.75 |
| Hertz | 60 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 2-year Parts & Labor Storage Bin; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 30.25 |
| Weight | 258.00 |
