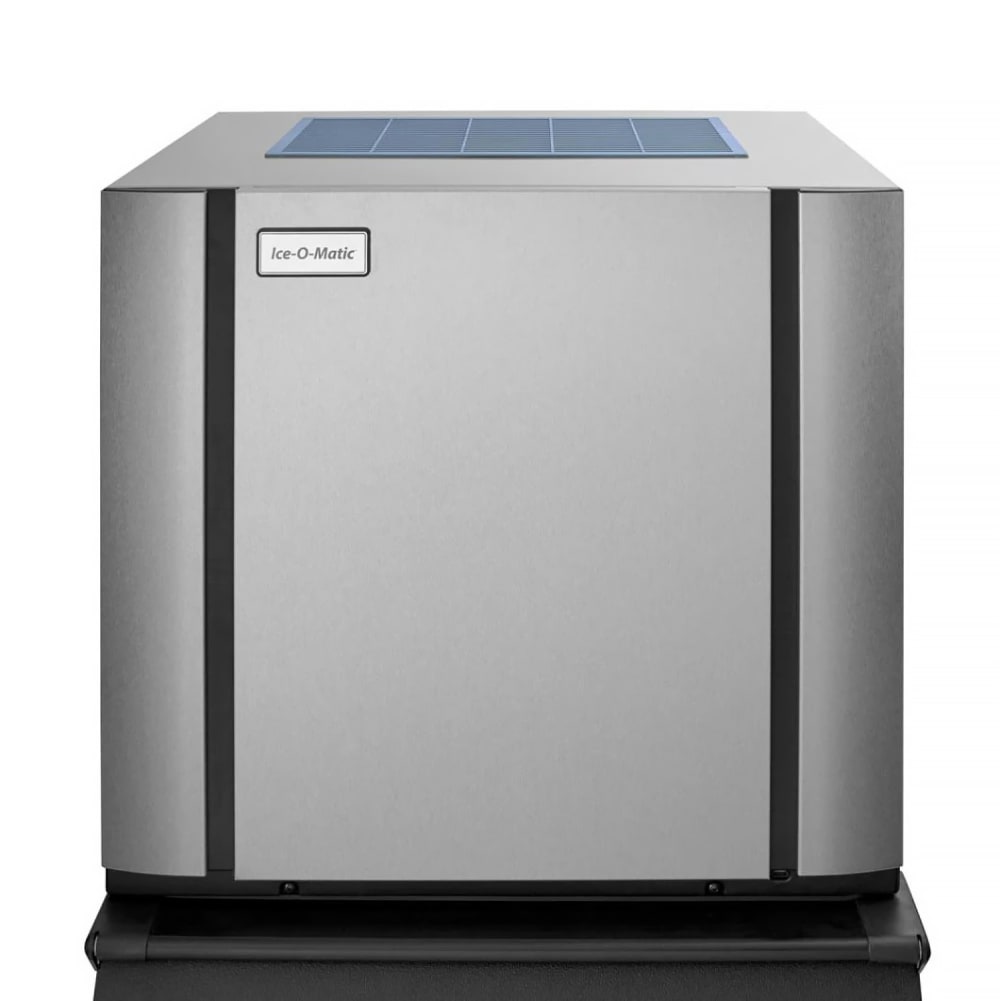

Ice-O-Matic CIM0436HA90/KSI-1 30 1/4" Elevation Series™ Half Cube Ice Machine Head - 465 lb/24 hr, Air Cooled, 208-230v/1ph
$4,444.00 /Each
Selected Ice Type: Half Cube
Ice-O-Matic CIM0436HA90/KSI-1 Description
In ideal conditions, the Ice-O-Matic CIM0436HA90/KSI-1 half-cube ice machine produces as many as 465 pounds of ice per day, but if environmental temperatures are too high, it makes closer to 270 pounds. The air-cooled condenser produces half-size cubes, and it's self-contained to streamline setup and cleaning. Because the food zone is plastic, it can be wiped down, and its components are removable for dishwasher cleaning. To slow the formation of bacteria and microbes, this unit contains PURE ICE® built-in antimicrobial and SafeIce UV light.
The Ice-O-Matic CIM0436HA90/KSI-1 ice maker is equipped with a button that kickstarts sanitizing and descaling. When cleaning is needed, an LED status display will alert users to take action. This dual-exhaust unit discharges air from the top and side, so it can be installed safely against a wall. It measures 30 1⁄4 inches wide by 24 1⁄4 inches deep by 21 1⁄4 inches high overall.
- Part of the Elevation Series™
- 465-lb. maximum daily ice production
- 270-lb. AHRI-certified daily ice production
- Produces half-size ice cubes
- Half-size cube size: 3⁄8 in. x 7⁄8 in. x 7⁄8 in.
- PURE ICE built-in antimicrobial agent
- LED status display indicates when cleaning is needed
- 1-touch cleaning controls
- Food zone components are dishwasher safe
- Self-contained, air-cooled condenser
- Dual exhaust discharges air on top and side
- Plastic food zone

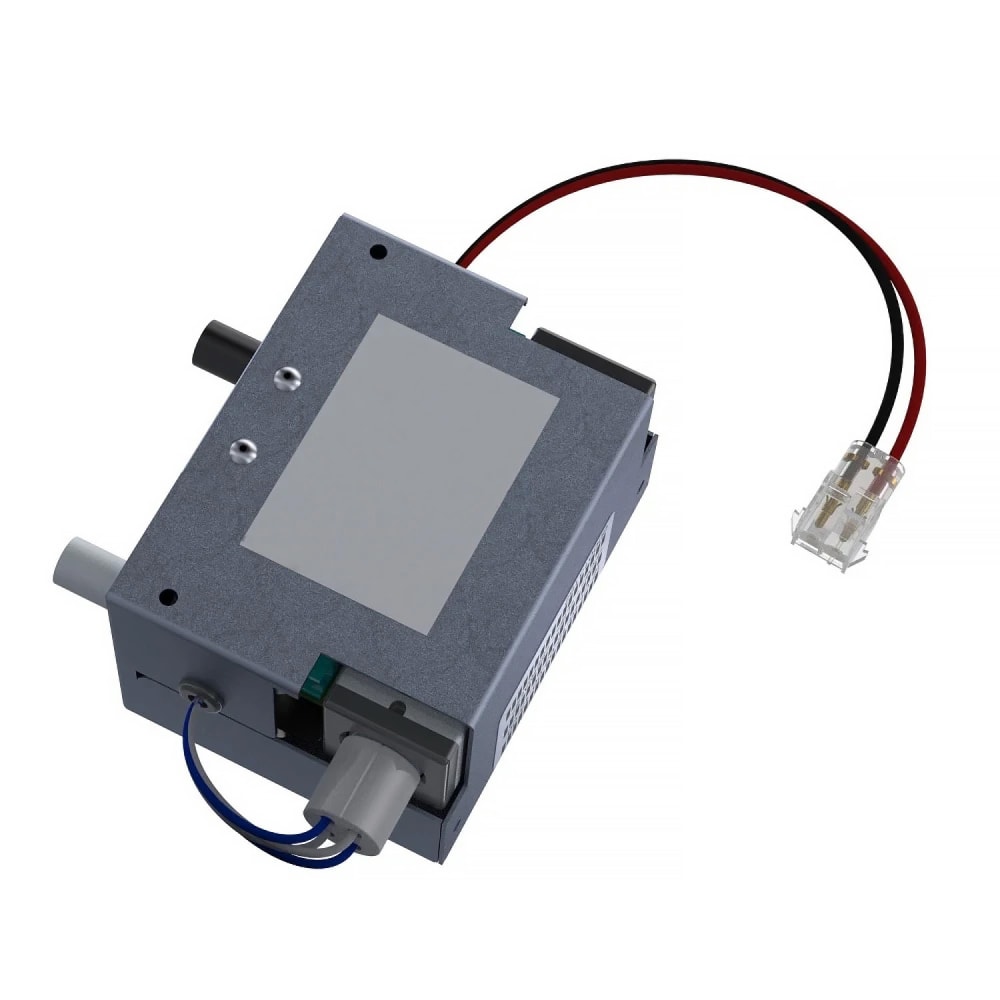

- SafeIce add-on feature uses UV light to minimize yeast, bacteria, and microorganisms during ice production
- Ideal ambient air temperature: 50-100 degrees F
- Ideal incoming water temperature: 40-100 degrees F
- Ideal incoming water pressure: 20-80 PSIG
- 5,100-BTU heat transfer capacity
- Must be paired with an ice bin or dispenser (sold separately)
- 30 1⁄4 in. W x 24 1⁄4 in. D x 21 1⁄4 in. H
- 6.30 A, 5.46 kW
- 208-230 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM0436HA90/KSI-1 within the 48 contiguous states.
From The Manufacturer
Ice-O-Matic CIM0436HA90/KSI-1 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 465 |
| Also Known As | CIM0436HA |
| Compressor Type | Air Cooled |
| Depth (in) | 24.25 |
| Height (in) | 21.25 |
| Ice Type | Half Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 30.25 |
| Weight | 155.00 |
