Ice-O-Matic CIM0436FA90/KSI-1 30 1/4" Elevation Series™ Full Cube Ice Machine Head - 465 lb/24 hr, Air Cooled, 208-230v/1ph
$4,444.00 /Each
Selected Ice Type: Full Cube

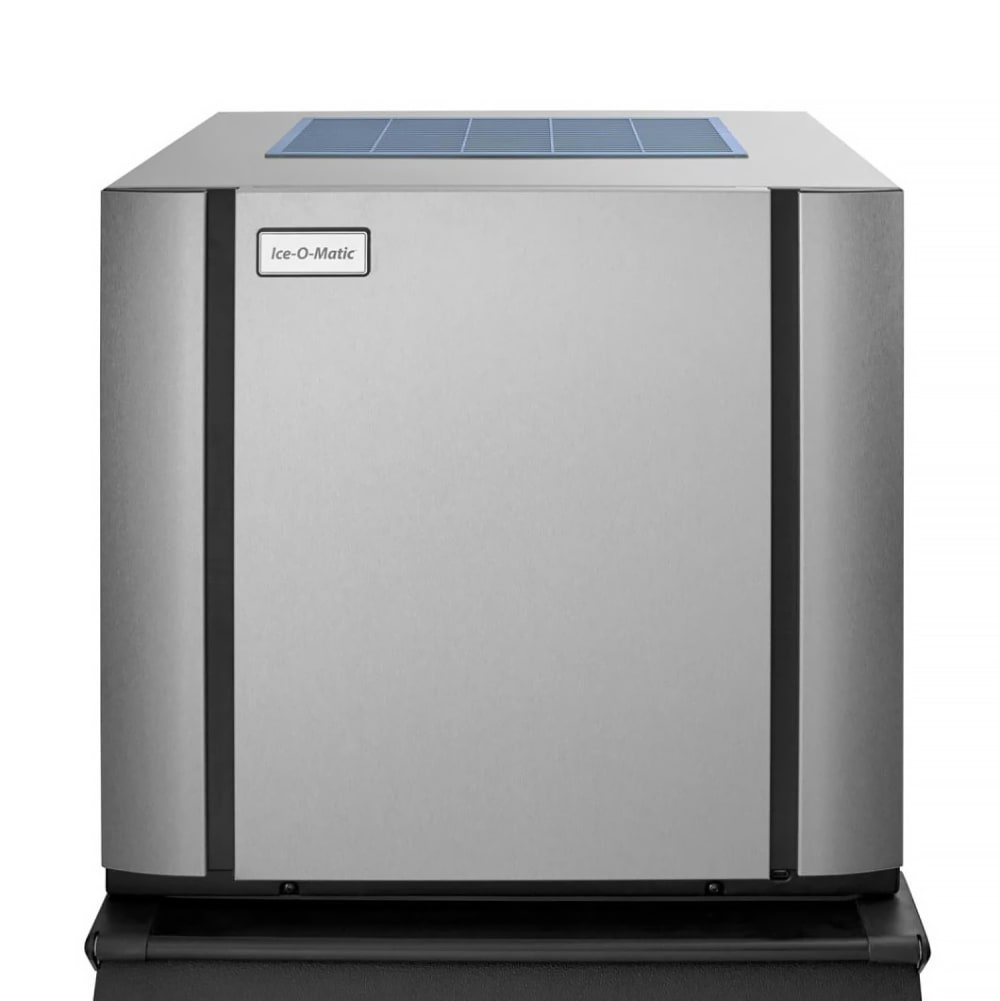

Ice-O-Matic CIM0436FA90/KSI-1 Description
The Ice-O-Matic CIM0436FA90/KSI-1 full-cube ice machine head produces as much as 465 pounds of ice daily when operating conditions are ideal. In less than ideal environments, it makes closer to 350 pounds. To streamline installation, the air-cooled condenser is self-contained, and its dual exhaust discharges air from the top and side to enable setups against a wall. This unit includes built-in PURE ICE® antimicrobial that slows the formation of bacteria, and its food zone has removable components that are dishwasher safe.
A Smart LED light in the Ice-O-Matic CIM0436FA90/KSI-1 ice machine informs employees when cleaning is required. With the simple push of a button, sanitizing and descaling can be performed, and the food zone is made of plastic so it can be wiped down efficiently. Overall, this unit measures 30 1⁄4 inches wide by 24 1⁄4 inches deep by 21 1⁄4 inches high. This unit includes SafeIce, a built-in UV light that minimizes yeast, bacteria, and other microorganisms during ice production.
- Part of the Elevation Series™
- 465-lb. maximum daily ice production
- 350-lb. AHRI-certified daily ice production
- Produces full-size ice cubes
- Full-size cube size: 0.88 in. x 0.88 in. x 0.88 in.
- PURE ICE built-in antimicrobial agent
- LED status display
- R290 refrigerant
- 1-touch sanitizing
- Dishwasher-safe food zone components
- Self-contained condenser
- Air cooled
- Dual-exhaust air discharge from top and side
- Plastic food zone
- SafeIce feature uses UV light to reduce viruses, yeast, and other bacteria in the unit
- Ideal ambient air temperature: 50-100 degrees F
- Ideal incoming water temperature: 40-100 degrees F
- Ideal incoming water pressure: 20-80 PSIG
- 5,100-BTU heat transfer capacity
- Must be paired with an ice bin or dispenser (sold separately)
- 30 1⁄4 in. W x 24 1⁄4 in. D x 21 1⁄4 in. H
- 6.30 A, 5.46 kW
- 208-230 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM0436FA90/KSI-1 within the 48 contiguous states.
From The Manufacturer
Ice-O-Matic CIM0436FA90/KSI-1 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 465 |
| Also Known As | CIM0436FA |
| Compressor Type | Air Cooled |
| Depth (in) | 24.25 |
| Height (in) | 21.25 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 30.25 |
| Weight | 155.00 |
