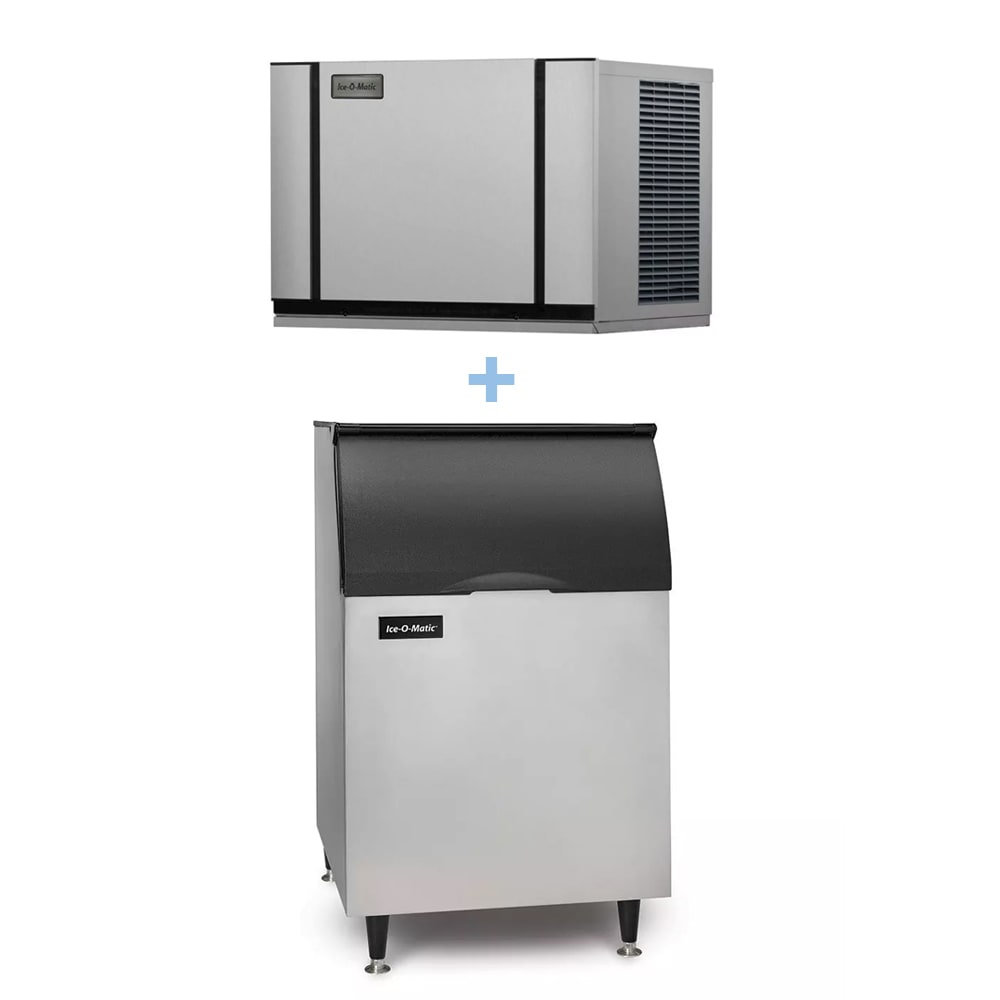

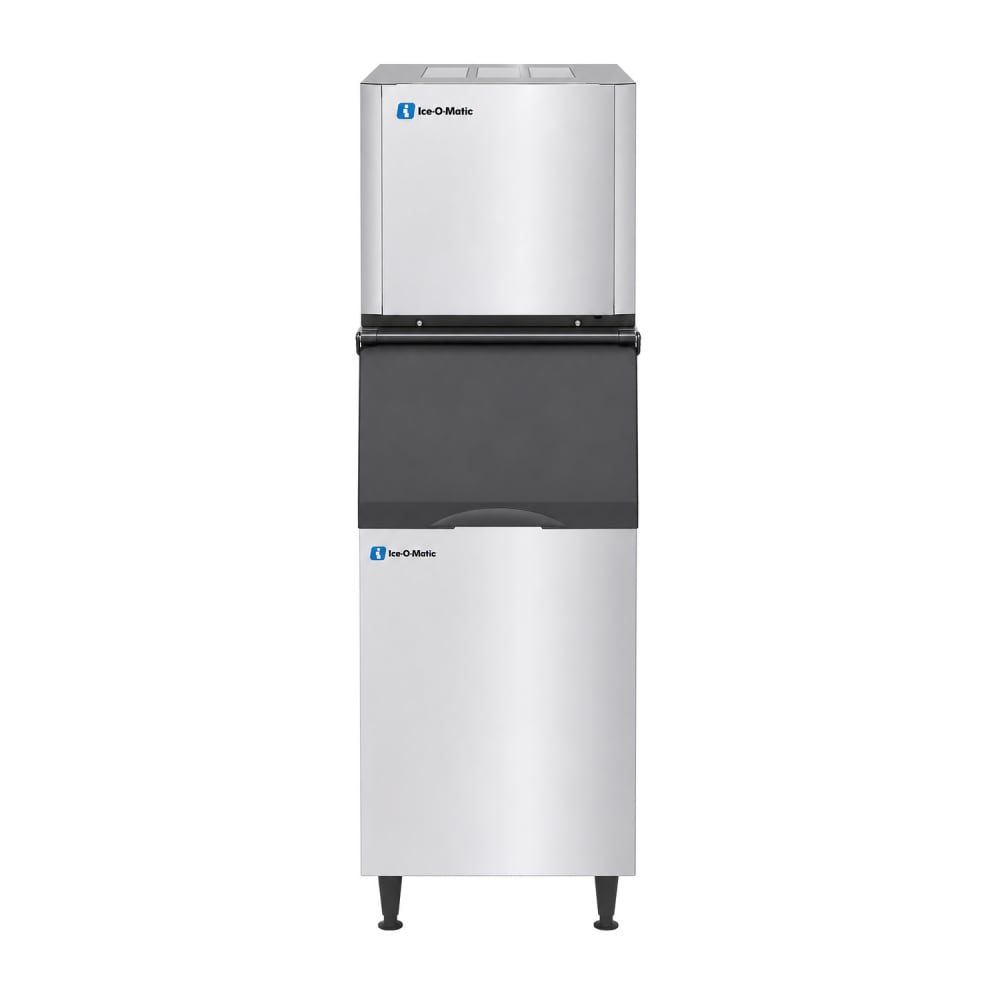

Ice-O-Matic CIM0430HA/B55PS 435 lb Elevation Series™ Half Cube Ice Machine w/ Bin - 510 lb Storage, Air Cooled, 115v
QUICK SHIP: Typically ships in 1 - 3 Business Days
$5,397.00 /Each
Selected Ice Type: Half Cube
Ice-O-Matic CIM0430HA/B55PS Description
To stabilize the unit on uneven surfaces, the Ice-O-Matic CIM0430HA/B55PS half-cube ice machine with bin is mounted on adjustable 6-inch legs. For high-volume use, it has a resilient aluminum exterior, and the bin is insulated with foam to ensure ice doesn't melt during storage. Resisting corrosion caused by cleaning chemicals, the bin is lined with polyethylene, and to inhibit bacterial growth, the head has PURE ICE® antimicrobial protection.
The Ice-O-Matic CIM0430HA/B55PS ice maker with bin makes 435 pounds of ice per day, though when conditions are less than ideal, it makes closer to 320 pounds. For use when needed, the bin holds 510 pounds of pre-made ice, which can be accessed behind the top-hinged, sloped door. Providing an update of the unit's status, it has an LED display screen that can be monitored by employees, and the condenser is self-contained to reduce cross-contamination risks.
- Part of the Elevation Series™
- 435-lb. daily ice production
- 320-lb. AHRI daily ice production at 70-90 degrees F
- Makes half-size cubes
- Half-size cube size: 3⁄8 in. W x 7⁄8 in. D x 7⁄8 in. H
- Air-cooled, self-contained condenser
- Plastic food zone eases cleaning
- Dishwasher-safe food zone parts can be snapped out
- Single-touch sanitizing and descaling
- PURE ICE antimicrobial protection slows bacterial growth
- LED display provides status updates
- Ideal incoming water pressure: 20-80 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature range: 50-100 degrees F
- 5,100-BTU heat transfer capacity
- 510-lb. application capacity
- Sloped, top-hinged front door
- Polyethylene interior avoids corrosion
- Strong aluminum exterior
- Foam insulation prevents melting
- Sits on adjustable 6-in. legs
- Ice maker dimensions: 30 1⁄4 in. W x 24 1⁄4 in. D x 21 1⁄4 in. H
- Ice bin dimensions: 30 in. W x 31 in. D x 50 in. H
- 11 A, 5.43 kW
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM0430HA/B55PS within the 48 contiguous states.
From The Manufacturer

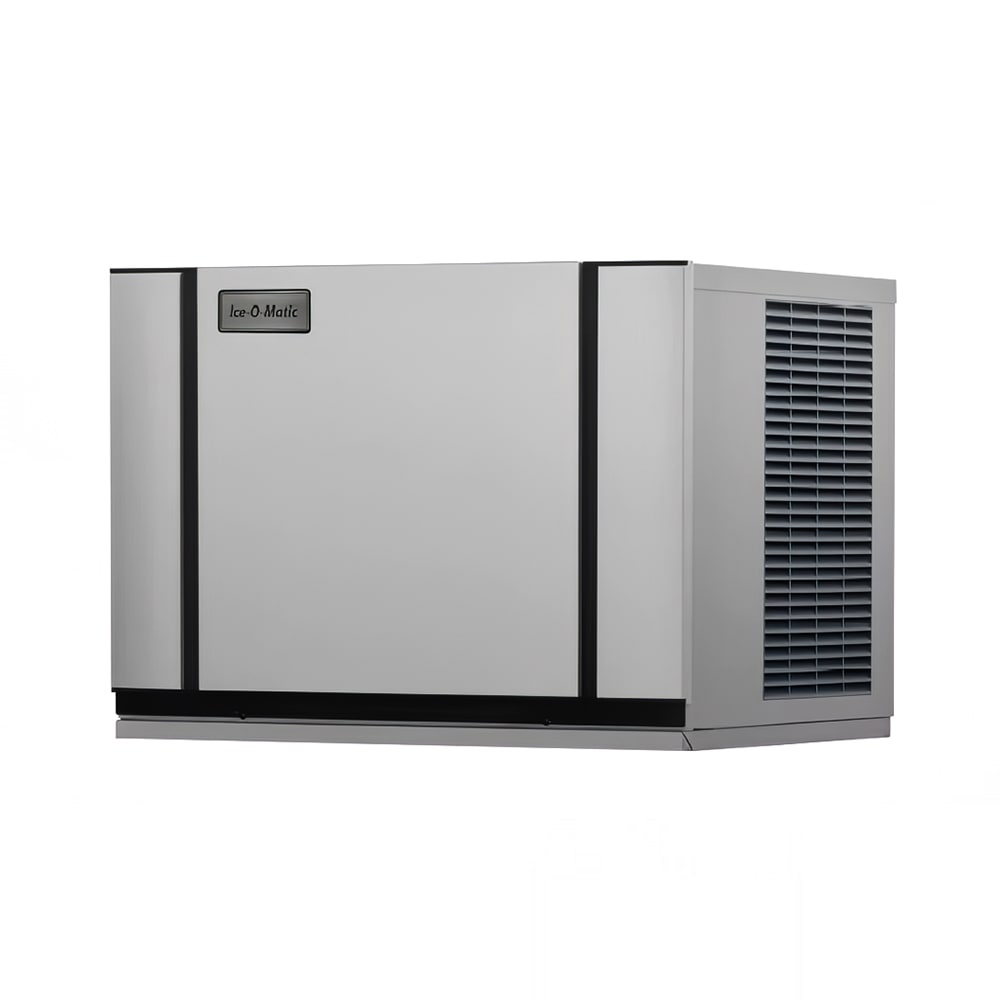

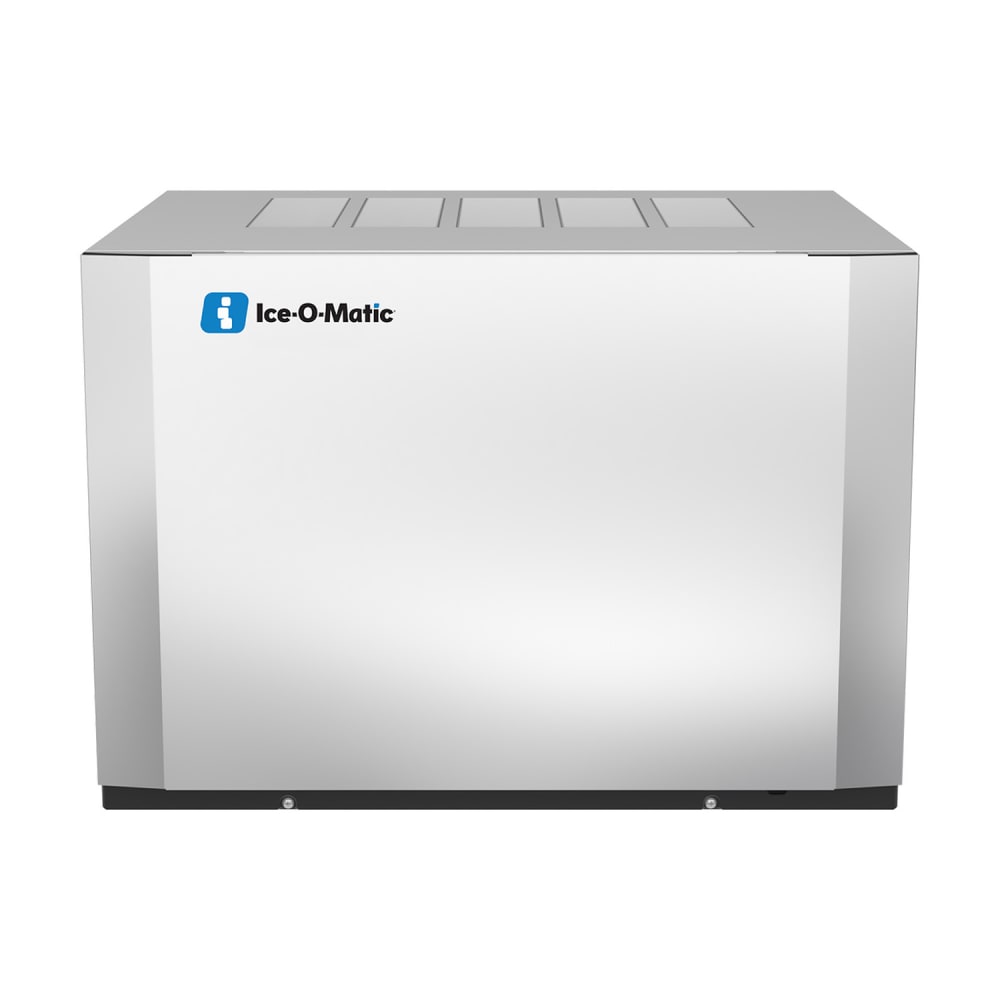

Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30-1/4" W, approximately 435 lb production/24 hours at 70°/50° (320 lb at 90°/70°), half-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, ENERGY STAR®, BPA Free

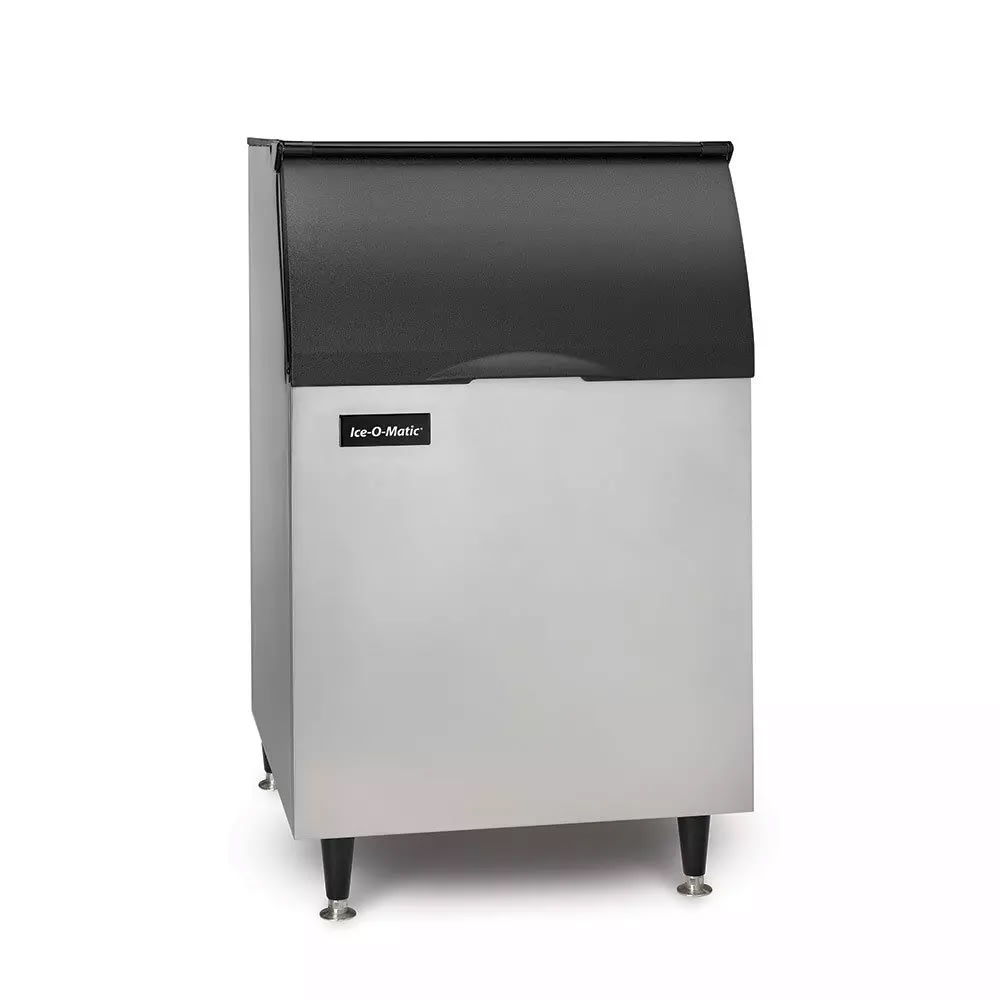

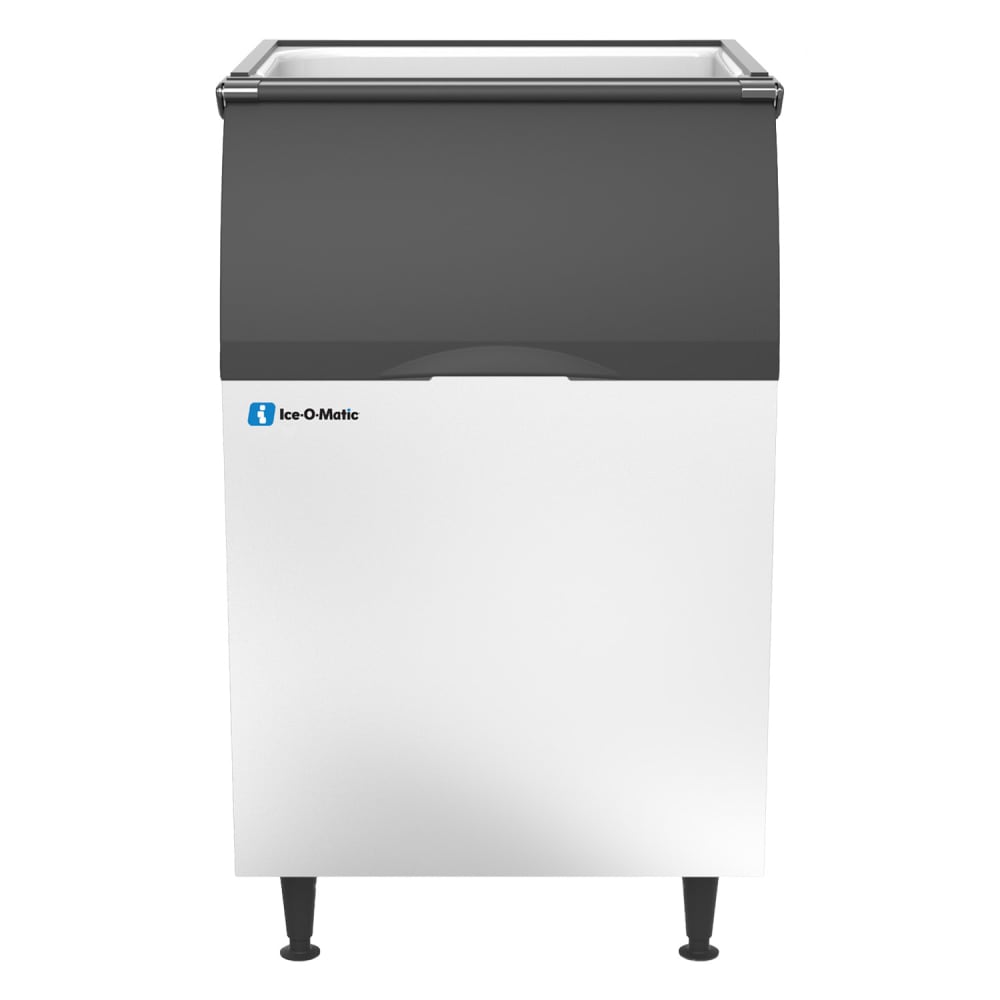

Ice Bin, 510 lb storage capacity, 30"W x 31"D x 50"H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable aluminum exterior, 6" legs, NSF
Ice-O-Matic CIM0430HA/B55PS Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 435 |
| Access | Lift Up Door |
| Bin Capacity (lb) | 510 |
| Compressor Type | Air Cooled |
| Depth (in) | 31 |
| Height (in) | 71.25 |
| Hertz | 60 |
| Ice Type | Half Cube |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R404A |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 2-year Parts & Labor Storage Bin; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 30.25 |
| Weight | 280.00 |
