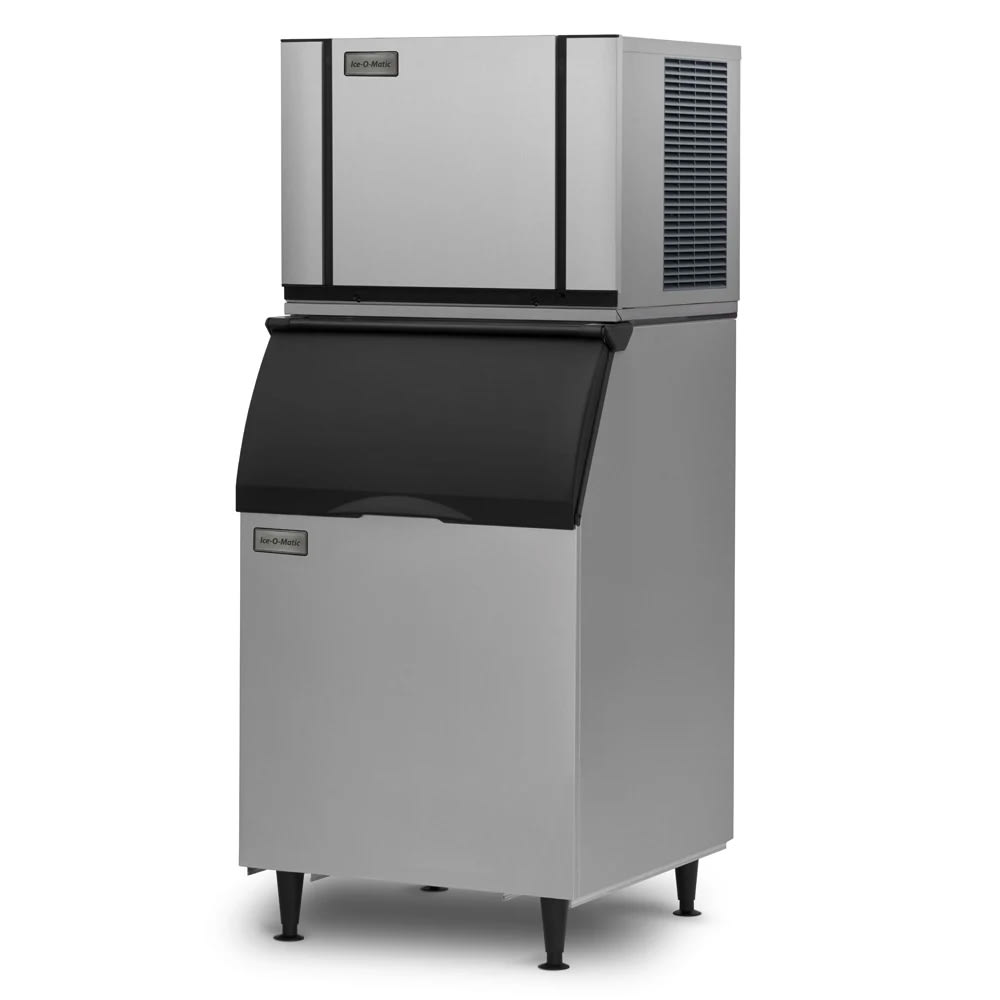

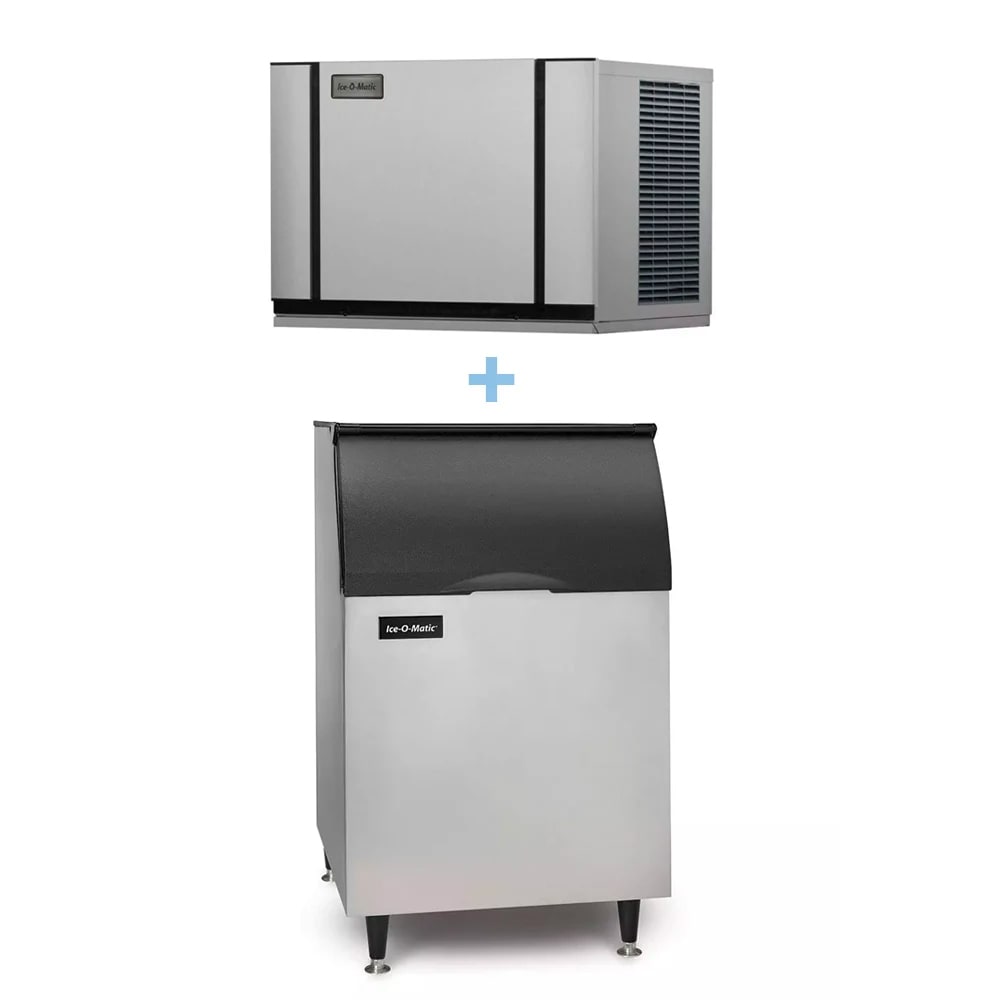

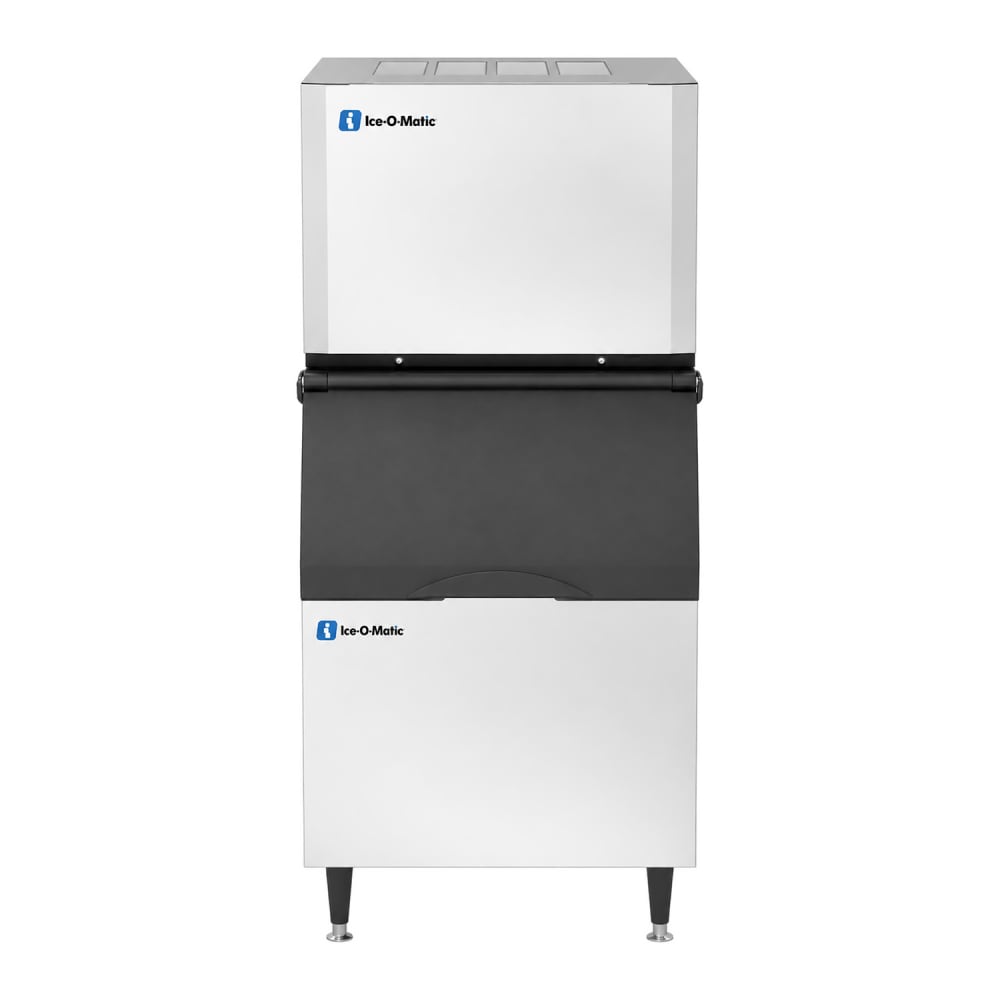

Ice-O-Matic CIM0430FA/B55PS 435 lb Elevation Series™ Full Cube Ice Machine w/ Bin - 510 lb Storage, Air Cooled, 115v
QUICK SHIP: Typically ships in 1 - 3 Business Days
$5,397.00 /Each
Selected Ice Type: Full Cube
Ice-O-Matic CIM0430FA/B55PS Description
To streamline installation, the Ice-O-Matic CIM0430FA/B55PS ice machine with bin has a self-contained condenser. It can produce as much as 435 pounds of ice daily, and the bin can store 510 pounds of ice for later use. For cleaning, employees can push a button to perform sanitizing and descaling, while the food zone components can be removed and placed in the dishwasher. Slowing the growth of bacteria, the unit is coated with PURE ICE® antimicrobial.
For monitoring purposes, the Ice-O-Matic CIM0430FA/B55PS full-cube ice maker with bin has an LED screen that displays the unit's operating status. Offering the durability needed for repeated use, the bin is made of aluminum. The inside is lined with polyethylene to resist corrosion and is insulated to ensure ice doesn't melt quickly during storage. It's positioned on sturdy 6-inch legs for elevation.
- Part of the Elevation Series™
- 435-lb. daily ice production
- 320-lb. AHRI daily ice production at 70-90 degrees F
- Makes full-size cubes
- Full-size cube size: 7⁄8 in. W x 7⁄8 in. D x 7⁄8 in. H
- Self-contained, air-cooled condenser
- Dual exhaust discharges from the side and top
- PURE ICE antimicrobial agent slows bacterial growth
- LED display provides status updates
- 1-touch sanitizing and descaling
- Plastic food zone with dishwasher safe components
- Ideal incoming water pressure: 20-80 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature range: 50-100 degrees F
- 5,100-BTU heat transfer capacity
- 510-lb. application capacity
- Top-hinged door with sloped front
- Lined with corrosion-resistant polyethylene
- Foam insulation prevents melting
- Exterior is durable aluminum
- Sits on 6-in. legs that can be adjusted
- Ice maker dimensions: 30 1⁄4 in. W x 24 1⁄4 in. D x 21 1⁄4 in. H
- Ice bin dimensions: 30 in. W x 31 in. D x 50 in. H
- 11 A, 5.43 kW
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM0430FA/B55PS within the 48 contiguous states.
From The Manufacturer

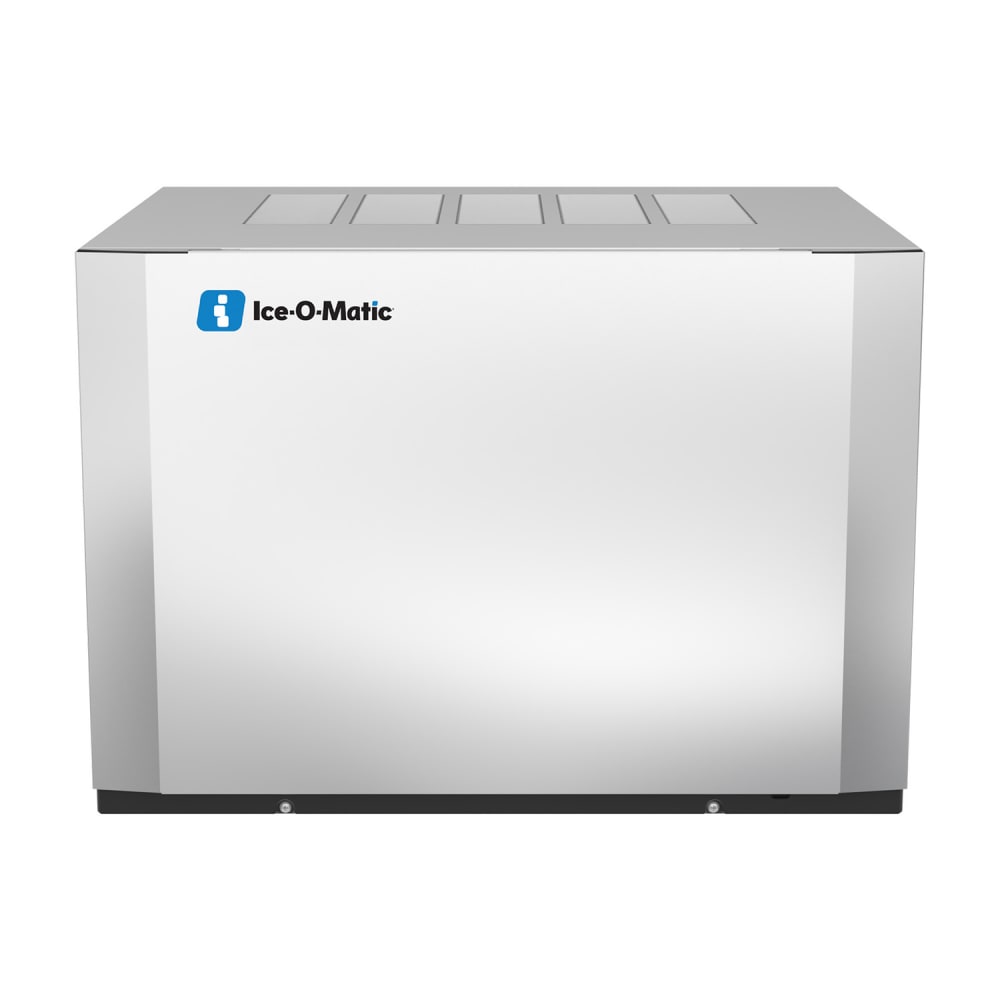

Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30-1/4" W, approximately 435 lb production/24 hours at 70°/50° (320 lb at 90°/70°), full-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free, ENERGY STAR®

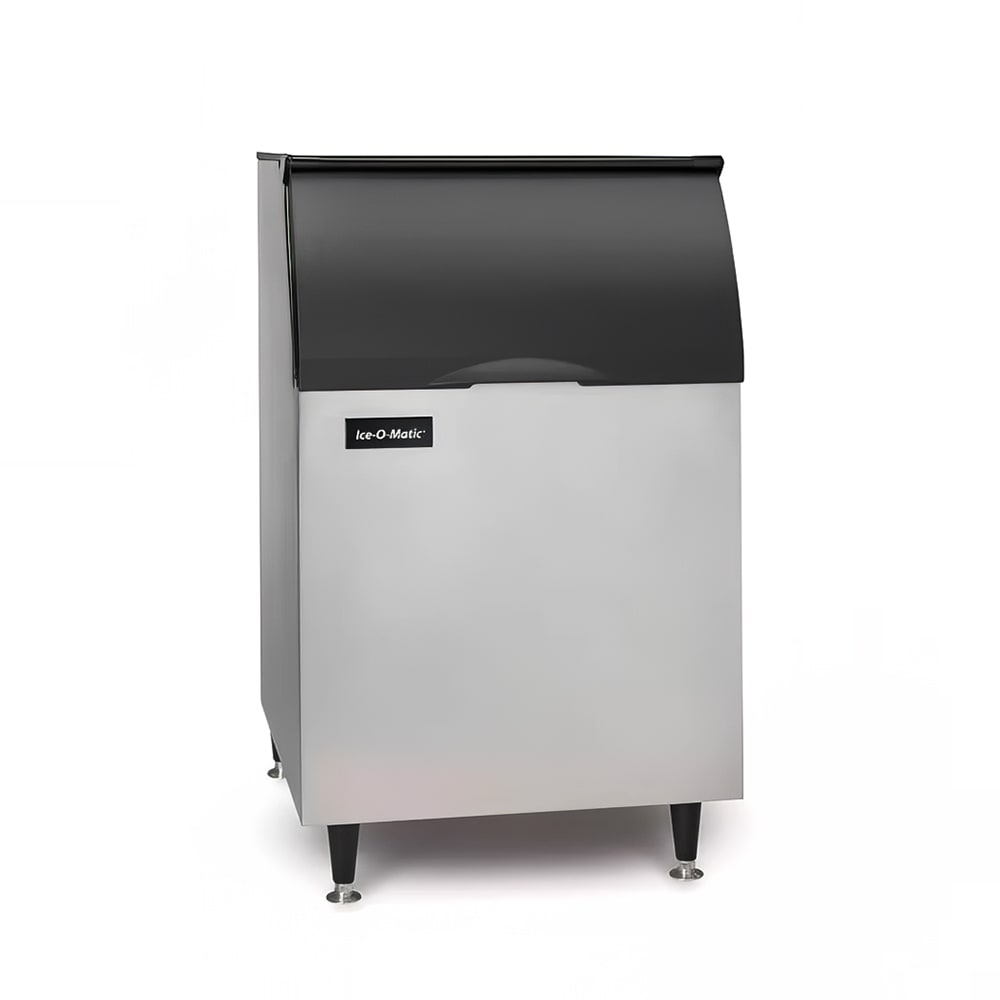

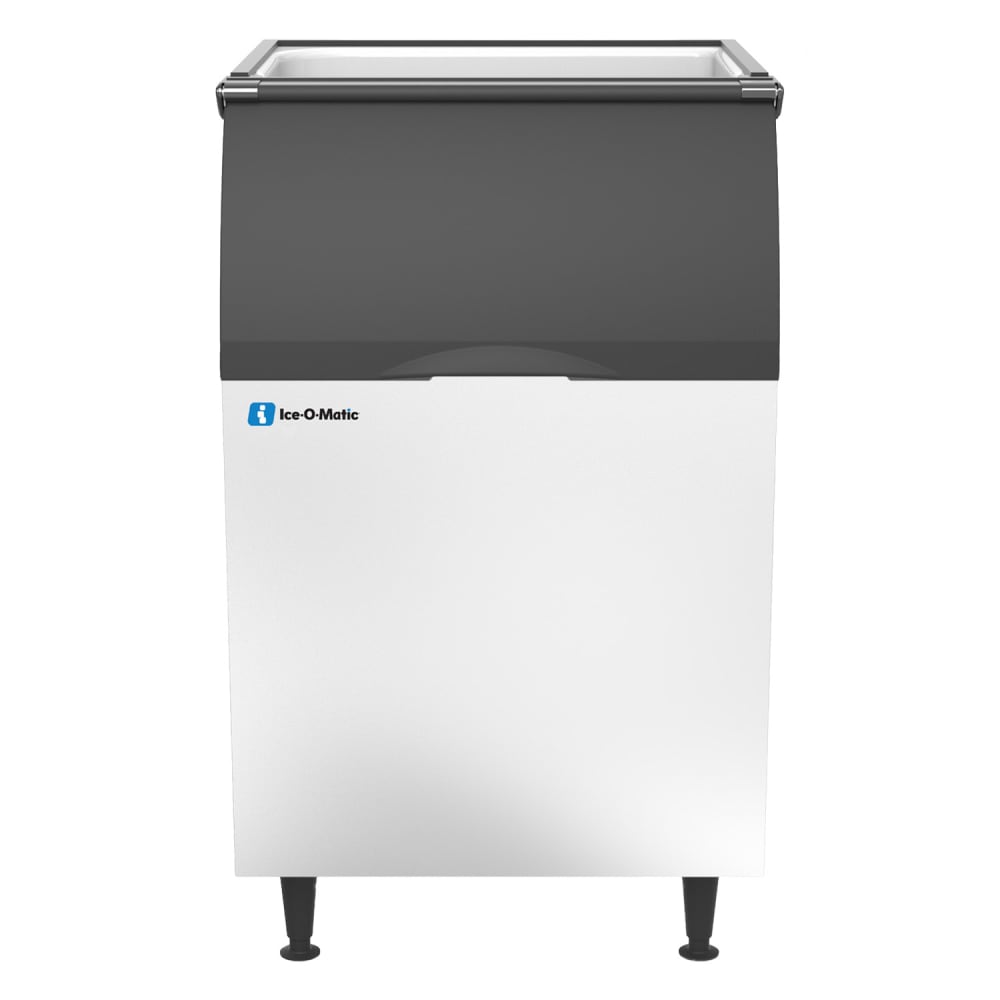

Ice Bin, 510 lb storage capacity, 30"W x 31"D x 50"H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable aluminum exterior, 6" legs, NSF
Ice-O-Matic CIM0430FA/B55PS Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 435 |
| Access | Lift Up Door |
| Bin Capacity (lb) | 510 |
| Compressor Type | Air Cooled |
| Depth (in) | 31 |
| Height (in) | 71.25 |
| Hertz | 60 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R404A |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 2-year Parts & Labor Storage Bin; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 30.25 |
| Weight | 280.00 |
