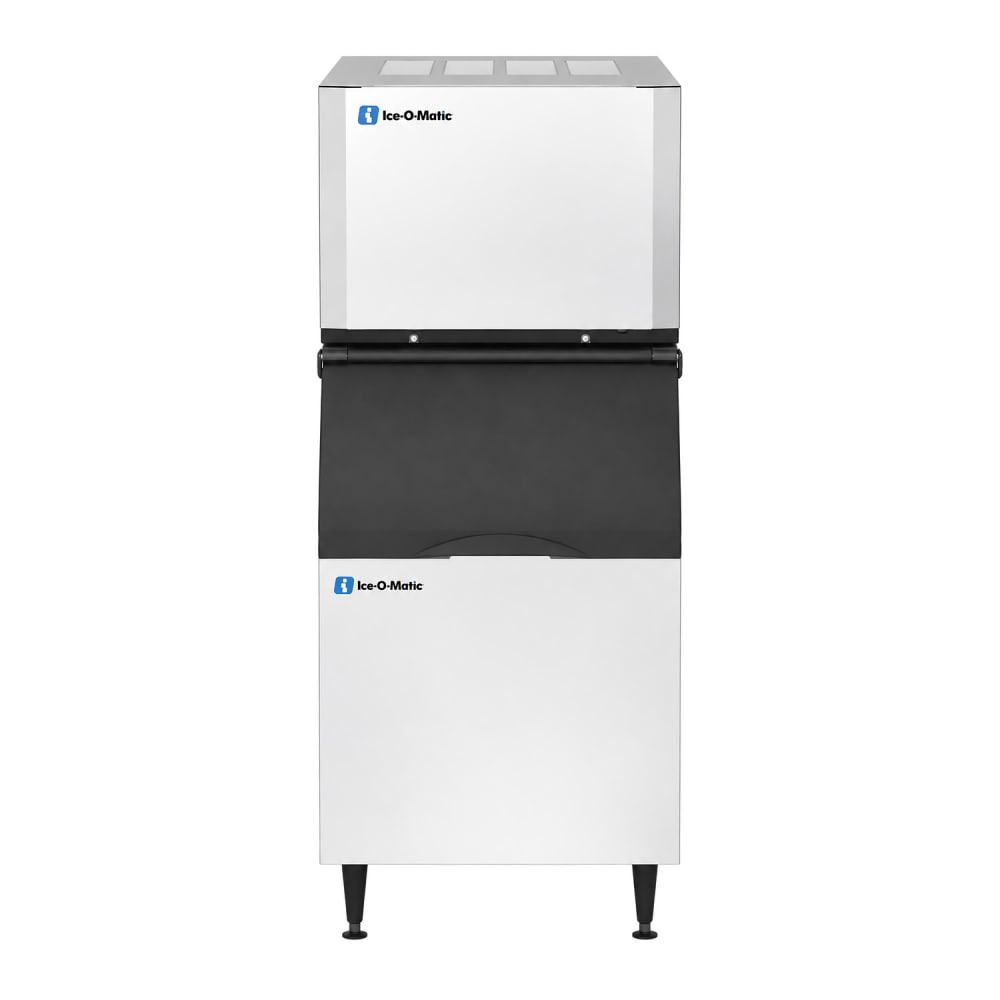

Ice-O-Matic CIM0330HA90/B55 313 lb Elevation Series™ Half Cube Ice Machine w/ Bin - 510 lb Storage, Air Cooled, 115v
QUICK SHIP: Typically ships in 1 - 3 Business Days
$5,146.00 /Each
Selected Ice Type: Half Cube
Ice-O-Matic CIM0330HA90/B55 Description
The Ice-O-Matic CIM0330HA90/B55 Elevation™ ice maker and bin combo makes half-size ice cubes that measure 3⁄8 inch by 7⁄8 inch by 7⁄8 inch and are small enough to fill most of a glass. These cubes form when water rushes over the evaporator and freezes in the grid, giving them their shape. Once fully frozen, the cubes are ejected into the bin, where insulation helps keep them solid and ready for use.
This Ice-O-Matic CIM0330HA90/B55 ice machine and bin has several features to speed up cleaning. Its one-touch cleaning cycle helps purge sediment from the interior, and when it needs thorough cleaning, an LED light illuminates to ensure operators are aware of the problem. The food zone—the area where ice is made—contains removable parts that snap out of place. These parts are dishmachine safe, greatly cutting down on cleaning times. Made of smooth plastic, the food zone eliminates sharp, hard-to-clean corners. After cleaning, users can snap the parts back into place and resume operation.
- Part of the Elevation series
- 313-lb. maximum daily ice production
- Makes half-size cubes
- Half cube size: 3⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Agion® antimicrobial protection helps prevent unwanted bacteria
- LED light reminds users to clean the machine if necessary
- 1-touch button for descaling or sanitizing unit
- Plastic food zone without dirt-trapping creases and corners
- Dishwasher-safe food zone components reduce the time needed to complete cleaning tasks
- Smart Harness™ control board provides diagnostic information
- Air-cooled condenser expels air out the top and side to prevent overheating
- R290 refrigerant
- 4,400-BTU heat transfer capacity
- 510-lb. ice storage capacity
- Insulated construction helps preserve ice cubes and prevents melting
- Sloped door provides access to ice
- Polyethylene interior and aluminum exterior
- Legs are adjustable from 6-7 in.
- Ambient air temperature: 50-100 degrees F
- Water temperature: 40-100 degrees F
- Incoming water pressure: 20-80 PSIG
- Bin: 30 in. W x 31 in. D x 50-51 in. H (depending on adjustable legs)
- Ice maker: 30 1⁄4 in. W x 24 1⁄4 in. D x 21 1⁄4 in. H
- 11 A, 6.69 kW
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM0330HA90/B55 within the 48 contiguous states.
From The Manufacturer

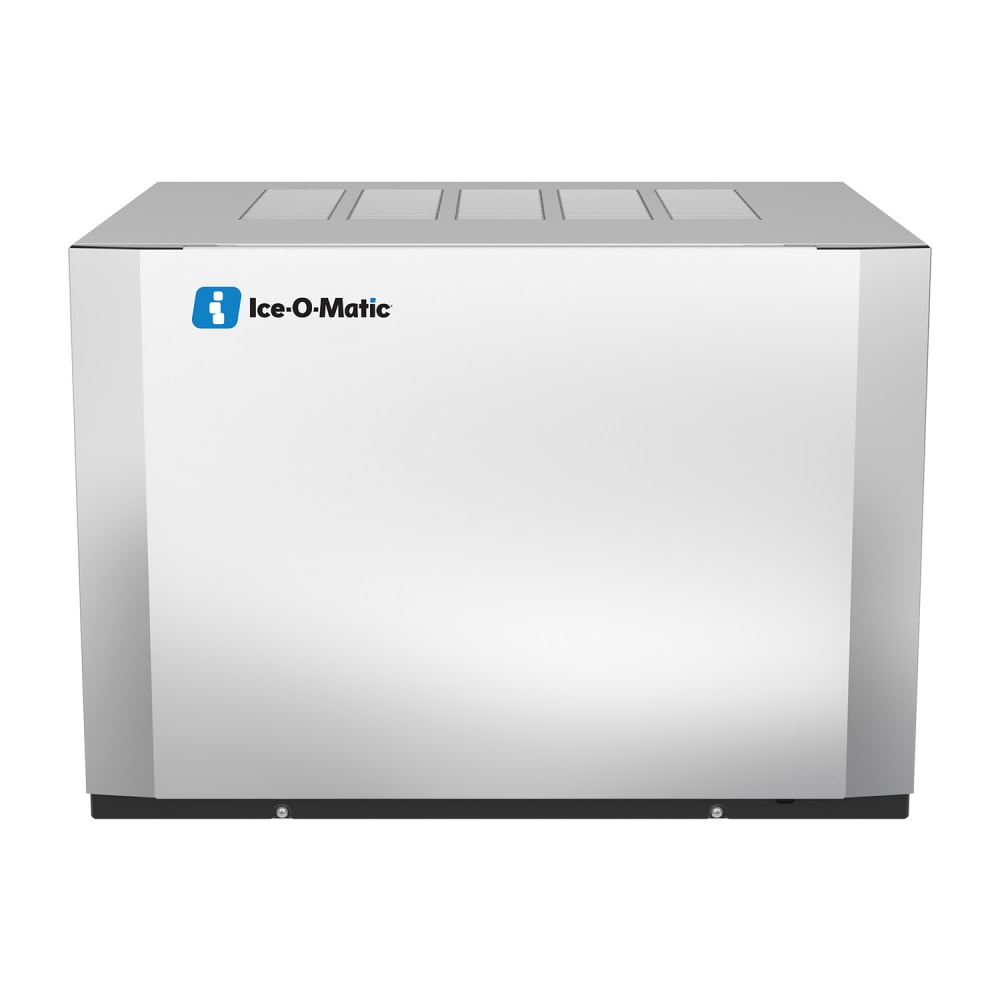

Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30" W, approximately 313 lb production/24 hours at 70°/50° (244 lb at 90°/70°), half-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, R290 refrigerant, cULus, NSF, CE, BPA Free, ENERGY STAR®

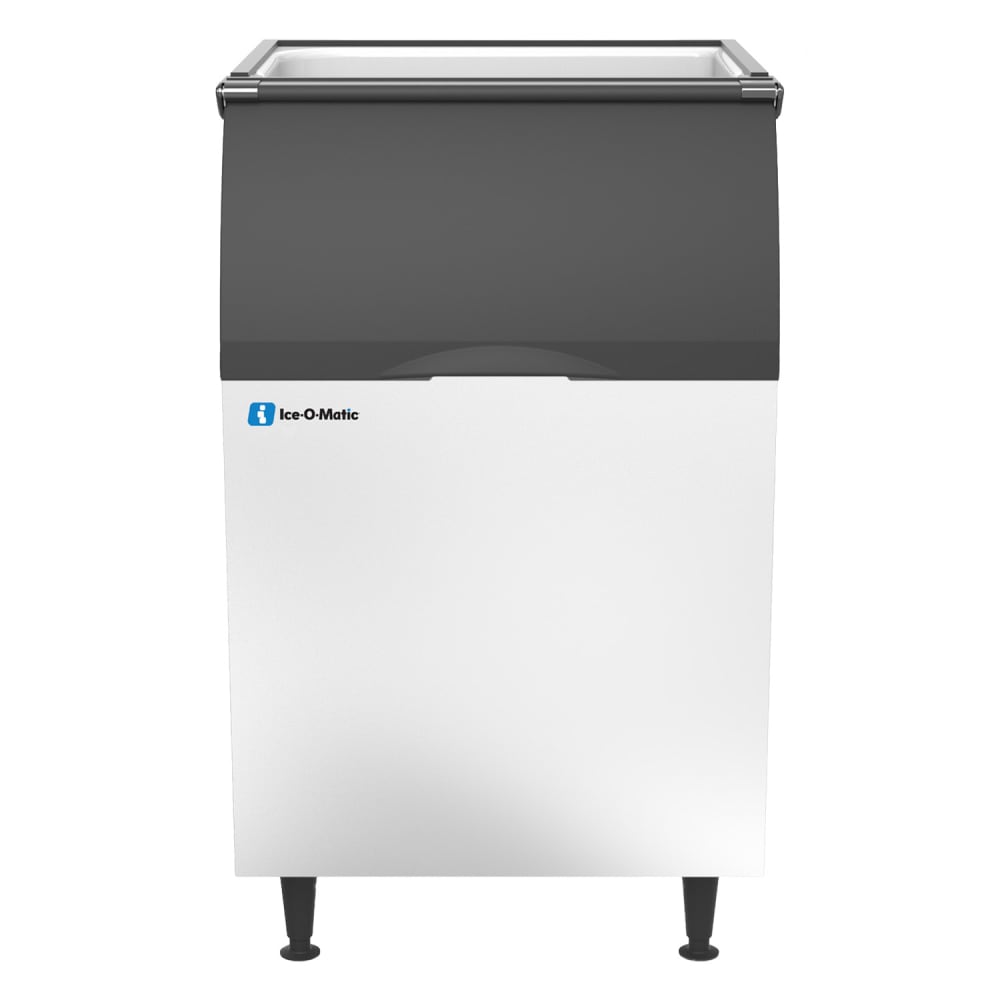

Ice Bin, 510 lb storage capacity, 30"W x 31"D x 50"H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable aluminum exterior, 6" legs, NSF
Ice-O-Matic CIM0330HA90/B55 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 313 |
| Access | Lift Up Door |
| Also Known As | CIM0330HA/B55PS |
| Bin Capacity (lb) | 510 |
| Compressor Type | Air Cooled |
| Depth (in) | 31 |
| Height (in) | 71.25 |
| Hertz | 60 |
| Ice Type | Half Cube |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 2-year Parts & Labor Storage Bin; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 30.25 |
| Weight | 270.00 |
