Ice-O-Matic CIM0330FA90/B55 316 lb Elevation Series™ Full Cube Ice Machine w/ Bin - 510 lb Storage, Air Cooled, 115v
QUICK SHIP: Typically ships in 1 - 3 Business Days
$5,146.00 /Each
Selected Ice Type: Full Cube
Ice-O-Matic CIM0330FA90/B55 Description
Depending on various environmental conditions, the Ice-O-Matic CIM0330FA90/B55 full-cube ice maker with bin can produce a maximum of 316 pounds of ice per day. It sanitizes and descales with the push of a button, and its plastic food zone is designed with dishwasher-safe components to further simplify cleaning. To inhibit the growth of harmful bacteria, it’s protected with a built-in antimicrobial agent.
The Ice-O-Matic CIM0330FA90/B55 ice machine’s bin can hold as much as 510 pounds of ice. Its exterior is constructed of sturdy, corrosion-resistant aluminum, and its interior is lined with sanitary polyethylene. To lengthen the ice’s life and prevent premature melting, it’s built with foam insulation that retains cold air.
- Part of the Elevation Series™
- 316-lb. maximum daily ice production
- Makes full-size cubes
- Cube size: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
- LED status display
- 1-touch sanitizing and descaling
- Seamless plastic food zone with dishwasher-safe components
- Built-in PURE ICE® antimicrobial protection
- Air cooled
- Dual-exhaust discharge enables flexibility in installation
- Self-contained condenser
- Uses R290 refrigerant
- Ideal incoming water pressure: 20-80 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature range: 50-100 degrees F
- 510-lb. application capacity
- Sloped front door is top hinged
- Sanitary polyethylene interior liner
- Foam insulation preserves life of ice
- Corrosion-resistant aluminum exterior
- Mounted on 6-in. legs
- Ice maker: 30 1⁄4 in. W x 24 1⁄4 in. D 21 1⁄4 in. H
- Ice bin: 30 in. W x 31 in. D x 50 in. H
- 11 A
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM0330FA90/B55 within the 48 contiguous states.
From The Manufacturer

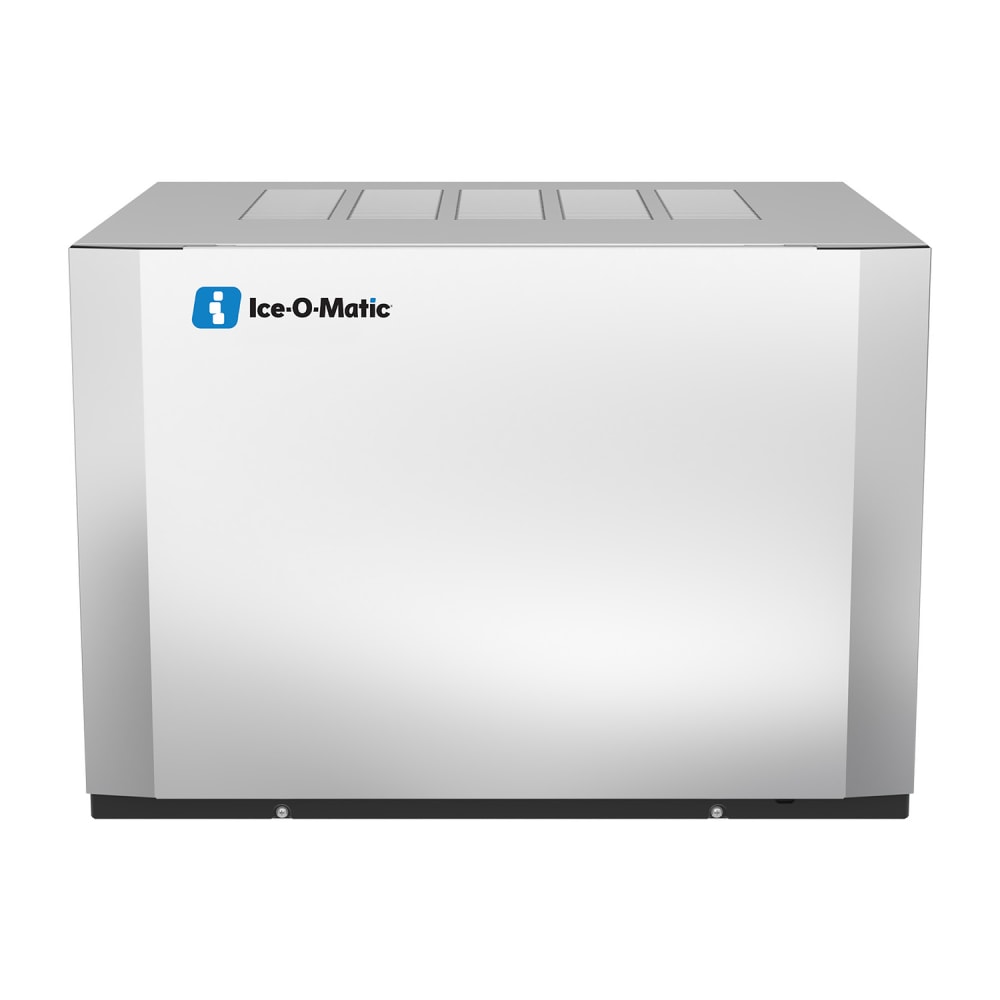

Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30" W, approximately 316 lb production/24 hours at 70°/50° (244 lb at 90°/70°), full-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, R290 refrigerant, cULus, NSF, CE, BPA Free, ENERGY STAR®

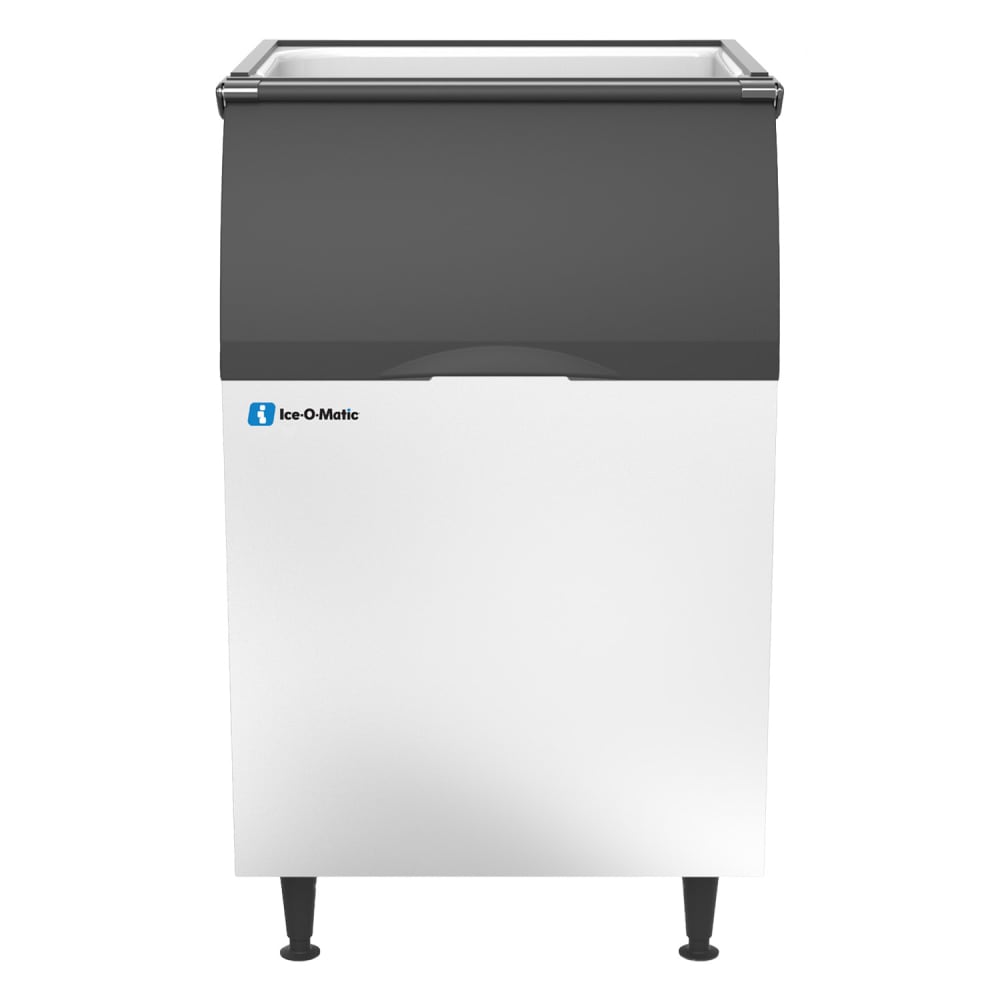

Ice Bin, 510 lb storage capacity, 30"W x 31"D x 50"H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable aluminum exterior, 6" legs, NSF
Ice-O-Matic CIM0330FA90/B55 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 316 |
| Access | Lift Up Door |
| Also Known As | CIM0330FA/B55PS |
| Bin Capacity (lb) | 510 |
| Compressor Type | Air Cooled |
| Depth (in) | 31 |
| Height (in) | 71.25 |
| Hertz | 60 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 2-year Parts & Labor Storage Bin; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 30.25 |
| Weight | 270.00 |
