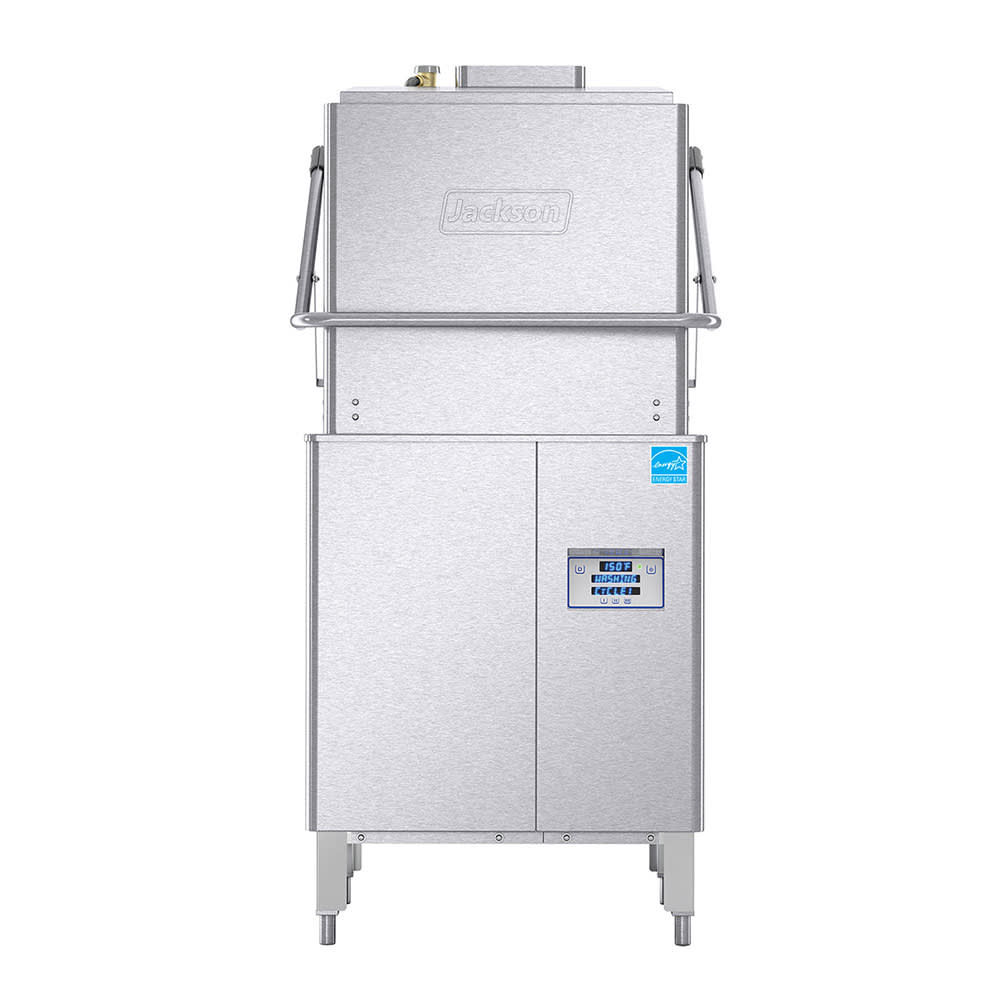

Jackson DYNASTAR VENTLESS (VER) DynaStar® Ventless High Temp Door Type w/ 40 Racks/hr Capacity, Built-in Booster, 230v/3ph
$19,412.00 /Each
Call for details!
Selected Voltage: 230V, 3 Phase
| 230V, 3 Phase |
| 208V, 1 Phase |
| 208V, 3 Phase |
| 230V, 1 Phase |
Jackson DYNASTAR VENTLESS (VER) Description
To minimize rocking and account for bumpy or sloped flooring, the Jackson DYNASTARVER high-temp dishwasher's bullet feet are adjustable. It features a door interlock mechanism that ensures the door remains locked throughout the wash cycle, while its Sani-Sure™ final rinse system ensures rinse temperatures reach the 180 degrees Fahrenheit needed for proper dish sanitization. Suitable for medium-to-high-volume kitchens, it washes 40 racks per hour and features a two-pass energy recovery system. This unit measures 29 1⁄4 inches wide by 34 1⁄2 inches deep by 62 3⁄8 inches high overall.
The Jackson DYNASTARVER commercial dishmachine is a door-type, ventless unit with an 8-gallon wash tank and 1.66-gallon booster tank. The tank fills automatically and features a triple wash arm for effective, thorough washing. This unit is constructed of stainless steel—a sturdy metal that can be wiped clean and resists corrosion and rust. It features three timed cycles as well as a delime cycle, and to conceal inner components for a streamlined look, it's built with front and side dress panels.
- Part of the DynaStar® series (38 with suggested NSF load time)
- Washes 40 racks per hour
- Ventless, door-type unit
- Wash tank capacity: 8 gal.
- Booster tank capacity: 1.66 gal.
- Econo-rinse system uses 0.70 gal. of water per rack
- Turbo-rinse system uses 0.89 gal. of water per rack
- Automatic tank fill
- Stainless steel construction
- Built-in booster heater with Sani-Sure™ final rinse system
- Door interlock mechanism remains locked during cycle
- 3 timed cycles and delime cycle
- Front and side dress panels
- Vent fan control
- Interchangeable scrap baskets
- Digital LED display
- 2-pass energy recovery system
- Triple wash arm
- Interchangeable upper and lower wash/rinse arms
- Stainless steel nozzles
- Detergent/rinse additives signal connection fuse box
- Pumped rinse for consistency
- Adjustable bullet feet
- Low-water protection
- High-limit thermostat
- 17 1⁄2-in. chamber clearance
- Onboard service diagnostics
- Minimum wash temperature: 150 degrees F
- Minimum rinse temperature: 180 degrees F
- Required incoming water temperature: 40-90 degrees F
- Required incoming flow pressure: 15-65 PSI
- 29 1⁄4 in. W x 34 1⁄2 in. D x 62 3⁄8 in. H
- 46 A, 16 kW, 1 HP
- 230 V/60 Hz/3 ph
- Waterline size: 1⁄2-in. NPT
- Drain line size: 1 1⁄2 in. ID
*Image may not depict product color, inclusions or accessories.
*Free shipping on Jackson DYNASTAR VENTLESS (VER) within the 48 contiguous states.
From The Manufacturer
DynaStar® Dishwasher, door type, ventless, high temperature, 29-1/4"W x 34-1/2"D x 62-3/8"H, approximately (40) racks/hour, Sani-Sure™ final rinse system, 17-1/2" clearance, automatic tank fill, pumped rinse, adjustable rinse system – Econo and Turbo, (3) timed cycles, digital LED display, delime cycle, door interlock, onboard digital diagnostics, two-pass energy recovery system, triple wash arm, 1 hp stainless steel wash bump motor, interchangeable scrap baskets, electric tank heater, universal (straight-thru/corner) type, stainless steel exterior, (dishtable not included), cETLus, ETL-Sanitation, ENERGY STAR®, 230v/60/3ph
Watch a video about this product
Jackson DYNASTAR VENTLESS (VER) Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Jackson |
| Capacity | Single Rack |
| Cavity Height (in) | 17.5 |
| Control Location | Bottom |
| Depth (in) | 34.5 |
| Design | Standard |
| Door Type | Lift Up |
| Heat | Electric |
| Height (in) | 62.38 |
| Hertz | 60 |
| Phase | 3 |
| Product | Dishwashers |
| Product Type | Dishwashing Equipment & Supplies |
| Racks per Hour | 40 |
| Rating | Better |
| Series | DynaStar® |
| Special Features | Built In Booster & Corner Convertible |
| Type | High Temp |
| Voltage | 230 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 29.25 |
| Weight | 391.00 |
