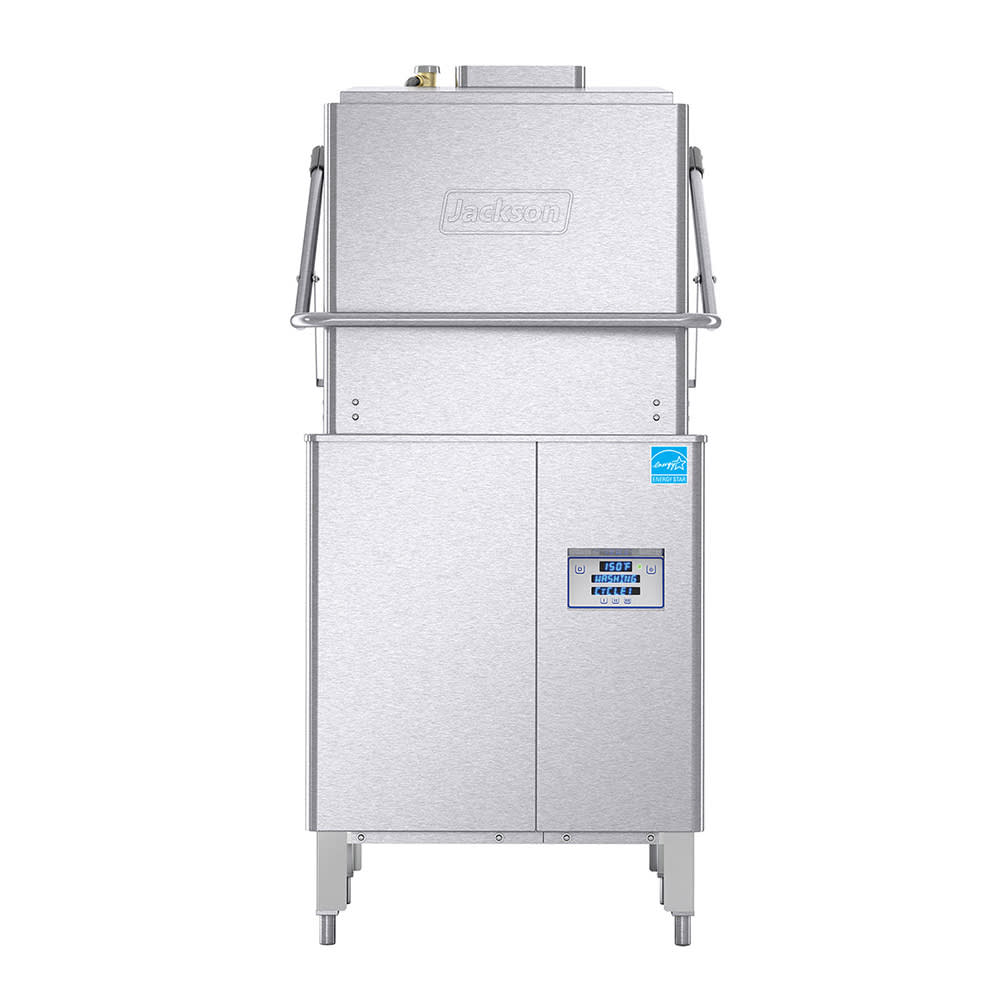

Jackson DYNASTAR VENTLESS (VER) DynaStar® Ventless High Temp Door Type w/ 40 Racks/hr Capacity, Built-in Booster, 208v/3ph
Typically ships in 2 - 3 weeks
$19,412.00 /Each
Call for details!
Selected Voltage: 208V, 3 Phase
| 208V, 3 Phase |
| 208V, 1 Phase |
| 230V, 1 Phase |
| 230V, 3 Phase |
Jackson DYNASTAR VENTLESS (VER) Description
Constructed of stainless steel, the Jackson DYNASTARVER high-temp dishwasher is resilient, simple to clean, and resistant to rust and corrosion. Its front and side dress panels conceal the inner components for a streamlined appearance, while its adjustable bullet feet stabilize the unit on sloped or irregular flooring. To ensure safety, its door interlock mechanism prevents the door from opening during the wash cycle. This unit features an 8-gallon wash tank and a 1.66-gallon booster tank and can wash as many as 40 racks per hour.
The Jackson DYNASTARVER commercial dishmachine is a ventless, door-type model measuring 29 1⁄4 inches wide by 34 1⁄2 inches deep by 62 3⁄8 inches high. It features three timed cycles as well as a delime cycle, and its triple wash arm optimizes performance. To ensure dishes are properly sanitized, this unit has a built-in booster heater with a Sani-Sure™ final rinse system.
- Part of the DynaStar® series
- Can wash 40 racks per hour
- Ventless, door-type model
- 8-gal. wash tank capacity
- 1.66-gal. booster tank capacity
- Econo-rinse system uses 0.70 gal. of water per rack
- Turbo-rinse system uses 0.89 gal. of water per rack
- Built-in booster heater with Sani-Sure final rinse system
- Door interlock mechanism remains locked during cycle
- Automatic tank fill
- 3 timed cycles plus delime cycle
- Front and side dress panels
- Interchangeable scrap baskets
- Digital LED display
- Rust-resistant stainless steel construction
- 2-pass energy recovery system
- Adjustable bullet feet
- Low-water protection
- High-limit thermostat
- Vent fan control
- 17 1⁄2-in. chamber clearance
- Onboard service diagnostics
- Triple wash arm optimizes performance
- Interchangeable upper and lower wash/rinse arms
- Stainless steel nozzles
- Detergent/rinse additives signal connection fuse box
- Pumped rinse for consistency
- Minimum wash temperature: 150 degrees F
- Minimum rinse temperature: 180 degrees F
- Required incoming water temperature: 40-90 degrees F
- Required incoming flow pressure: 15-65 PSI
- 29 1⁄4 in. W x 34 1⁄2 in. D x 62 3⁄8 in. H
- 42.2 A, 13.1 kW, 1 HP
- 208 V/60 Hz/3 ph
- Waterline size: 1⁄2-in. NPT
- Drain line size: 1 1⁄2-in. ID
*Image may not depict product color, inclusions or accessories.
*Free shipping on Jackson DYNASTAR VENTLESS (VER) within the 48 contiguous states.
From The Manufacturer
DynaStar® Dishwasher, door type, ventless, high temperature, 29-1/4"W x 34-1/2"D x 62-3/8"H, approximately (40) racks/hour, Sani-Sure™ final rinse system, 17-1/2" clearance, automatic tank fill, pumped rinse, adjustable rinse system – Econo and Turbo, (3) timed cycles, digital LED display, delime cycle, door interlock, onboard digital diagnostics, two-pass energy recovery system, triple wash arm, 1 hp stainless steel wash bump motor, interchangeable scrap baskets, electric tank heater, universal (straight-thru/corner) type, stainless steel exterior, (dishtable not included), cETLus, ETL-Sanitation, ENERGY STAR®, 208v/60/3ph
Watch a video about this product
Jackson DYNASTAR VENTLESS (VER) Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Jackson |
| Capacity | Single Rack |
| Cavity Height (in) | 17.5 |
| Control Location | Bottom |
| Depth (in) | 34.5 |
| Design | Standard |
| Door Type | Lift Up |
| Heat | Electric |
| Height (in) | 62.38 |
| Hertz | 60 |
| Phase | 3 |
| Product | Dishwashers |
| Product Type | Dishwashing Equipment & Supplies |
| Racks per Hour | 40 |
| Rating | Better |
| Series | DynaStar® |
| Special Features | Corner Convertible |
| Type | High Temp |
| Voltage | 208 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 29.25 |
| Weight | 391.00 |
