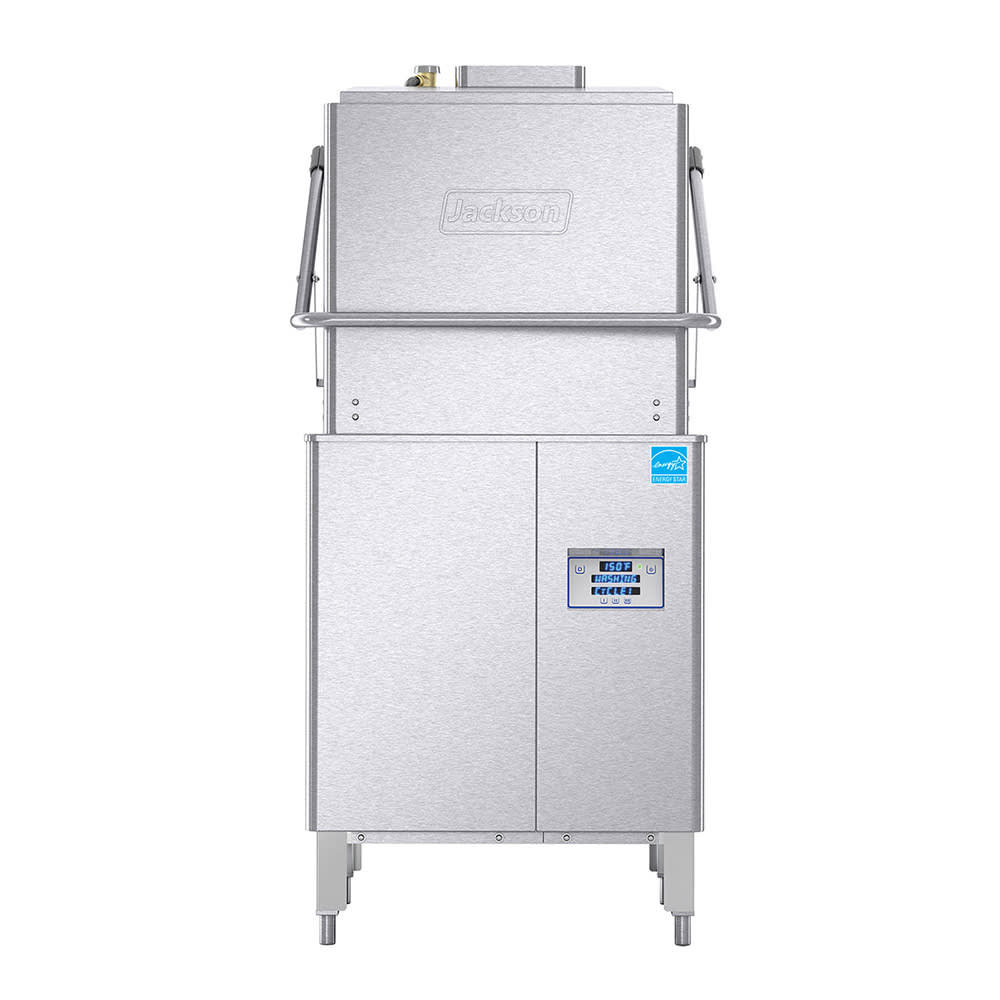

Jackson DYNASTAR VENTLESS (VER) DynaStar® Ventless High Temp Door Type w/ 40 Racks/hr Capacity, Built-in Booster, 208v/1ph
$19,412.00 /Each
Call for details!
Selected Voltage: 208V, 1 Phase
| 208V, 1 Phase |
| 208V, 3 Phase |
| 230V, 1 Phase |
| 230V, 3 Phase |
Jackson DYNASTAR VENTLESS (VER) Description
The Jackson DYNASTARVER door-type dishwasher is constructed of stainless steel—a durable, rust-resistant metal that can be wiped clean. To keep up with high-volume kitchens, it can wash as many as 40 racks of dishes per hour and features a built-in booster heater with a Sani-Sure™ rinse system that ensures proper sanitization. Depending on soil level and time requirements, operators can choose between the Econo-rinse and Turbo-rinse options, the former using 0.70 gallons of water per rack and the latter using 0.89 gallons of water per rack. This unit is mounted on bullet feet that can be adjusted on uneven or sloped flooring.
To create a sleek, streamlined look, the Jackson DYNASTARVER commercial dishmachine features front and side dress panels that conceal its inner components. This ventless, door-type model includes an 8-gallon wash tank and 1.66-gallon booster tank, and to promote thorough washing, it's designed with a triple wash arm that optimizes performance. To further ease operation, it features an automatic tank fill, a delime cycle, and a digital LED display. Overall, this unit measures 29 1⁄4 inches wide by 34 1⁄2 inches deep by 62 3⁄8 inches high.
- Part of the DynaStar® collection
- Washes 40 racks per hour (38 with suggested NSF load time)
- Ventless, door-type model
- 8-gal. wash tank capacity
- 1.66-gal. booster tank capacity
- Econo-rinse system uses 0.70 gal. of water per rack
- Turbo-rinse system uses 0.89 gal. of water per rack
- Built-in booster heater with Sani-Sure™ final rinse system
- Door interlock mechanism ensures door stays locked during cycle
- Automatic tank fill
- 3 timed cycles and delime cycle
- Digital LED display
- Rugged stainless steel construction
- 2-pass energy recovery system
- Adjustable bullet feet
- Low-water protection and high-limit thermostat
- Front and side dress panels conceal inner components
- Interchangeable scrap baskets
- 17 1⁄2-in. chamber clearance
- Onboard service diagnostics
- Triple wash arm optimizes performance
- Interchangeable upper and lower wash/rinse arms
- Stainless steel nozzles
- Detergent/rinse additives signal connection fuse box
- Pumped rinse for consistency
- Vent fan control
- Minimum wash temperature: 150 degrees F
- Minimum rinse temperature: 180 degrees F
- Required incoming water temperature: 40-90 degrees F
- Required incoming flow pressure: 15-65 PSI
- 29 1⁄4 in. W x 34 1⁄2 in. D x 62 3⁄8 in. H
- 68.8 A, 13.1 kW, 1 HP
- 208 V/60 Hz/1 ph
- Waterline size: 1⁄2-in. NPT
- Drain line size: 1 1⁄2-in. ID
*Image may not depict product color, inclusions or accessories.
*Free shipping on Jackson DYNASTAR VENTLESS (VER) within the 48 contiguous states.
From The Manufacturer
DynaStar® Dishwasher, door type, ventless, high temperature, 29-1/4"W x 34-1/2"D x 62-3/8"H, approximately (40) racks/hour, Sani-Sure™ final rinse system, 17-1/2" clearance, automatic tank fill, pumped rinse, adjustable rinse system – Econo and Turbo, (3) timed cycles, digital LED display, delime cycle, door interlock, onboard digital diagnostics, two-pass energy recovery system, triple wash arm, 1 hp stainless steel wash bump motor, interchangeable scrap baskets, electric tank heater, universal (straight-thru/corner) type, stainless steel exterior, (dishtable not included), cETLus, ETL-Sanitation, ENERGY STAR®, 208v/60/1ph
Watch a video about this product
Jackson DYNASTAR VENTLESS (VER) Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Jackson |
| Capacity | Single Rack |
| Cavity Height (in) | 17.5 |
| Control Location | Bottom |
| Depth (in) | 34.5 |
| Design | Standard |
| Door Type | Lift Up |
| Heat | Electric |
| Height (in) | 62.38 |
| Hertz | 60 |
| Phase | 1 |
| Product | Dishwashers |
| Product Type | Dishwashing Equipment & Supplies |
| Racks per Hour | 40 |
| Rating | Better |
| Series | DynaStar® |
| Special Features | Corner Convertible |
| Type | High Temp |
| Voltage | 208 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 29.25 |
| Weight | 391.00 |
