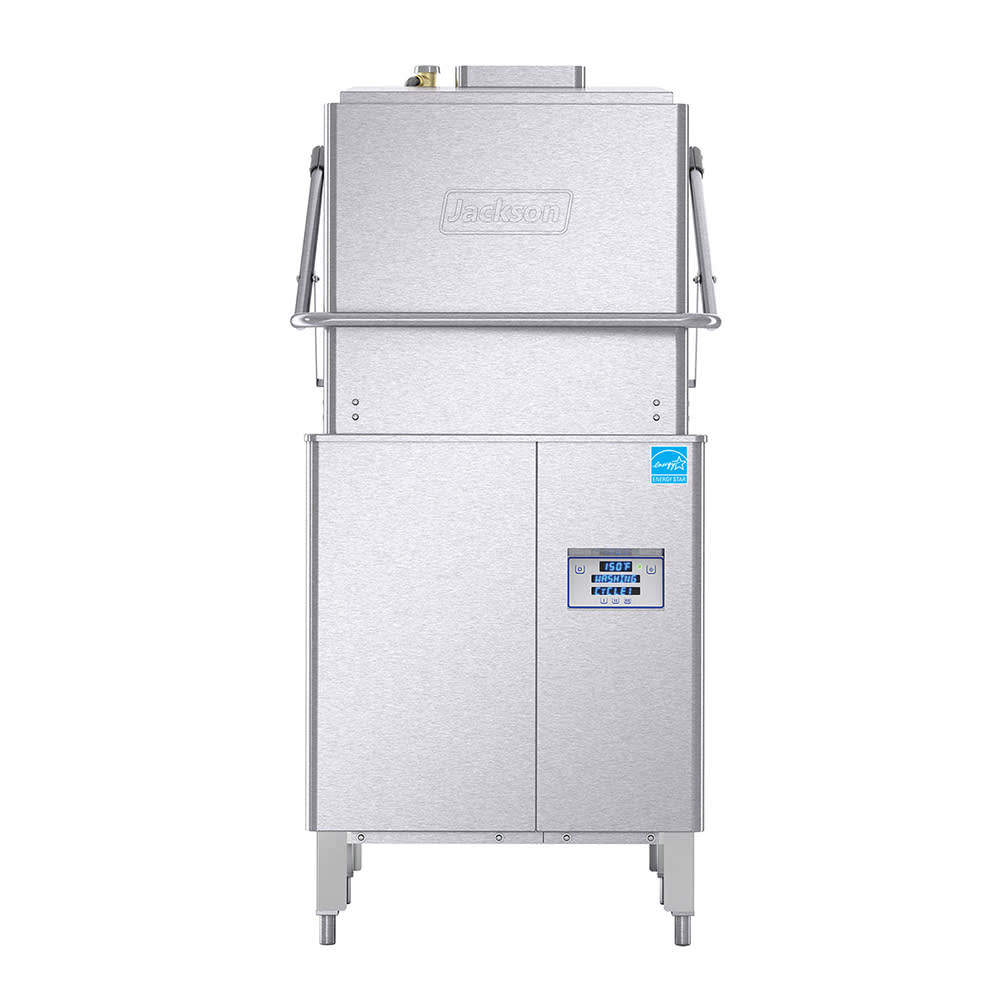

Jackson DYNASTAR VENTLESS (VER) DynaStar® Ventless High Temp Door Type w/ 40 Racks/hr Capacity, Built-in Booster, 230v/1ph
$19,412.00 /Each
Call for details!
Selected Voltage: 230V, 1 Phase
| 230V, 1 Phase |
| 208V, 1 Phase |
| 208V, 3 Phase |
| 230V, 3 Phase |
Jackson DYNASTAR VENTLESS (VER) Description
To withstand rigorous, high-volume use, the Jackson DYNASTARVER high-temp dishwasher is made of stainless steel—a rugged, simple-to-clean metal that resists rust and corrosion. Its interchangeable scrap baskets capture food particles, while its front and side dress panels conceal inner components for a streamlined look. For safety, its door interlock mechanism prevents the door from being opened during the cycle. Overall, this unit measures 29 1⁄4 inches wide by 34 1⁄2 inches deep by 62 3⁄8 inches high.
The Jackson DYNASTARVER commercial dishwasher is a ventless, door-type model with an 8-gallon wash tank and 1.66-gallon booster tank. It sanitizes as many as 40 racks per hour; when set to Econo rinse, it uses 0.70 gallons of water per rack compared to 0.89 gallons per rack with the Turbo setting. To promote thorough sanitization, it features a built-in booster heater with a Sani-Sure™ final rinse system. This unit is equipped with a digital LED display, onboard service diagnostics, and a triple wash arm, and to prevent rocking or wobbling, it's positioned on adjustable bullet feet that maintain stability.
- Part of the DynaStar® line
- Washes 40 racks per hour (38 with suggested NSF load time)
- Ventless, door-type configuration
- Wash tank capacity: 8 gal.
- Booster tank capacity: 1.66 gal.
- Econo-rinse system uses 0.70 gal. of water per rack
- Turbo-rinse system uses 0.89 gal. of water per rack
- Automatic tank fill
- Built-in booster heater with Sani-Sure™ final rinse system
- Door interlock mechanism remains locked during cycle
- 3 timed cycles plus delime cycle
- Front and side dress panels
- Interchangeable scrap baskets
- Digital LED display
- Corrosion-resistant stainless steel
- 2-pass energy recovery system
- Triple wash arm optimizes performance
- Adjustable bullet feet
- Low-water protection
- High-limit thermostat
- Vent fan control
- 17 1⁄2-in. chamber clearance
- Triple wash arm
- Interchangeable upper and lower wash/rinse arms
- Stainless steel nozzles
- Detergent/rinse additives signal connection fuse box
- Pumped rinse for consistency
- Onboard service diagnostics
- Minimum wash temperature: 150 degrees F
- Minimum rinse temperature: 180 degrees F
- Required incoming water temperature: 40-90 degrees F
- Required incoming flow pressure: 15-65 PSI
- 29 1⁄4 in. W x 34 1⁄2 in. D x 62 3⁄8 in. H
- 75.5 A, 16 kW, 1 HP
- 230 V/60 Hz/1 ph
- Waterline size: 1⁄2-in. NPT
- Drain line size: 1 1⁄2-in. ID
*Image may not depict product color, inclusions or accessories.
*Free shipping on Jackson DYNASTAR VENTLESS (VER) within the 48 contiguous states.
From The Manufacturer
DynaStar® Dishwasher, door type, ventless, high temperature, 29-1/4"W x 34-1/2"D x 62-3/8"H, approximately (40) racks/hour, Sani-Sure™ final rinse system, 17-1/2" clearance, automatic tank fill, pumped rinse, adjustable rinse system – Econo and Turbo, (3) timed cycles, digital LED display, delime cycle, door interlock, onboard digital diagnostics, two-pass energy recovery system, triple wash arm, 1 hp stainless steel wash bump motor, interchangeable scrap baskets, electric tank heater, universal (straight-thru/corner) type, stainless steel exterior, (dishtable not included), cETLus, ETL-Sanitation, ENERGY STAR®, 230v/60/1ph
Watch a video about this product
Jackson DYNASTAR VENTLESS (VER) Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Jackson |
| Capacity | Single Rack |
| Cavity Height (in) | 17.5 |
| Control Location | Bottom |
| Depth (in) | 34.5 |
| Design | Standard |
| Door Type | Lift Up |
| Heat | Electric |
| Height (in) | 62.38 |
| Hertz | 60 |
| Phase | 1 |
| Product | Dishwashers |
| Product Type | Dishwashing Equipment & Supplies |
| Racks per Hour | 40 |
| Rating | Better |
| Series | DynaStar® |
| Special Features | Corner Convertible |
| Type | High Temp |
| Voltage | 230 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 29.25 |
| Weight | 391.00 |
