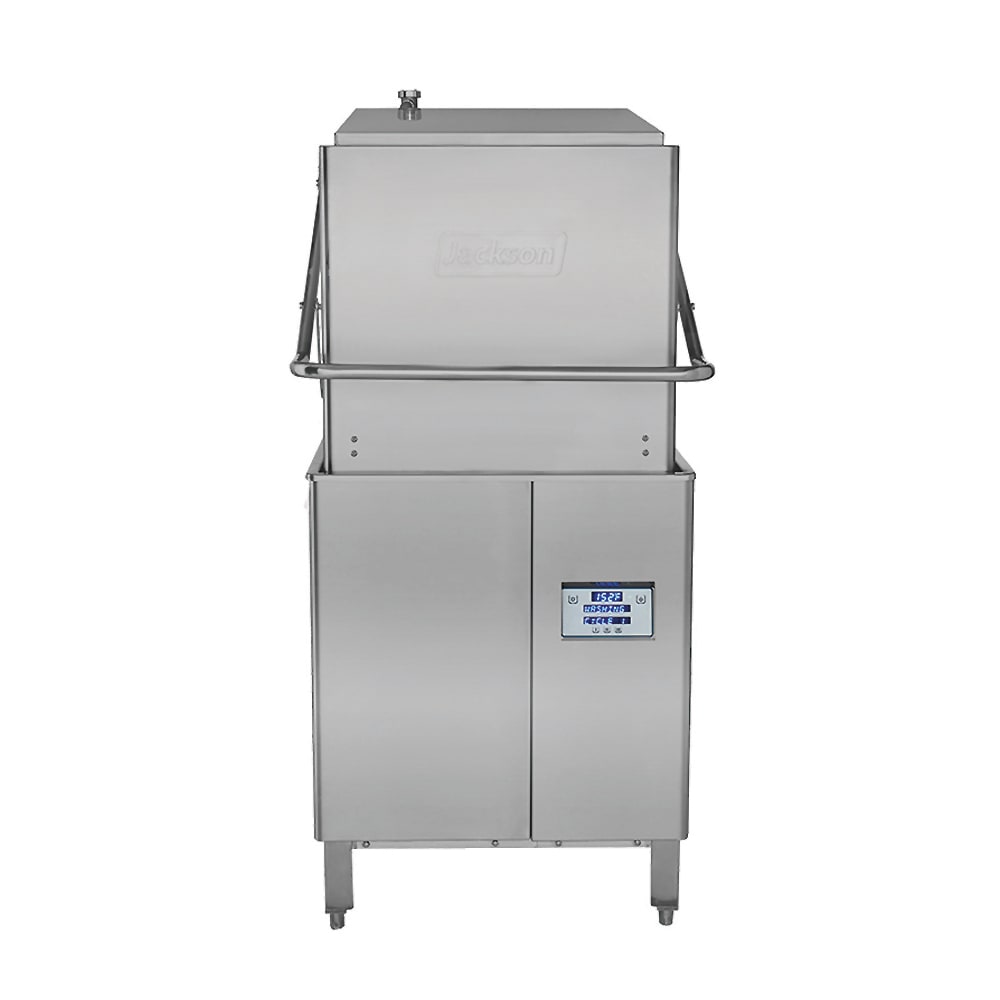

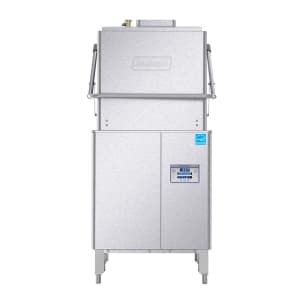

Jackson DYNASTAR(40-70) DynaStar® High Temp Door Type Dishwasher w/ 57 Racks/hr Capacity, Built-in Booster, 230v/3ph

The Jackson DYNASTAR(40-70) DynaStar® door-type dishmachine includes three timed cycles (58 seconds, 108 seconds, and 238 seconds) and an adjustable rinse system that enhances user control. The Econo-rinse option uses 0.70 gallons of water per rack—43.4 gallons of water per hour—while the Turbo-rinse selection uses 0.89 gallons of water per rack—55.18 gallons of water per hour. When water temperature and pressure meet requirements, its 58-second cycle can wash 62 racks in an hour. To simplify adjustment and management, its solid-state controls feature a digital LED panel that displays operational status, diagnostics, and cycle temperature. The unit's high-temperature sanitization system is built with a booster heater that raises incoming water by 40 or 70 degrees Fahrenheit to maintain a 150-degree-Fahrenheit wash temperature, and its Sani-Sure™ final-rinse system generates a 180-degree-Fahrenheit rinse temperature for proper sanitization.

Great for installation between two dish tables, the Jackson DYNASTAR(40-70) door-type warewasher measures 28³⁄₄ inches wide by 34 inches deep by 62¹⁄₈ inches tall and is positioned on bullet feet that can be adjusted in the case of irregular flooring. Its resilient stainless steel construction withstands daily wear and resists rust and corrosion through extensive use, while its front and side stainless steel dress panels conceal key internal components to reduce damage risk. To accommodate large pots, pans, trays, and bowls, it features a 17¹⁄₂-inch vertical chamber clearance. Once the door is shut, this unit operates automatically. Its triple-wash arm, stainless steel nozzles, and interchangeable upper and lower rinse and wash arms thoroughly clean racks, while its pumped-rinse system maintains consistent pressure of rinse water.

Product Details

• Cleans 62 racks per hour (57 racks per hour with suggested NSF load time)
• Econo-rinse option uses 0.70 gal. of water per rack (43.4 gal. per hour)
• Turbo-rinse selection uses 0.89 gal. of water per rack (55.18 gal. per hour)
• Wash tank capacity: 8 gal.
• Booster tank capacity: 1.66 gal.

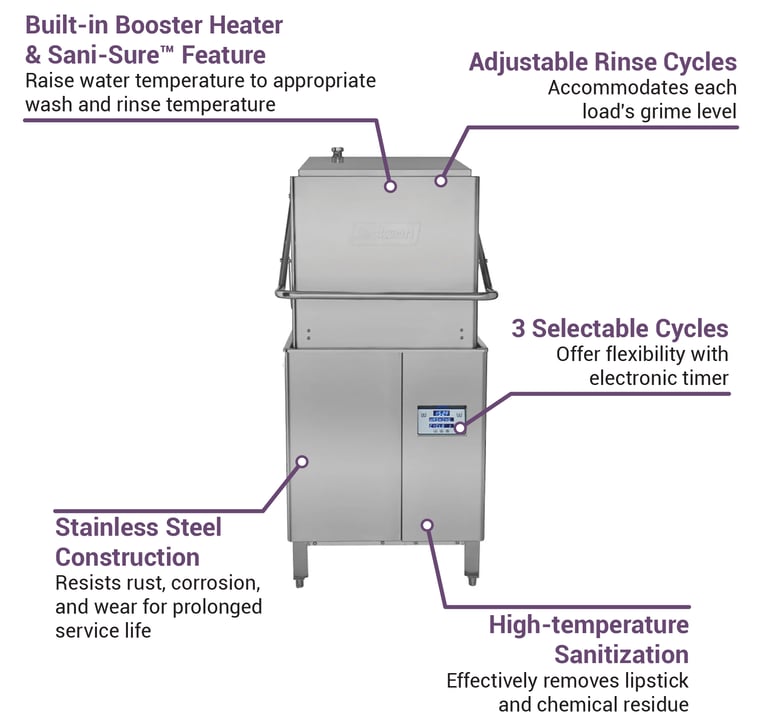

• High-temperature sanitization with built-in booster heater and Sani-Sure final rinse
• Solid-state controls
• Digital LED temperature and operator display
• 3 selectable timed operating cycles: Cycle I (58 seconds), Cycle II (108 seconds), and Cycle III (238 seconds)
• Adjustable rinse system with 2 options
• Automatic tank fill
• Delime cycle
• High-limit thermostat
• Low-water protection
• Detergent-/rinse-additive signal connection fuse box
• Onboard service diagnostics
• Pumped rinse maintains consistent water pressure
• 1-HP stainless steel wash pump motor
• Vent fan control shuts off vent fan during idle periods
• Door-type unit
• Door-actuated start
• Wear-, rust-, and corrosion-resistant stainless steel construction
• Front and side stainless steel dress panels
• 17¹⁄₂-in. vertical inside clearance
• Triple-wash arm
• Stainless steel nozzles
• Interchangeable upper/lower wash/rinse arms
• Interchangeable scrap baskets
• Adjustable bullet feet
• 14⁵⁄₈-in. drain height
• Required incoming water temperature: 110 degrees F
• Minimum wash temperature: 150 degrees F
• Minimum rinse temperature: 180 degrees F
• Required flow pressure: 15-65 PSI
• 4¹⁄₄-in. wall clearance

Dimensions & Utilities

• 28³⁄₄ in. W x 34 in. D x 62¹⁄₈ in. H
• 47 A, 16.4 kW, 1 HP
• 230 V/60 Hz/3 ph
• 1¹⁄₂-in. NPT drain connection
• Incoming water connection: ¹⁄₂ in. NPT

Product Features

*Free shipping on Jackson DYNASTAR(40-70) within the 48 contiguous states.

From The Manufacturer

DynaStar® Dishwasher, door type, 28-3/4”W x 34”D x 62-1/8”H, high temperature sanitizing with built-in booster heater (40-70°F rise), approximately (57) racks/hour, Sanit-Sure™ final rinse feature, multi-cycle timer, digital controls, 17-1/2” clearance, auto-fill/auto-start, delime/manual wash switch, vent fan control, front & side dress panels, electric tank heater, stainless steel construction, adjustable feet, 1 HP wash pump, cETLus, ETL-Sanitation, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor
