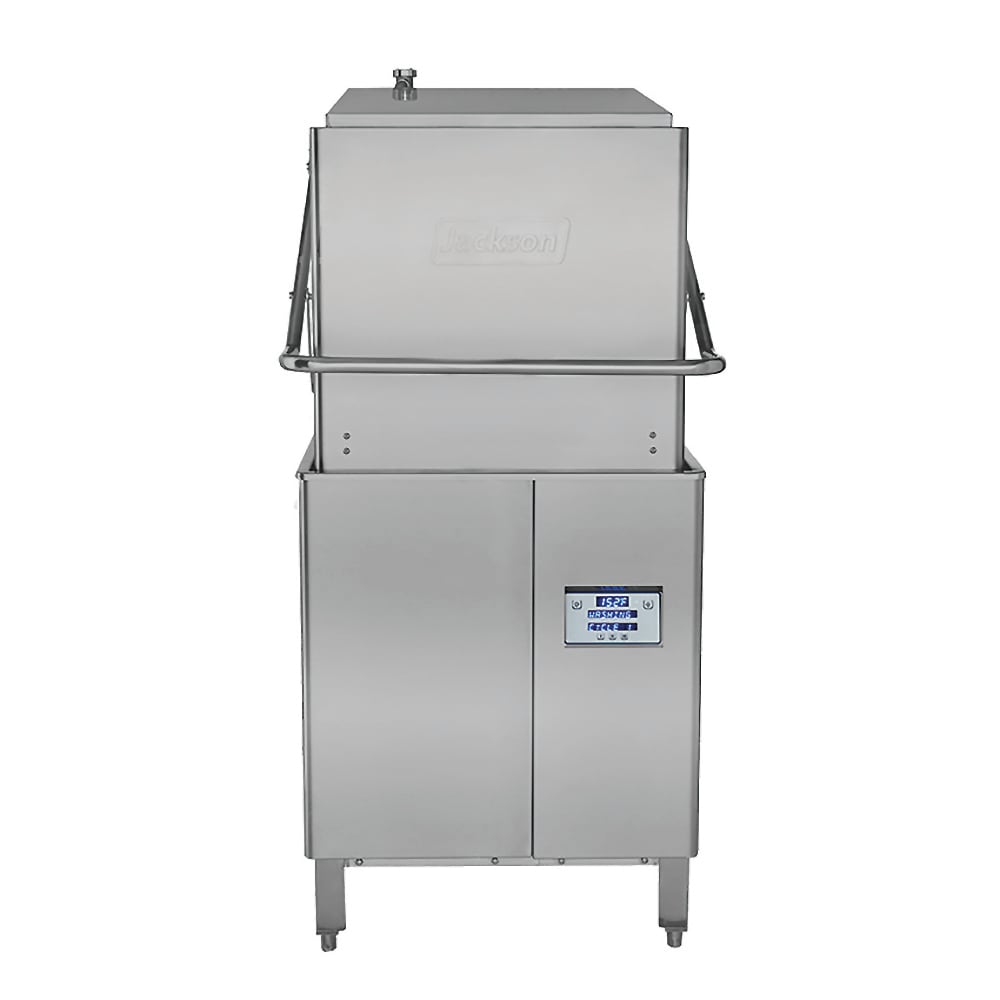

Jackson DYNASTAR(40-70) DynaStar® High Temp Door Type Dishwasher w/ 62 Racks/hr Capacity, Built-in Booster, 208v/1ph
$15,098.00 /Each
Call for details!
Selected Voltage: 208V, 1 Phase
| 208V, 1 Phase |
| 208V, 3 Phase |
| 230V, 1 Phase |
| 230V, 3 Phase |
Jackson DYNASTAR(40-70) Description
The Jackson DYNASTAR(40-70) DynaStar® dishmachine washes 62 racks per hour, making it a practical option for coffee shops, small schools, and full-service restaurants with fewer than 100 seats. For effective washing and rinsing, this unit uses high-temperature sanitization; its built-in booster heater raises incoming water from 40 to 70 degrees Fahrenheit, while its Sani-Sure™ final-rinse system maintains the 180-degree-Fahrenheit rinse temperature necessary for effective sanitizing. Its three selectable timed cycles include a 58-second cycle, 108-second cycle, and 238-cycle. Staff can also adjust rinse settings by choosing Econo rinse, which uses 0.70 gallons of water per rack, or Turbo rinse, which uses 0.89 gallons of water per rack. Its pumped-rinse system maintains consistent pressure to ensure residue is fully removed.
This Jackson DYNASTAR(40-70) door-type warewasher's 28 3⁄4-inch-wide by 34-inch-deep by 62 1⁄8-inch-high design boasts a 17 1⁄2-inch inside clearance for large pots, pans, mixing bowls, and trays. Its stainless steel construction resists rust, corrosion, and wear, and the front and side stainless steel dress panels conceal key internal components. To help prevent wobbling during operation, its bullet feet can be leveled on irregular surfaces. For thorough cleaning, it features a triple wash arm, stainless steel nozzles, and interchangeable upper and lower rinse/wash arms. Users can manage temperature, operational status, and service diagnostics with its solid-state controls and digital LED display, while a high-limit thermostat and low-water protection reduce damage risks.
- Washes 62 racks per hour in Cycle I (57 racks per hour with suggested NSF load time)
- Econo rinse uses 0.70 gal. of water per rack (43.4 gal. per hour)
- Turbo rinse uses 0.89 gal. of water per rack (55.18 gal. per hour)
- Wash tank capacity: 8 gal.
- Booster tank capacity: 1.66 gal.
- High-temperature sanitization
- Built-in booster heater raises water temperature 40-70 degrees F
- Sani-Sure system increases rinse water temperature
- Solid-state controller
- Digital LED temperature and operator display
- 3 timed operating cycles: Cycle I (58 seconds), Cycle II (108 seconds), and Cycle III (238 seconds)
- Adjustable rinse system
- Automatic tank fill
- Delime cycle
- High-limit thermostat
- Low-water protection
- Detergent-/rinse-additive signal connection fuse box
- Onboard service diagnostics
- Pumped rinse ensures consistent water pressure
- 1-HP stainless steel wash pump motor
- Vent fan control
- Door-type unit with door-actuated start
- Stainless steel construction
- Front and side stainless steel dress panels
- 17 1⁄2-in. inside clearance height
- Triple wash arm
- Stainless steel nozzles
- Interchangeable upper/lower wash/rinse arms
- Interchangeable scrap baskets
- Adjustable bullet feet
- 14 5⁄8-in. drain height
- Required incoming water temperature: 110 degrees F
- Minimum wash temperature: 150 degrees F
- Minimum rinse temperature: 180 degrees F
- Required flow pressure: 15-65 PSI
- 4 1⁄4-in. wall clearance
- 28 3⁄4 in. W x 34 in. D x 62 1⁄8 in. H
- 68.8 A, 13.1 kW, 1 HP
- 208 V/60 Hz/1 ph
- 1 1⁄2-in. NPT drain connection
- Incoming water connection: 1⁄2 in. NPT
*Image may not depict product color, inclusions or accessories.
*Free shipping on Jackson DYNASTAR(40-70) within the 48 contiguous states.
From The Manufacturer
DynaStar® Dishwasher, door type, high temperature sanitizing with built-in booster heater (40-70°F rise), 28-3/4"W x 34"D x 62-1/8"H, approximately (62) racks/hour, Sani-Sure™ final rinse system, 17-1/2" clearance, automatic tank fill, pumped rinse, adjustable rinse system – Econo and Turbo, (3) timed cycles, digital LED display, delime cycle, vent fan control, onboard digital diagnostics, triple wash arm, 1 hp stainless steel wash pump motor, interchangeable scrap baskets, electric tank heater, universal (straight-thru/corner) type, stainless steel exterior, (dishtable not included), cETLus, ETL-Sanitation, ENERGY STAR®
Watch a video about this product
Jackson DYNASTAR(40-70) Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Jackson |
| Capacity | Single Rack |
| Cavity Height (in) | 17.5 |
| Control Location | Bottom |
| Depth (in) | 28.75 |
| Design | Standard |
| Door Type | Lift up |
| Heat | Electric |
| Height (in) | 62.13 |
| Hertz | 60 |
| Phase | 1 |
| Product | Dishwashers |
| Product Type | Dishwashing Equipment & Supplies |
| Racks per Hour | 62 |
| Rating | Better |
| Series | DynaStar® |
| Special Features | Built In Booster |
| Type | High Temp |
| Voltage | 208 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 29.25 |
| Weight | 366.00 |
