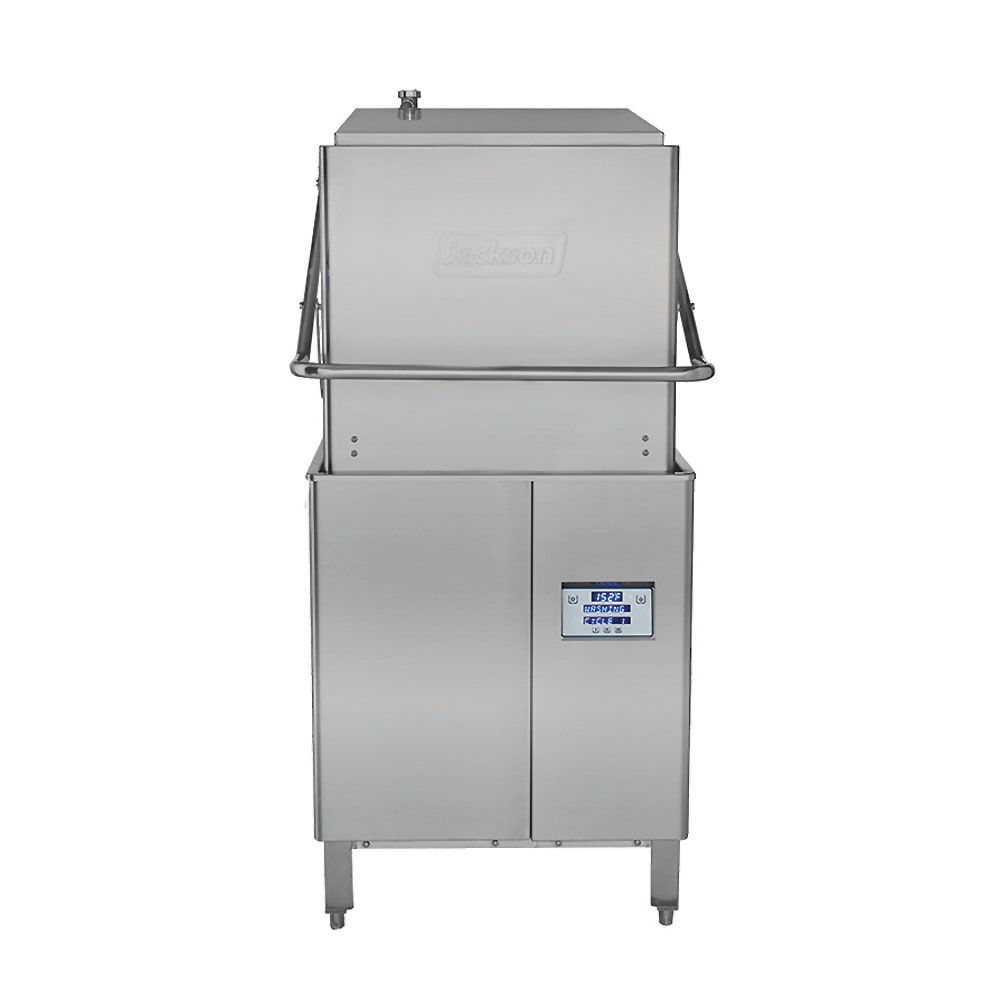

Jackson DYNASTAR(40-70) DynaStar® High Temp Door Type Dishwasher w/ 62 Racks/hr Capacity, Built-in Booster, 230v/1ph

KaTom #: 099-DYNASTAR2301 • MPN: DYNASTAR(40-70) 2301
  • 099-DYNASTAR2301 Primary Thumbnail Image
Free Shipping Item

$15,098.00 /Each

Call for details!

Add-ons & Options

  • Protect Your Product
  • Coverage starting at $125.25
  • Edit Remove

Selected Voltage: 230V, 1 Phase

Kyle Cates User Image
Ask a Foodservice Equipment Specialist

Jackson DYNASTAR(40-70) Description

Built with a booster heater, the Jackson DYNASTAR(40-70) DynaStar® high-temperature dishwasher increases incoming water by 40 to 70 degrees Fahrenheit to reach a 150-degree-Fahrenheit wash temperature and 180-degree-Fahrenheit sanitizing rinse temperature. For flexibility, users can select a 58-second cycle, 108-second cycle, or 238-second cycle and an Econo or Turbo rinse. The 58-second cycle can wash 62 racks per hour with a total of 43.4 gallons of water using the Econo rinse or 55.18 gallons of water using the Turbo rinse. Its solid-state controls feature a digital LED interface that displays operational status, temperatures, and diagnostics, while a high-limit thermostat and low-water protection alert users to damage risks.

For streamlined operation, the Jackson DYNASTAR(40-70) commercial warewasher operates automatically once its door is shut. While its triple-wash arm, stainless steel nozzles, and interchangeable upper and lower rinse/wash arms consistently wash the load, its pumped-rinse system supplies consistent water pressure. This 28 3⁄4-inch-wide by 34-inch-deep by 62 1⁄8-inch-high machine's exceptionally durable stainless steel body resists wear, rust, and corrosion to preserve its original look through frequent use, and its stainless steel front and side dress panels protect internal components from damage. For stability on uneven ground, users can adjust its bullet feet.

  • Cleans 62 racks per hour (57 racks per hour with suggested NSF load time)
  • Econo rinse uses 0.70 gal. of water per rack (43.4 gal. per hour)
  • Turbo rinse uses 0.89 gal. of water per rack (55.18 gal. per hour)
  • Wash tank capacity: 8 gal.
  • Booster tank capacity: 1.66 gal.
  • High-temperature sanitization
  • Built-in booster heater
  • Sani-Sure final-rinse system
  • Solid-state controls
  • Digital LED temperature and operator display
  • 3 timed operating cycle options: Cycle I (58 seconds), Cycle II (108 seconds), and Cycle III (238 seconds)
  • Adjustable rinse system for adaptability
  • Automatic tank fill
  • Delime cycle
  • High-limit thermostat
  • Low-water protection
  • Detergent-/rinse-additive signal connection fuse box
  • Onboard service diagnostics
  • Pumped rinse for consistent water pressure
  • 1-HP stainless steel wash pump motor
  • Vent fan control
  • Door-type unit with door-actuated start
  • Rigid stainless steel construction
  • Front and side stainless steel dress panels conceal internal components
  • 17 1⁄2-in. inside clearance height
  • Triple-wash arm
  • Stainless steel nozzles
  • Interchangeable upper/lower wash/rinse arms
  • Interchangeable scrap baskets
  • Bullet feet can be adjusted for stabilization
  • 14 5⁄8-in. drain height
  • Required incoming water temperature: 110 degrees F
  • Minimum wash temperature: 150 degrees F
  • Minimum rinse temperature: 180 degrees F
  • Required flow pressure: 15-65 PSI
  • 4 1⁄4-in. wall clearance

  • 28 3⁄4 in. W x 34 in. D x 62 1⁄8 in. H
  • 77.1 A, 16.4 kW, 1 HP
  • 230 V/60 Hz/1 ph
  • 1 1⁄2-in. NPT drain connection
  • Incoming water connection: 1⁄2 in. NPT

*Image may not depict product color, inclusions or accessories.

*Free shipping on Jackson DYNASTAR(40-70) within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

DynaStar® Dishwasher, door type, high temperature sanitizing with built-in booster heater (40-70°F rise), 28-3/4"W x 34"D x 62-1/8"H, approximately (62) racks/hour, Sani-Sure™ final rinse system, 17-1/2" clearance, automatic tank fill, pumped rinse, adjustable rinse system – Econo and Turbo, (3) timed cycles, digital LED display, delime cycle, vent fan control, onboard digital diagnostics, triple wash arm, 1 hp stainless steel wash pump motor, interchangeable scrap baskets, electric tank heater, universal (straight-thru/corner) type, stainless steel exterior, (dishtable not included), cETLus, ETL-Sanitation, ENERGY STAR®

Warranty Icon
1-year Limited Parts & Labor
