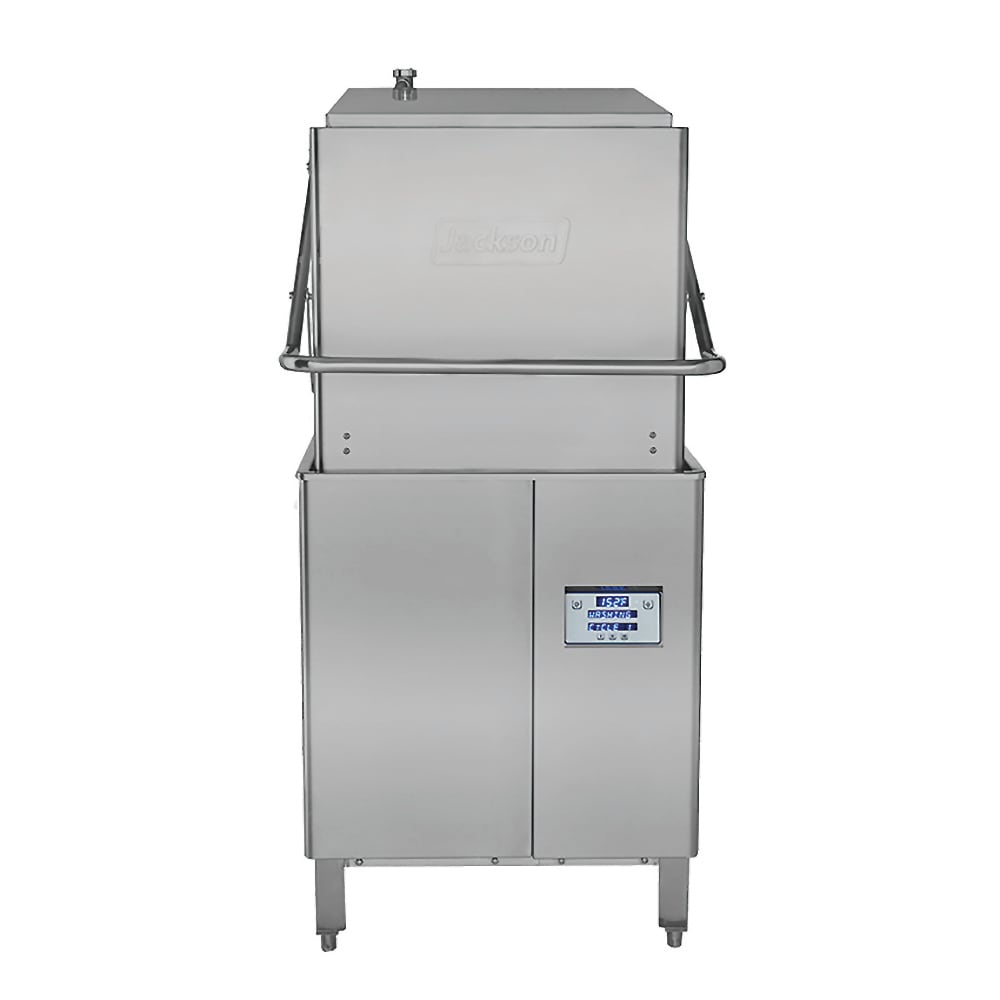

Jackson DYNASTAR(40-70) DynaStar® High Temp Door Type Dishwasher w/ 62 Racks/hr Capacity, Built-in Booster, 208v/3ph

To enhance user control, the Jackson DYNASTAR(40-70) DynaStar® door-type dishmachine features solid-state controls with a digital LED interface that displays operational status, temperatures, and diagnostics. Staff can choose one of three timed cycles—a 58-second cycle, 108-second cycle, and 238-second cycle—and select a rinse setting to account for each load's grime level. While the Econo rinse uses 0.70 gallons of water per rack, the Turbo option uses 0.89 gallons of water per rack. This high-temperature unit's built-in booster raises water temperature from 40 to 70 degrees Fahrenheit to ensure 150-degree-Farhenheit water for wash cycles and 180-degree-Fahrenheit water for rinse cycles; its Sani-Sure™ system further maintains this final-rinse temperature. When water meets these requirements, this unit washes 62 washes per hour.

The Jackson DYNASTAR(40-70) commercial dishmachine's triple-wash arm, stainless steel nozzles, and interchangeable upper and lower rinse/wash arms thoroughly clean and wash dishes, while its pumped-rinse system provides a consistent rinse pressure for removal of baked-on debris. This 28³⁄₄-inch-wide by 34-inch-deep by 62¹⁄₈-inch-high unit's 17¹⁄₂-inch interior chamber clearance accommodates large bowls, trays, pots, and pans to fit various applications. Its rust- and corrosion-resistant stainless steel construction sports stainless steel front and side dress panels that protect internal components while ensuring a sleek look. Staff can adjust its bullet feet for stabilization on uneven flooring.

Product Details

• Cycle I washes 62 racks per hour (57 racks per hour with suggested NSF load time)
• Econo rinse uses 0.70 gal. of water per rack (43.4 gal. per hour)
• Turbo rinse uses 0.89 gal. of water per rack (55.18 gal. per hour)
• Wash tank capacity: 8 gal.
• Booster tank capacity: 1.66 gal.
• High-temperature sanitization with built-in booster heater raises incoming water temperature by 40-70 degrees F
• Sani-Sure final-rinse system
• Solid-state controls with digital LED temperature and operator display
• 3 timed operating cycles: Cycle I (58 seconds), Cycle II (108 seconds), and Cycle III (238 seconds)
• Adjustable rinse system (Econo and Turbo options)
• Automatic tank fill
• Delime cycle
• High-limit thermostat
• Low-water protection
• Detergent-/rinse-additive signal connection fuse box
• Onboard service diagnostics
• Pumped rinse ensures consistent water pressure
• 1-HP stainless steel wash pump motor
• Vent fan control
• Door-type unit with door-actuated start
• Rigid stainless steel construction
• Front and side stainless steel dress panels conceal internal components
• 17¹⁄₂-in. inside clearance height
• Triple-wash arm
• Stainless steel nozzles
• Interchangeable and removable upper/lower wash/rinse arms
• Interchangeable scrap baskets
• Adjustable bullet feet
• 14⁵⁄₈-in. drain height
• Required incoming water temperature: 110 degrees F
• Minimum wash temperature: 150 degrees F
• Minimum rinse temperature: 180 degrees F
• Required flow pressure: 15-65 PSI
• 4¹⁄₄-in. wall clearance

Dimensions & Utilities

• 28³⁄₄ in. W x 34 in. D x 62¹⁄₈ in. H
• 42.2 A, 13.1 kW, 1 HP
• 208 V/60 Hz/3 ph
• 1¹⁄₂-in. NPT drain connection
• Incoming water connection: ¹⁄₂ in. NPT

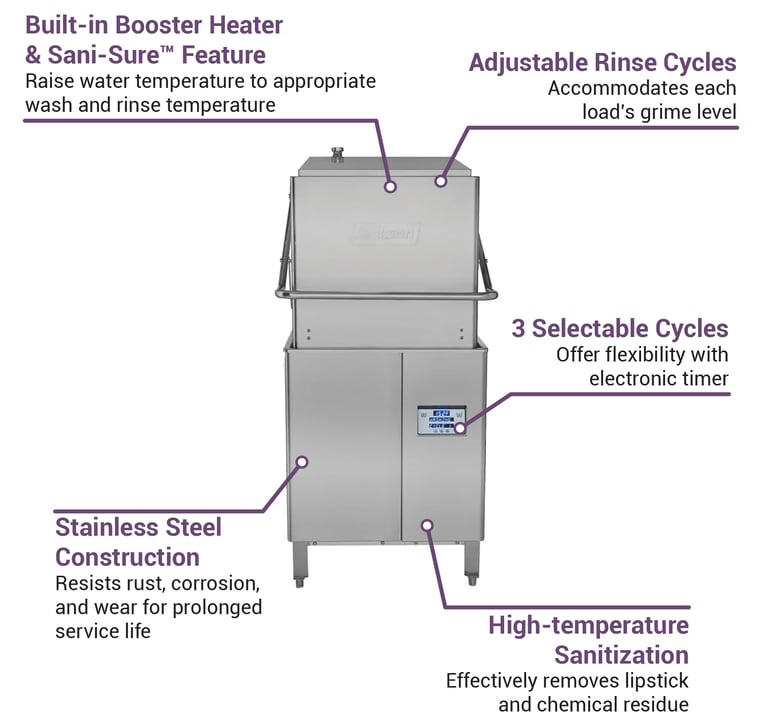

Product Features

*Free shipping on Jackson DYNASTAR(40-70) within the 48 contiguous states.

From The Manufacturer

DynaStar® Dishwasher, door type, high temperature sanitizing with built-in booster heater (40-70°F rise), 28-3/4"W x 34"D x 62-1/8"H, approximately (62) racks/hour, Sani-Sure™ final rinse system, 17-1/2" clearance, automatic tank fill, pumped rinse, adjustable rinse system – Econo and Turbo, (3) timed cycles, digital LED display, delime cycle, vent fan control, onboard digital diagnostics, triple wash arm, 1 hp stainless steel wash pump motor, interchangeable scrap baskets, electric tank heater, universal (straight-thru/corner) type, stainless steel exterior, (dishtable not included), cETLus, ETL-Sanitation, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor
