Turbo Air M3F47-2-N 51 7/8" M3 Series Two Section Reach In Freezer, (2) Left/Right Hinge Solid Doors, 115v

KaTom #: 083-M3F472N • MPN: M3F47-2-N
  • 083-M3F472N Primary Thumbnail Image
  • 083-M3F472N Multiple Thumbnail Image #1
  • 083-M3F472N Multiple Thumbnail Image #2
  • 083-M3F472N Multiple Thumbnail Image #3
  • 083-M3F472N Multiple Thumbnail Image #4
  • 083-M3F472N Multiple Thumbnail Image #5
  • 083-M3F472N Multiple Thumbnail Image #6

QUICK SHIP: Typically ships in 1 - 3 Business Days

Free Shipping Item

Retail Price: $17,627.00

$6,583.68 /Each

  • Protect Your Product
  • Coverage starting at $151.65
  • Edit Remove
chris shuler User Image
Ask a Foodservice Equipment Specialist

Turbo Air M3F47-2-N Description

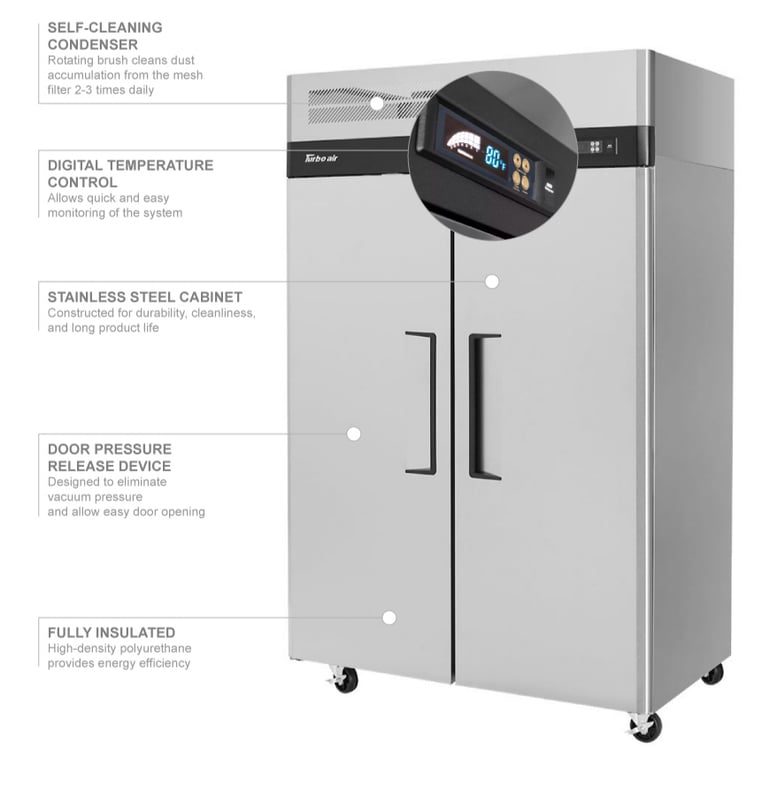

The Turbo Air M3F47-2-N two-section reach-in freezer is constructed of galvanized and stainless steels on its exterior for commercial use. Its interior is mostly aluminum with a stainless steel floor, making it easy to clean spills and messes. The corners and edges are smoothed to prevent injury, while high-density polyurethane insulation is used for structure and retaining cold air. A pressure relief valve enables users to open the two solid doors by eliminating vacuum pressure, and magnetic gaskets prevent cold air leaks.

All the components are built together in the self-contained refrigeration system. Since it is top mounted, the system avoids taking in debris that can cause a system failure. To further prevent the system from failing or overheating, the condenser has a self-cleaning device that removes dust and debris. Temperatures range from -10 to 0 degrees Fahrenheit and can be monitored on the digital display. They are maintained with R290 hydrocarbon refrigerant.

A handful of unique features keep the Turbo Air M3F47-2-N two-section reach-in freezer running properly. To prevent food from spoiling, an alarm will sound when the doors are not shut properly. Its early warning system alerts the operator when issues have been detected by the self-diagnostics. When the doors have been left open when loading or unloading product, a rapid cool down function quickly brings the internal temperature down into the ideal range.

  • Galvanized and stainless steel exterior is heavy duty and built for commercial use
  • Interior is mostly constructed of aluminum for corrosion resistance and cleaning
  • Easily clean spills off the stainless steel interior floor
  • Corners and edges are smoothed to prevent injury
  • 2 solid doors open with the door pressure relief valve

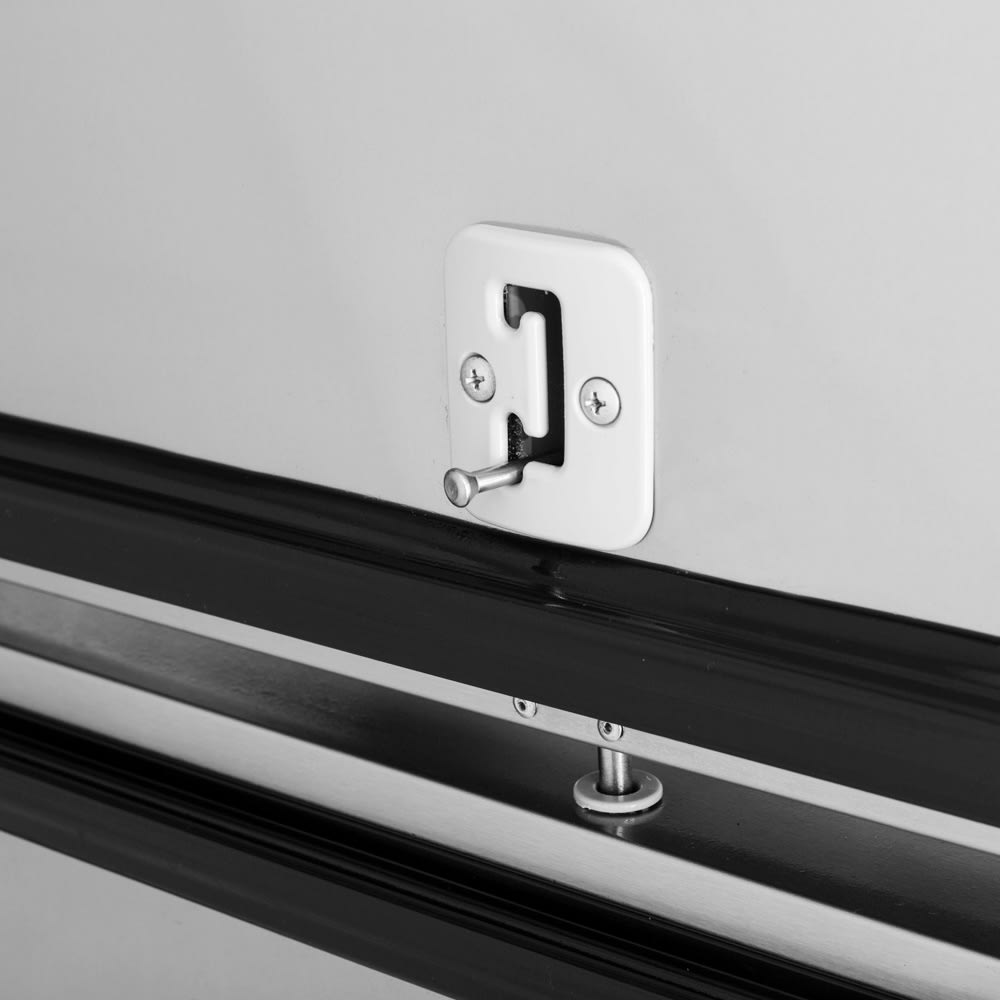

  • Locks on the doors are standard to reduce the risk of theft
  • Magnetic gaskets on the doors prevent cold air from leaking out
  • LED interior lights illuminate the inside of the cabinet
  • 6 polyethylene-coated wire shelves are adjustable to accommodate a variety of products
  • Cold air is kept inside the cabinet with the high-density polyurethane insulation
  • 4-in.-dia. swivel casters enable the cabinet to be moved to clean underneath it

  • System has all the components built together so it is easy to service
  • Refrigeration system is mounted on the top to prevent the fan from taking in dirt, debris, and dust
  • Temperature range: -10 to 0 degrees F
  • Temperature stays cool with the R290 hydrocarbon refrigerant

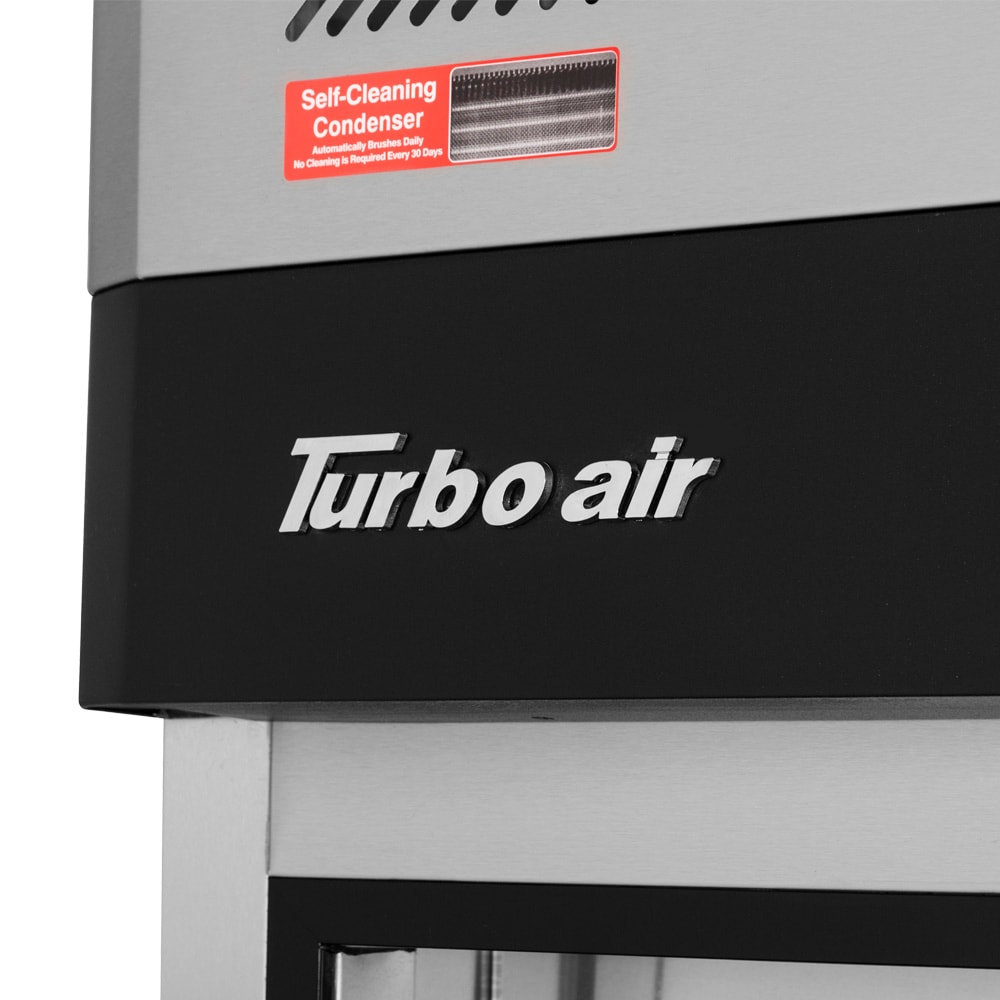

  • Dust and debris are removed every day from the condenser with a self-cleaning device

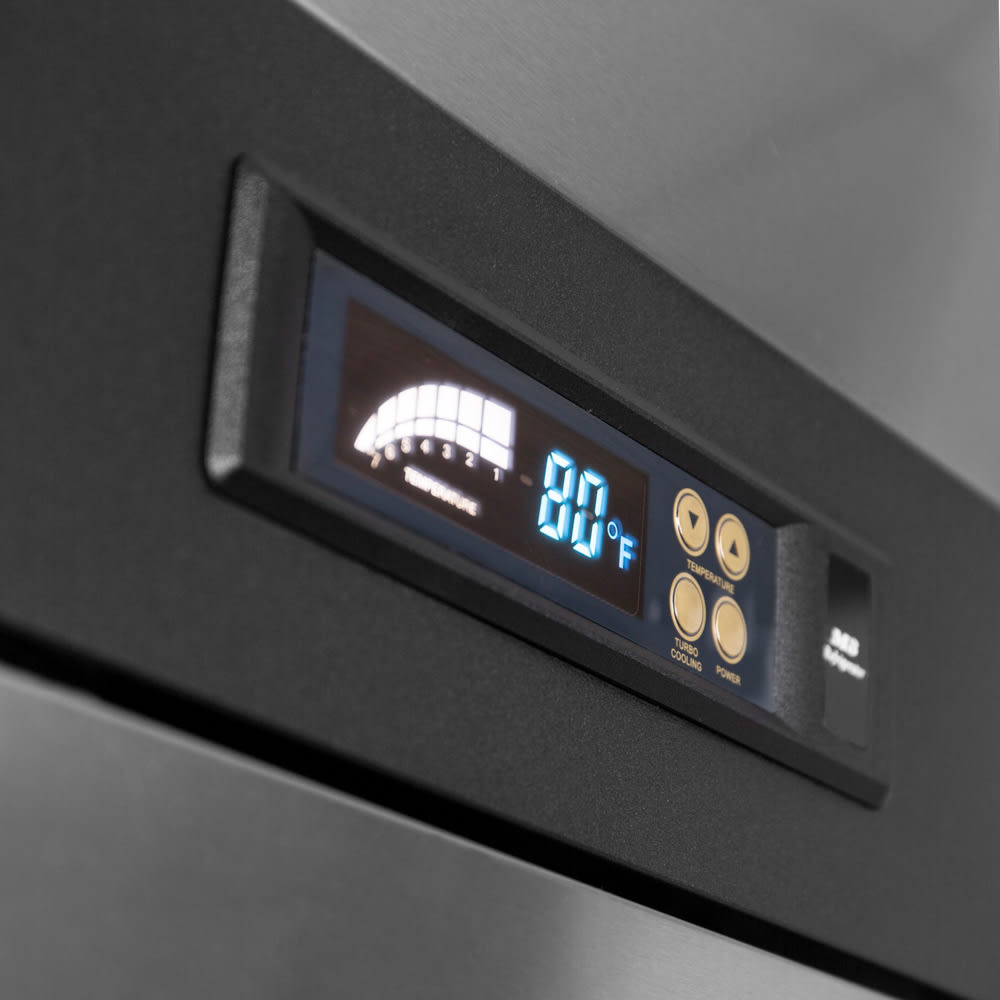

  • Temperature can be monitored with the digital display
  • Coated evaporator resists corrosion

  • Cold air leaks due to improper door closure are prevented by an alarm that sounds when the doors are left open
  • System issues are detected before malfunctions can occur with the early warning system
  • Self-diagnosis runs to let the operator keep up with the condition of the system
  • Temperatures are brought down quickly when the door has been open with the rapid cool-down function
  • Smart defrost system defrosts the interior as needed

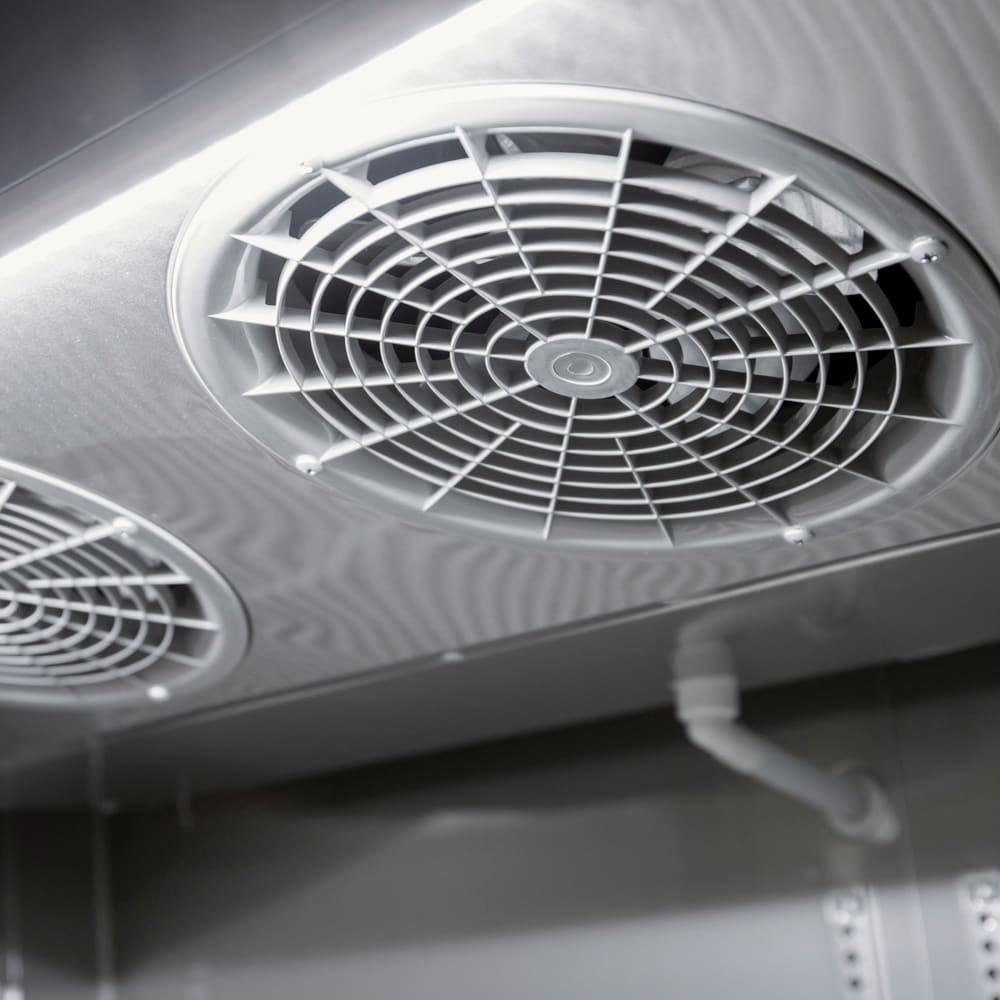

  • Automatic evaporator fan motor delay shuts the fan off when the door is open to prevent warm air from being sucked into the cabinet

  • Shelf: 23 in. W x 23 1⁄2 in. D
  • Interior: 47 3⁄4 in. W x 26 1⁄2 in. D x 60 5⁄8 in. H
  • Overall: 51 3⁄4 in. W x 32 3⁄4 in. D x 83 in. H
  • 6.3 A, 1⁄2+ HP
  • 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

*Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.

*Image may not depict product color, inclusions or accessories.

*Free shipping on Turbo Air M3F47-2-N within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

M3 Freezer, reach-in, two-section, 42.3 cu. ft., 51-7/8"W x 33-7/8"D x 78"H, LED digital thermometer, self-diagnostic monitoring system, hot gas condensate system, smart fuzzy defrost, automatic fan motor delays, door pressure release, LED interior lighting, self-cleaning condenser device, (2) hinged solid doors with recessed handle & locks, (6) PE coated wire shelves, stainless steel front & sides (galvanized steel top, bottom & back), aluminum interior with stainless steel floor, top mount self-contained compressor, R290 Hydrocarbon refrigerant, 2/3 HP, 115v/60/1-ph, 6.3 amps, NEMA 5-15P, ETL-Sanitation, cETLus, ENERGY STAR®(Standard hinged only)

Warranty Icon
5-year Parts & Labor, 7-year Compressor Parts
