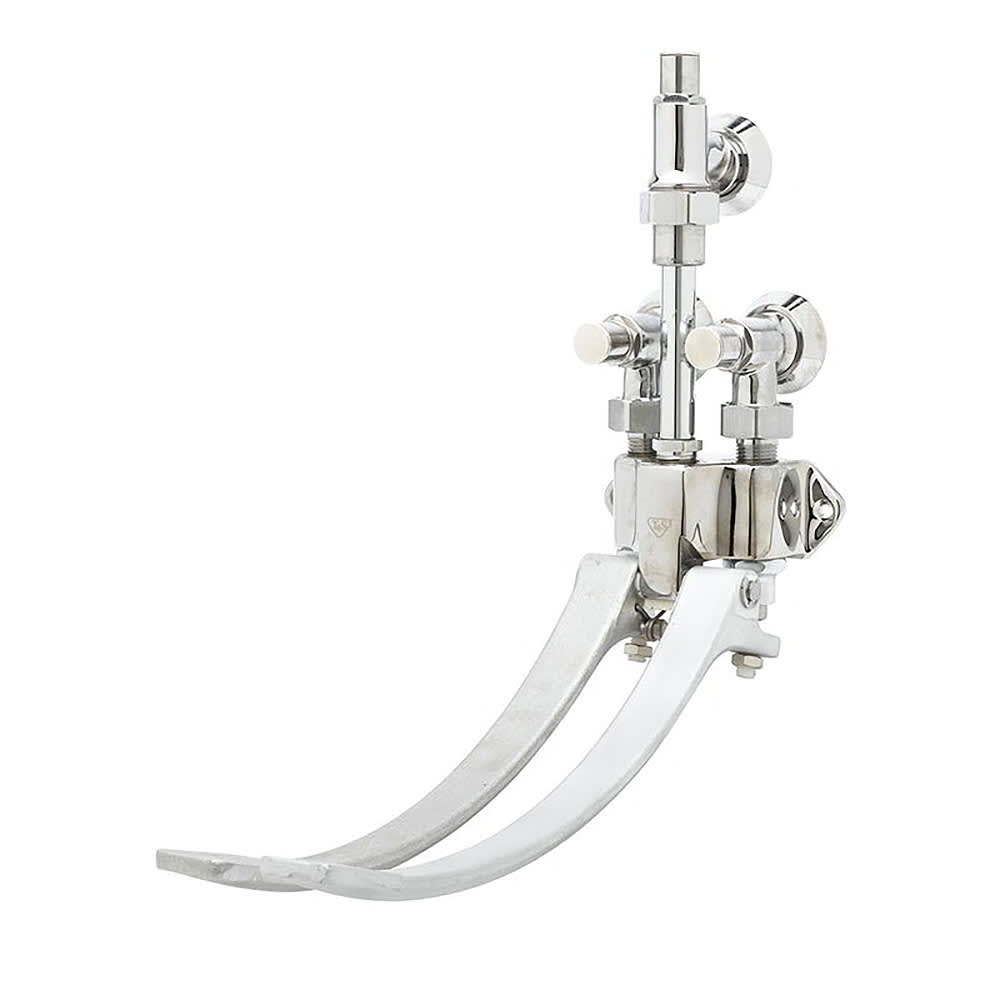

T&S B-0504-01 Double Pedal Wall Mounted Valve, 2 1/2 Centers, Angle Loose Key Stop
IN STOCK: Ships in 1 Business Day
Less Than 5 in Stock, Order Soon!
$533.36 /Each
T&S B-0504-01 Description
Ideal for use in commercial kitchens, hospitals, and dentists' offices, the T&S B-0504 pedal valve enables hands-free operation of waterflow in a sink. Whether operators have their hands full of dishes or want to optimize hygiene by not touching a handle, they can control the volume and temperature of water by using their feet when this unit is installed. Labels indicating cold and hot temperatures distinguish the pedals.
Product Details
- Wall-mounted installation
- Labeled hot and cold pedals
- 2 wood-mounting screws are included
- Angle loose key stop
- Passes 5 1⁄2 gal. of water per min. at 60 PSI
- 1⁄2-in. NPT inlets
- 3⁄8-in. NPT female outlets
- 1 in. from wall to the center of inlets
- Approximately 13 3⁄4-in. length from wall to pedal tips
- Low-lead compliant
- Recommended incoming water pressure: 20-125 PSI
- Recommended temperature range: 40-140 degrees F
- Overall dimensions: 14 3⁄4 in. L x 4 1⁄2 in. W x 14 1⁄4 in. H
*Image may not depict product color, inclusions or accessories.
*Free shipping on T&S B-0504-01 within the 48 contiguous states.
From The Manufacturer
Pedal Valve, double, wall mounted, inlets on 2-1/2" centers, 1" from wall to center of inlets, wall to pedal tips approximately 13-3/4", angle loose key stops, top mounted volume control angle loose key stop
T&S B-0504-01 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | T&S |
| Construction | Aluminum |
| Coupling Size (in) | 1/2" |
| Height (in) | 14.25 |
| Length (in) | 14.75 |
| Mounting Location | Wall |
| Part Type | Knee Valve |
| Product | Parts & Accessories |
| Product Type | Commercial Sinks |
| Warranty | 1-year Limited Against Defects in Material & Workmanship |
| Width (in) | 4.5 |
| Weight | 10.00 |
