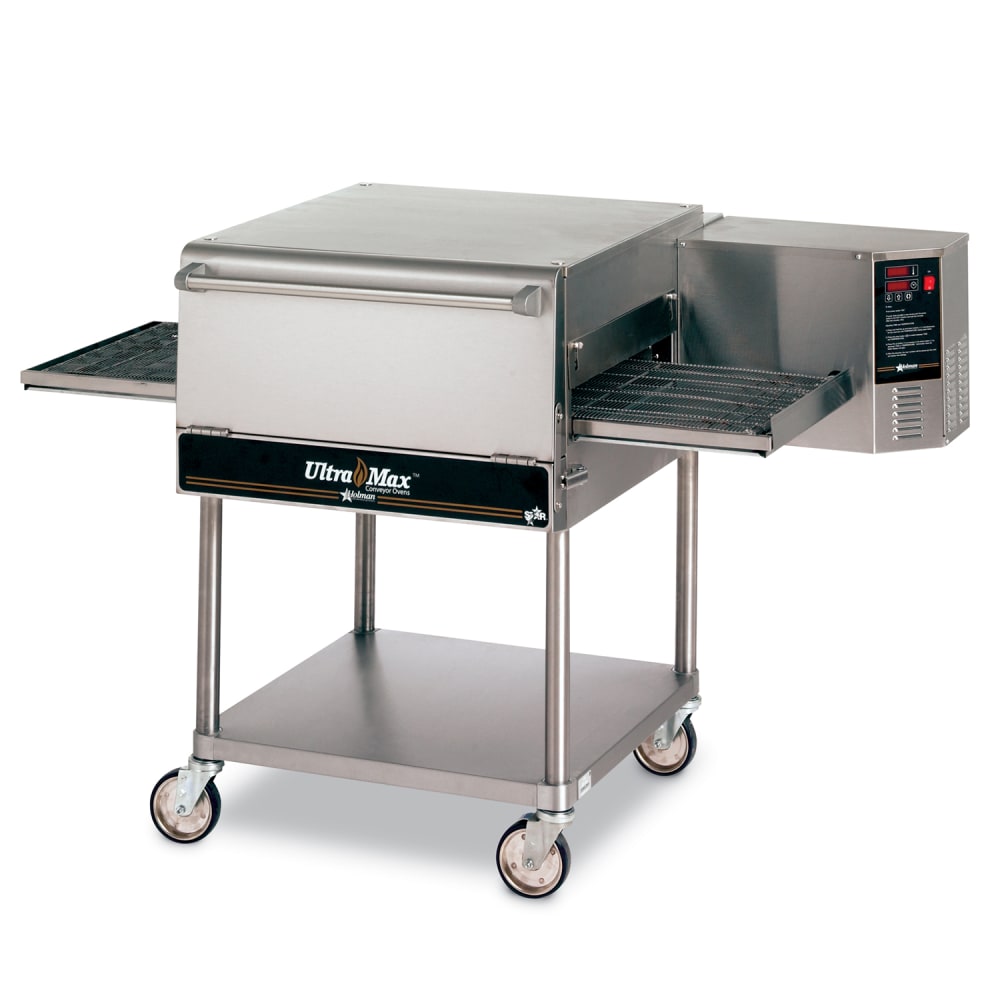

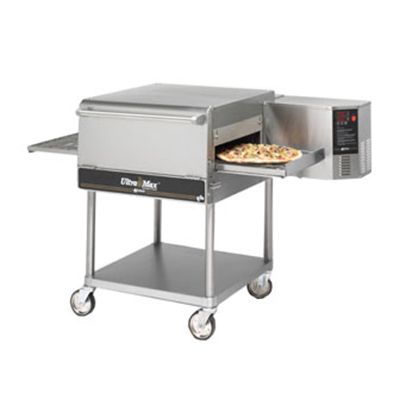

Star UM1854 60" Impingement Conveyor Oven - NG

Image may not depict product color, inclusions or accessories.

KaTom #: 062-UM1854NG • MPN: UM1854 NG (B)

Ships Free

Typically ships within 9 - 13 business days

(0 reviews)Write a Review
Web Price: $8,925.00

Selected Gas Type: Natural Gas

Image may not depict product color, inclusions or accessories.

Star UM1854 Description

Star

The Holman Ultra-Max® conveyer oven features a 28 inch baking chamber with a three and a half inch opening for cooking a variety of products. Food is cooked using pressurized hot air with an air impingement process for quick, thorough preparation. The oven includes electronic control which monitors and operates heating to ensure accurate, reliable temperatures throughout the baking process. The LED readout allows the operator to easily verify internal temperature and cooking time.

Product Details

  • Ultra-Max® Series
  • Replaces UM1854
  • 3.5-in. high opening accommodates larger food items
  • 18 x 54-in. stainless steel conveyer belt is durable and easy to clean
  • 28-in. baking chamber allows several items to be baked at once
  • Compact design is ideal for operation within limited space
  • Cooks food with pressurized hot air for quick preparation
  • Air impingement process heats food from above and below for thorough cooking
  • Flow-through design with conveyor belt frees up labor for other tasks
  • Electronic control sets temperature and timing accurately; features can be programmed
  • Conveyor belt direction can be changed
  • Red LED readout clearly displays temperature and timer
  • Hinged front access door allows for manual placement of food and easy cleaning of bake chamber
  • Auxiliary fan cools control box, extending life of the components
  • Ovens can be stacked up to 3 high
  • 40,000 BTU burner cooks food for high heat output
  • Brushless drive motor
  • Centrifugal fan is made of steel for durability
  • 115 V/60 Hz/1-ph, 15 A, or 230 V/60 Hz/1-ph, 29 A, 10-1/2 in. cord, NEMA 5-15P plug is standard(Call 1-800-541-8683 to specify electrical requirements)
  • Overall Dimensions: 60.6-in. W x 39.9-in. D x 23.3 H
  • UL-EPH and cULus Listed; ISO 9001:2000, ANSI, and NSF Certified

Versatile Design

  • Compact design and reversible conveyor belt allow oven to be installed in kitchens with limited space
  • Pressurized hot air and air impingement cook food faster and more thoroughly than conventional ovens
  • 3.5-in. opening and 28-in. baking chamber allow oven to cook a variety of foods

Ultra-Max® Impingement Conveyor Oven, NG gas, countertop, single deck, 54" conveyor length, 18" wide x 28" length cook chamber, programmable controls for (6) menu presets, conveyor left-to-right standard, field convertible for right-to left, stainless steel bake chamber with easy-to-clean impingement fingers, stainless steel construction, 40,000 BTU, 120v/60/1-ph, 0.5 amps, cord, NEMA 5-15P, cULus, UL EPH

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

warning-small Important Prop 65 information for California residents.

Star UM1854 Specifications

PDF Spec Sheet
Manufacturer Star
Belt Length (in) 54
Belt Width 18
Gas Type NG
Heat Gas
Stacking Options Single
Type Countertop
Warranty 1 year parts & labor
Weight 352.00
Star UM1854 Certifications
  • UL
