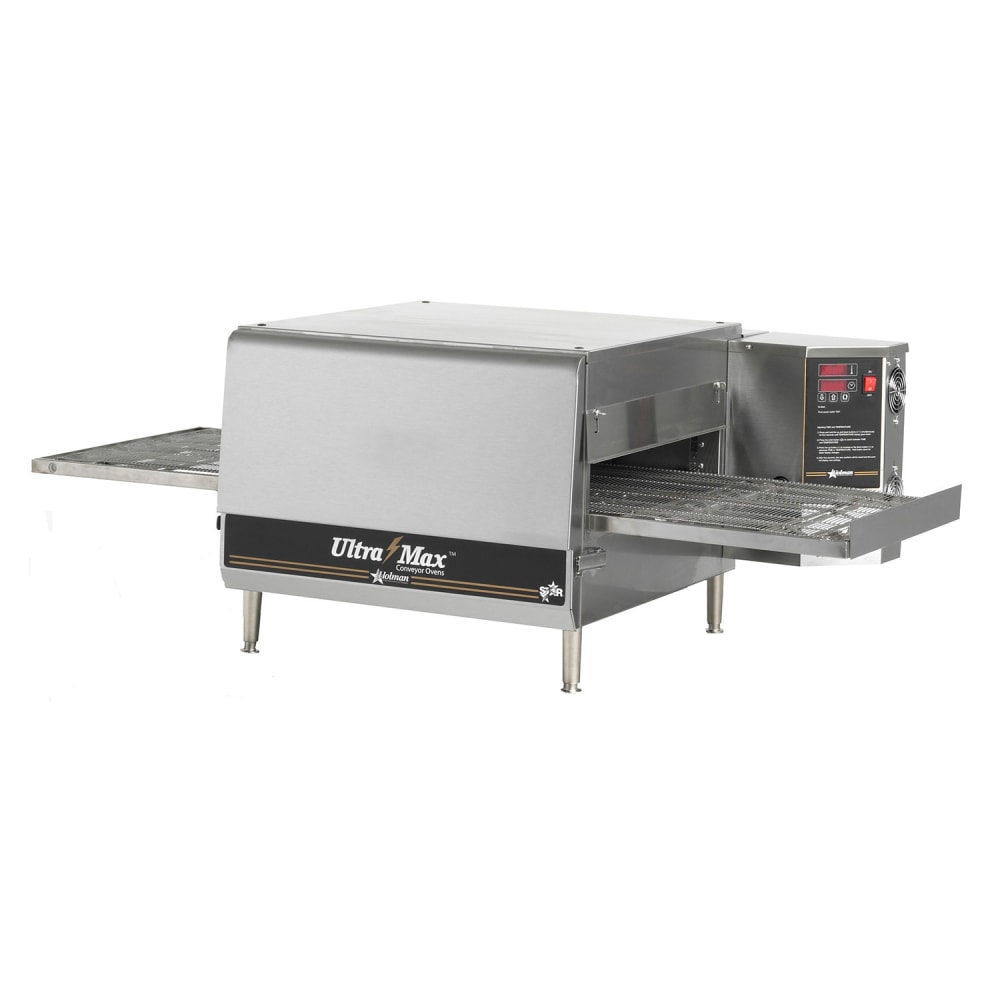

Star UM1833A 33" Electric Countertop Impinger Conveyor Oven - 208v/1ph
$12,771.00 /Each
Call for details!
Selected Voltage: 208V, 1 Phase
| 208V, 1 Phase |
| 240V, 1 Phase |
Star UM1833A Description
The Star UM1833A Ultra-Max® impinger conveyor oven supports high-volume use and fits on most countertops. Its belt motor and centrifugal fan deliver hot air into the cooking chamber, while an integrated fan pulls in air from outside the unit to keep the control box cool, protecting the integral components. The opening into the 24-inch chamber can be adjusted from 1 1⁄2 to 4 inches, and the front panel can be removed for further access.
The time, temperature, and belt direction of this Star UM1833A Ultra-Max impingement conveyor oven can be adjusted with electronic controls, and the temperature readout can be changed to Celsius from Fahrenheit. A manager lock-out feature enables the operator to lock the settings and prevent unauthorized tampering. Diagnostics sense issues in the system and relay the information to the operator.
- Opening adjusts from 1 1⁄2-4 in.
- Long-lasting belt motor and centrifugal fan deliver hot air to the cooking chamber
- Integrated fan pulls in outside air to cool the control box
- Removable front panel provides access when cleaning the chamber
- Can be stacked with another oven
- 6400 W, 31 A
- 208 V/60 Hz/1 ph, 6-ft. cord with a NEMA 6-50P plug
- Conveyor belt dimensions: 33 in. L x 18 9⁄10 in. W
- Overall dimensions: 37 1⁄5 in. W x 30 2⁄5 in. D x 20 in. H
- Adjustable time, temperature, and belt direction
- Temperature readout can be converted from Fahrenheit to Celsius
- Manager lock-out feature enables the operator to lock the settings and prevent tampering
- Diagnostics support maintenance by showing the system issue on-screen
- Includes 6 factory preset programs
- LED display shows the temperature, time, and programming
*Image may not depict product color, inclusions or accessories.
*Free shipping on Star UM1833A within the 48 contiguous states.
From The Manufacturer
Ultra-Max® Impingement Conveyor Oven, electric, countertop, single deck, 33" conveyor length, 18" wide x 24" length cook chamber, programmable controls for (6) menu presets, conveyor left-to-right standard, field convertible for right-to left, stainless steel bake chamber with easy-to-clean impingement fingers, stainless steel construction, cULus, UL EPH
Star UM1833A Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Star |
| Belt Length (in) | 33 |
| Belt Width (in) | 18 |
| Controls | Digital |
| Heat | Electric |
| Heating Style | Impingement |
| Hertz | 60 |
| Installation Type | Countertop |
| kW | 6.4 |
| Maximum Pizza Diameter | 18.9" |
| NEMA | 6-30P |
| Overall Length (in) | 37.2 |
| Overall Width (in) | 30.4 |
| Phase | 1 |
| Product | Conveyor Ovens |
| Product Type | Cooking Equipment |
| Rating | Better |
| Series | Ultra-Max® |
| Size | Single |
| Voltage | 208 |
| Warranty | 1-year Limited Parts & Labor |
| Weight | 272.00 |
