Star QCS2-800 Conveyor Toaster - 800 Slices/hr w/ 10"W Belt, 240v/1ph

Image may not depict product color, inclusions or accessories.

KaTom #: 062-QCS2800A240 • MPN: QCS2-800 240 (B)
Ships Free

Typically ships within 9 - 13 business days

(0 reviews)Write a Review
Web Price: $1,370.00

Selected Voltage: 240V, 1 Phase

240V, 1 Phase
208V, 1 Phase

Image may not depict product color, inclusions or accessories.

Star QCS2-800 Description

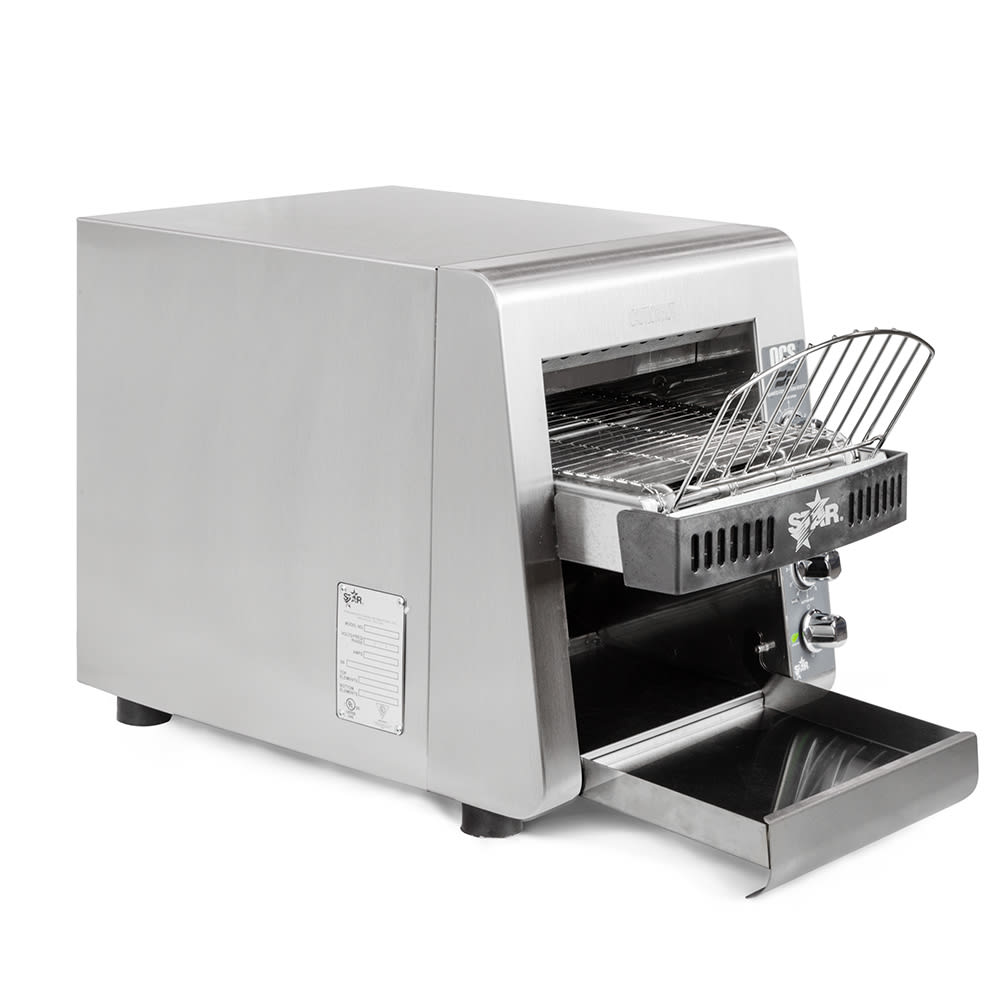

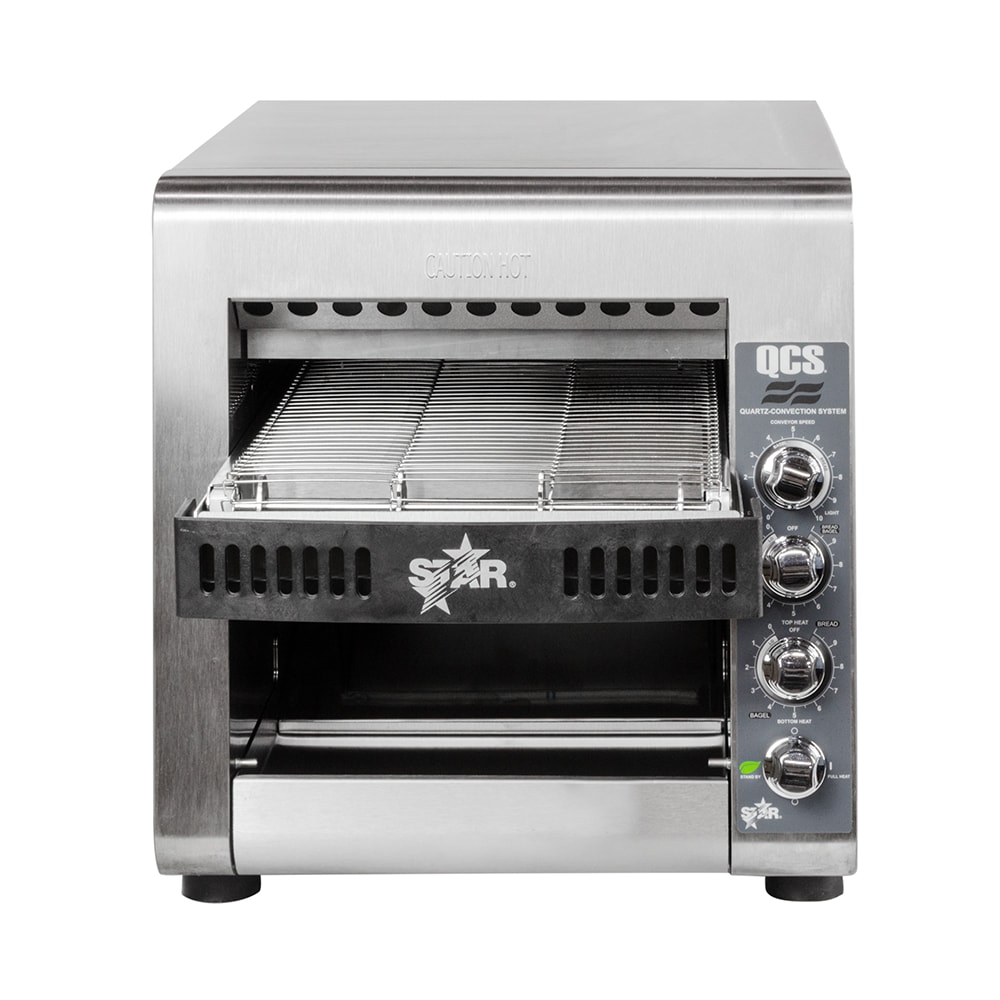

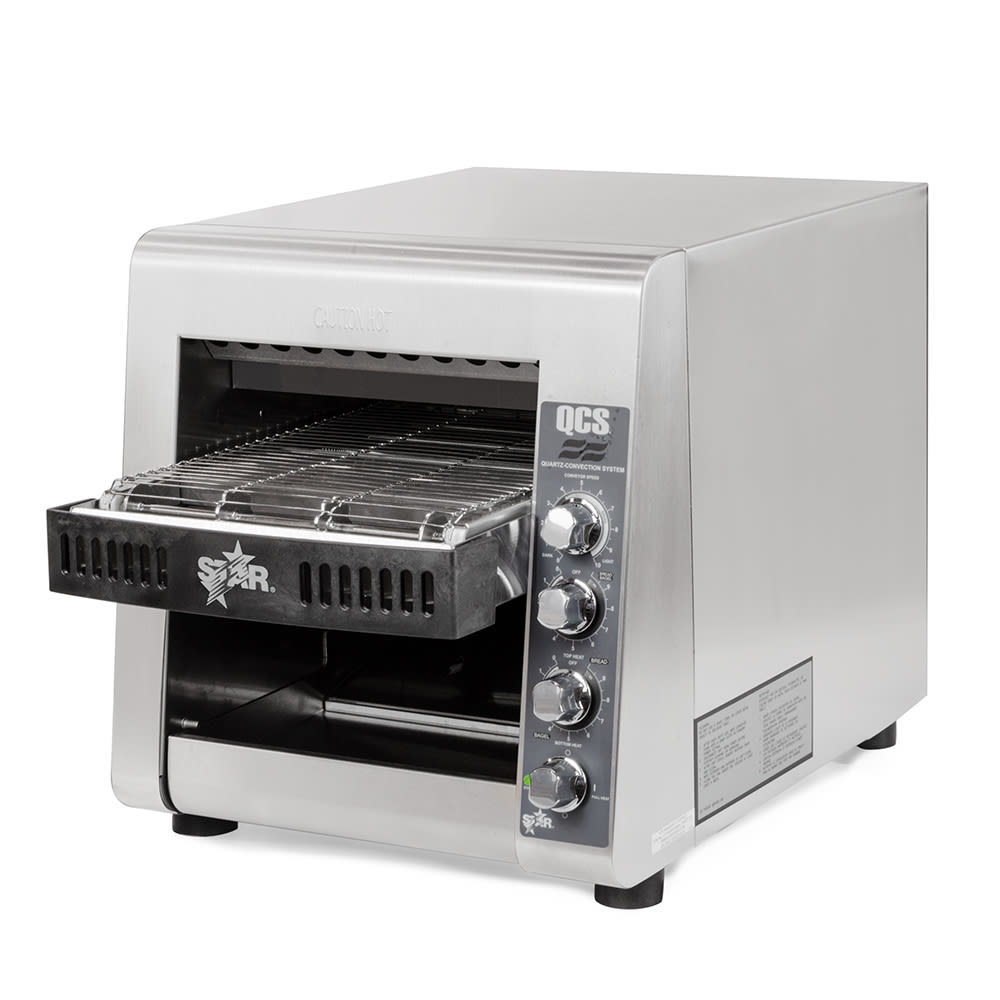

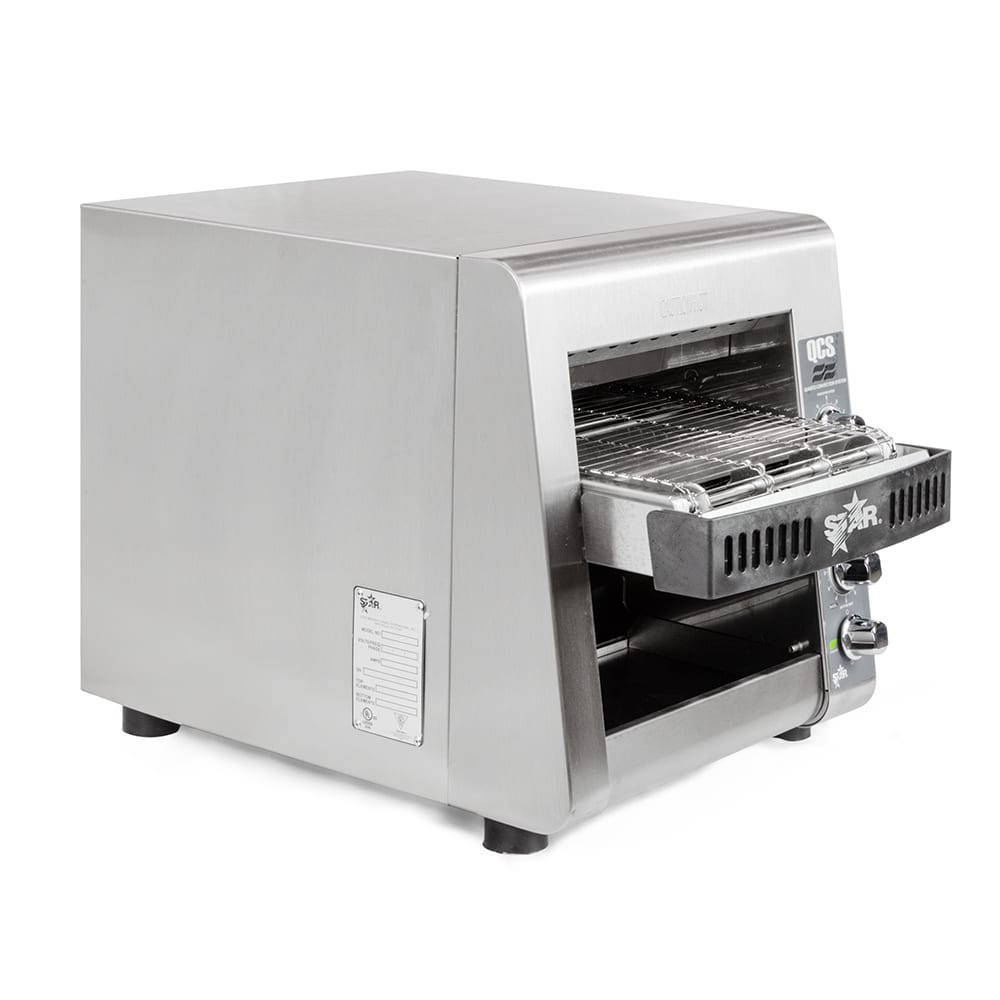

The Star QCS2-800 QCS® conveyor toaster is elevated off the countertop by 1-inch adjustable legs, separating hot components from the surface to prevent overheating. The unit also has a high-limit switch and a power saver switch that lowers the energy spent by as much as 75 percent. This Star QCS2-800 QCS conveyor toaster produces as many as 800 slicers per hour on its 10-inch-wide belt, which accommodates two slices side by side. Belt speed, top heat, and bottom heat can be adjusted to an ideal color and texture through the analog controls.

Product Details

  • Toasts as many as 800 slices per hr.
  • Extended conveyor design offers a convenient way to load the 1.5-in. opening
  • Loading area features a burn guard and cool surfaces
  • 10-in.-wide belt accommodates 2 slices side by side
  • Large warming area holds toasted products at ideal temperatures
  • Quartz infrared elements operate at faster, more consistent levels than traditional elements
  • Forced convection system protects the components while keeping the exterior cool

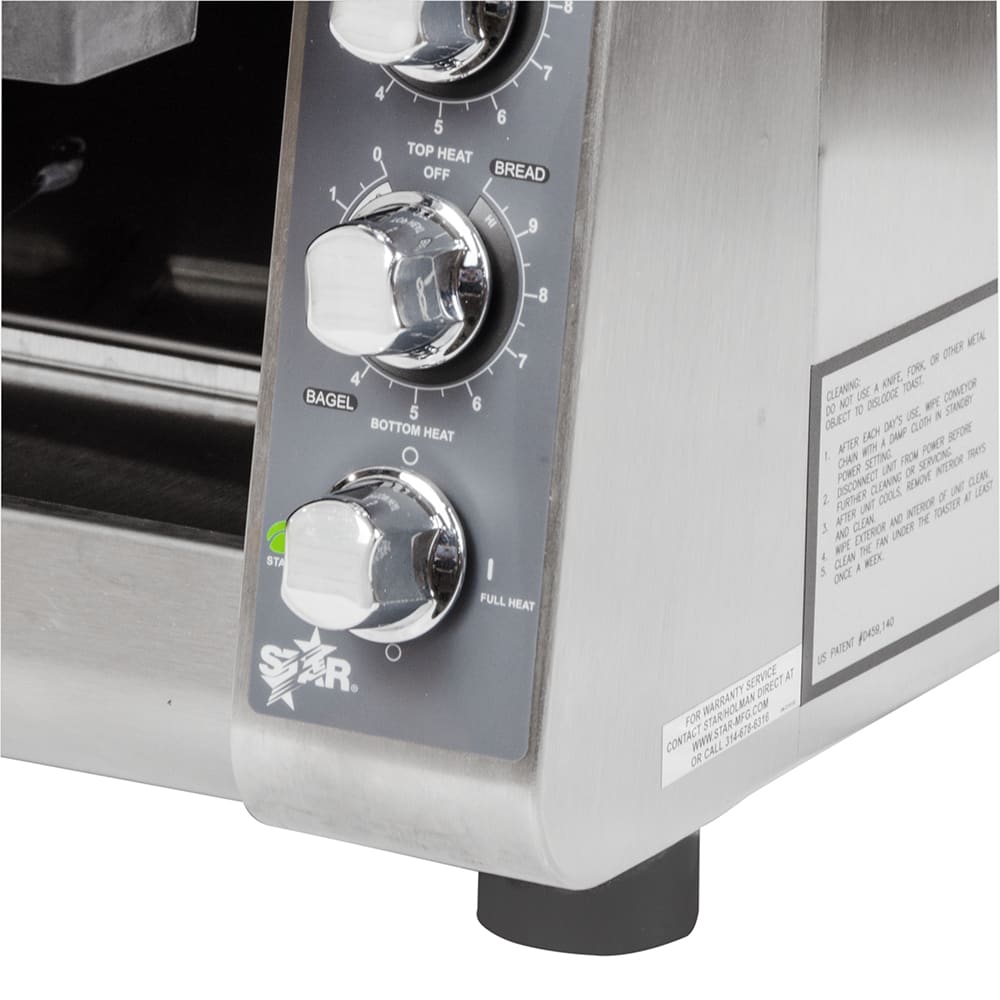

  • Variable belt speed, top heat, and bottom heat are controlled by the analog system
  • Metal knobs support use in high-volume applications
  • Power saver switch reduces energy consumption
  • High-limit switch prevents overheating to protect the components
  • One-piece cover can be taken apart for cleaning
  • Elevated on 1-in. legs
  • 2800 W, 11.7 A
  • 240 V/60 Hz/1 ph, NEMA 6-20P plug
  • Overall dimensions: 14.5 in. W x 22.38 in. D x 15.63 in. H (24.5 in. D with extended load-up rack)
  • cULus and UL-EPH listed
  • Made in the U.S.

If you want to read more about toasters in this line, check out the Star toasters buyers' guide.

Star QCS® Conveyor Toaster, electric, 800 slices/hr., horizontal conveyor, analog speed, standby switch, independent controls for top & bottom quartz sheathed heater elements, 1-1/2" opening x 10" W belt (2 slice) with loading rack, stainless steel construction with smooth cool touch exterior, cULus, UL EPH, 240v/60/1ph

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Star QCS2-800 Specifications

PDF Spec Sheet
Manufacturer Star
Also Known As QCS2-800A
Warranty 1 year
Specialty Options Cool Touch Exterior
Specialty Options Separate Controls
Specialty Options Load-Up Tray
Type Conveyor
Slices/Hr 800
Belt Width (in) 14
Controls Manual
Hertz 60
Voltage 240
Phase 1
Product Type Countertop Cooking Equipment
Product Conveyor Toaster
Weight 64.00
Star QCS2-800 Certifications
  • UL
  • NSF
