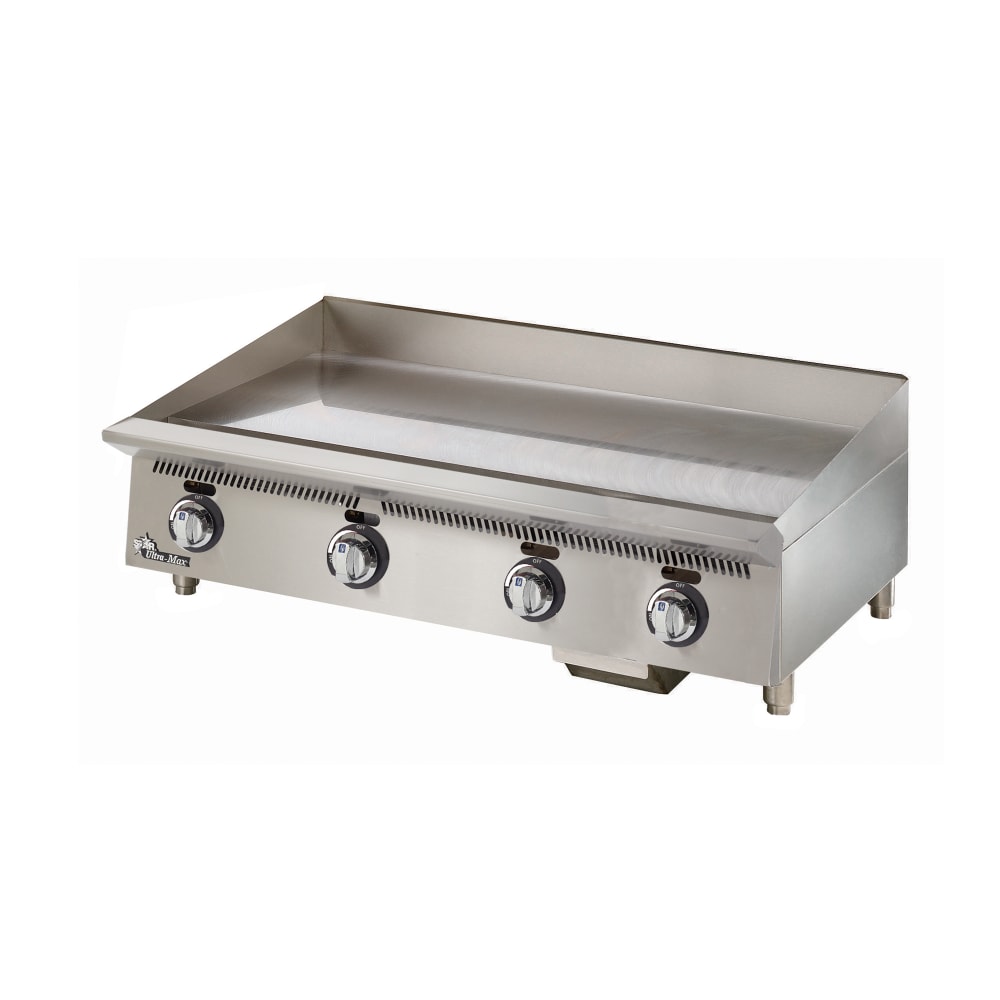

Star 860TA 60" Ultra-Max® Gas Griddle w/ Thermostatic Controls - 1" Steel Plate, Liquid Propane
$7,425.00 /Each
Call for details!
Selected Gas Type: Liquid Propane
Star 860TA Description
Outfitted with mechanical snap-action thermostats positioned every 12 inches, the Star 860TA Ultra-Max® gas griddle enables responsive cooking control across six independently managed zones. Spanning 60 inches wide by 24 inches deep, the cooking surface is bordered by a 4 3⁄8-inch wrap-around splash guard that reduces grease escape. A 3 1⁄2-inch trough at the front guides waste into two integrated 6-quart grease drawers. The burners produce 30,000 BTU per zone for a combined output of 150,000 BTU using liquid propane, with standing pilots supplying continuous ignition readiness.
To support sanitation and structural integrity, the Star 860TA Ultra-Max gas griddle is built with a welded steel frame clad in a corrosion-resistant stainless steel exterior. These thermostats are embedded 3⁄16 inch beneath the 1-inch-thick polished steel plate, helping maintain accurate surface heat within a 150 to 550 degrees Fahrenheit temperature range. The unit includes 4-inch stainless steel legs that adjust by 1 3⁄8 inches for leveling, and it connects via a 3⁄4-inch NPT gas inlet.
- Part of the Ultra-Max series
- Countertop design
- 1-in.-thick polished steel griddle plate
- 60-in. W x 24-in. D cooking surface
- Welded steel frame with corrosion-resistant stainless steel base
- 4 3⁄8-in. rear and side tapered splash guard
- 3 1⁄2-in. front grease trough
- (2) 6-qt. grease drawers
- Heavy-duty metal control knobs
- Includes (4) 4-in. stainless steel legs (adjustable by 1 3⁄8 in.)
- Thermostatic controls
- Embedded mechanical snap-action sensors placed every 12 in.
- Temperature holding range: 150–550 degrees F
- Standing pilot ignition for each burner section
- 30,000 BTU per burner (150,000 total BTU)
- Overall dimensions: 60 in. W x 32 3⁄8 in. D x 18 in. H
- Cooking surface: 60 in. W x 24 in. D
- Powered by liquid propane
- 3⁄4-in. NPT male gas connection
*Image may not depict product color, inclusions or accessories.
*Free shipping on Star 860TA within the 48 contiguous states.
From The Manufacturer
Ultra-Max® Griddle, countertop, gas, 60"W x 24"D cooking surface, 1" thick polished steel griddle plate, 150° - 550° F embedded mechanical snap-action thermostat every 12", 4-3/8" tapered wrap-around splash guard, 3-1/2" front grease trough, 6 qt. grease drawer, heavy-duty metal knobs, standing pilot, welded steel frame with stainless steel exterior, 4" stainless steel legs with 1-3/8" adjustment, 150,000 BTU, cULus, UL EPH Classified
Star 860TA Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Star |
| Application | Medium Duty |
| BTU / Burner | 30000 |
| Control Spacing (in) | 12 |
| Controls | Thermostatic |
| Cooking Area Depth (in) | 24 |
| Cooking Area Width (in) | 60 |
| Depth (in) | 32.38 |
| Gas Type | LP |
| Heat | Gas |
| Height (in) | 18 |
| Plate Material | Steel |
| Plate Thickness (in) | 1 |
| Product | Griddles |
| Product Type | Countertop Cooking Equipment |
| Rating | Best |
| Series | Ultra-Max® |
| Warranty | 2-year Parts & Labor |
| Width (in) | 60 |
| Weight | 656.00 |
