Star 848TCHSA 48" Ultra-Max® Gas Griddle w/ Thermostatic Controls - 1" Chrome Plate, Liquid Propane
Free Shipping Item
$15,797.00 /Each
Web price, call us!
Selected Gas Type: Liquid Propane
Convertible
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Star 848TCHSA Description
Thermostatic snap-action controls embedded every 12 inches regulate precise heat levels between 150 and 550 degrees Fahrenheit across four independent zones. The Star 848TCHSA Ultra-Max® gas griddle offers a 48-inch wide by 24-inch deep cooking surface and uses liquid propane, which delivers consistent flame and fast heat recovery without electrical reliance. A standing pilot system maintains a ready flame for quick startup during daily operation.
Made of corrosion-resistant stainless steel, the welded frame of the Star 848TCHSA Ultra-Max® gas griddle withstands repeated exposure to heat and grease. A 1-inch thick chrome plate made of T1 steel distributes heat evenly and provides a smooth cooking surface that resists sticking. A 43⁄8-inch wraparound splash guard and 31⁄2-inch trough help contain and channel grease into the 6-quarts drawer below. Heavy-duty metal knobs and 4-inch adjustable legs complete the setup.
Product Details
- Countertop application
- Ultra-Max series
- 120,000 BTU output
- Stainless steel exterior with welded steel frame
- 1-in.-thick chrome griddle plate made of T1 steel
- (4) Snap-Action Thermostats
- Temperature range: 150-550 degrees F
- Standing pilot ignition system
- Heavy-duty metal control knobs
- 31⁄2-in. front grease trough
- 6-qt. grease drawer
- 43⁄8-in. tapered wraparound splash guard
- 4-in. stainless steel legs with 13⁄8-in. adjustment
Dimensions & Utilities
- Cooking surface: 48 in. W x 24 in. D
- Overall: 48 in. W x 341⁄5 in. D x 18 in. H
- Heated by liquid propane
*Free shipping on Star 848TCHSA within the 48 contiguous states.
From The Manufacturer
Ultra-Max® Griddle, countertop, gas, 48"W x 24"D cooking surface, 1" thick T1 steel hexavalent chrome griddle plate, 150° - 550° F embedded mechanical snap-action thermostat every 12", 4-3/8" tapered wrap-around splash guard, 3-1/2" front grease trough, 6 qt. grease drawer, heavy-duty metal knobs, standing pilot, welded steel frame with stainless steel exterior, 4" stainless steel legs with 1-3/8" adjustment, 120,000 BTU, cULus, UL EPH Classified

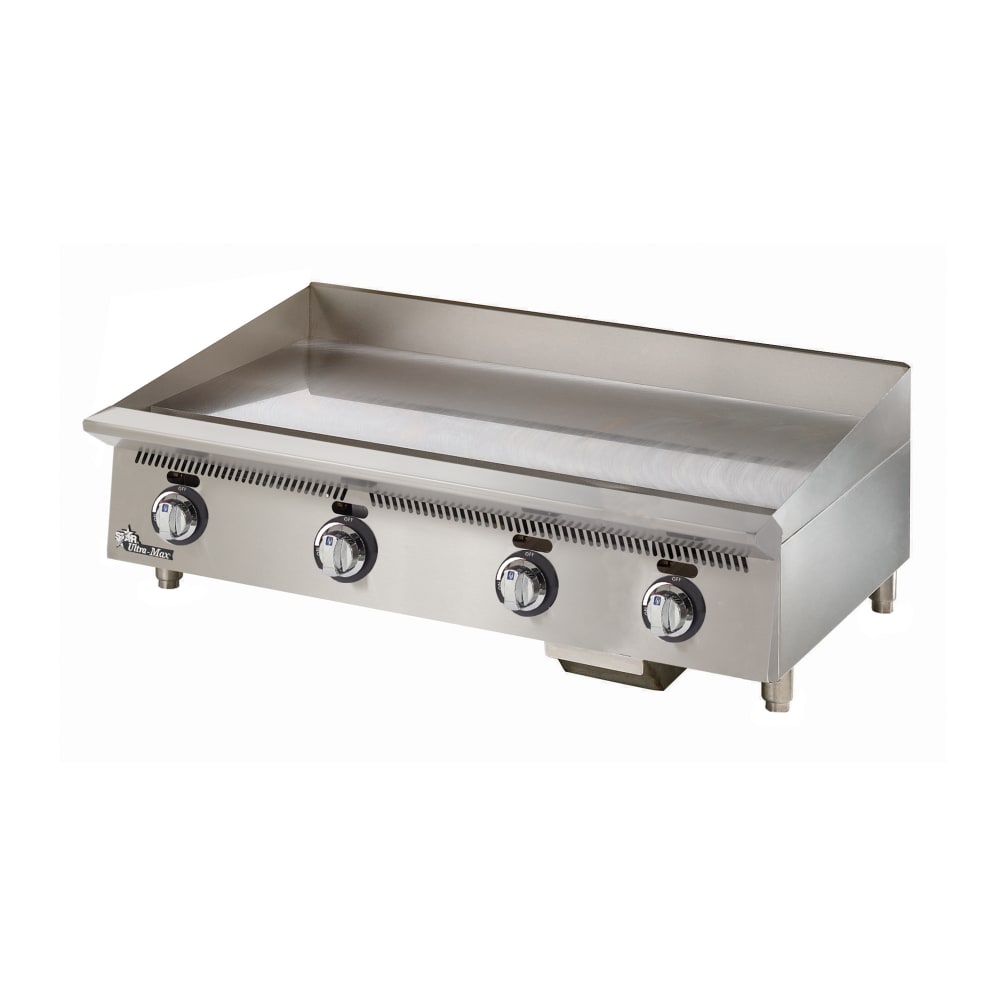

*Image may not depict product color, inclusions or accessories.
Resources
2-year Parts & Labor
Star 848TCHSA Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Star |
| Application | Medium Duty |
| BTU / Burner | 30000 |
| Control Spacing (in) | 12 |
| Controls | Thermostatic |
| Cooking Area Depth (in) | 24 |
| Cooking Area Width (in) | 48 |
| Depth (in) | 32.38 |
| Gas Type | LP |
| Heat | Gas |
| Height (in) | 18 |
| Plate Material | Chrome |
| Plate Thickness (in) | 1 |
| Product | Griddles |
| Product Type | Countertop Cooking Equipment |
| Rating | Best |
| Series | Ultra-Max® |
| Warranty | 2-year Parts & Labor |
| Width (in) | 48 |
| Weight | 520.00 |
Documents
Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
Important Prop 65 information for California residents.
