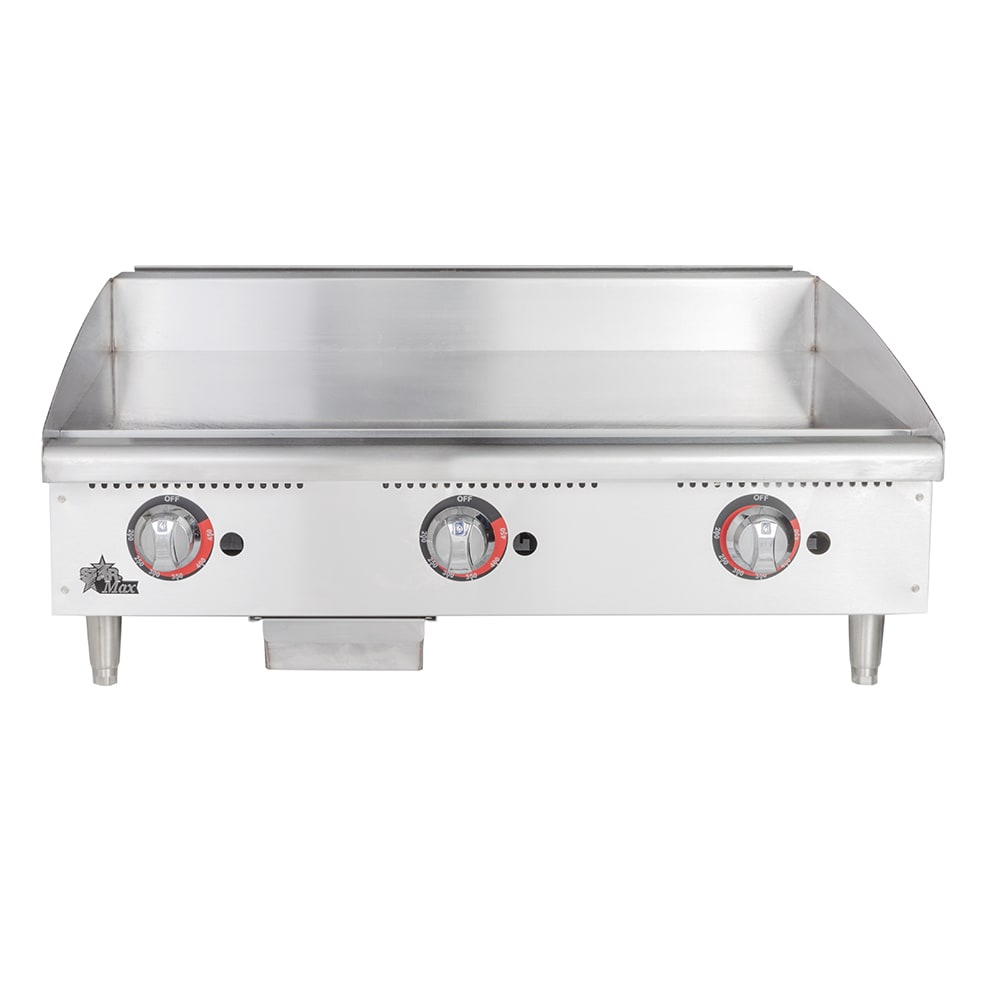

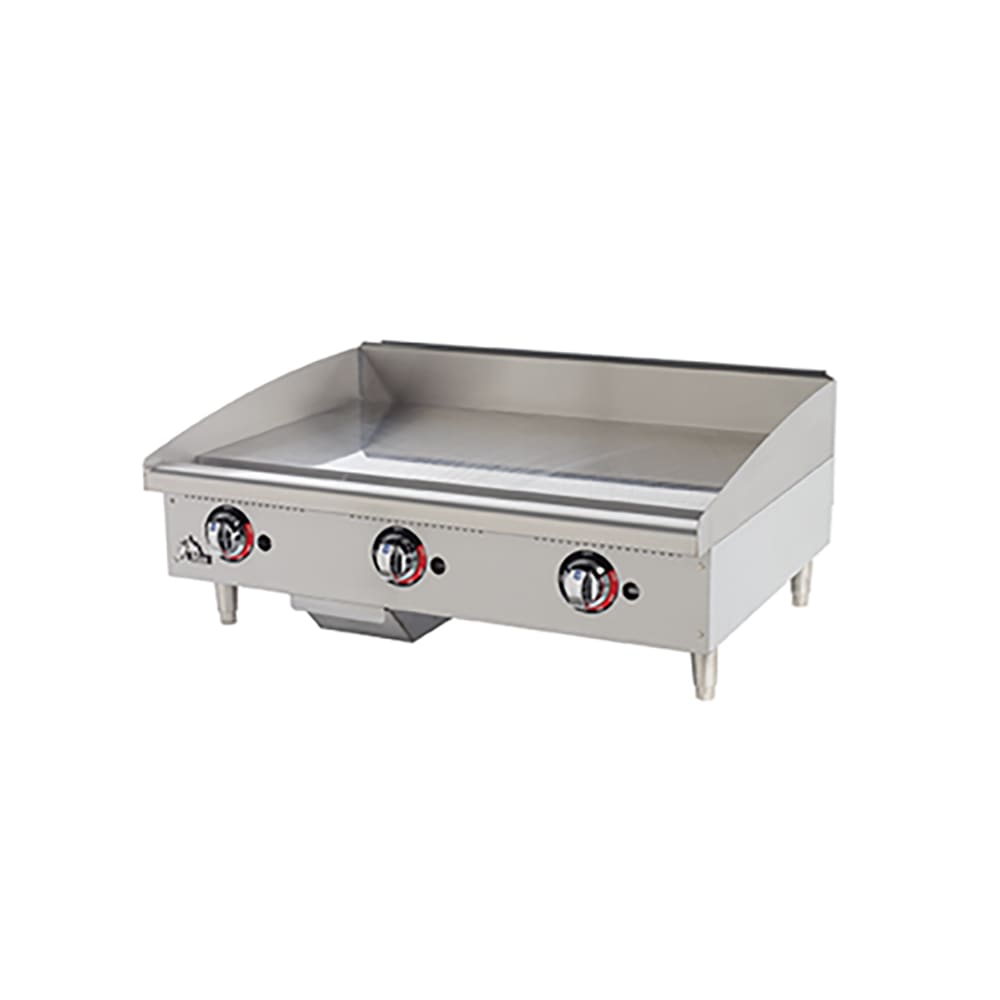

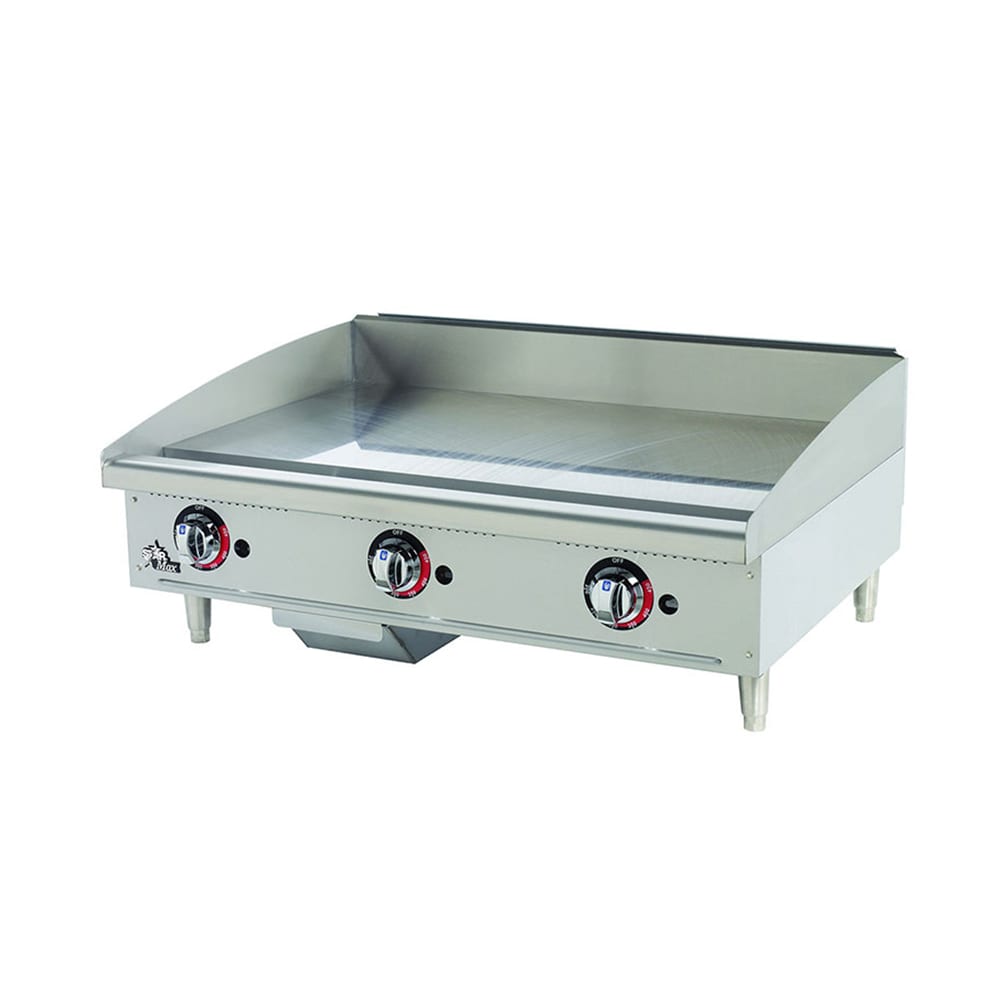

The throttling thermostat on this Star Manufacturing Star-Max® griddle is inserted into the griddle plate 5/16-in. from the cooking surface and can be adjusted from 150 to 450 degrees F. Designed with a double wall construction and an enclosed bottom, this Star-Max® griddle reduces heat loss and replaces model 636TD with longer lasting, heavy-duty metal knobs that are high temperature resistant. The cooking surface on this gas griddle has a 28,300 BTU steel burner every 12 inches to provide even heat distribution.
Standard Features and Benefits:
- Griddle plate has a throttling thermostat 5/16-in. from the cooking surface and can be adjusted 150 to 450 degrees F, and have quick response to surface temperatures
- Steel cooking surface is 1-in. thick, highly polished, and offers fast recovery, energy efficiency, and heat distribution
- Made from stainless steel and is easy to clean

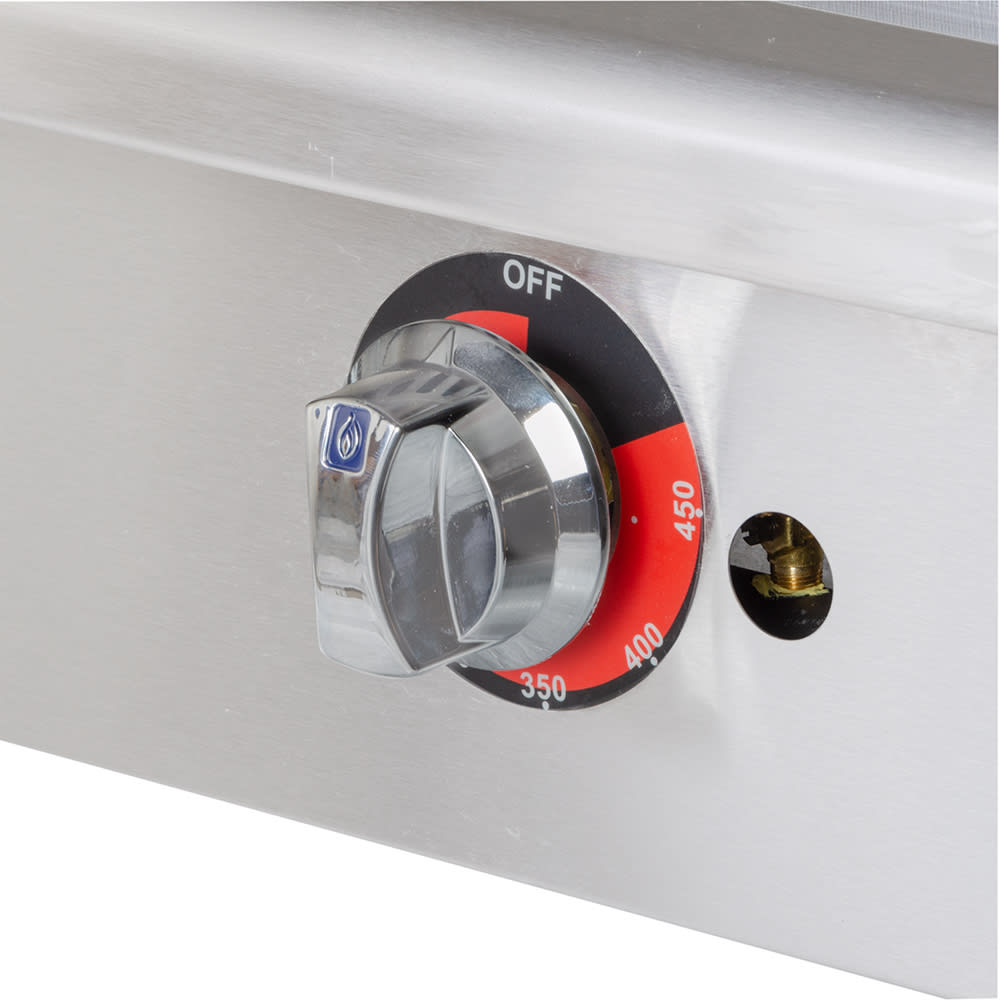

- Longer lasting, heavy-duty metal knobs are resistant to heat
- Aluminized, U-shaped steel burners are positioned every 12-in. on the cooking surface and run on 28,300 BTU
- Enclosed bottom and double wall construction reduces heat loss
- All-welded body construction includes a stainless steel front and bull nose to offer knob protection
- Tapered splash guard is 4-1/2 in. H

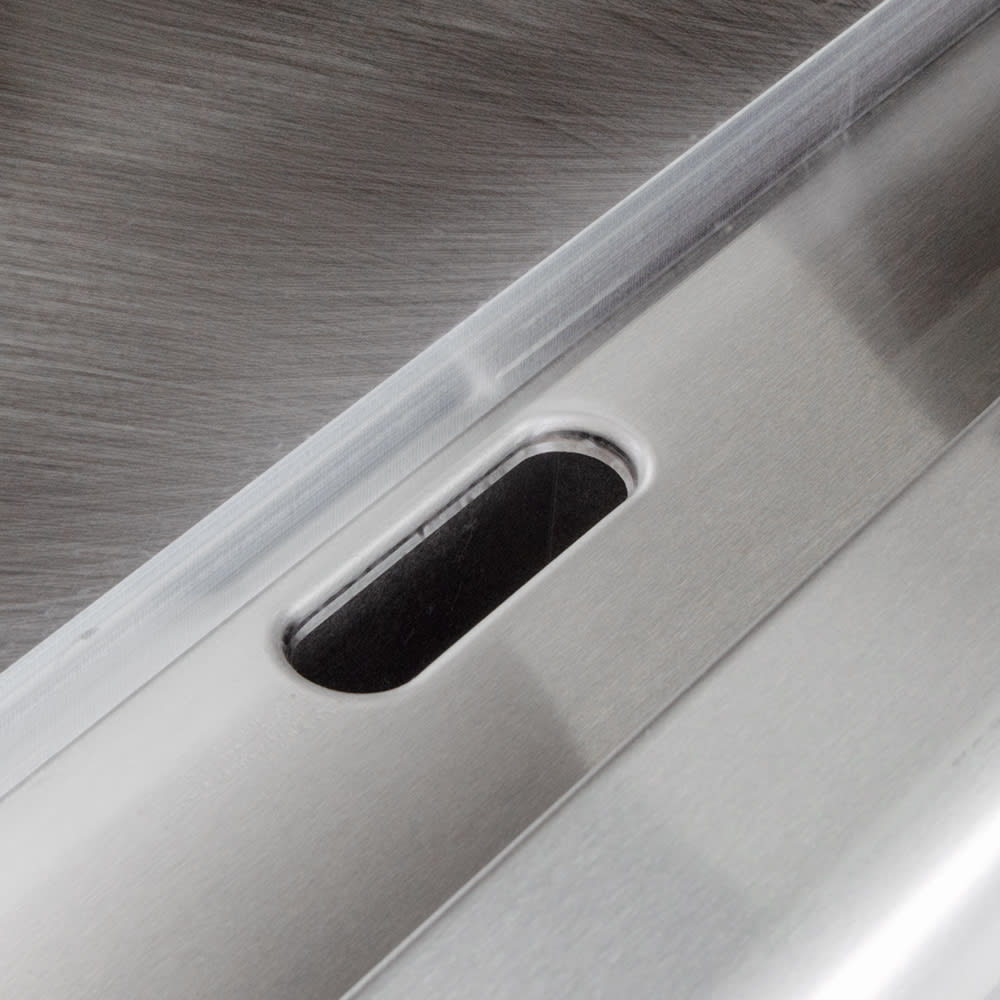

- Front grease trough is 3-1/4 in. W to accommodate standard spatulas and works with the grease chute to help in cleaning
- Grease drawer is made from stainless steel and has a 4-1/2 qt. capacity
- Field convertible using the conversion kit supplied and is shipped NG
- Heavy-duty 4-in. adjustable legs
- Total Dimensions: 36-in. W x 29-in. D x 15-1/2 in. H
- UL-EPH and cULus Listed; ISO 9001:2000 Certified
- Replaces model 636TD
Star-Max Heavy Duty Griddle, countertop, NG gas, 36"L, 27-3/4"D, 15-1/2"H, 1" steel griddle plate, throttling thermostat every 12", heavy duty knobs, aluminum steel construction, stainless steel front with black trim, wrap-around stainless steel splash guard, grease trough & stainless steel drawer, 4" legs, 84,900 BTU. Shipped with field conversion kit for LP.
*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
Star Manufacturing 636TF SpecificationsPDF Spec Sheet
|Also Known As||636TD, 636TF|
