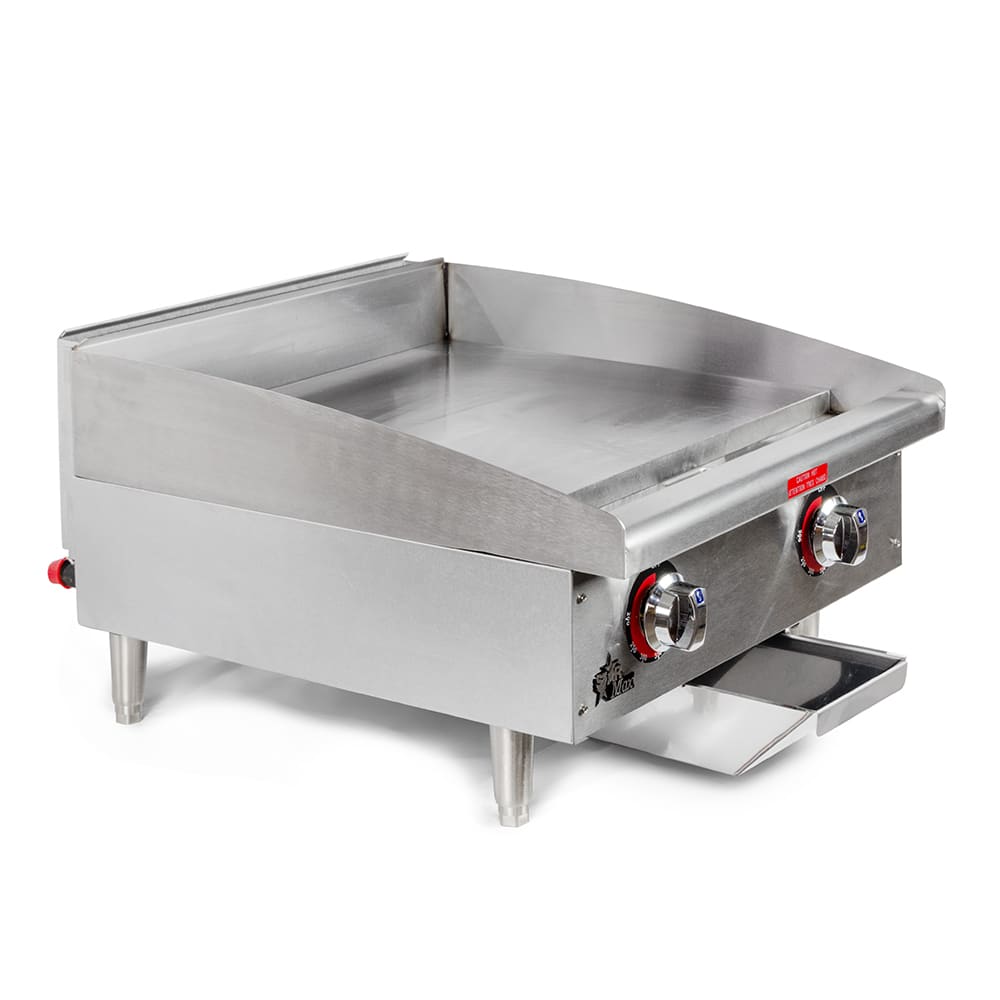

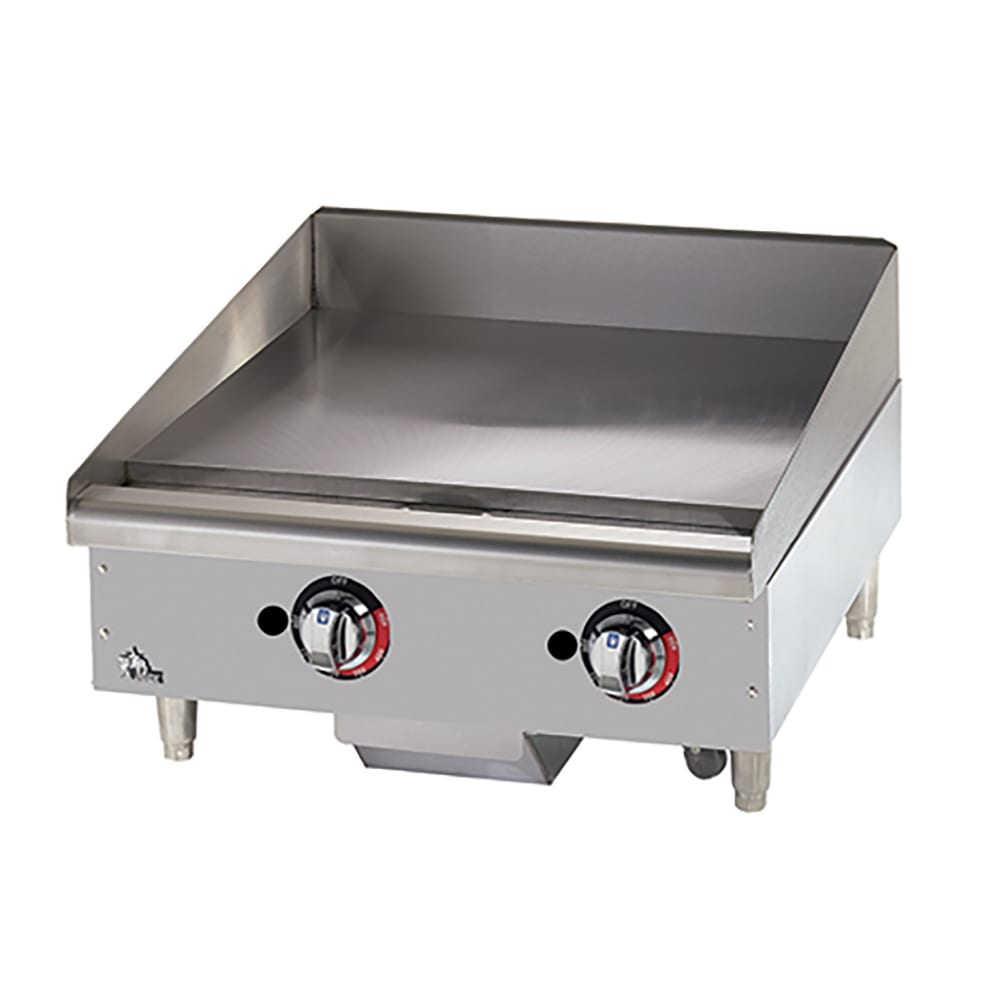

Designed with a highly polished one inch thick steel plate, this Star Manufacturing Star-Max® heavy duty griddle has a throttling thermostat inserted into the griddle plate 5/16 inches from the cooking surface. This Star-Max® griddle has longer lasting, heavy-duty metal knobs that are resistant to high temperatures and replaces model 624TD. This heavy duty griddle has a double wall construction and an enclosed bottom to help reduce heat loss and save energy.
Standard Features and Benefits:
- Highly polished 1-in. thick steel plate offers faster recovery, heat distribution, and energy efficiency
- Throttling thermostat is inserted 5/16-in. in the griddle plate and can be adjusted from 150 to 450 degrees F
- Thermostat provides quick response to surface temperature changes
- Stainless steel construction and front panel has a long lasting appearance and is easy to clean

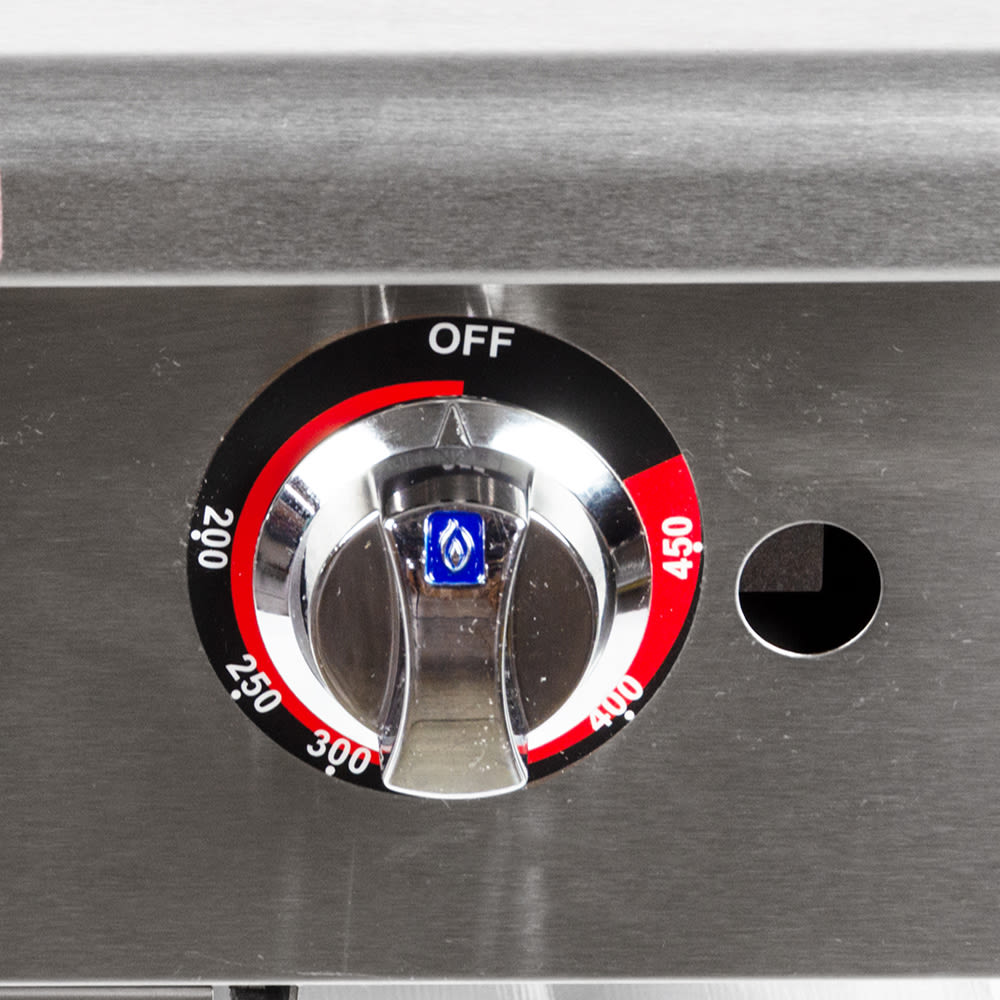

- Metal knobs are heavy-duty and longer lasting against high temperatures
- 28,300 BTU aluminized, U-shaped steel burners every 12-in. provides even heat distribution
- Enclosed bottom and double wall construction reduces heat loss
- All-welded body and bull nose are made from stainless steel
- 4-1/2 in. H tapered splash guard
- Bull nose remains cool-to-the-touch and creates a comfortable work zone along with knob protection
- Spatula-wide 3-1/4 in. front grease trough and chute are designed for easy cleaning
- 4-1/2 qt. capacity grease drawer is made from stainless steel
- Field conversion kit allows for easy field conversion from NG
- Heavy-duty 4-in. adjustable legs
- 24-in. W x 29-in. D x 15-1/2 in. H
- UL-EPH and cULus Listed; ISO 9001:2000 Certified
- Note: this unit replaces model 624TD
Star-Max Heavy Duty Griddle, countertop, NG gas, 24"L, 27-3/4"D, 15-1/2"H, 1" steel griddle plate, throttling thermostat every 12", heavy duty knobs, aluminum steel construction, stainless steel front with black trim, wrap-around stainless steel splash guard, grease trough & stainless steel drawer, 4" legs, 56,600 BTU. Shipped with field conversion kit for LP.
*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
Star Manufacturing 624TF SpecificationsPDF Spec Sheet
|Also Known As||624TD, 624TF|
