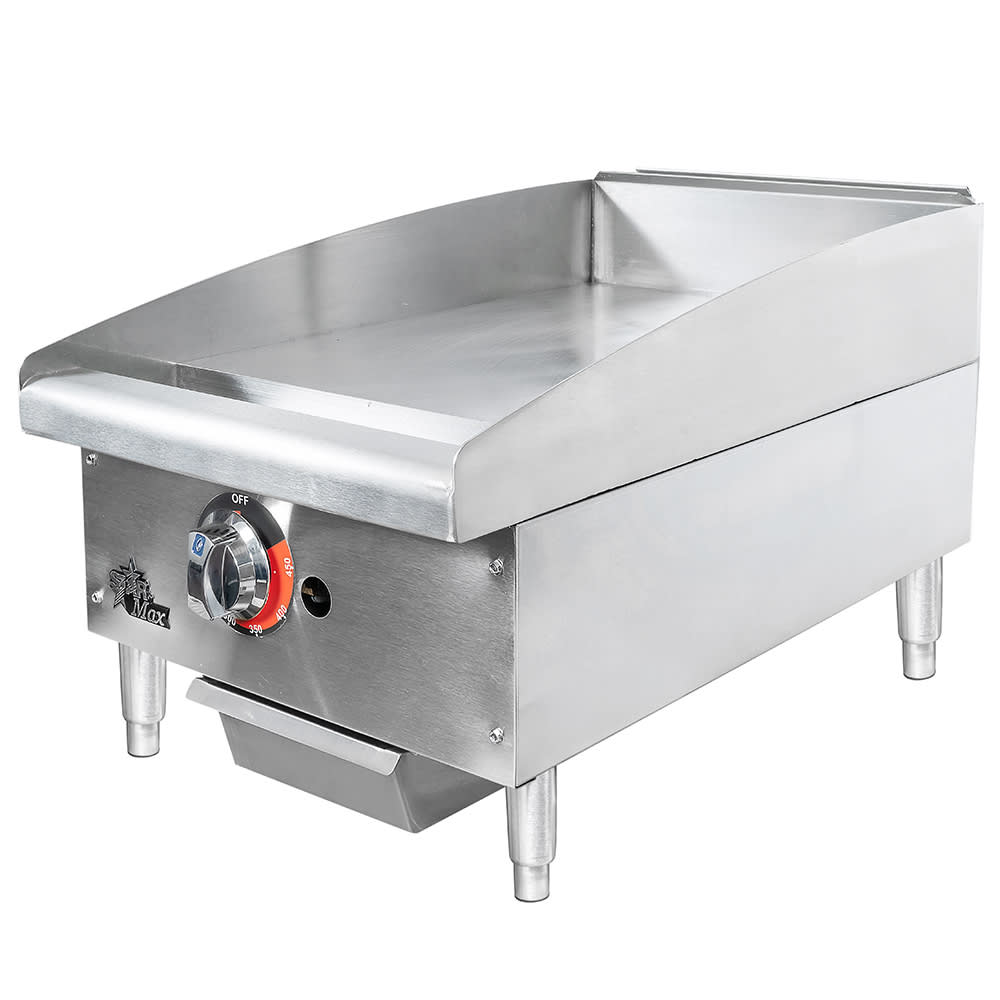

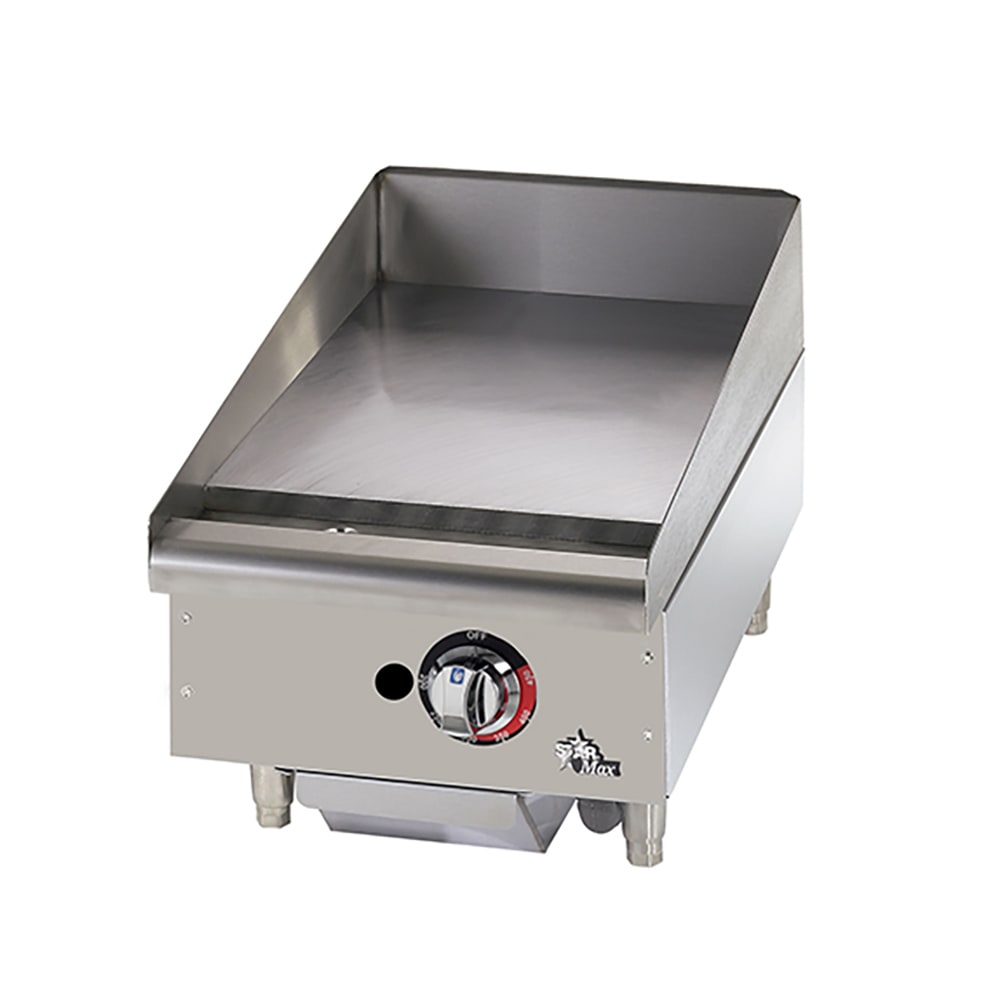

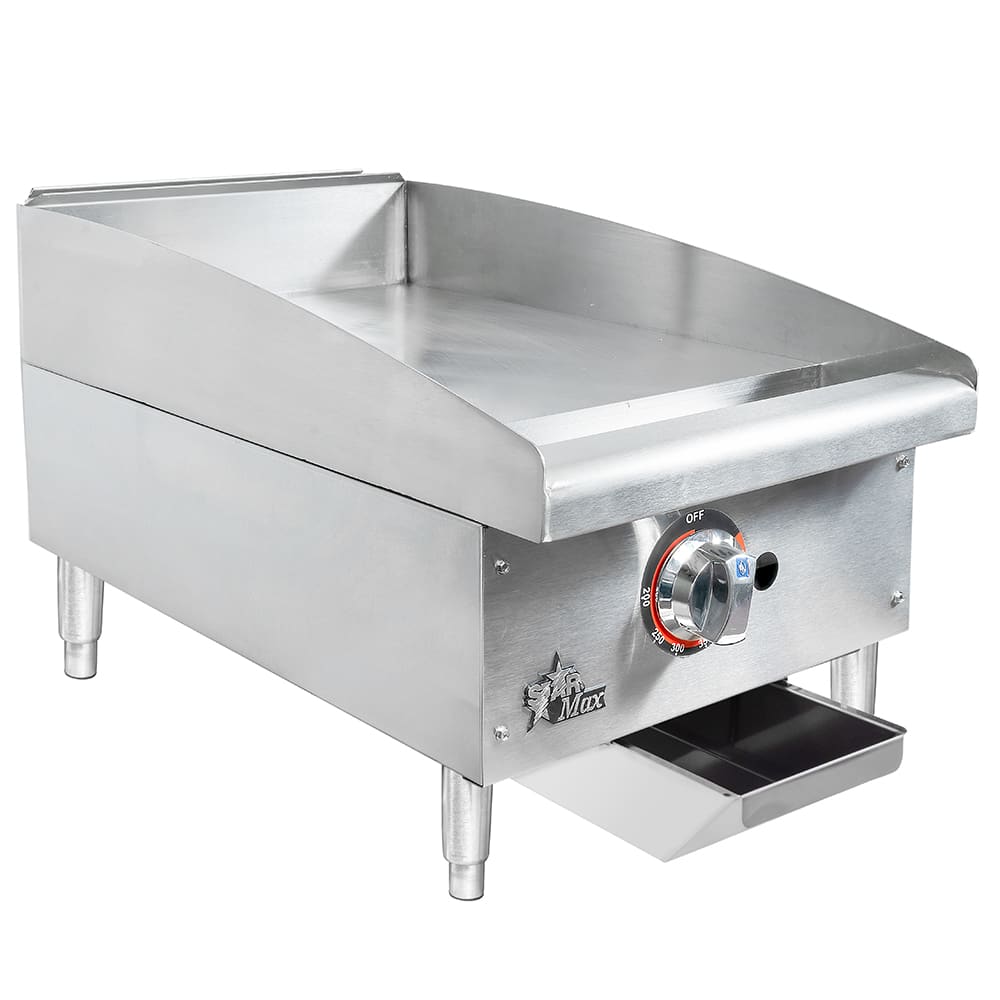

The Star Manufacturing Star-Max® Heavy-Duty Griddle replaces model 615TD and has longer lasting, heavy-duty metal knobs that are resistant to higher temperatures. Featuring a double wall construction with an enclosed bottom, this Star-Max® griddle is designed to reduce heat loss and energy waste. The stainless steel bull nose front is cool-to-the-touch and offers the operator a comfortable work zone.
Standard Features and Benefits:
- Throttling thermostat is inserted into the griddle plate 5/16-in. from the cooking surface

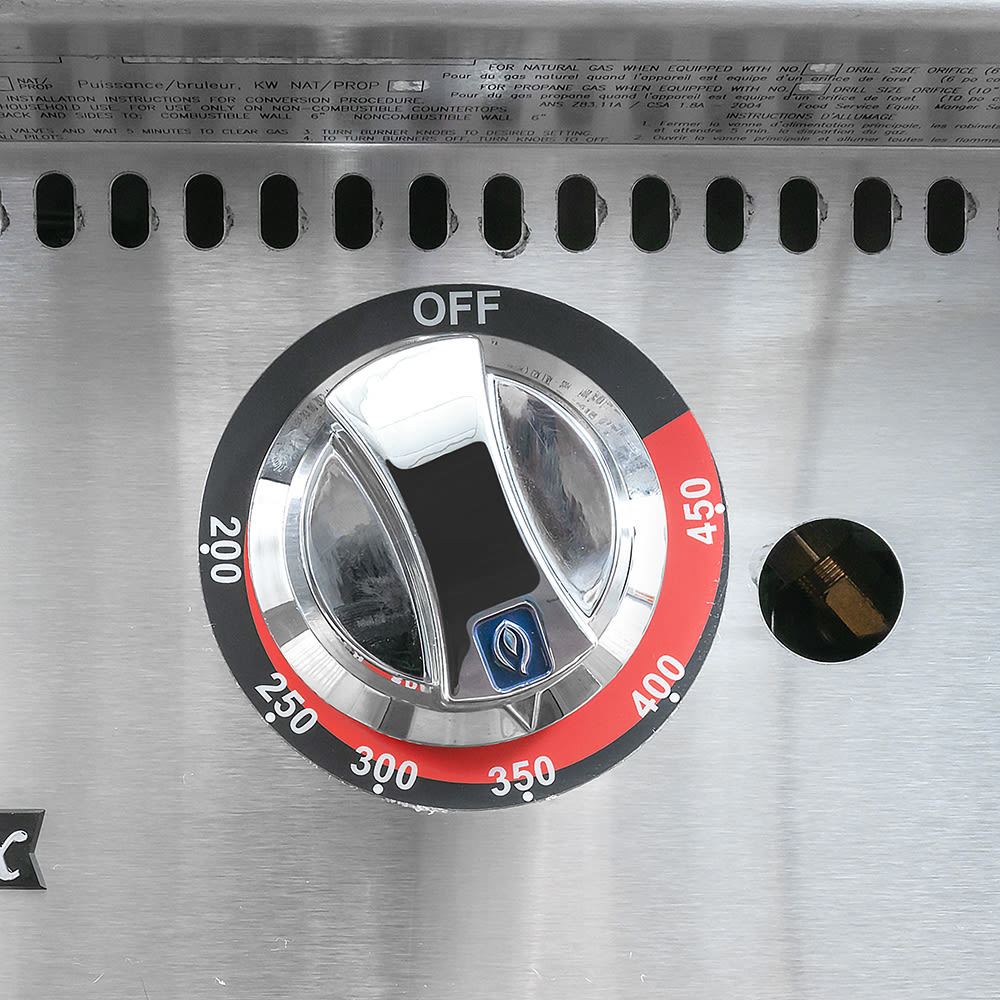

- Thermostat adjusts from 150 to 450 degrees F and responds quickly to surface temperature changes

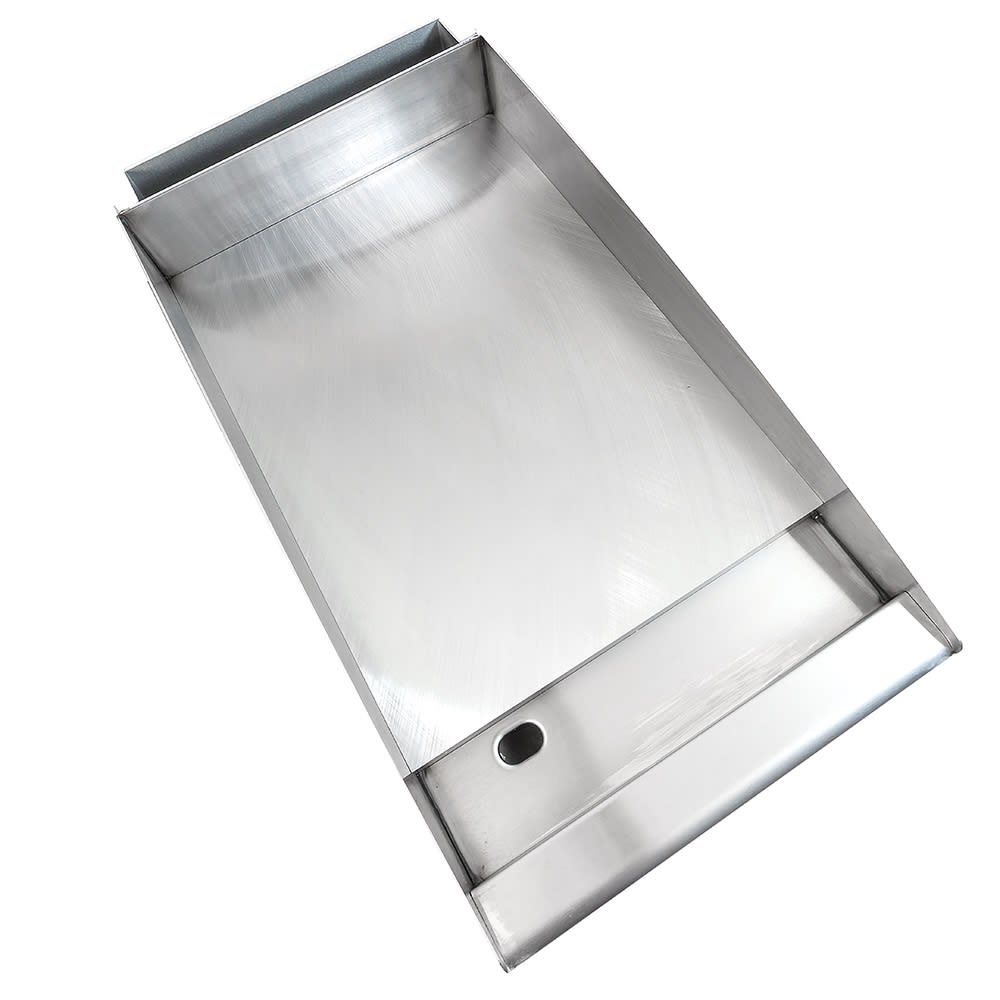

- 1-in. thick polished steel plate gives energy efficiency, fast recovery, and even heat distribution
- Stainless steel construction and front panel are easy to clean
- Metal knobs are longer lasting and made to withstand higher temperatures
- Has a 28,300 BTU aluminized U-shaped steel burner every 12-in. of the cooking surface
- Double wall construction works with an enclosed bottom that reduces heat loss

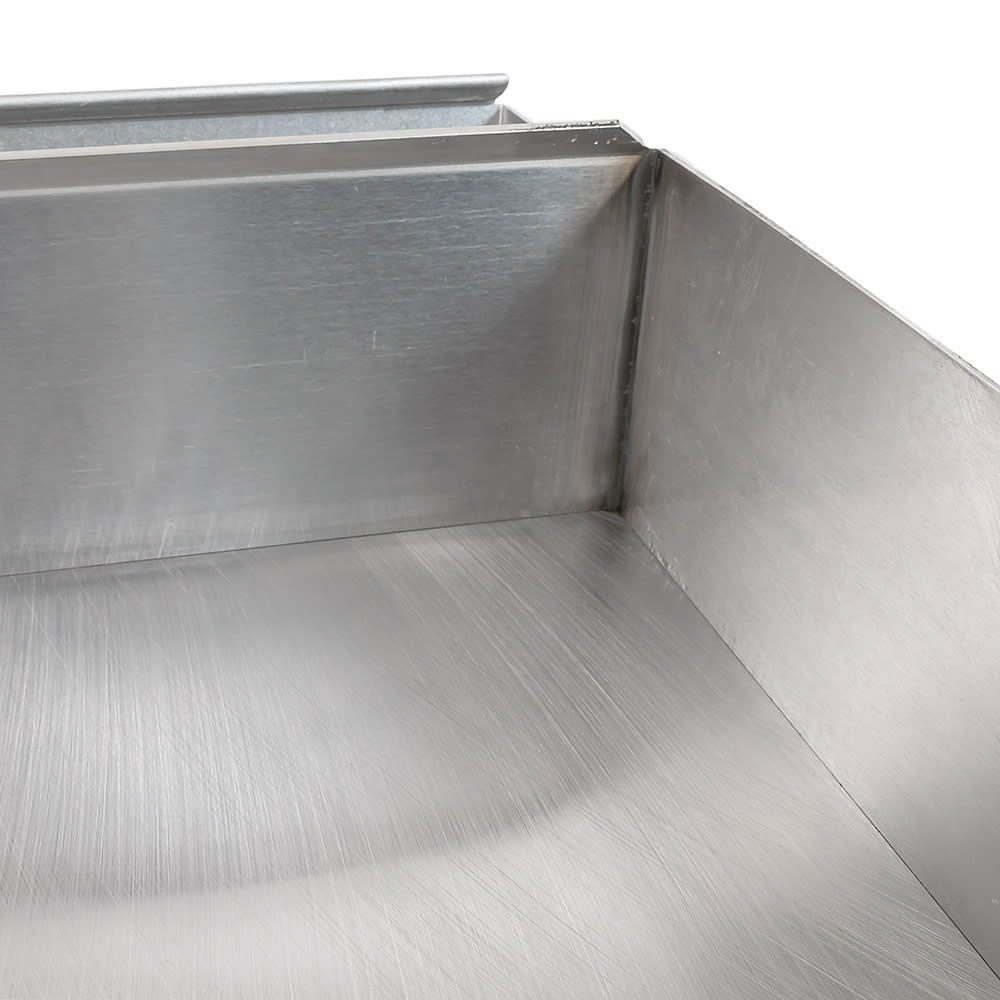

- 4-1/2 in. H tapered splash guard

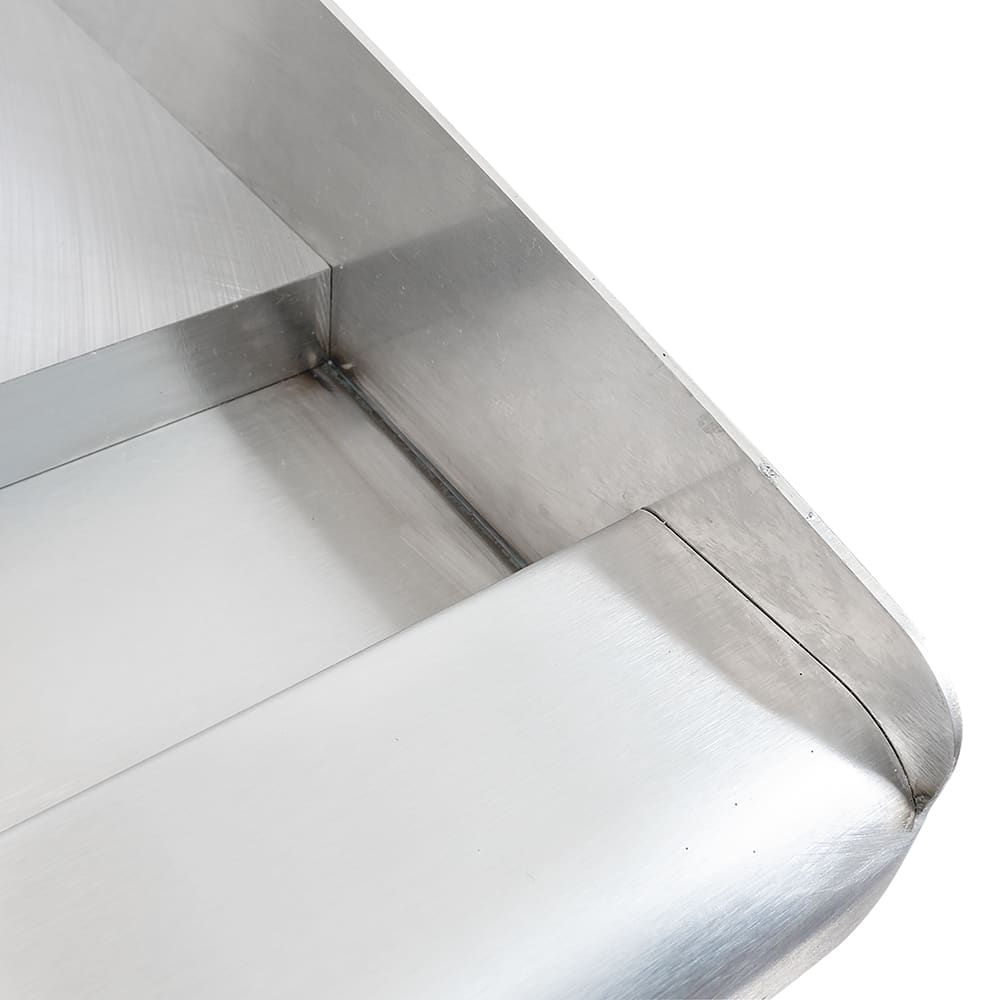

- Bull nose is made from stainless steel and remains cool-to-the-touch while also providing further knob protection and a comfortable work zone
- Grease trough is 3-1/4 in. W and can accommodate most standard spatulas

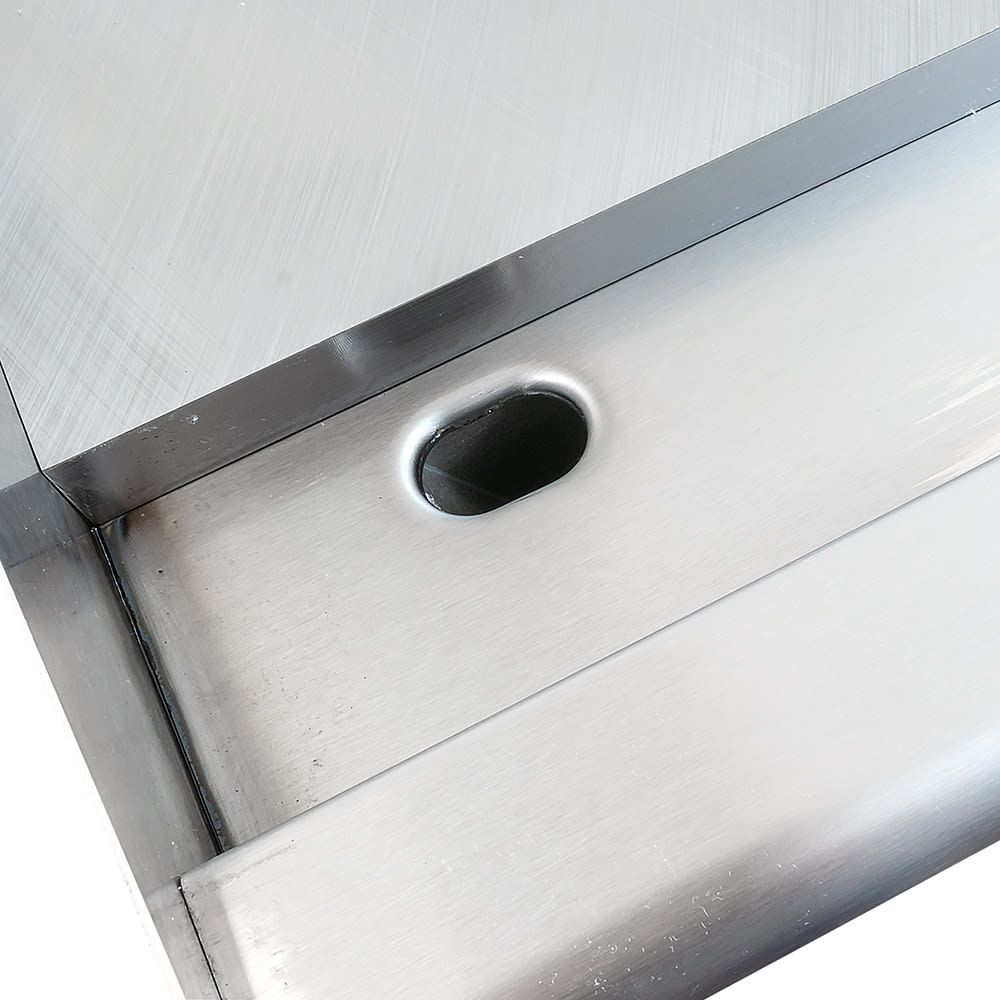

- Grease chute offers easier cleaning
- Grease drawer is made from stainless steel and has a 4-1/2 qt. capacity

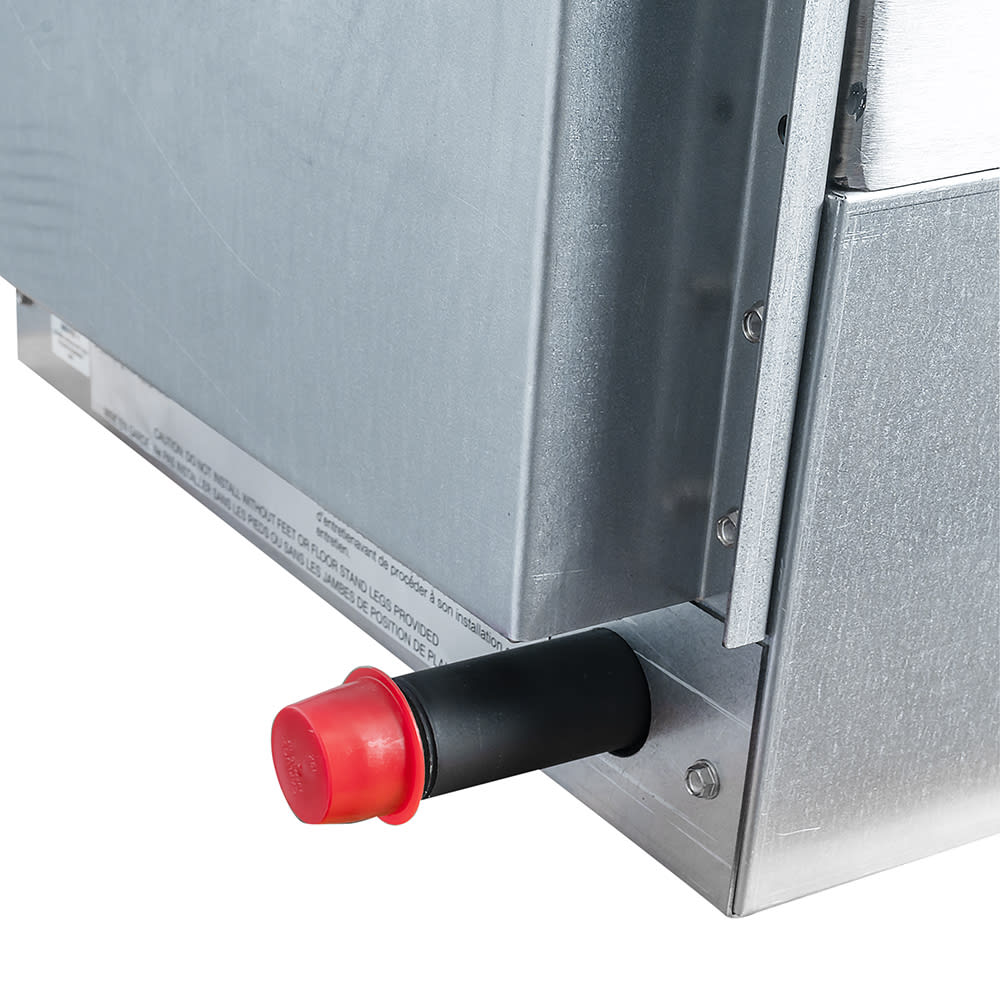

- Ships NG, but is field convertible with the supplied kit
- 4-in. legs are adjustable to fit your needs

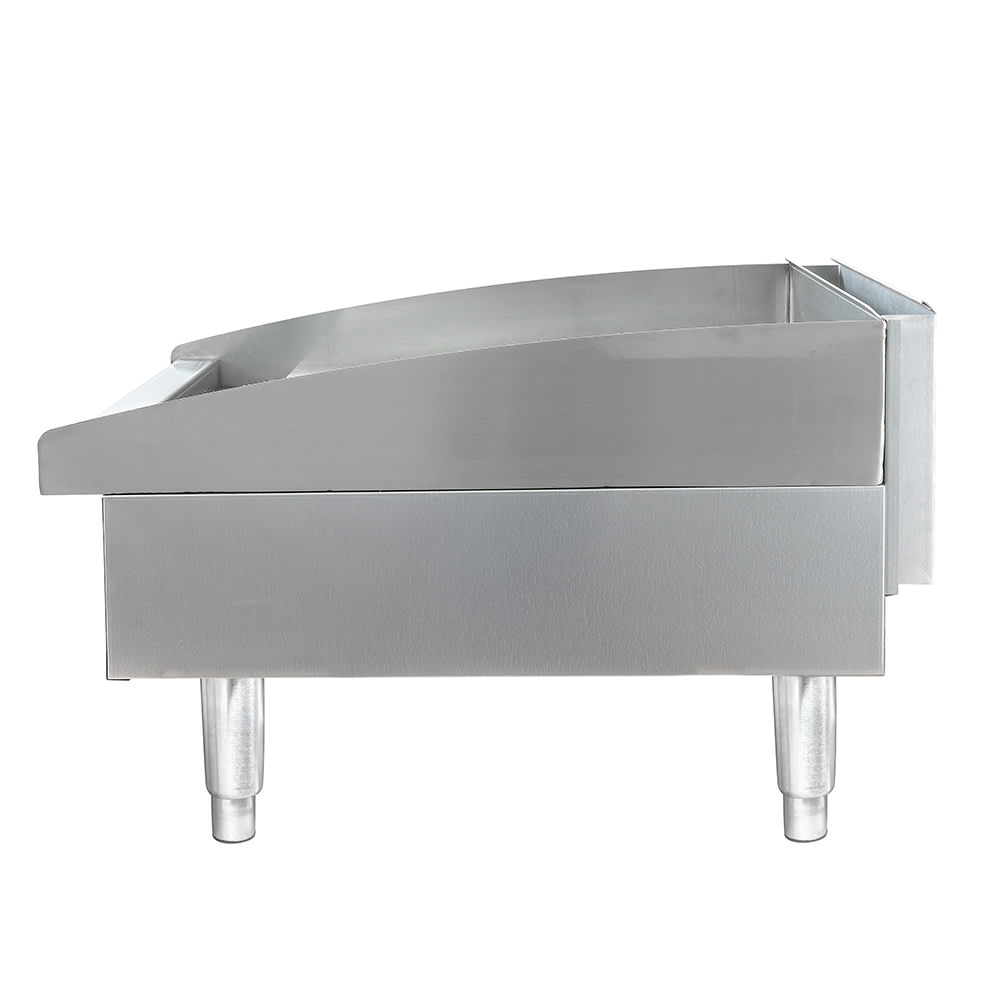

- Total Dimensions: 15-in. W x 29-in. D x 15-1/2 in. H
- UL-EPH and cULus Listed; ISO 9001:2000 Certified
- Note: this unit replaces model 615TD
Star-Max Heavy Duty Griddle, countertop, NG gas, 15"L, 27-3/4"D, 15-1/2"H, 1" steel griddle plate, throttling thermostat every 12", heavy duty knobs, aluminum steel construction, stainless steel front with black trim, wrap-around stainless steel splash guard, grease trough & stainless steel drawer, 4" legs, 28,300 BTU. Shipped with field conversion kit for LP.
*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
Star Manufacturing 615TF SpecificationsPDF Spec Sheet
|Also Known As||615TD, 615TF|
