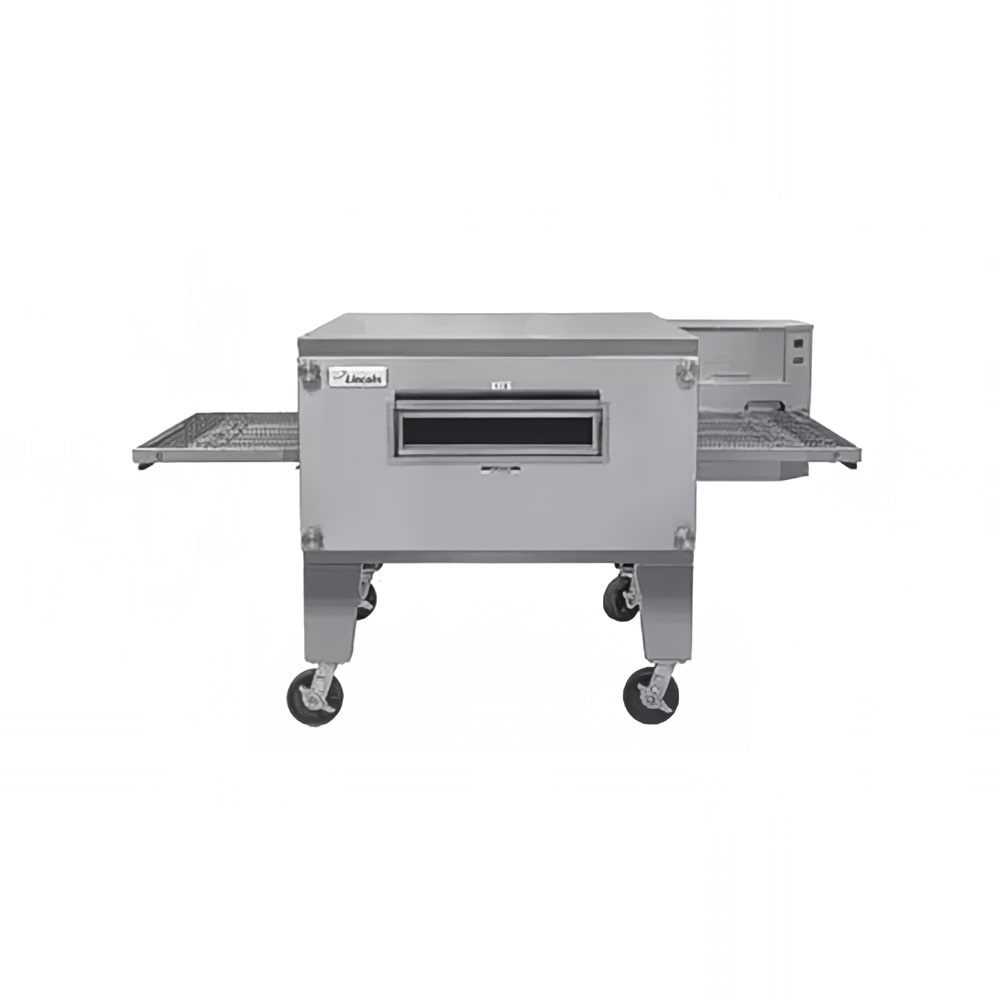

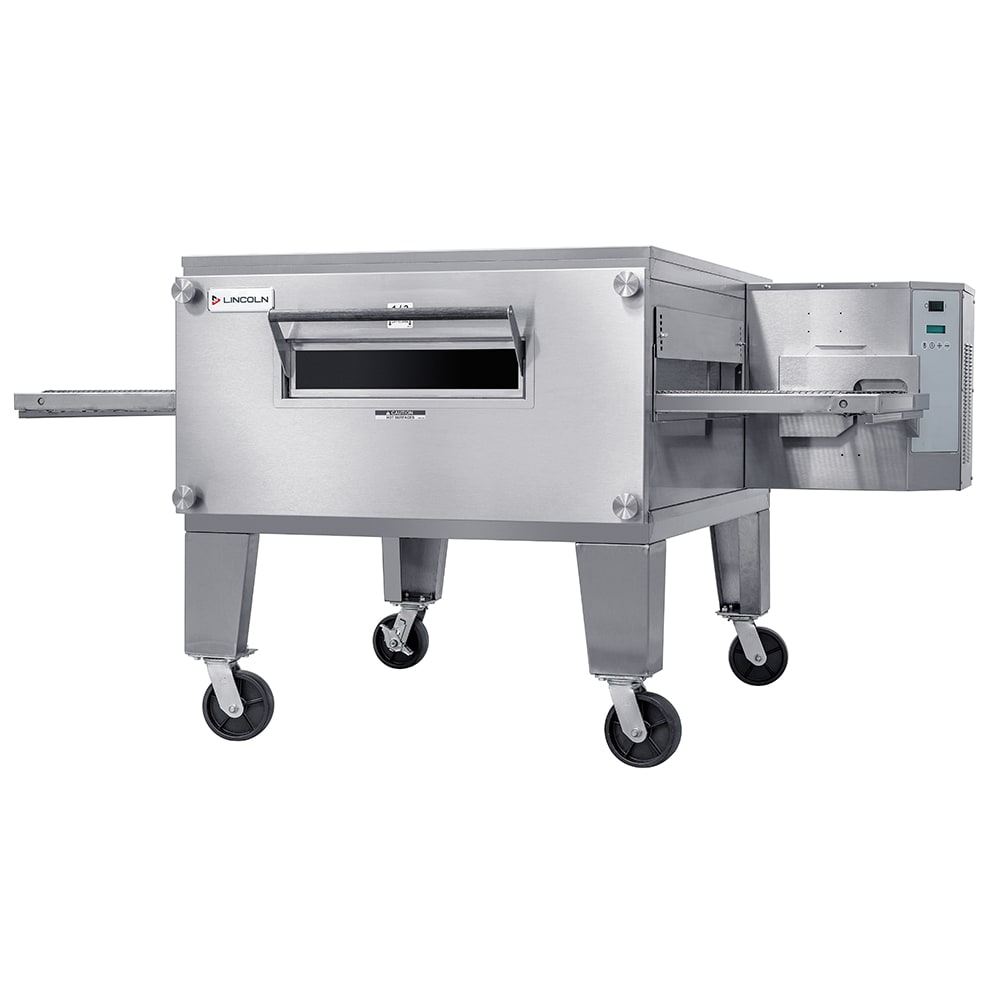

Lincoln 3240-3V 78" Electric Impinger Triple Conveyor Oven - 240v/3ph
Typically ships in 10 - 12 weeks
$56,547.00 /Each
Login or call for details!
Selected Voltage: 240V, 3 Phase
| 240V, 3 Phase |
| 208V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Lincoln 3240-3V Description
By using advanced air impingement cooking along with FastBake technology, the Lincoln 3240-3V conveyor oven penetrates the cold food halo to expedite baking, cooking, heating, or crisping without deteriorating product quality. Operators can adjust each baking chamber's temperature and conveyor belt speed with the front-facing digital controls as inventory changes, while the improved-view vacuum fluorescent display provides a readouts of the set temperature and speed. To accommodate kitchens with unchangeable layouts, the belts' directions can be reversed. Settings lock automatically to minimize inadvertent changes that could impact product quality.
All three conveyor belts are equipped with corresponding take-off shelves and end stops to simplify product insertion and retrieval. The glass access windows let users add contents onto the belt halfway through the bake cycle if desired, while their clear designs provide a full interior view so operators can monitor baking. To ease cleaning and access the finger assemblies, the front panel can be removed, and each conveyor belt can be extracted from the right-side opening.
Despite is triple-stack design, the Lincoln 3240-3V conveyor oven package boasts the same width and depth as single- and double-deck models to fit compact settings. This 77 3⁄5-inch-wide by 60 1⁄10-inch-deep by 71 4⁄5-inch-tall unit is positioned on a low stand with casters for smooth mobility for cleaning or maintenance. To survive long-term back-of-house use, its interior, top, front, and sides are made of rugged, rust- and corrosion-resistant stainless steel.
- Featured in the Impinger® series
- Conveyor oven package
- 3 decks with (3) 40-in.-wide baking chambers
- Front-facing digital controls with on/off switch
- Conveyor belt direction can be reversed
- Adjustable conveyor speed
- Vacuum fluorescent display with readouts of temperature, belt speed, and diagnostic messages
- Settings automatically lock
- Advanced air impingement eliminates cold food halo
- FastBake technology for quick, efficient baking
- Resilient stainless steel interior and exterior
- 3 glass access windows
- 3 take-off shelves
- End stops
- Crumb trays
- Front panel and finger assemblies are removable
- Conveyor belts can be extracted from the right side
- Low stand positioned on casters
- Minimum clearance required between rear of oven and combustible surfaces: 6 in.
- Minimum right-side clearance from other cooking equipment: 24 in.
- Clearance required to remove conveyor from cleaning: 11 in.
- 77 3⁄5 in. W x 60 1⁄10 in. D x 71 4⁄5 in. H
- (3) 60 A, (3) 24 kW
- (3) 240 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Lincoln 3240-3V within the 48 contiguous states.
From The Manufacturer
Conveyor Oven Package, electric, triple deck, FastBake technology, digital controls, 40" baking chamber, reversible conveyor, adjustable conveyor speed, (3) glass access windows, (3) take-off shelves, end stops, oven top, stainless steel interior, top, front & sides, low stand, casters, (3) 240v/60/3-ph, (3) 24.0kW, (3) 60.0 amps, cULus, UL EPH, CSA, CE
Lincoln 3240-3V Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Lincoln |
| Belt Length (in) | 73 |
| Belt Width (in) | 32 |
| Controls | Digital |
| Heat | Electric |
| Heating Style | Impingement |
| Hertz | 60 |
| Installation Type | Floor Model |
| kW | 72 |
| Maximum Pizza Diameter | 16" |
| Overall Length (in) | 77.6 |
| Overall Width (in) | 60.1 |
| Phase | 3 |
| Product | Conveyor Ovens |
| Product Type | Cooking Equipment |
| Rating | Best |
| Size | Triple |
| Voltage | 240 |
| Warranty | 3-year Limited |
| Weight | 2638.00 |
