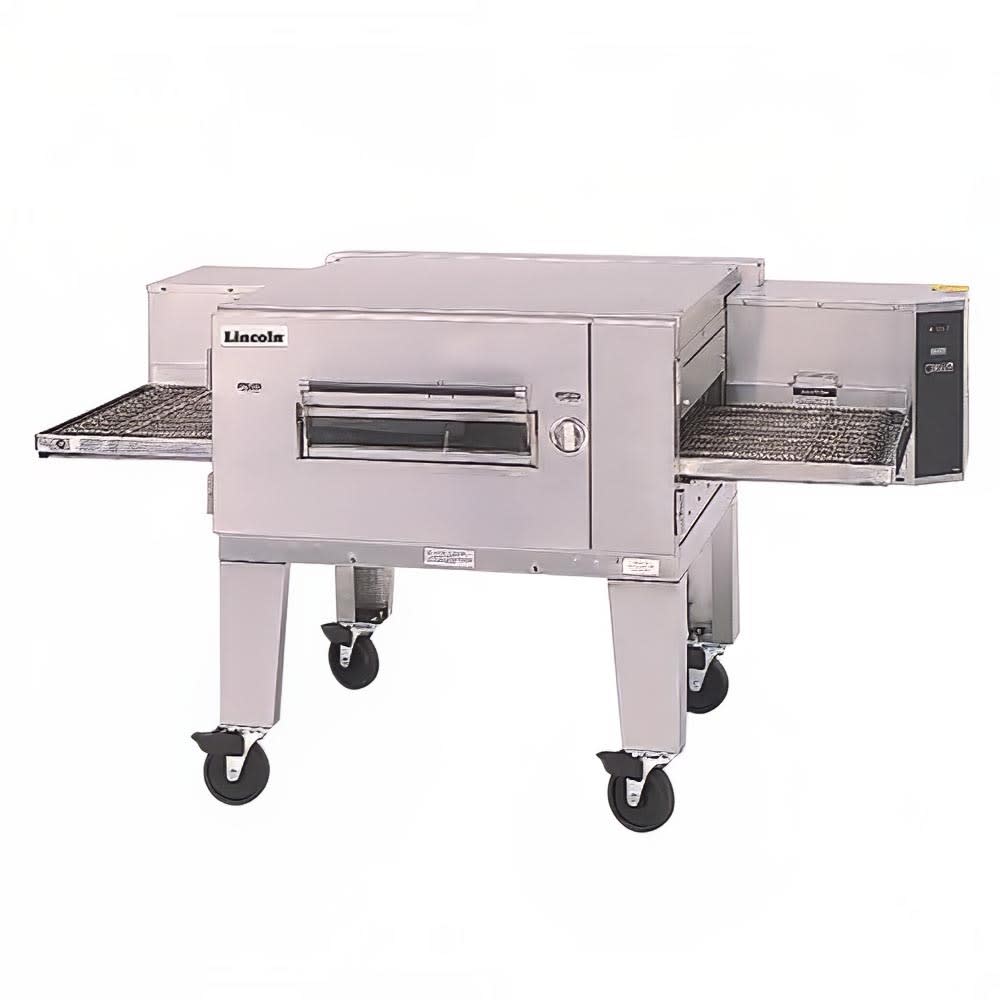

Lincoln 1600-000-U 80" Impinger Conveyor Oven - NG, 120v

Image may not depict product color, inclusions or accessories.

KaTom #: 054-1600000U • MPN: 1600-000-U
Ships Free

Extended Lead Time (14+ days)

(0 reviews)Write a Review
Price: $18,261.00
Login or call us for more info!

Image may not depict product color, inclusions or accessories.

Lincoln 1600-000-U Description


Using hot, pressurized air to heat products, the Lincoln 1600-000-U Impinger® II conveyer oven cooks, bakes, and crisps food quicker than most traditional ovens. It can cook food at temperatures from 250 to 600 degrees Fahrenheit for 1 to 30 minutes. Adjusting these settings is simple on the digital control system, which also includes conveyer speed adjustments. To prevent unauthorized setting changes, the control system can be locked. It is easy to load product into the Lincoln 1600-000-U Impinger II conveyer oven with itssince it has a front-loading access door with a stay-cool handle. Theis 32-inch conveyer can be removed and cleaned easily.

Product Details

  • Air impingement technology provides rapid heating through hot, pressurized air, quickly cooking, baking, and crisping products
  • Temperature range of 250- to 600 degrees F
  • Cook time ranges from 1 to -30 min.
  • Front-loading glass access door makes it easy provides ample space to load product into the 40-in. baking chamber
  • Stay-cool door handle keeps staff safe from burns
  • 32-in. conveyer is removable through the side for cleaning
  • Product stop keeps food on the conveyer at the end of the cooking process
  • Can be stacked with 1 other unit to maximize the use of floor spacethe footprint
  • Heated by natural gas
  • 110,000 BTU, 32.2 kW
  • 120 V/60 Hz/1 ph
  • Overall Dimensions: 80 in. W x 6012 in. D x 4418 in. H
  • CSA Gas-Fired listed; NSF certified

Digital Control System

  • Digital controls includes adjustable settings for the bake time and conveyer speed
  • Customer-specific setup increases the flexibility of your menu
  • Locking setting limits who can makeprevents unauthorized changes to the control system
  • Fluorescent display shows diagnostic messages, belt speed, temperature, and thermostat
  • On/Off switch simplifies operation

Lincoln Impinger® Low Profile™ Conveyor Pizza Oven, Natural Gas, single-deck, single conveyor belt, digital controls, adjustable temp 250°F to 600°F, adjustable conveyor speed from 1 min. to 30 min., 110,000 BTU, 120v/60/1-ph, 14.0 amps, NEMA 5-15P, cULus, CE, UL EPH Classified, CSA Flame, CSA Star

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Lincoln 1600-000-U Specifications

PDF Spec Sheet
Manufacturer Lincoln
Belt Length (in) 73
Belt Width (in) 32
Gas Type NG
Heat Gas
Stacking Options Single
Type Floor Model
Warranty 1 year standard warranty
Hertz 60
Voltage 120
Phase 1
Product Type Ovens
Product Impinger Oven
Weight 850.00
Lincoln 1600-000-U Certifications
  • UL
